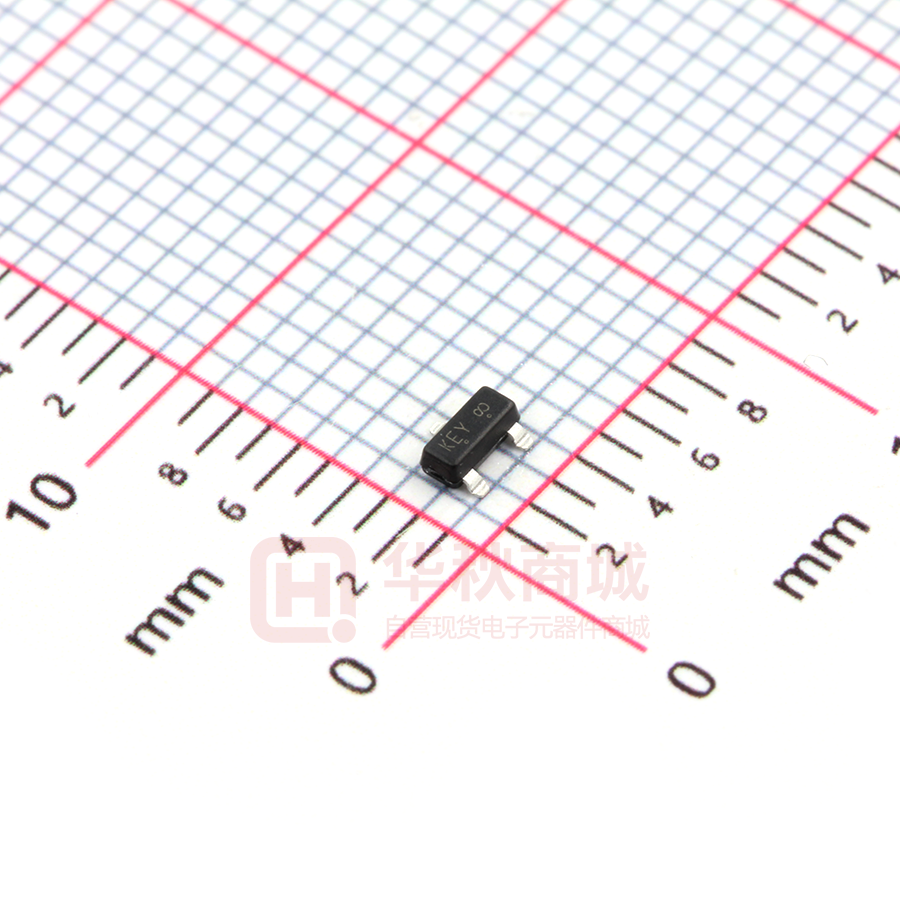

LH8050QLT1G

LESHAN RADIO COMPANY, LTD. General Purpose Transistors NPN Silicon FEATURE LH8050PLT1G Series S-LH8050PLT1G Series ƽHigh current capacity in compact package. IC =1.5A. 3 ƽEpitaxial planar type. ƽNPN complement: LH8050 ƽPb-Free Package is available. ƽS- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. 1 2 SOT–23 DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping (S-)LH8050PLT1G KEO 3000/Tape&Reel (S-)LH8050PLT3G KEO 10000/Tape&Reel (S-)LH8050QLT1G KEY 3000/Tape&Reel (S-)LH8050QLT3G KEY 10000/Tape&Reel COLLECTOR 3 1 BASE 2 EMITTER MAXIMUM RATINGS Rating Symbol Max Unit Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current-continuoun VCEO VCBO VEBO IC 50 50 6 1500 V V V mAdc Symbol Max Unit PD 225 mW T j , TS t g -55 to +150 °C THERMAL CHARACTERISTICS Characteristic Total Dissipation Power Junction and Storage Temperature Rev.B 1/4 LESHAN RADIO COMPANY, LTD. LH8050PLTIG Series , S-LH8050PLTIG Series ELECTRICAL CHARACTERISTICS (TA=25°C unless otherwise noted) Characteristic Symbol Min Typ Max Unit V(BR)CEO 50 – – V V(BR)EBO 6 – – V V(BR)CBO 50 – – V Collector Cutoff Current (VCB=35V,I E =0) ICBO – – 100 nA Emitter Cutoff Current (VEB=6V,I C=0) IEBO – – 100 nA Base-Emitter Voltage (VCE =1V,I C=10mA) VBE – 0.66 1 V hFE * 100 - 320 hFE 40 - - VCE(S) - - 0.5 Collector-Emitter Breakdown Voltage (IC=2.0mA,IB=0) Emitter-Base Breakdown Voltage (IE=100µΑ ,IC =0 ) Collector-Base Breakdown Voltage (IC=100µΑ ,I E =0 ) DC Current Gain IC=100mA,VCE=1V DC Current Gain IC=800mA,VCE=1V Collector-Emitter Saturation Voltage (IC=800mA IB=80mA) NOTE : * P hF E 100~200 V Q 160~320 Rev.B 2/4 LESHAN RADIO COMPANY, LTD. LH8050PLTIG Series , S-LH8050PLTIG Series Electrical Characteristic Curves (TA=25°C) Rev.B 3/4 LESHAN RADIO COMPANY, LTD. LH8050PLTIG Series , S-LH8050PLTIG Series SOT-23 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M,1982 2. CONTROLLING DIMENSION: INCH. A L 3 1 V 2 G C D INCHES DIM B S H K J MIN 0.1102 0.0472 0.0350 0.0150 0.0701 0.0005 0.0034 0.0140 0.0350 0.0830 0.0177 A B C D G H J K L S V MAX 0.1197 0.0551 0.0440 0.0200 0.0807 0.0040 0.0070 0.0285 0.0401 0.1039 0.0236 MILLIMETERS MIN 2.80 1.20 0.89 0.37 1.78 0.013 0.085 0.35 0.89 2.10 0.45 MAX 3.04 1.40 1.11 0.50 2.04 0.100 0.177 0.69 1.02 2.64 0.60 PIN 1. BASE 2. EMITTER 3. COLLECTOR 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 inches mm Rev.B 4/4
