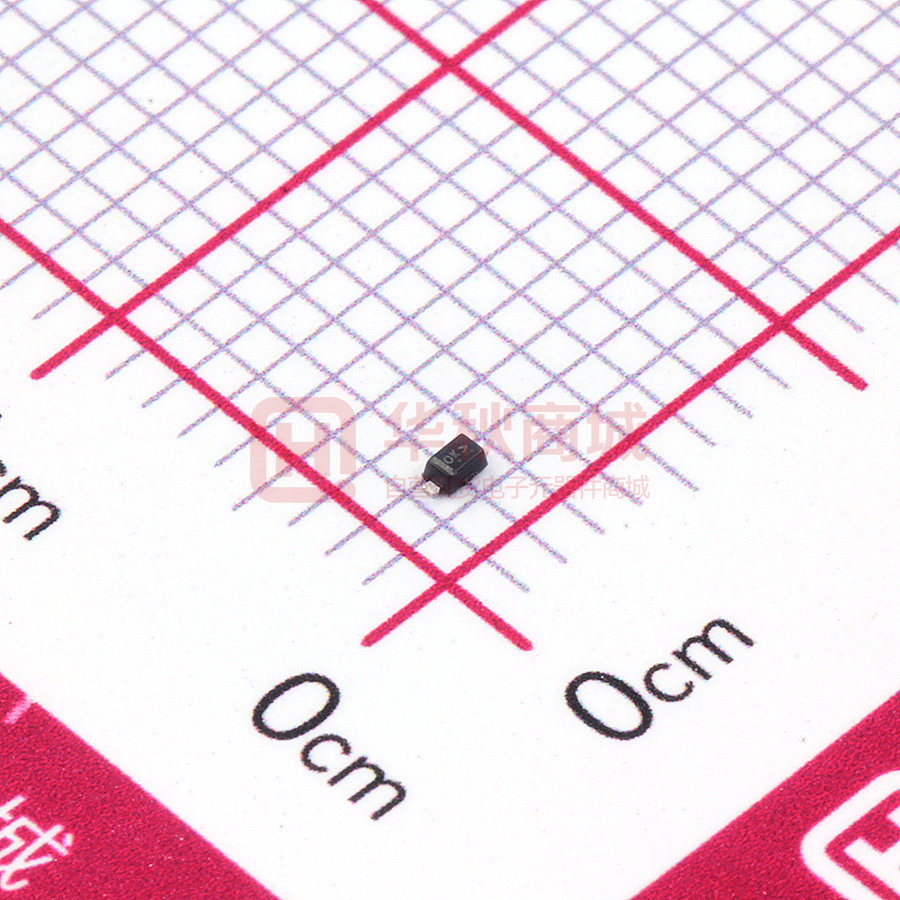

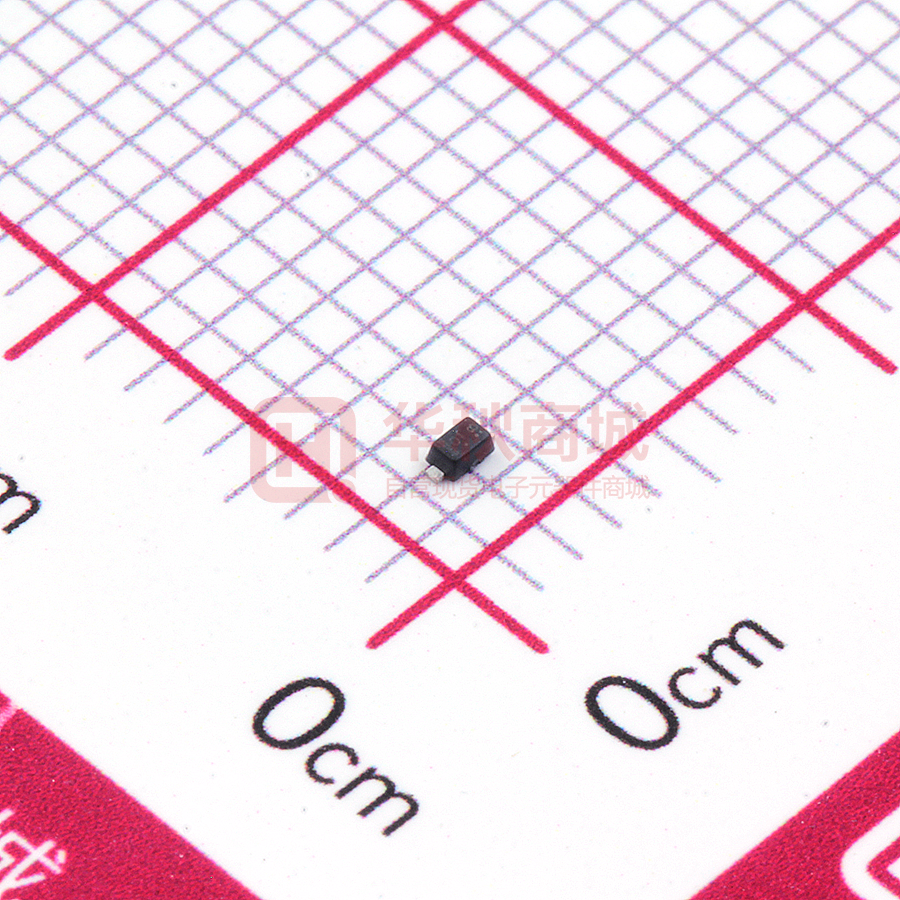

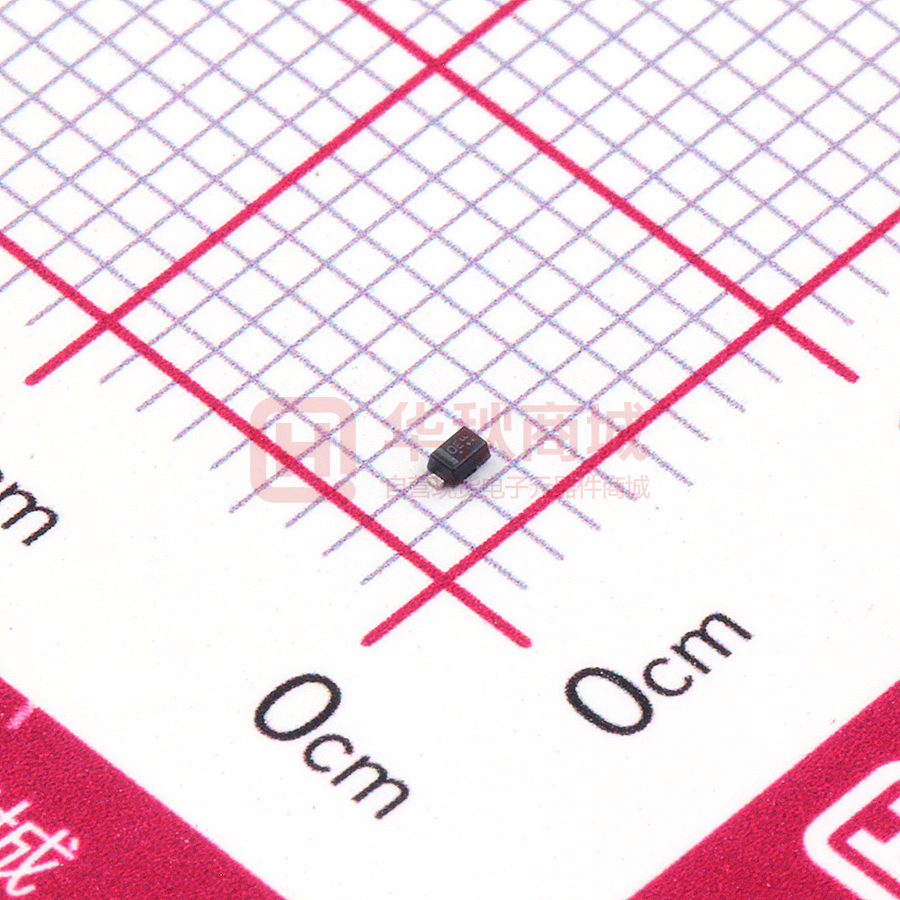

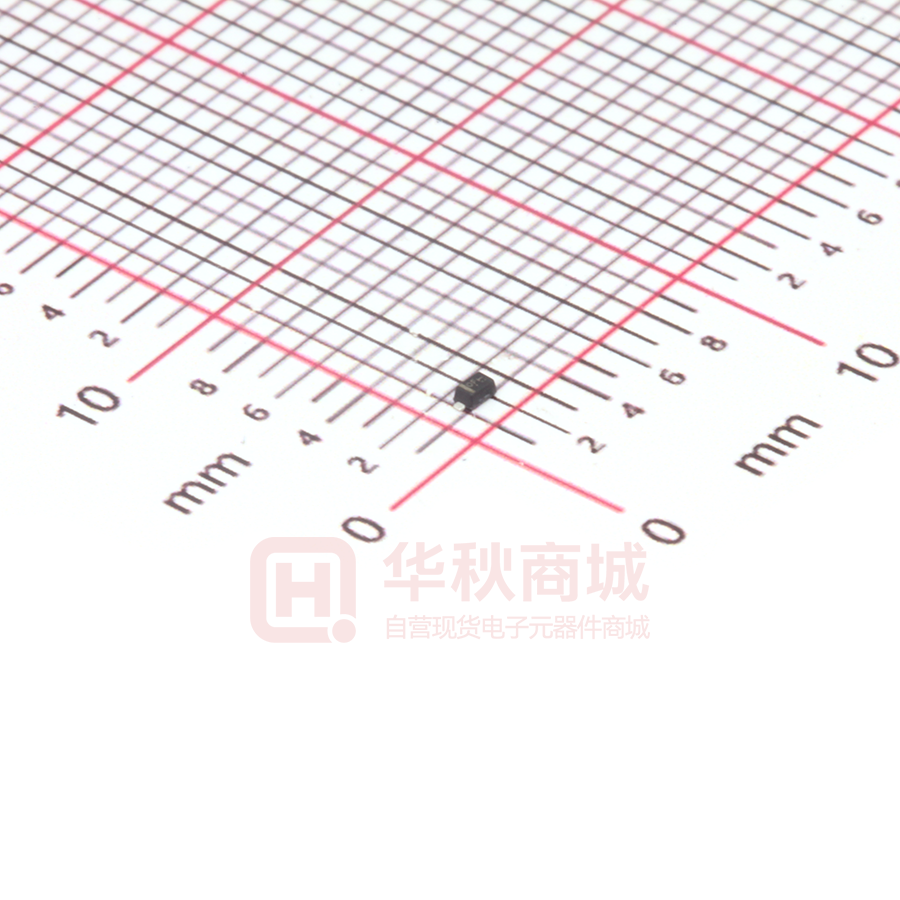

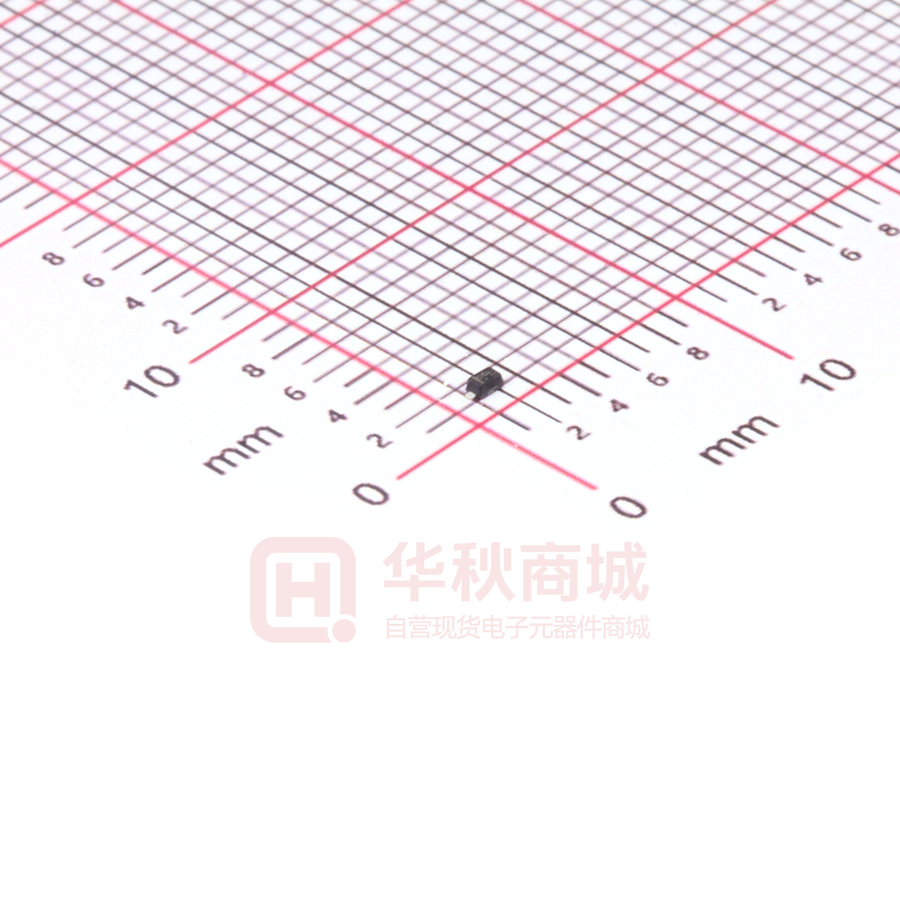

LM5Z9V1T1G

LESHAN RADIO COMPANY, LTD. Zener Voltage Regulators 200 mW SOD–523 Surface Mount ƽ We declare that the material of product compliance with RoHS requirements and Halogen Free. LM5Z2V0T1G Series S-LM5Z2V0T1G Series ORDERING INFORMATION 1 Device Package Shipping LM5Z2V0T1G Series SOD-523 3000/Tape&Reel LM5Z2V0T5G Series SOD-523 8000/Tape&Reel 2 This series of Zener diodes is packaged in a SOD–523 surface mount package.They SOD– 523 MARKING DIAGRAM xx Specification Features: • Standard Zener Breakdown Voltage Range – 2.0 V to 75 V • Steady State Power Rating of 200 mW • Small Body Outline Dimensions: 0.047" x 0.032"(1.20 mm x 0.80 mm) • Low Body Height: 0.028" (0.7 mm) • ESD Rating of Class 3 (>16 kV) per Human Body Model • S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. M are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards. x x = Specific Device Code M = Month Code 1 CATHODE 2 ANODE Mechanical Characteristics: CASE: Void-free, transfer-molded,thermosetting plastic Epoxy Meets UL 94 V-0 LEAD FINISH: 100% Matte Sn (Tin) QUALIFIED MAX REFLOW TEMPERATURE:260°C Device Meets MSL 1 Requirements MOUNTING POSITION: Any MAXIMUM RATINGS Rating Total Device Dissipation FR−5 Board, ° @ TA = 25°C Thermal Resistance Junction–to–Ambient Junction–to–Case Junction and Storage Temperature Range Symbol Max Unit PD 200 mW RΘJA 635 ºC/W RΘJC 350 ºC/W TJ, Tstg −65 to +150 °C Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected. Oct. 2020 Rev.D 1/6 LESHAN RADIO COMPANY, LTD. LM5Z2V0T1G Series , S-LM5Z2V0T1G Series ELECTRICAL CHARACTERISTICS I (TA = 25°C unless otherwise noted, VF = 0.9 V Max. @ IF = 10 mA for all types) Parameter Symbol VZ Reverse Zener Voltage @ IZT IZT Reverse Current ZZT Maximum Zener Impedance @ IZT IZK Reverse Current ZZK Maximum Zener Impedance @ IZK IR Reverse Leakage Current @ VR VR Reverse Voltage IF Forward Current VF Forward Voltage @ IF QVZ C Oct. 2020 IF VZ VR IR VF IZT V Zener Voltage Regulator Maximum Temperature Coefficient of VZ Max. Capacitance @VR = 0 and f = 1 MHz Rev.D 2/6 LESHAN RADIO COMPANY, LTD. LM5Z2V0T1G Series , S-LM5Z2V0T1G Series ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted, VF = 0.9 V Max. @ IF = 10 mA for all types) Zener Voltage (Note 1) Zener Impedance Leakage Current QVZ (mV/k) @ IZT C @ VR = 0 f = 1 MHz @ IZT ZZT @ IZT Max mA W W mA mA Volts Min Max pF 2.0 2.4 2.7 3.0 3.3 3.6 2.09 2.6 2.9 3.2 3.5 3.8 5 5 5 5 5 5 100 100 100 100 95 90 600 1000 1000 1000 1000 1000 1.0 1.0 1.0 1.0 1.0 1.0 150 50 20 10 5 5 1.0 1.0 1.0 1.0 1.0 1.0 –3.5 −3.5 −3.5 −3.5 −3.5 −3.5 0 0 0 0 0 0 450 450 450 450 450 450 3.7 4.0 4.4 4.8 5.2 3.9 4.3 4.7 5.1 5.6 4.1 4.6 5.0 5.4 6.0 5 5 5 5 5 90 90 80 60 40 1000 1000 800 500 400 1.0 1.0 1.0 1.0 1.0 3 3 3 2 1 1.0 1.0 2.0 2.0 2.0 −3.5 −3.5 −3.5 −2.7 −2.0 −2.5 0 0.2 1.2 2.5 450 450 260 225 200 0E 0F 0G 0H 0K 5.8 6.4 7.0 7.7 8.5 6.2 6.8 7.5 8.2 9.1 6.6 7.2 7.9 8.7 9.6 5 5 5 5 5 10 15 15 15 15 100 160 160 160 160 1.0 1.0 1.0 1.0 1.0 3 2 1 0.7 0.2 4.0 4.0 5.0 5.0 7.0 0.4 1.2 2.5 3.2 3.8 3.7 4.5 5.3 6.2 7.0 185 155 140 135 130 LM5Z10VT1G LM5Z11VT1G LM5Z12VT1G LM5Z13VT1G LM5Z15VT1G 0L 0M 0N 0P 0T 9.4 10.4 11.4 12.4 14.3 10 11 12 13.25 15 10.6 11.6 12.7 14.1 15.8 5 5 5 5 5 20 20 25 30 30 160 160 80 80 200 1.0 1.0 1.0 1.0 1.0 0.1 0.1 0.1 0.1 0.05 8.0 8.0 8.0 8.0 10.5 4.5 5.4 6.0 7.0 9.2 8.0 9.0 10 11 13 130 130 130 120 110 LM5Z16VT1G LM5Z18VT1G LM5Z20VT1G LM5Z22VT1G LM5Z24VT1G 0U 0W 0Z 10 11 15.3 16.8 18.8 20.8 22.8 16.2 18 20 22 24.2 17.1 19.1 21.2 23.3 25.6 2 2 2 2 2 40 45 55 55 70 200 225 225 250 120 1.0 1.0 1.0 1.0 1.0 0.05 0.05 0.05 0.05 0.05 11.2 12.6 14.0 15.4 16.8 10.4 12.4 14.4 16.4 18.4 14 16 18 20 22 105 100 85 85 80 LM5Z27VT1G LM5Z30VT1G LM5Z33VT1G LM5Z36VT1G LM5Z39VT1G 12 14 18 19 20 25.1 28 31 34 37 27 30 33 36 39 28.9 32 35 38 41 2 2 2 2 2 80 80 80 90 130 300 300 300 500 500 1.0 1.0 1.0 1.0 1.0 0.05 0.05 0.05 0.05 0.05 18.9 21.0 23.2 25.2 27.3 21.4 24.4 27.4 30.4 33.4 25.3 29.4 33.4 37.4 41.2 70 70 70 70 45 LM5Z43VT1G LM5Z47VT1G LM5Z51VT1G LM5Z56VT1G LM5Z62VT1G 21 1A 1C 1D 1E 40 44 48 52 58 43 47 51 56 62 46 50 54 60 66 2 2 2 2 2 150 170 180 200 215 500 500 500 500 500 1.0 1.0 1.0 1.0 1.0 0.05 0.05 0.05 0.05 0.05 30.1 32.9 35.7 39.2 43.4 37.6 42.0 46.6 52.2 58.8 46.6 51.8 57.2 63.8 71.6 40 40 40 40 35 LM5Z68VT1G LM5Z75VT1G 1F 1G 64 70 68 75 72 79 2 2 240 255 500 500 1.0 1.0 0.05 0.05 47.6 52.5 65.6 73.4 79.8 88.6 35 35 VZ (Volts) Device Device Marking Min Nom LM5Z2V0T1G LM5Z2V4T1G LM5Z2V7T1G LM5Z3V0T1G LM5Z3V3T1G LM5Z3V6T1G WY 00 01 02 05 06 1.91 2.2 2.5 2.8 3.1 3.4 LM5Z3V9T1G LM5Z4V3T1G LM5Z4V7T1G LM5Z5V1T1G LM5Z5V6T1G 07 08 09 0A 0C LM5Z6V2T1G LM5Z6V8T1G LM5Z7V5T1G LM5Z8V2T1G LM5Z9V1T1G ZZK @ IZK IR @ VR 1. Zener voltage is measured with a pulse test current IZ at an ambient temperature of 25°C. Oct. 2020 Rev.D 3/6 LESHAN RADIO COMPANY, LTD. LM5Z2V0T1G Series , S-LM5Z2V0T1G Series Typical Characteristics 1000 TJ = 25°C IZ(AC) = 0.1 IZ(DC) f = 1 kHz IF, FORWARD CURRENT (mA) Z ZT , DYNAMIC IMPEDANCE ( Ω) 1000 100 IZ = 1 mA 5 mA 10 100 150°C 10 75°C 3.0 10 VZ, NOMINAL ZENER VOLTAGE 80 0.4 Figure 1. Effect of Zener Voltage on Zener Impedance 0°C 0.5 0.6 0.7 0.8 0.9 1.0 VF, FORWARD VOLTAGE (V) 1.1 1.2 Figure 2. Typical Forward Voltage 1000 TA = 25°C 0 V BIAS 100 1 V BIAS BIAS AT 50% OF VZ NOM 10 IR, LEAKAGE CURRENT ( µ A) 1000 C, CAPACITANCE (pF) 25°C 1.0 1.0 100 10 1.0 +150°C 0.1 0.01 0.001 +25°C 0.0001 –55°C 0.00001 1.0 4.0 10 VZ, NOMINAL ZENER VOLTAGE (V) Figure 3. Typical Capacitance Oct. 2020 70 0 10 20 30 40 50 60 VZ, NOMINAL ZENER VOLTAGE (V) Figure 4. Typical Leakage Current Rev.D 4/6 70 LESHAN RADIO COMPANY, LTD. LM5Z2V0T1G Series , S-LM5Z2V0T1G Series Typical Characteristics 100 100 TA = 25°C IZ , ZENER CURRENT (mA) I Z , ZENER CURRENT (mA) TA = 25°C 10 1.0 0.1 0.01 10 1 0.1 0.01 0 2.0 4.0 6.0 8.0 VZ, ZENER VOLTAGE (V) 10 Figure 5. Zener Voltage versus Zener Current (VZ Up to 12 V) 12 10 30 50 70 VZ, ZENER VOLTAGE (V) 90 Figure 6. Zener Voltage versus Zener Current (12 V to 75 V) POWER DISSIPATION (%) 100 80 60 40 20 0 0 25 50 75 100 TEMPERATURE (°C) 125 150 Figure 7. Steady State Power Derating Oct. 2020 Rev.D 5/6 LESHAN RADIO COMPANY, LTD. LM5Z2V0T1G Series , S-LM5Z2V0T1G Series OUTLINE AND DIMENSIONS Notes: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. MILLIMETERS INCHES DIM MIN A 0.50 NOM MAX MIN NOM MAX 0.60 0.70 0.020 0.024 0.028 b 0.25 0.30 0.35 0.010 0.012 0.014 c 0.07 0.14 0.20 0.003 0.006 0.008 D 1.10 1.20 1.30 0.043 0.047 0.051 E HE 0.70 0.80 0.90 0.028 0.031 0.035 1.60 1.70 0.059 0.063 0.067 L L2 1.50 0.30 REF 0.15 0.20 0.012 REF 0.25 0.006 0.008 0.010 SOLDERING FOOTPRINT Oct. 2020 Rev.D 6/6 LESHAN RADIO COMPANY, LTD. DISCLAIMER ● Before you use our Products, you are requested to carefully read this document and fully understand its contents. LRC shall not be in any way responsible or liable for failure, malfunction or accident arising from the use of any LRC’s Products against warning, caution or note contained in this document. ● All information contained in this document is current as of the issuing date and subject to change without any prior notice. Before purchasing or using LRC's Products,please confirm the latest information with a LRC sales representative.
