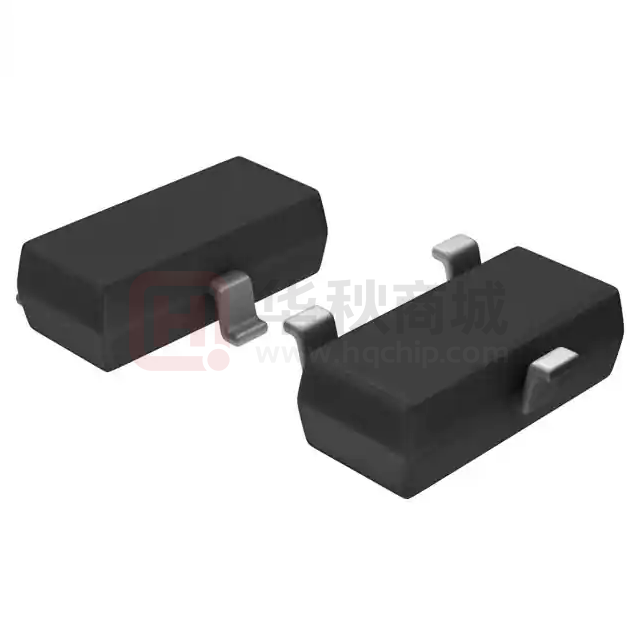

LMBD3004ALT1G S-LMBD3004ALT1G HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODE 1. FEATURES ● We declare that the material of product compliance with RoHS requirements and Halogen Free. ● S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 SOT23(TO-236) qualified and PPAP capable. ● Fast Switching Speed ● High Conductance ● High Reverse Breakdown Voltage Rating ANODE 3 2 1 CATHODE 2. DEVICE MARKING AND RESISTOR VALUES Device Marking Shipping LMBD3004ALT1G KAD 3000/Tape&Reel LMBD3004ALT3G KAD 10000/Tape&Reel CATHODE 3. MAXIMUM RATINGS(Ta = 25ºC) Parameter Peak Repetitive Reverse Voltage Symbol Working Peak Reverse Voltage VRWM VRRM DC Blocking Voltage VR RMS Reverse Voltage Forward Continuous Current (Note 1) Limits 350 350 V VR(RMS) IF 225 V mA IFRM 625 mA IFSM 4 A Repetitive Peak Forward Current (Note 1) 212 Unit Non-Repetitive Peak Forward Surge Current t=1μs t=1s 1 1. Part mounted on FR-4 board with recommended pad layout. 4. THERMAL CHARACTERISTICS Parameter Symbol Limits Unit Total Device Dissipation, FR−4 Board (Note 2) @ TA = 25ºC PD Derate above 25ºC Thermal Resistance, RΘJA 280 mW 2.24 mW/ºC 446 ºC/W Junction–to–Ambient(Note 2) Junction and Storage temperature TJ,Tstg −65∼+150 ºC 2. FR–4 = 30.0mm×25.0mm×1.6mm, thickness of copper film:50 µm. Leshan Radio Company, LTD. Rev.C Oct. 2020 1/4 LMBD3004ALT1G, S-LMBD3004ALT1G HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODE 5. ELECTRICAL CHARACTERISTICS (Ta= 25ºC) CHARACTERISTICS Reverse Breakdown Voltage(Note 3) (IR = 100 µA) Symbol Min Typ. Max Unit VBR 350 - - V - 0.78 0.87 - 0.93 1 - 1.03 1.25 - 30 100 nA - 35 100 µA CT - 1 5 pF Trr - - 50 nS Forward voltage(Note 3) (IF =20mA) (IF =100mA) VF (IF =200mA) V Reverse Current(Note 3) (VR=240V) (VR=240V,Tj=150℃) Total Capacitance (f=1MHz,VR =0) Reverse Recovery Time (IF=IR=30mA,Irr=3.0mA, RL =100Ω) IR 3. Short duration test pulse used to minimize self-heating effect. Leshan Radio Company, LTD. Rev.C Oct. 2020 2/4 LMBD3004ALT1G, S-LMBD3004ALT1G HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODE 6.ELECTRICAL CHARACTERISTICS CURVES 1 1.00E-04 150℃ 1.00E-05 150℃ 85℃ IR,Reverse Current(A) IF,Forward Current(A) 0.1 -55℃ 0.01 25 ℃ 85℃ 1.00E-06 1.00E-07 25℃ 1.00E-08 0.001 -55℃ 1.00E-09 0.0001 1.00E-10 0.2 0.4 0.6 0.8 1 VF,Forward Voltage(V) 1.2 1.4 IF vs. VF 0 100 200 300 VR,Reverse Voltage(V) 400 IR vs. VR 0.7 f=1MHz Ta=25℃ 0.65 CT,Capacitor(pF) 0.6 0.55 0.5 0.45 0.4 0.35 0.3 0 10 20 30 40 VR,Reverse Voltage(V) 50 CT vs. VR Leshan Radio Company, LTD. Rev.C Oct. 2020 3/4 LMBD3004ALT1G, S-LMBD3004ALT1G HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODE 7.OUTLINE AND DIMENSIONS Notes: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. MILLIMETERS INCHES DIM MIN A 0.89 NOM MAX MIN NOM MAX 0.04 0.044 1 1.11 0.035 A1 0.01 0.06 0.1 0.001 0.002 0.004 b 0.37 0.44 0.5 0.015 0.018 c 0.09 0.13 0.18 0.003 0.005 0.007 D 2.80 2.9 3.04 0.11 E 1.20 1.3 1.4 0.047 0.051 0.055 e 1.78 1.9 2.04 0.07 L 0.10 0.2 0.3 0.004 0.008 0.012 L1 HE 0.35 0.54 0.69 0.014 0.021 0.029 2.10 2.4 2.64 0.083 0.094 0.104 0° --- 10° θ 0° 0.114 0.02 0.12 0.075 0.081 --- 10° 8.SOLDERING FOOTPRINT Leshan Radio Company, LTD. Rev.C Oct. 2020 4/4 DISCLAIMER ● Before you use our Products, you are requested to carefully read this document and fully understand its contents. LRC shall not be in any way responsible or liable for failure, malfunction or accident arising from the use of any LRC’s Products against warning, caution or note contained in this document. ● All information contained in this document is current as of the issuing date and subject to change without any prior notice. Before purchasing or using LRC's Products,please confirm the latest information with a LRC sales representative.
