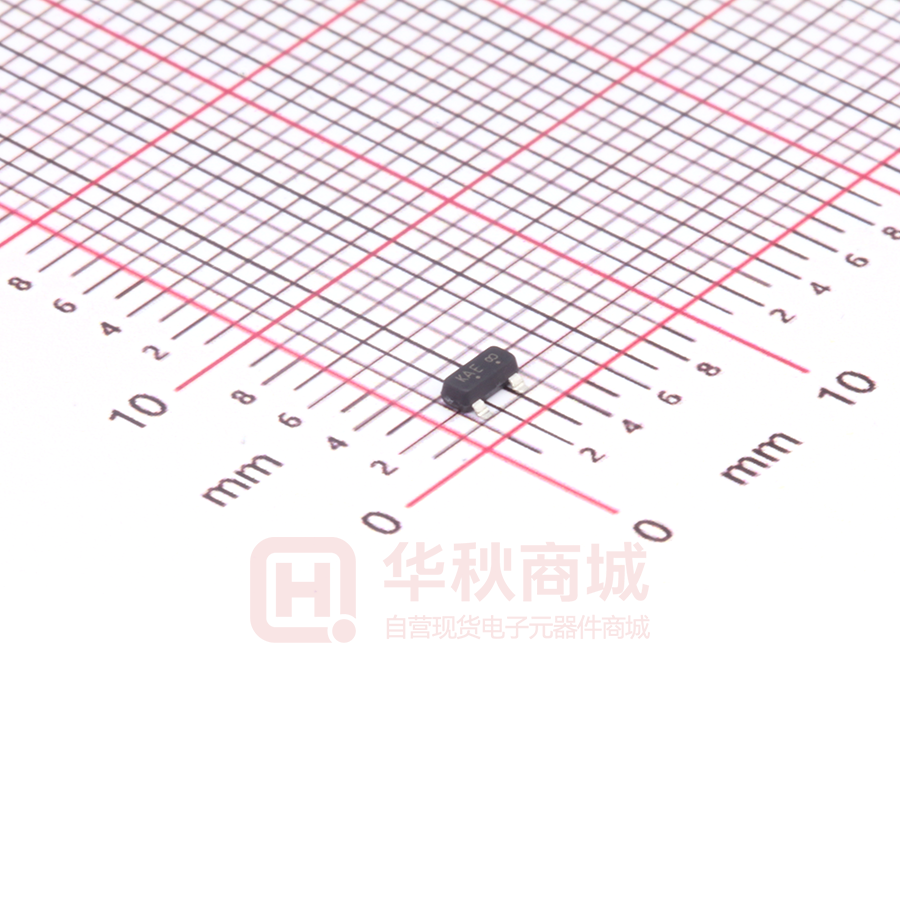

LMBD3004SLT1G

LESHAN RADIO COMPANY, LTD. HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODE FETURE ·Fast Switching Speed ·High Conductance ·High Reverse Breakdown Voltage Rating We declare that the material of product compliance with RoHS requirements. LMBD3004SLT1G 3 1 2 Ordering Information(Pb-free) Device LMBD3004SLT1G LMBD3004SLT3G Marking KAE KAE Shipping 3000/Tape&Reel 10000/Tape&Reel S OT –23 CAHODE/ANODE 3 1 ANODE 2 CATHODE Maximum Ratings @ TA=25℃ unless otherwise specified Characteristic Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current(Note 2) Peak Repetitive Forward Current(Note 2) Non-Repetitive Peak Forward Surge Current @t=1.0µs @t=1.0s Power Dissipation(Note 2) Thermal Resistance Junction to Ambient Air(Note 2) Operating and Storage Temperature Range Symbol VRRM VRWM VR VR(RMS) IF IFRM IFSM Pd R0JA Tj, TSTG LMC10114L 350 300 212 225 625 4.0 1.0 350 357 -65 to +150 Unit V V V mA mA A mW ℃/W ℃ Electrical Characteristics @ TA=25℃ unless otherwise specified, per element Characteristic Reverse Breakdown Voltage(Note 1) Symbol V(BR)R Min 350 0.78 Forward Voltage(Note 1) VF 0.93 1.03 Reverse Current(Note 1) Total Capacitance Reverse Recovery Time IR CT Trr 30 35 1.0 0.87 1.0 1.25 100 100 5.0 50 nA µA Pf ns V Typ MAX Unit V Test Condition IR=100µA IF=20mA IF=100mA IF=200mA VR=240V VR=240V, Tj=150℃ VR=0V, f=1.0MHZ IF=IR=30mA Irr=3.0mA, RL=100Ω Notes: 1. Short duration test pulse used to minimize self-heating effect. 2. Part mounted on FR-4 board with recommended pad layout. 1/3 LESHAN RADIO COMPANY, LTD. LMBD3004SLT1G 500 IF, INSTANTANEOUS FORWARD CURRENT (mA) 1000 Pd, POWER DISSIPATION (mW) 400 100 Tj = 150° C 300 10 Tj = 25° C 200 1.0 100 0.1 0 0 100 TA, AMBIENT TEMPERATURE, (°C) Fig. 1 Power Derating Curve, total package 0.01 0 400 800 1200 1600 2000 200 VF, INSTANTANEOUS FORWARD VOLTAGE (mV) Fig. 2 Typical Forward Characteristics, per element 1.1 1000 Tj = 150° C CT, TOTAL CAPACITANCE (pF) 100 10 1.0 Tj = 75° C 1.0 0.1 0.9 Tj = 25° C 0.8 0.01 0.001 0.7 0 50 100 150 200 250 300 350 0.01 0.1 1.0 10 100 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics, per element VR, REVERSE VOLTAGE (V) Fig. 4 Typical Total Capacitance vs. Reverse Voltage, per element 2/3 LESHAN RADIO COMPANY, LTD. LMBD3004SLT1G SOT-23 NOTES: A L 3 1 V G 2 BS DIM A B C D G H J K L S V MIN 0.1102 0.0472 0.0350 0.0150 0.0701 0.0005 0.0034 0.0140 0.0350 0.0830 0.0177 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M,1982 2. CONTROLLING DIMENSION: INCH. INCHES MAX 0.1197 0.0551 0.0440 0.0200 0.0807 0.0040 0.0070 0.0285 0.0401 0.1039 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 C D H K J PIN 1. BASE 2. EMITTER 3. COLLECTOR 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 inches mm 3/3 LESHAN RADIO COMPANY, LTD. EMBOSSED TAPE AND REEL DATA FOR DISCRETES T Max Outside Dimension Measured at Edge 13.0mm ± 0.5mm 1.5mm Min (.512 ±.002’’) (.06’’) A 20.2mm Min (.795’’) 50mm Min (1.969’’) Full Radius G Inside Dimension Measured Near Hub Size 8 mm A Max 330mm (12.992’’) G 8.4mm+1.5mm, -0.0 (.33’’+.059’’, -0.00) T Max 14.4mm (.56’’) Reel Dimensions Metric Dimensions Govern –– English are in parentheses for reference only Storage Conditions Temperature: 5 to 40 Deg.C (20 to 30 Deg. C is preferred) Humidity: 30 to 80 RH (40 to 60 is preferred ) Recommended Period: One year after manufacturing (This recommended period is for the soldering condition only. The characteristics and reliabilities of the products are not restricted to this limitation) LESHAN RADIO COMPANY, LTD. Shipment Specification CPN LABEL LABEL LABEL 10Reel/Inner Box 30KPCS/Inner Box Dim(Unit:mm) 195mm*195mm*150mm 10 Reel 3000PCS/Reel 8000PCS/Reel (SOT-723,SOD-723) 80KPCS/Inner Box (SOT-723,SOD-723) Dim(Unit:mm) 460mm*400mm*420mm LABEL MARK 乐山无线电股份有限公司 Leshan Radio Company,Ltd. 12 Inner Box/Carton 360KPCS/Carton 960KPCS/Carton (SOT-723,SOD-723)
