LMBR0520T1G

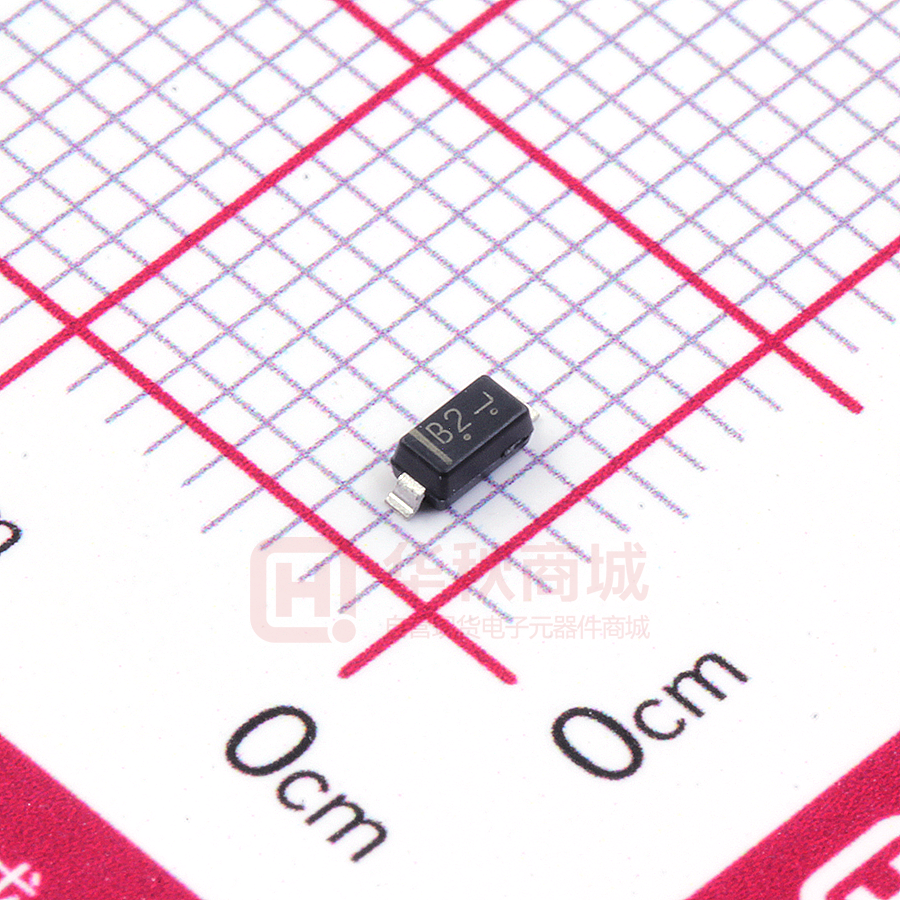

LESHAN RADIO COMPANY, LTD. Surface Mount Schottky Power Rectifier Pb-Free package is available LMBR0520T1G The Schottky Power Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop–reverse current tradeoff. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package provides an alternative to the leadless 34 MELF style package. These state–of–the–art devices have the following features: • Guardring for Stress Protection • Very Low Forward Voltage (0.38 V Max @ 0.5 A, 25°C) • 125°C Operating Junction Temperature • Epoxy Meets UL94, VO at 1/8″ • Package Designed for Optimal Automated Board Assembly SOD–123 Mechanical Characteristics • Reel Options: LMBR0520T1G = 3,000 per ″7 reel / 8 mm tape. Reel Options: LMBR0520T3G = 10,000 per ″ 13 reel / 8 mm tape. • Device Marking: B2 • Polarity Designator: Cathode Band • Weight: 11.7 mg (approximately) • Case: Epoxy, Molded • Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable • Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds MAXIMUM RATINGS Rating Symbol Value Unit Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage VRRM VRWM VR 20 Volts Average Rectified Forward Current (Rated VR) TL = 90°C IF(AV) 0.5 Amps Non–repetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60 Hz) IFSM 5.5 Amps Storage Temperature Tstg – 65 to +125 °C TJ – 65 to +125 °C dv/dt 1000 V/µs Thermal Resistance — Junction to Ambient (1) RθJA 340 °C/W Thermal Resistance — Junction to Lead RθJL 150 °C/W Operating Junction Temperature Voltage Rate of Change (Rated VR) THERMAL CHARACTERISTICS ELECTRICAL CHARACTERISTICS Maximum Instantaneous Forward Voltage (2) (iF = 0.1 Amps) (iF = 0.5 Amps) Maximum Instantaneous Reverse Current (2) (VR = 10 V) (Rated dc Voltage = 20 V) VF IR TJ = 25°C TJ = 100°C 0.300 0.385 0.220 0.330 TJ = 25°C TJ = 100°C 75 µA 250 µA 5 mA 8 mA Volts mA (1) FR–4 or FR–5 = 3.5 x 1.5 inches using the Motorola minimum recommended footprint. (2) Pulse Test: Pulse Width = 300 µs, Duty Cycle ≤ 2%. Rev.O 1/3 LESHAN RADIO COMPANY, LTD. 10,000 1 TJ = 100°C 75°C 25°C I R, REVERSE CURRENT ( µ A) IF, INSTANTANEOUS FORWARD CURRENT (AMPS) LMBR0520T1G – 25°C 0.1 0.01 0.1 0.2 0.3 0.4 VF , INSTANTANEOUS FORWARD VOLTAGE (VOLTS) TJ = 100°C 1000 75°C 100 0.5 0 5 Figure 1. Typical Forward Voltage I R, REVERSE CURRENT ( µ A) C, CAPACITANCE (pF) 100 150 100 50 5 0 10 15 20 VR, REVERSE VOLTAGE (VOLTS) 1 – 25°C 0.1 0.01 25 TJ = + 25°C 10 0 5 P F(AV), AVERAGE POWER DISSIPATION (WATT) 1 0.875 DC 0.75 0.625 IPK = π = SQUARE WAVE IAV 0.5 5 0.375 10 0.25 20 0.125 0 60 67 74 81 88 95 102 109 LEAD TEMPERATURE (°C) 116 Figure 5. Current Derating (Lead) 10 15 20 VR, REVERSE VOLTAGE (VOLTS) 25 Figure 4. Typical Reverse Current Figure 3. Typical Capacitance AVERAGE FORWARD CURRENT (AMP) 25 Figure 2. Typical Reverse Current 200 0 10 15 20 VR, REVERSE VOLTAGE (VOLTS) 123 130 0.35 0.315 TJ = 125°C 0.28 SQUARE WAVE 0.245 IPK IAV 0.21 0.175 + 20 10 5 DC π 0.14 0.105 0.07 0.035 0 0 0.5 0.625 0.75 0.875 0.125 0.25 0.375 IF(AV), AVERAGE FORWARD CURRENT (AMP) 1 Figure 6. Power Dissipation Rev.O 2/3 LESHAN RADIO COMPANY, LTD. LMBR0520T1G PACKAGE DIMENSIONS SOD–123 A ÂÂÂ ÂÂÂ C NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. H 1 K DIM A B C D E H J K B MILLIMETERS MIN MAX 1.40 1.80 2.55 2.85 0.95 1.35 0.50 0.70 0.25 ––– 0.00 0.10 ––– 0.15 3.55 3.85 E 2 D INCHES MIN MAX 0.055 0.071 0.100 0.112 0.037 0.053 0.020 0.028 0.004 ––– 0.000 0.004 ––– 0.006 0.140 0.152 STYLE 1: PIN 1. CATHODE 2. ANODE J RECOMMENDED FOOTPRINT FOR SOD–123 ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ 0.91 0.036 2.36 0.093 4.19 0.165 1.22 0.048 mm inches SOD–123 Rev.O 3/3
