LMBR0530FT1G

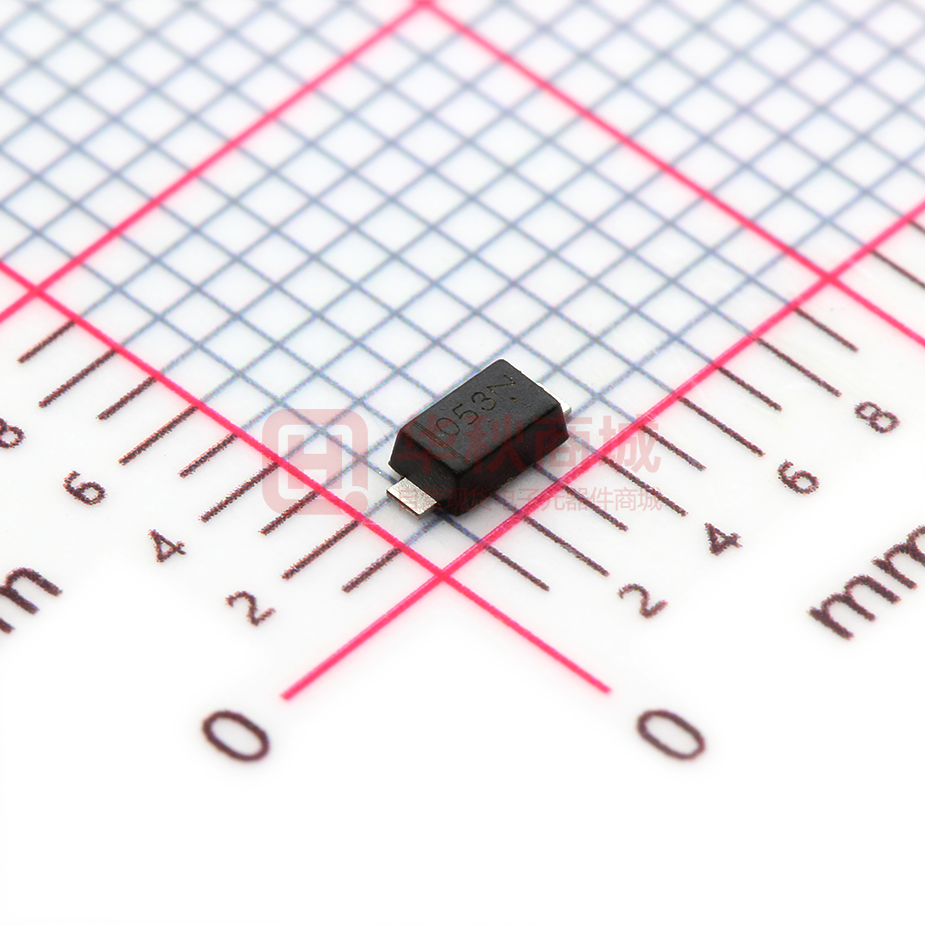

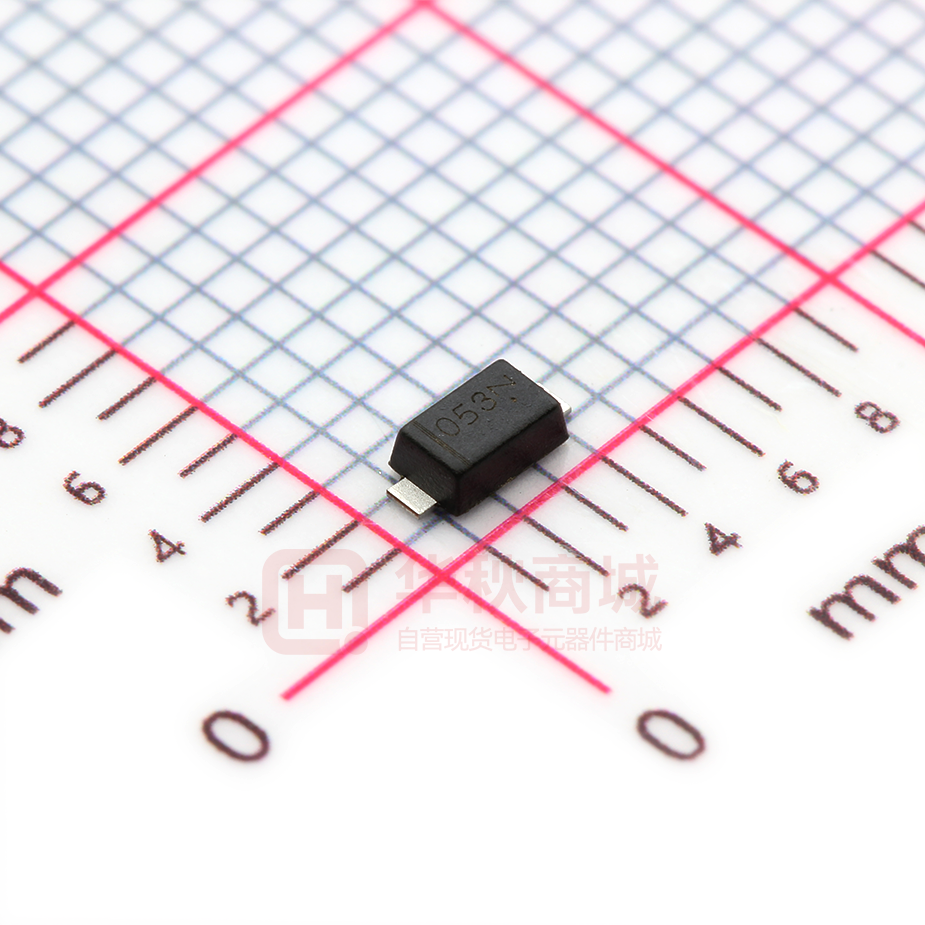

LESHAN RADIO COMPANY, LTD. Surface Mount Schottky Power Rectifier Pb-Free package is available LMBR0530T1G The LMBR0530T1G uses the Schottky Barrier principle with a large area metal−to−silicon power diode. Ideally suited for low voltage, high frequency rectification or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package also provides an easy to work with alternative to leadless 34 package style. These state−of−the−art devices have the following features: Features • • • • • • Guardring for Stress Protection Low Forward Voltage 125°C Operating Junction Temperature Epoxy Meets UL 94, V−0 @ 0.125 in Package Designed for Optimal Automated Board Assembly Pb−Free Packages are Available SOD–123 Mechanical Characteristics • Reel Options: LMBR0530T1G = 3,000 per 7 in reel/8 mm tape • • • • • • Reel Options: LMBR0530T3G = 10,000 per 13 in reel/8 mm tape Device Marking:B3 Polarity Designator: Cathode Band Weight: 11.7 mg (approximately) Case: Epoxy, Molded Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds ORDERING INFORMATION Package Shipping † LMBR0530T1G SOD−123 (Pb−Free) 3000/Tape & Reel LMBR0530T3G SOD−123 (Pb−Free) 10,000/Tape & Reel Device MAXIMUM RATINGS Symbol Value Unit Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Rating VRRM VRWM VR 30 V Average Rectified Forward Current (Rated VR, TL = 100°C) IF(AV) 0.5 A Non−Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz) IFSM 5.5 A Storage Temperature Range Tstg −65 to +150 °C TJ −65 to +125 °C 1000 V/ms > 400 > 8000 V Operating Junction Temperature Voltage Rate of Change (Rated VR) ESD Rating: Machine Model = C Human Body Model = 3B dv/dt Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. Rev.O 1/4 LESHAN RADIO COMPANY, LTD. LMBR0530T1G THERMAL CHARACTERISTICS Rating Symbol Value Unit Thermal Resistance − Junction−to−Ambient (Note 1) RqJA 206 °C/W Thermal Resistance − Junction−to−Lead RqJL 150 °C/W ELECTRICAL CHARACTERISTICS Minimum Reverse Breakdown Voltage (iR = 130 mA) m v(BR)R Maximum Instantaneous Forward Voltage (Note 2) (iF = 0.1 Amps, TJ = 25°C) (iF = 0.5 Amps, TJ = 25°C) vF Maximum Instantaneous Reverse Current (Note 2) (Rated DC Voltage, TC = 25°C) (VR = 15 V, TC = 25°C) IR V 30 V 0.375 0.45 mA m 130 20 104 TJ = 125°C 75°C 25°C I R, REVERSE CURRENT (A) μ 1 −40 °C 0.1 TJ = 125°C 1000 100 75°C 10 25°C 1 0.01 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 0 0.55 5 10 15 20 25 30 vF, INSTANTANEOUS VOLTAGE (VOLTS) VR, REVERSE VOLTAGE (VOLTS) Figure 1. Typical Forward Voltage Figure 2. Typical Reverse Current 35 180 160 C, CAPACITANCE (pF) iF, INSTANTANEOUS FORWARD CURRENT (AMPS) 1. 1 inch square pad size (1 x 0.5 inch for each lead) on FR4 board. 2. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2%. TYPICAL CAPACITANCE AT 0 V = 170 pF 140 120 100 80 60 40 20 0 5 10 15 20 25 30 VR, REVERSE VOLTAGE (VOLTS) Figure 3. Typical Capacitance Rev.O 2/4 40 LESHAN RADIO COMPANY, LTD. LMBR0530T1G 0.875 P F(AV), AVERAGE POWER DISSIPATION (WATT) AVERAGE FORWARD CURRENT (AMP) 1 DC 0.75 0.625 SQUARE WAVE 0.5 =p 0.375 =5 0.25 = 10 0.125 Ipk/Iav = 20 0 60 67 74 81 88 95 102 109 116 123 130 0.35 0.315 TJ = 125°C SQUARE WAVE 0.28 DC =p 0.245 =5 = 10 0.21 Ipk/Iav = 20 0.175 0.14 0.105 0.07 0.035 0 0 0.1 0.2 0.3 0.4 0.5 0.6 LEAD TEMPERATURE (°C) IF(AV), AVERAGE FORWARD CURRENT (AMP) Figure 4. Current Derating (Lead) Figure 5. Power Dissipation 0.7 Rev.O 3/4 0.8 LESHAN RADIO COMPANY, LTD. LMBR0530T1G PACKAGE DIMENSIONS SOD–123 A ÂÂÂ ÂÂÂ C NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. H 1 K DIM A B C D E H J K B MILLIMETERS MIN MAX 1.40 1.80 2.55 2.85 0.95 1.35 0.50 0.70 0.25 ––– 0.00 0.10 ––– 0.15 3.55 3.85 E 2 D INCHES MIN MAX 0.055 0.071 0.100 0.112 0.037 0.053 0.020 0.028 0.004 ––– 0.000 0.004 ––– 0.006 0.140 0.152 STYLE 1: PIN 1. CATHODE 2. ANODE J RECOMMENDED FOOTPRINT FOR SOD–123 ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ 0.91 0.036 2.36 0.093 4.19 0.165 1.22 0.048 mm inches SOD–123 Rev.O 4/4
