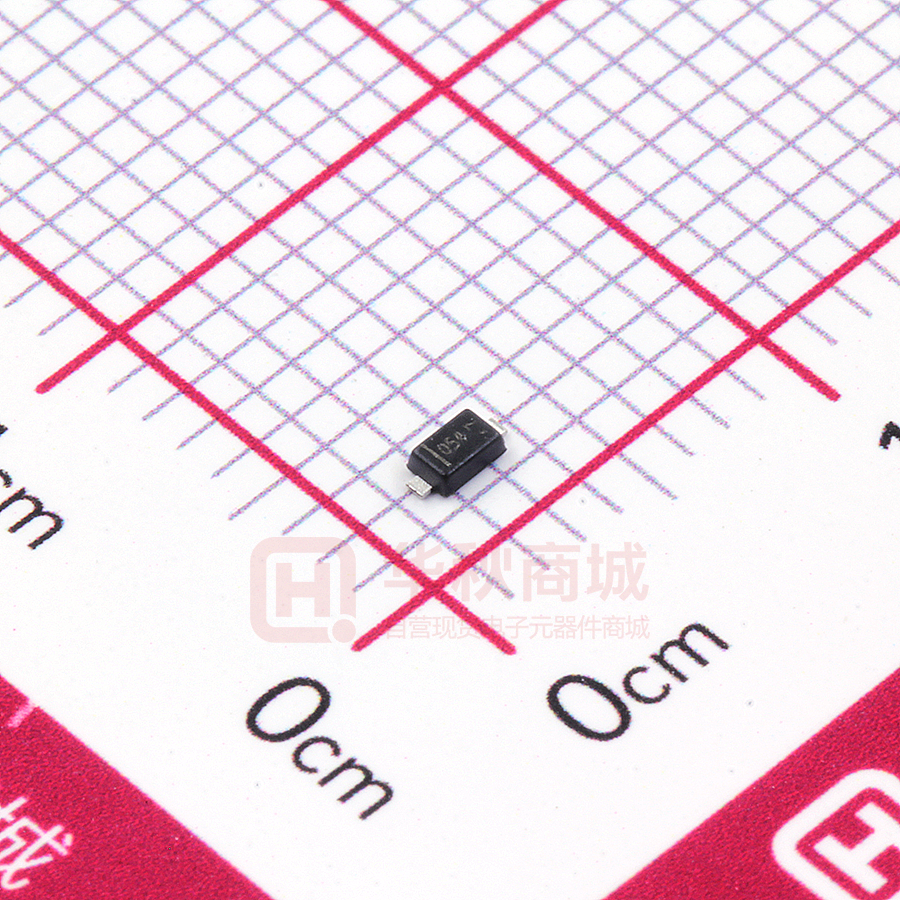

LMBR0540ET1G

LMBR0540ET1G

  • 厂商:

    LRC(乐山无线电)

  • 封装:

    SOD323HE

  • 描述:

    肖特基二极管

  • 数据手册
  • 价格&库存
LMBR0540ET1G 数据手册
LMBR0540ET1G S-LMBR0540ET1G 2 2 Schottky Barrier Rectifiers 1 1. FEATURES ● 1 We declare that the material of product compliance with SOD323HE RoHS requirements and Halogen Free. ● S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. ● Low power loss,high efficiency. ● For use in low voltage high frequency inverters,free wheeling,and polarity protection applications. ● Guardring for over voltage protection. ● High temperature soldering guaranteed:260°C/10 seconds at terminals. 2. DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping LMBR0540ET1G S-LMBR0540ET1G 054 054 3000/Tape&Reel 3000/Tape&Reel 3. MAXIMUM RATINGS(Ta = 25ºC) Parameter Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TC = 75°C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Typical thermal resistance (Note 1) Operating junction temperature range storage temperature range Symbol VRRM Limits VRMS 40 Unit V 28 V VDC 40 V IF(AV) 0.5 A IFSM 22 A RθJA 210 RθJL TJ 70 –55 ~ +125 TSTG –55 ~ +150 ℃/W ℃ ℃ Note: 1. 8.0mm²(.013mm thick) land areas 4. ELECTRICAL CHARACTERISTICS (Ta= 25ºC) Symbol Characteristic Maximum instantaneous forward voltage (IF =0.5 A, TJ = 25°C) VF Min. Typ. Max. - - 0.55 - 40 0.03 10 - Unit V Maximum DC reverse current at rated DC blocking voltage TA = 25°C IR TJ = 100°C Typical junction capacitance at 4.0V, 1MHz Leshan Radio Company, LTD. CJ Rev.O Dec. 2016 mA pF 1/3 LMBR0540ET1G,S-LMBR0540ET1G Schottky Barrier Rectifiers 5.ELECTRICAL CHARACTERISTICS CURVES 1.0E-02 1 125℃ 1.0E-03 0.1 IR,Reverse Current (A) IF,Forward Current (A) 125℃ 85℃ 25℃ 0.01 -55℃ 0.001 1.0E-04 85℃ 1.0E-05 1.0E-06 25℃ 1.0E-07 1.0E-08 -55℃ 1.0E-09 0.0001 1.0E-10 0 0.2 0.4 VF,Forward Voltage (V) 0.6 IF vs. VF 0 10 20 30 VR,Reverse Voltage (V) 40 IR vs. VR 160 f=1MHz Ta=25℃ 140 Capacitance (pF) 120 100 80 60 40 20 0 0 10 20 30 VR,Reverse Voltage (V) 40 Capacitance Leshan Radio Company, LTD. Rev.O Dec. 2016 2/3 LMBR0540ET1G,S-LMBR0540ET1G Schottky Barrier Rectifiers 6.OUTLINE AND DIMENSIONS SOD323HE MIN MAX Typ. DIM A 2.30 2.70 2.55 B 1.20 1.35 1.25 C 1.75 1.95 1.90 D - - 0.30 E 0.55 0.75 0.67 F 0.10 0.20 0.15 G 0.45 0.65 0.50 I 0.40 0.70 0.50 J 1.15 1.55 1.40 K - - 0.80 All Dimensions in mm 7.SOLDERING FOOTPRINT RECOMMENDED PAD COMPATIBLE PAD SOD323HE DIM (mm) A 1.1 B 2.0 C 1.9 D 0.8 E 1.0 Leshan Radio Company, LTD. SOD323HE Rev.O Dec. 2016 DIM (mm) D 1.0 E 0.8 C 2.4 3/3 DISCLAIMER ● Before you use our Products, you are requested to carefully read this document and fully understand its contents. LRC shall not be in any way responsible or liable for failure, malfunction or accident arising from the use of any LRC’s Products against warning, caution or note contained in this document. ● All information contained in this document is current as of the issuing date and subject to change without any prior notice. Before purchasing or using LRC's Products,please confirm the latest information with a LRC sales representative.
