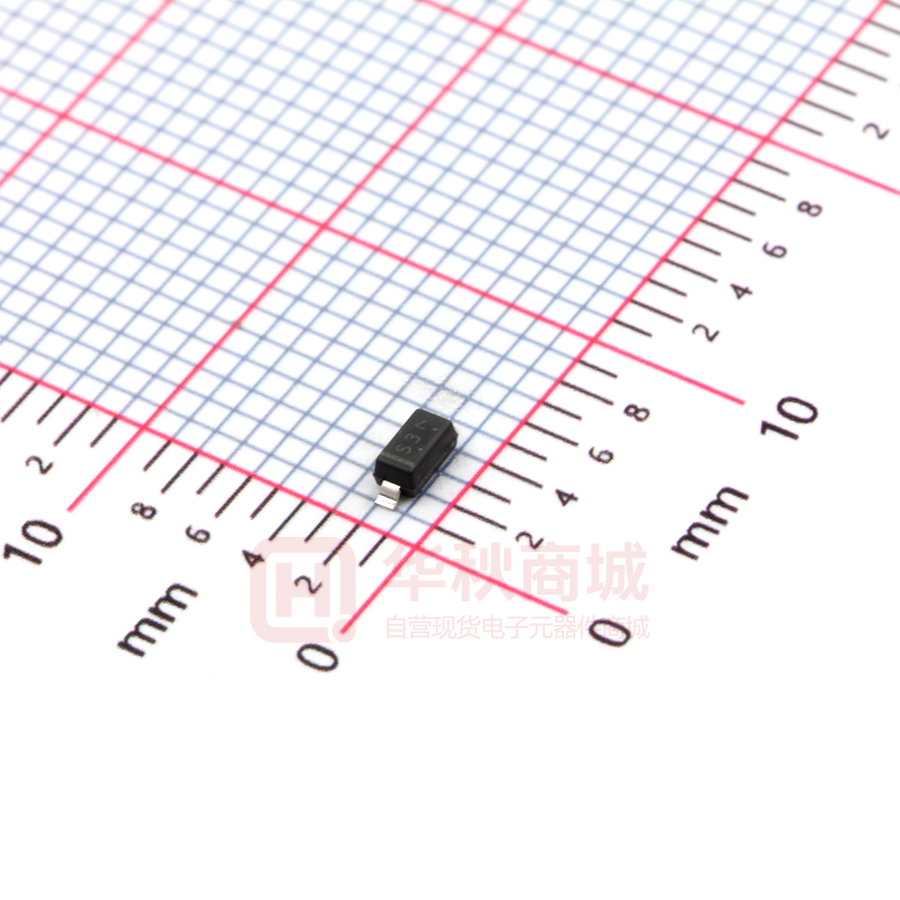

LMBR130T1G

LESHAN RADIO COMPANY, LTD. Surface Mount Schottky Power Rectifier Pb-Free package is available LMBR130T1G This device uses the Schottky Barrier principle with a large area metal−to−silicon power diode. Ideally suited for low voltage, high frequency rectification or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package also provides an easy to work with alternative to leadless 34 package style. Features • • • • • • • Guardring for Stress Protection Low Forward Voltage 125°C Operating Junction Temperature Epoxy Meets UL 94 V−0 @ 0.125 in Package Designed for Optimal Automated Board Assembly ESD Ratings: Machine Model, C; Human Body Model, 3 Pb−Free Packages are Available Mechanical Characteristics • Reel Options: LMBR130T1G = 3,000 per 7 in reel/8 mm tape • • • • • • LMBR130T3G = 10,000 per 13 in reel/8 mm tape Device Marking: S3 Polarity Designator: Cathode Band Weight: 11.7 mg (approximately) Case: Epoxy, Molded Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds SOD–123 ORDERING INFORMATION Package Shipping † LMBR130T1G SOD−123 (Pb−Free) 3000/Tape & Reel LMBR130T3G SOD−123 (Pb−Free) 10,000/Tape & Reel Device Rev.O 1/4 LESHAN RADIO COMPANY, LTD. LMBR130T1G MAXIMUM RATINGS Rating Symbol Value Unit Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage VRRM VRWM VR 30 V Average Rectified Forward Current (Rated VR) TL = 65°C IF(AV) Non−Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions, Halfwave, Single Phase, 60 Hz) IFSM 5.5 A Storage Temperature Range Tstg −65 to +125 °C Operating Junction Temperature TJ −65 to +125 °C dv/dt 1000 V/ms Symbol Value Unit RθJA 230 °C/W Voltage Rate of Change (Rated VR) A 1.0 THERMAL CHARACTERISTICS Characteristic Thermal Resistance, Junction to Ambient (Note 1) Thermal Resistance, Junction to Lead (Note 1) RθJL 108 °C/W Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected. 1. FR−4 or FR−5 = 3.5 × 1.5 inches using a 1 inch Cu pad. ELECTRICAL CHARACTERISTICS Characteristic Symbol Reverse Breakdown Voltage (IR = 500 mA) VBR Maximum Instantaneous Forward Voltage (Note 2) (IF = 0.1 A, TJ = 25°C) (IF = 0.7 A, TJ = 25°C) (IF = 1.0 A, TJ = 25°C) ° VF Maximum Instantaneous Reverse Current (Note 2) (Rated DC Voltage, TC = 25°C) (VR = 5 V, TC = 25°C) IR Typ Max Unit V 30 − − − 0.47 0.35 0.45 − V mA 60 10 2. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2%. Rev.O 2/4 LESHAN RADIO COMPANY, LTD. LMBR130T1G 10 IF, INSTANTANEOUS FORWARD CURRENT (AMPS) IF, INSTANTANEOUS FORWARD CURRENT (AMPS) 10 1 TJ = 125°C 75°C 0.1 0.2 0.25 0.3 0.35 25°C 0.4 0.45 0.5 0.55 0.6 1 TJ = 125°C 75°C 0.1 0.65 0.2 0.25 VF, INSTANTANEOUS FORWARD VOLTAGE (VOLTS) 0.4 0.45 0.5 0.55 0.6 0.65 Figure 2. Typical Forward Voltage 0.01 200 TJ = 125°C 180 0.001 C, CAPACITANCE (pF) IR, REVERSE CURRENT (AMPS) 0.35 VF, INSTANTANEOUS FORWARD VOLTAGE (VOLTS) Figure 1. Maximum Forward Voltage 75°C 0.0001 0.00001 25°C 0.000001 160 140 120 100 80 60 40 20 0.0000001 0 5 10 15 20 25 VR, REVERSE VOLTAGE (VOLTS) 30 0 0 Figure 3. Typical Reverse Current 1.8 1.6 dc 1.4 RATED VOLTAGE APPLIED 1.2 SQUARE WAVE 1 0.8 0.6 0.4 0.2 0 0 20 40 60 80 100 TL, LEAD TEMPERATURE (°C) 120 Figure 5. Current Derating, Lead, RqJL = 1085C/W 5 10 15 20 25 30 VR, REVERSE VOLTAGE (VOLTS) 35 Figure 4. Typical Capacitance PF(AV), AVERAGE FORWARD POWER DISSIPATION (WATTS) IF(AV), AVERAGE FORWARD CURRENT (AMPS) 0.3 25°C 0.9 0.8 0.7 SQUARE WAVE 0.6 dc 0.5 0.4 0.3 0.2 0.1 0 0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 IF(AV), AVERAGE FORWARD CURRENT (AMPS) Figure 6. Forward Power Dissipation Rev.O 3/4 LESHAN RADIO COMPANY, LTD. LMBR130T1G PACKAGE DIMENSIONS SOD–123 A ÂÂÂ ÂÂÂ C NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. H 1 K DIM A B C D E H J K B MILLIMETERS MIN MAX 1.40 1.80 2.55 2.85 0.95 1.35 0.50 0.70 0.25 ––– 0.00 0.10 ––– 0.15 3.55 3.85 E 2 D INCHES MIN MAX 0.055 0.071 0.100 0.112 0.037 0.053 0.020 0.028 0.004 ––– 0.000 0.004 ––– 0.006 0.140 0.152 STYLE 1: PIN 1. CATHODE 2. ANODE J RECOMMENDED FOOTPRINT FOR SOD–123 ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ 0.91 0.036 2.36 0.093 4.19 0.165 1.22 0.048 mm inches SOD–123 Rev.O 4/4
