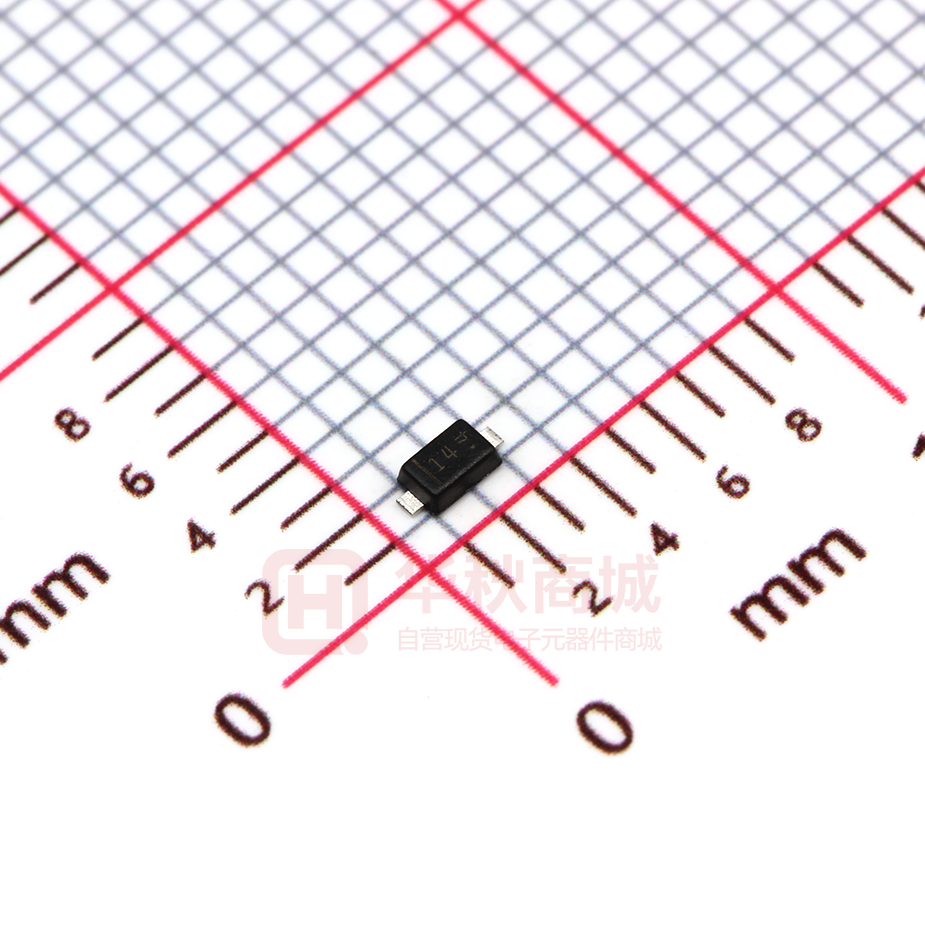

LMBR140ET1G

LMBR140ET1G S-LMBR140ET1G 2 2 Schottky Barrier Diode 1 1. FEATURES ● We declare that the material of product compliance with 1 RoHS requirements and Halogen Free. ● SOD323HE S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. ● Low power loss,high efficiency. ● For use in low voltage high frequency inverters,free wheeling,and polarity protection applications. ● Guardring for over voltage protection. ● High temperature soldering guaranteed:260°C/10 seconds at terminals. 2. DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping LMBR140ET1G S-LMBR140ET1G 14 14 3000/Tape&Reel 3000/Tape&Reel 3. MAXIMUM RATINGS(Ta = 25ºC) Parameter Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TC = 75°C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Typical thermal resistance (Note 1) Operating junction temperature range storage temperature range Symbol VRRM Limits VRMS 40 Unit V 28 V VDC 40 V IF(AV) 1 A IFSM 22 A RθJA 210 RθJL TJ 70 –55 ~ +150 TSTG –55 ~ +150 ℃/W ℃ ℃ Note: 1. 8.0mm²(.013mm thick) land areas Leshan Radio Company, LTD. Rev.A Apr. 2017 1/4 LMBR140ET1G,S-LMBR140ET1G Schottky Barrier Diode 4. ELECTRICAL CHARACTERISTICS (Ta= 25ºC) Characteristic Symbol Min. Typ. Max. Unit VF - - 0.48 0.55 V IR - 5 2.5 50 30 10 - uA mA pF Maximum instantaneous forward (IF =0.7 A, TJ = 25°C) (IF = 1.0 A, TJ = 25°C) Maximum DC reverse current at rated DC blocking voltage TA = 25°C TJ = 125°C Typical junction capacitance at 4.0V, 1MHz Leshan Radio Company, LTD. CJ Rev.A Apr. 2017 2/4 LMBR140ET1G,S-LMBR140ET1G Schottky Barrier Diode 5.ELECTRICAL CHARACTERISTICS CURVES 100 1.E-01 150℃ 10 1.E-03 150℃ IR,Reverse Current (A) IF,Forward Current (A) 1.E-02 1 -55℃ 25℃ 0.1 85℃ 1.E-04 25℃ 1.E-05 1.E-06 1.E-07 -55℃ 1.E-08 85℃ 1.E-09 0.01 1.E-10 0.0 0.4 0.8 1.2 1.6 0 15 30 VR,Reverse Voltage (V) VF,Forward Voltage (V) IF vs. VF IR vs. VR 1E-02 180 160 f=1.0MHz Ta=25℃ 140 125℃ 1E-03 120 IR(A) Capacitance (pF) 45 100 1E-04 80 1E-05 60 25℃ 40 1E-06 20 0 0 10 20 30 VR,Reverse Voltage (V) 40 1E-07 Capacitance Leshan Radio Company, LTD. 0 10 20 30 VR(V) 40 50 IR vs. VR Rev.A Apr. 2017 3/4 LMBR140ET1G,S-LMBR140ET1G Schottky Barrier Diode 6.OUTLINE AND DIMENSIONS SOD323HE MIN MAX Typ. DIM A 2.30 2.70 2.55 B 1.20 1.35 1.25 C 1.75 1.95 1.90 D - - 0.30 E 0.55 0.75 0.67 F 0.10 0.20 0.15 G 0.45 0.65 0.50 I 0.40 0.70 0.50 J 1.15 1.55 1.40 K - - 0.80 All Dimensions in mm 7.SOLDERING FOOTPRINT RECOMMENDED PAD COMPATIBLE PAD SOD323HE SOD323HE DIM (mm) DIM (mm) A 1.1 D 1.0 B 2.0 E 0.8 C 1.9 C 2.4 D 0.8 E 1.0 Leshan Radio Company, LTD. Rev.A Apr. 2017 4/4 DISCLAIMER ● Before you use our Products, you are requested to carefully read this document and fully understand its contents. LRC shall not be in any way responsible or liable for failure, malfunction or accident arising from the use of any LRC’s Products against warning, caution or note contained in this document. ● All information contained in this document is current as of the issuing date and subject to change without any prior notice. Before purchasing or using LRC's Products,please confirm the latest information with a LRC sales representative.
