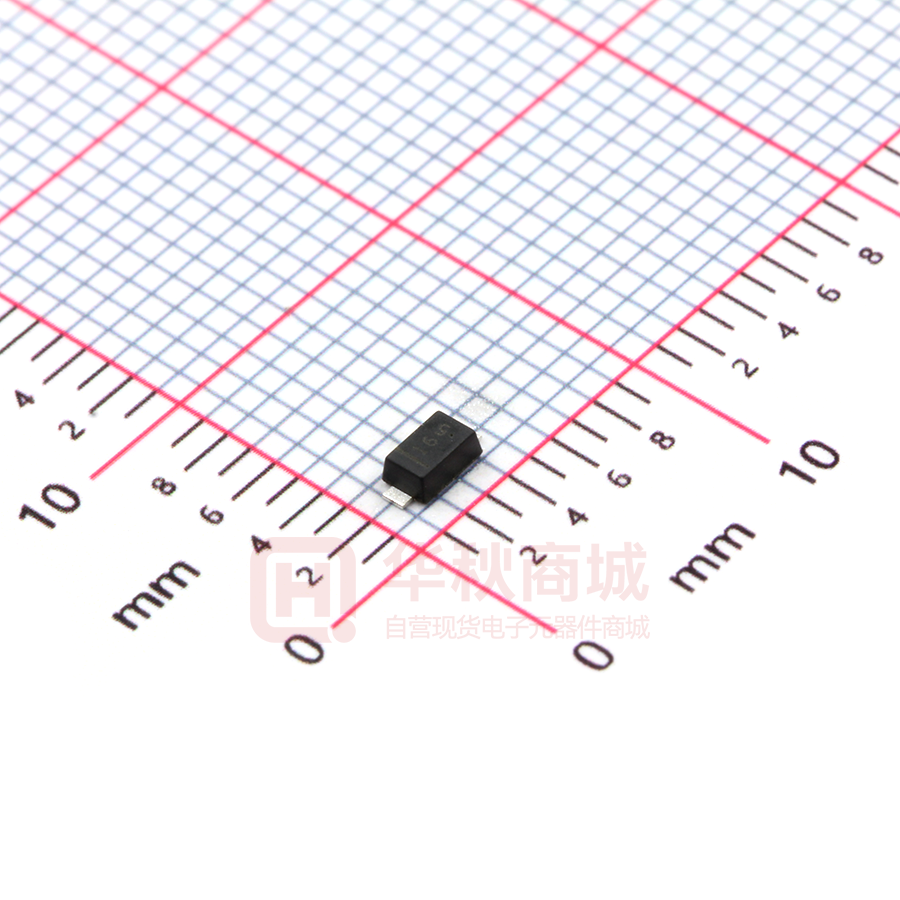

LMBR160FT1G

LMBR120FT1G thru LMBR1200FT1G Schottky Barrier Rectifiers Reverse Voltage 20 to 200V Forward Current 1.0A FEATURES * Plastic package has Underwriters Laboratory Flammability Classification 94V-0 * Low power loss,high efficiency * For use in low voltage high frequency inverters, free wheeling,and polarity protection applications * Guardring for over voltage protection * High temperature soldering guaranteed: 260°C/10 seconds at terminals SOD123FL Mechanical Data Case: SOD123-FL/MINI SMA molded plastic over sky die Terminals: Tin Plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.0155 g Handling precautin:None We declare that the material of product is Haloggen free (green epoxy compound) 1.Electrical Characteristic Maximum & Thermal Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Parameter Symbol symbol device marking code LMBR LMBR LMBR LMBR 120FT1G 130FT1G 140FT1G 150FT1G LMBR 160FT1G LMBR 180FT1G LMBR LMBR LMBR 1100FT1G 1150FT1G 1200FT1G 12 13 14 15 16 18 110 115 120 Unit Maximum repetitive peak reverse voltage VRRM 20 30 40 50 60 80 100 150 200 V Maximum RMS voltage VRMS 14 21 28 35 42 56 70 105 140 V Maximum DC blocking voltage VDC 20 30 40 50 60 80 100 150 200 V Maximum average forward rectified current at TC = 75°C IF(AV) 1.0 A Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 30 A Power Dissipation PD 400 mW RθJA RθJL 170 40 °C/W TJ –55 to +150 °C TSTG –65 to +175 °C Typical thermal resistance (Note 1) Operating junction temperature range storage temperature range Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Parameter Symbol Maximum instantaneous forward voltage at(IF = 0.1 A, TJ = 25°C) (IF = 0.7 A, TJ = 25°C) (IF = 1.0 A, TJ = 25°C) Maximum DC reverse current at rated DC blocking voltage TA = 25°C Tj = 125°C Typical junction capacitance at 4.0V, 1MHz symbol VF LMBR LMBR LMBR LMBR 120FT1G 130FT1G 140FT1G 150FT1G 0.5 0.35 0.45 0.50 0.55 LMBR 160FT1G 0.7 LMBR 180FT1G LMBR LMBR LMBR 1100FT1G 1150FT1G 1200FT1G 0.85 0.9 0.92 Unit V IR 0.5 10 mA CJ 160 PF NOTES: 1. 8.0mm2 (.013mm thick) land areas Leshan Radio Company, LTD. Rev.D Sep. 2019 1/5 LMBR120FT1G thru LMBR1200FT1G 2.Ratings and Characteristic Curves ( TA = 25°C unless otherwise noted ) Fig. 2 – Maximum Non-repetitive Peak Forward Surge Current 60 Hz Resistive or Inductive Load 1.0 Peak forward surge current (A) Average Forward Rectified Current (A) Fig. 1 – Forward Current Derating Curve 0.5 30 15 0 0 100 25 50 75 100 125 150 175 CASE TEMPERATURE:Tc(°C) Fig 3. – Typical Instantaneous Forward Characteristics 1 10 TJ = 25°C Pulse width = 300µs 1% Duty Cycle 10 1.0 1.0 0.1 0.1 0.01 0.01 0.2 Fig 5. –typical transient thermal impedance Tj=125 Tj=75 Tj=25 0.001 0 20 40 60 80 Percent of Rated Peak Reverse Voltage (%) Fig 6. – Typical Junction Capacitance 1000 Junction Capacitance (pF) 100 0.4 0.6 0.8 1.0 1.2 Instantaneous Forward Voltage (V) 10 Number of Cycles at 60Hz Fig 4. – Typical Reverse Characteristics Instantaneous Reverse Current (mA) Instantaneous Forward Current (A) 0 Transient thermal impedance(°C/W) TJ = TJ max 8.3ms Single Half Sine-wave (JEDEC M th d) 10 1.0 0.1 TJ = 25°C f = 1.0 MHz Vsig = 50 V 100 10 0.01 0.1 1.0 10 t,Pulse duration,sec Leshan Radio Company, LTD. 0.1 1 Reverse Voltage (V) 100 Rev.D Sep. 2019 10 2/5 3.OUTLINE AND DIMENSIONS SOD123FL DIM MIN NOR MAX A 0.90 1.05 1.15 b 0.75 0.80 0.95 L 0.50 0.80 1.10 E 2.60 2.75 2.90 D 1.60 1.75 1.90 HE 3.50 3.65 3.80 c 0.12 0.17 0.22 L1 0.25 0.45 0.65 All Dimensions in mm 4.SOLDERING FOOTPRINT DIM X Y X1 Leshan Radio Company, LTD. Rev.D Sep. 2019 (mm) 1.20 1.10 2.00 3/5 LMBR120FT1G thru LMBR1200FT1G 5.Suggested thermal profile for soldering process 1. Storage environment：Temperature=5~40℃ Humidity=55±25% 2. Reflow soldering of surface-mount device 3. Reflow soldering Profile Feature Soldering Condition Average ramp-up rate(TL to TP)
