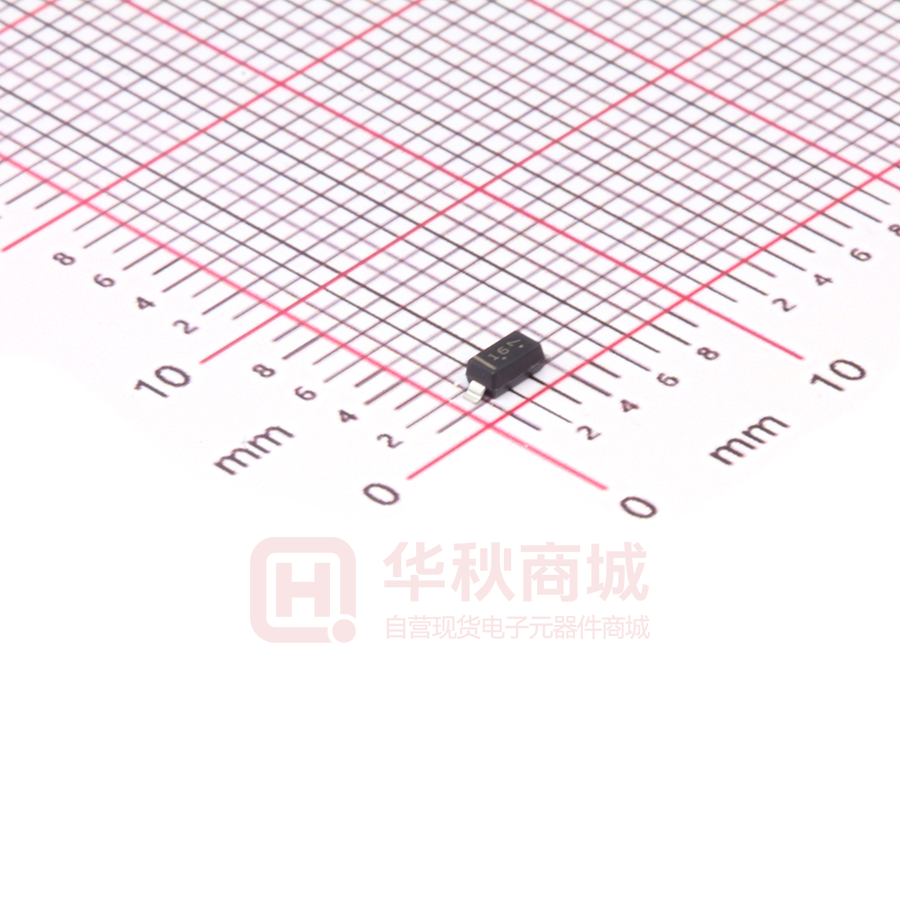

LMBR160T1G

LESHAN RADIO COMPANY, LTD. Surface Mount Schottky Power Rectifier Plastic SOD–123 Package Features LMBR160T1G • Small power mold type. • Low I R. • We declare that the material of product compliance with RoHS requirements. Construction • SOD–123 Silicon epitaxial planar Mechanical Characteristics • • • • • • 1 Cathode Device Marking: 16 Polarity Designator: Cathode Band Weight: 11.7 mg (approximately) Case: Molded plastic Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds Absolute maximum ratings (Ta=25°C) Parameter Reverse voltage (repetitive peak) Reverse voltage (DC) Average rectified forward current Forward current surge peak (60Hz・1cyc) p O erating temperature Storage temperature Typical diode junction capacitance Typical Thermal Resistance Junction to Ambient Electrical characteristics (Ta=25°C) Parameter Symbol 2 Anode ORDERING INFORMATION Device Package Shipping LMBR160T1G SOD−123 3000/Tape & Reel LMBR160T3G SOD−123 10,000/Tape & Reel Symbol VRM VR Io IFSM Top Limits 60 60 1 5.5 -55 to +150 Unit V V A A ℃ Tstg -65 to +175 ℃ CJ 120 pF RθJA 98 °C/W Conditions Forward voltage VF Min. - Max. 0.7 Unit V Reverse current IR - 0.5 mA IF=1.0A VR=60V Reverse current (Ta=125 °C) IR - 10 mA VR=60V Rev.O 1/3 LESHAN RADIO COMPANY, LTD. LMBR160T1G Electrical characteristic curves (Ta=25°C) Rev.O 2/3 LESHAN RADIO COMPANY, LTD. LMBR160T1G PACKAGE DIMENSIONS SOD–123 A ÂÂÂ ÂÂÂ C NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. H 1 K DIM A B C D E H J K B MILLIMETERS MIN MAX 1.40 1.80 2.55 2.85 0.95 1.35 0.50 0.70 0.25 ––– 0.00 0.10 ––– 0.15 3.55 3.85 E 2 D INCHES MIN MAX 0.055 0.071 0.100 0.112 0.037 0.053 0.020 0.028 0.004 ––– 0.000 0.004 ––– 0.006 0.140 0.152 STYLE 1: PIN 1. CATHODE 2. ANODE J RECOMMENDED FOOTPRINT FOR SOD–123 ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ ÉÉÉÉ 0.91 0.036 2.36 0.093 4.19 0.165 1.22 0.048 mm inches SOD–123 Rev.O 3/3
