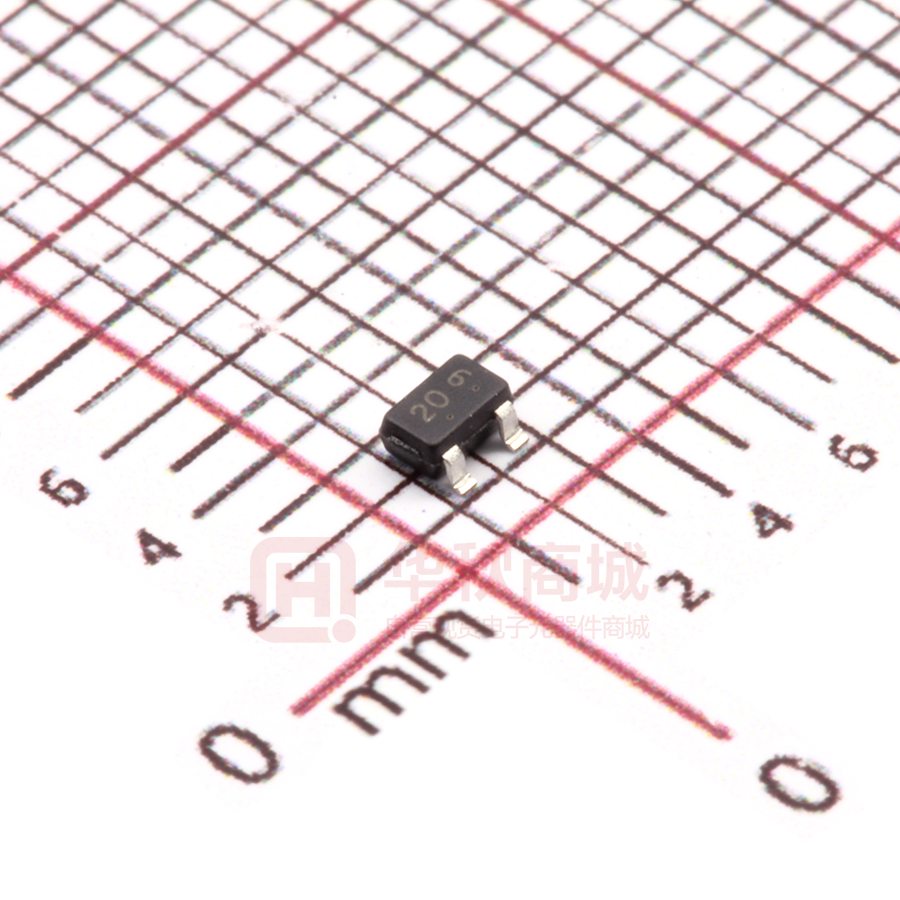

LMBT2907AWT1G

LMBT2907AWT1G S-LMBT2907AWT1G General Purpose Transistors PNP Silicon 1. FEATURES ● SC70(SOT-323) We declare that the material of product compliance with RoHS requirements and Halogen Free. ● S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 3 COLLECTOR qualified and PPAP capable. 1 BASE 2. DEVICE MARKING AND ORDERING INFORMATION Device LMBT2907AWT1G Marking Shipping 20 3000/Tape&Reel LMBT2907AWT3G 20 10000/Tape&Reel 2 EMITTER 3. MAXIMUM RATINGS(Ta = 25ºC) Parameter Unit V Symbol Limits Collector–Emitter Voltage VCEO -60 Collector–Base Voltage VCBO -60 Emitter–Base Voltage VEBO -5 V V IC -600 mA Symbol Limits Unit PD 225 mW RΘJA RΘJC TJ,Tstg 556 300 ºC/W ºC/W −55∼+150 ºC Collector Current — Continuous 4. THERMAL CHARACTERISTICS Parameter Total Device Dissipation, (Note 1) @ TA = 25ºC Thermal Resistance, Junction–to–Ambient(Note 1) Junction–to–Case(Note 1) Junction and Storage temperature 1. 30.0mm×25.0mm×1.6mm(FR4) Leshan Radio Company, LTD. Rev.D Nov. 2020 1/5 LMBT2907AWT1G, S-LMBT2907AWT1G General Purpose Transistors PNP Silicon 5. ELECTRICAL CHARACTERISTICS (Ta= 25ºC) OFF CHARACTERISTICS Characteristic Collector–Emitter Breakdown Voltage (IC = -10 mA, IB = 0) Collector–Base Breakdown Voltage (IC = -10 μA, IE = 0) Emitter–Base Breakdown Voltage (IE = -10 μA, IC = 0) Collector Cutoff Current ( VCE = -30 V, VEB(off) = -0.5V) Symbol Min. Typ. Max. Unit VBR(CEO) -60 - - V VBR(CBO) -60 - - V VBR(EBO) -5 - - V ICEX - - -50 nA IBL - - -50 nA 75 - - Base Cutoff Current (VCE = -30 V, VEB(off) = -0.5V) ON CHARACTERISTICS (Note 2.) DC Current Gain (IC = -0.1 mA, VCE = -10 V) (IC = -1.0 mA, VCE = -10 V) 100 - - (IC = -10 mA, VCE = -10 V) 100 - - (IC = -150 mA, VCE = -10 V) 100 - 300 (IC = -500 mA, VCE = -10 V) 50 - - - - -0.4 - - -1.6 - - -1.3 - - -2.6 fT 200 - - MHz Cobo - - 8 pF Cibo - - 30 pF ton - - 45 td - - 10 Rise Time tr - - 40 Storage Time ts tf - - 225 60 toff - - 280 HFE Collector–Emitter Saturation Voltage (IC = -150 mA,IB = -15 mA) VCE(sat) (IC = -500 mA, IB = -50 mA) V Base–Emitter Saturation Voltage (IC = -150 mA, IB = -15 mA) VBE(sat) (IC = -500 mA, IB = -50 mA) SMALL–SIGNAL CHARACTERISTICS Current–Gain — Bandwidth Product (IC = -50mA, VCE= -20V, f = 100MHz) Output Capacitance (VCB = -10 V, IE = 0, f = 1.0 MHz) Input Capacitance (VEB = -2 V, IC = 0, f = 1.0 MHz) V SWITCHING CHARACTERISTICS Turn–On Time Delay Time Fall Time Turn–Off Time (VCC = -30 V, IC = -150 mA, IB1 = -15 mA) (VCC = -6 V, IC = -150 mA,IB1 = IB2 = -15 mA) ns 2.Pulse Test: Pulse Width ≤300 μs, Duty Cycle ≤2.0%. Leshan Radio Company, LTD. Rev.D Nov. 2020 2/5 LMBT2907AWT1G, S-LMBT2907AWT1G General Purpose Transistors PNP Silicon 6.ELECTRICAL CHARACTERISTICS CURVES 1000 VCE, Collector-Emitter Voltage (V) 1 HFE, DC Current Gain 150℃ 100 -55℃ 25℃ 10 0.8 IC=500mA IC=10mA 0.6 0.4 IC=100mA IC=1mA 0.2 1 0.001 0.01 0.1 1 IC,Collector Current(A) 0 5.E-06 10 5.E-02 Collector Saturation Region 1 1.4 IC/IB=10 VBE(sat), Base-Emitter Saturation Voltage (V) VCE(sat), Collector-Emitter Saturation Voltage (V) DC Current Gain 5.E-05 5.E-04 5.E-03 IB, Base Current (A) 150℃ 0.1 25℃ -55℃ 0.01 0.001 0.01 0.1 IC, Collector Current (A) 1 IC/IB=10 1.2 1.0 -55℃ 0.8 25℃ 0.6 150℃ 0.4 0.2 0.0 0.001 1 VBE(sat) vs. IC VCE(sat) vs. IC Leshan Radio Company, LTD. 0.01 0.1 IC, Collector Current (A) Rev.D Nov. 2020 3/5 LMBT2907AWT1G, S-LMBT2907AWT1G General Purpose Transistors PNP Silicon 6.ELECTRICAL CHARACTERISTICS CURVES(Con.) 1.4 50 45 1.2 40 1.0 C,Capacitance(pF) VBE(on), Base-Emitter Voltage (V) VCE=1V -55℃ 0.8 25℃ 0.6 0.4 150℃ 35 Cibo 30 25 20 15 10 Cobo 0.2 5 0.0 0.001 0 0.01 0.1 IC, Collector Current (A) 1 1 10 VR,Reverse Voltage(V) 100 Capacitance VBE(on) vs. IC Leshan Radio Company, LTD. 0.1 Rev.D Nov. 2020 4/5 LMBT2907AWT1G, S-LMBT2907AWT1G General Purpose Transistors PNP Silicon 7.OUTLINE AND DIMENSIONS SC70 DIM MIN NOR MAX A A1 0.80 0.00 0.95 0.05 0.7 REF 1.00 0.10 b c 0.30 0.10 0.35 0.15 0.40 0.25 D E 1.80 1.15 2.05 1.30 2.20 1.35 e 1.20 1.30 1.40 A2 e1 L 0.20 He 2.00 0.65 BSC 0.35 0.56 2.10 2.40 ALL Dimension in mm 8.SOLDERING FOOTPRINT SC70 DIM MIN A B 1.90 0.65 C X 0.65 Y Leshan Radio Company, LTD. Rev.D Nov. 2020 0.70 0.90 5/5 DISCLAIMER ● Before you use our Products, you are requested to carefully read this document and fully understand its contents. LRC shall not be in any way responsible or liable for failure, malfunction or accident arising from the use of any LRC’s Products against warning, caution or note contained in this document. ● All information contained in this document is current as of the issuing date and subject to change without any prior notice. Before purchasing or using LRC's Products,please confirm the latest information with a LRC sales representative.
