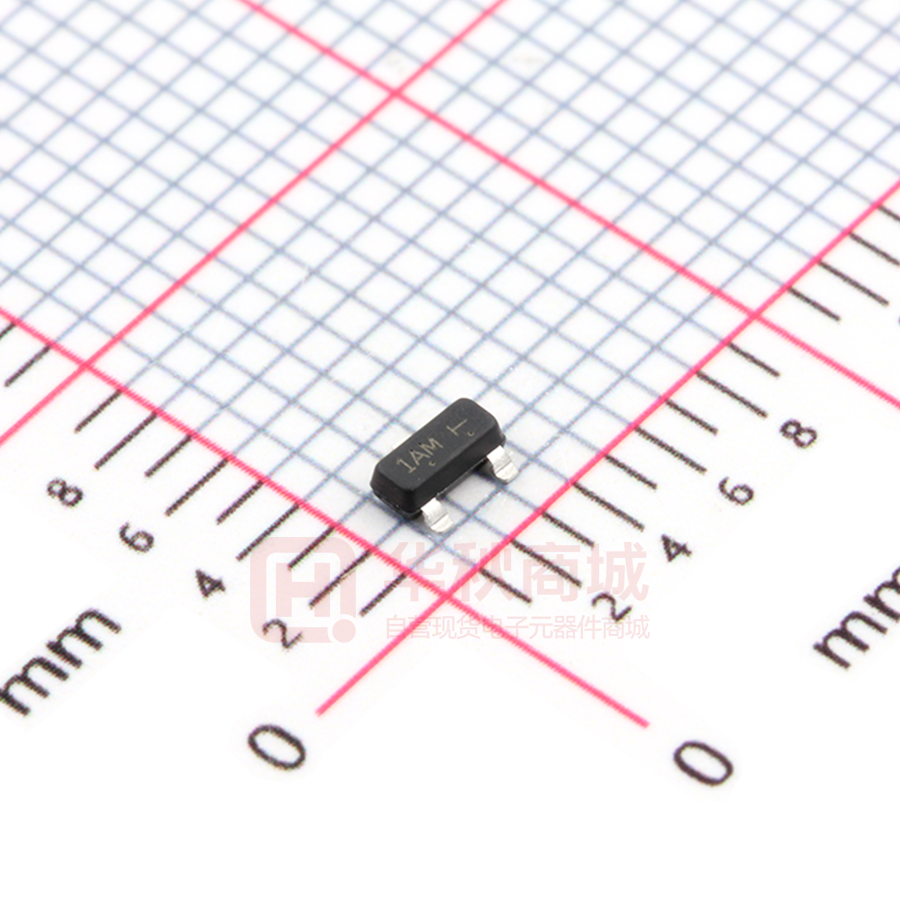

LMBT3904LT1G

LESHAN RADIO COMPANY, LTD. General Purpose Transistor • Pb−Free Package May be Available. The G−Suffix Denotes a LMBT3904LT1G S-LMBT3904LT1G Pb−Free Lead Finish • • We declare that the material of product compliance with RoHS requirements. S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. 3 ORDERING INFORMATION Device Marking LMBT3904LT1G S-LMBT3904LT1G 1AM LMBT3904LT3G S-LMBT3904LT3G 1AM 1 Shipping 2 3000/Tape & Reel SOT–23 10000/Tape & Reel MAXIMUM RATINGS Rating Symbol Value Unit Collector–Emitter Voltage V CEO 40 Vdc Collector–Base Voltage V CBO 60 Vdc Emitter–Base Voltage V EBO 6.0 Vdc 200 mAdc Collector Current — Continuous IC 3 COLLECTOR 1 BASE 2 EMITTER THERMAL CHARACTERISTICS Characteristic Total Device Dissipation FR– 5 Board, (1) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient Total Device Dissipation Alumina Substrate, (2) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient Junction and Storage Temperature Symbol Max Unit PD 225 mW RθJA PD 1.8 556 300 mW/°C °C/W mW RθJA TJ , Tstg 2.4 417 –55 to +150 mW/°C °C/W °C ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted.) Characteristic Symbol Min Max Unit V (BR)CEO 40 — Vdc V (BR)CBO 60 — Vdc V (BR)EBO 6.0 — Vdc Base Cutoff Current I BL — 50 nAdc ( V CE= 30 Vdc, V EB = 3.0 Vdc, ) Collector Cutoff Current I CEX — 50 nAdc OFF CHARACTERISTICS Collector–Emitter Breakdown Voltage(3) (I C = 1.0 mAdc) Collector–Base Breakdown Voltage (I C = 10 µAdc) Emitter–Base Breakdown Voltage (I E = 10 µAdc) ( V CE = 30Vdc, V EB = 3.0Vdc ) 1. FR–5 = 1.0 x 0.75 x 0.062 in. 2. Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina. 3. Pulse Test: Pulse Width
