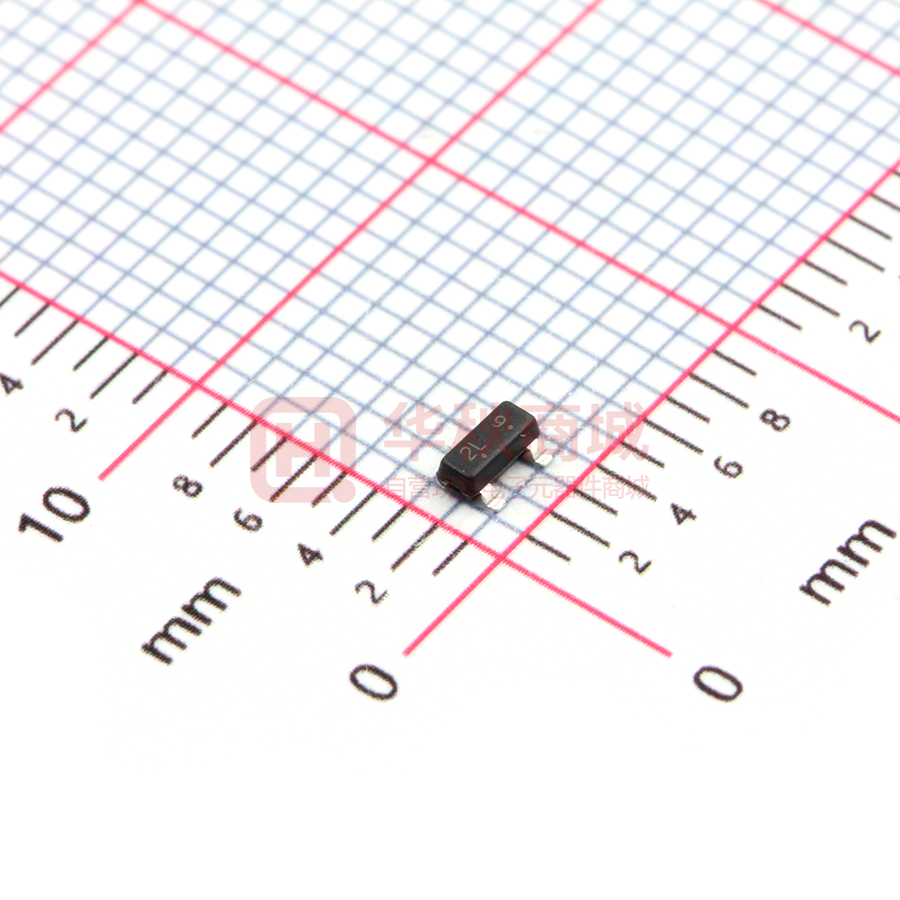

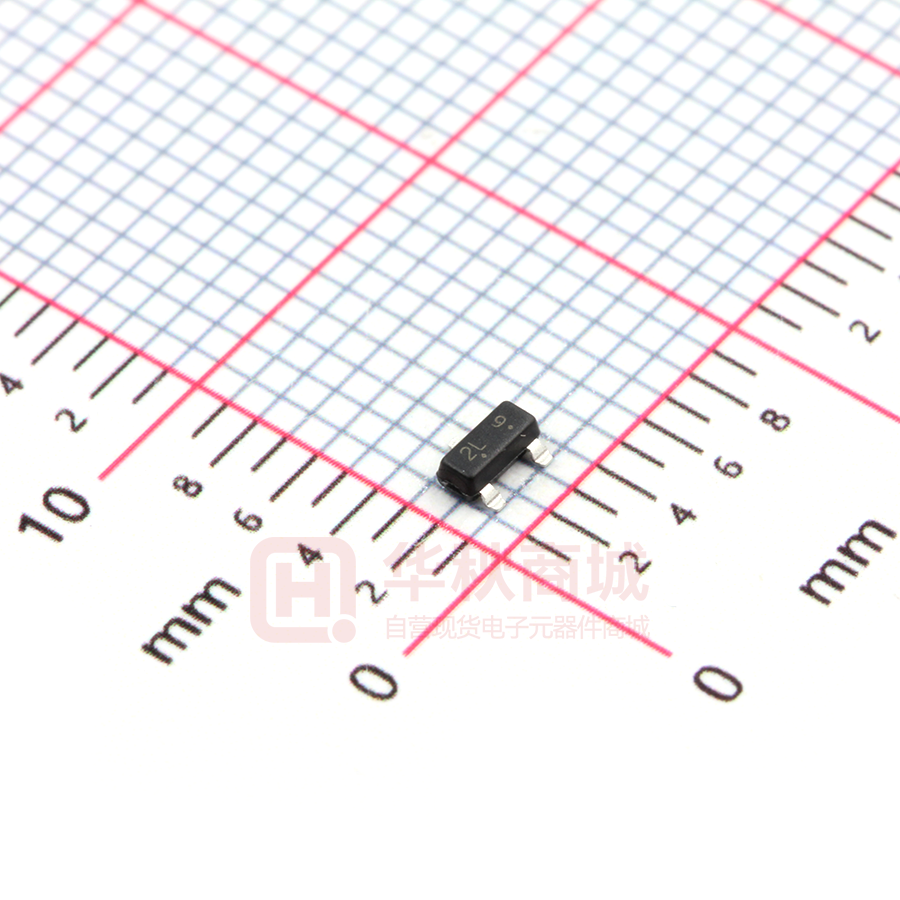

LMBT5401LT1G

LESHAN RADIO COMPANY, LTD. High Voltage Transistor FEATURE LMBT5401LT1G S-LMBT5401LT1G ƽ We declare that the material of product compliance with RoHS requirements. ƽ S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping 3 LMBT5401LT1G S-LMBT5401LT1G LMBT5401LT3G S-LMBT5401LT3G 2L 3000/Tape&Reel 2L 10000/Tape&Reel 1 2 MAXIMUM RATINGS Rating Collector–Emitter Voltage Collector–Base Voltage Emitter–Base Voltage Symbol Value Unit V CEO V CBO V EBO – 150 – 160 – 5.0 Vdc Vdc Vdc IC – 500 mAdc Collector Current — Continuous SOT– 23 3 COLLECTOR THERMAL CHARACTERISTICS Characteristic Symbol Max Unit Total Device Dissipation FR- 5 Board (1) T A =25 °C Derate above 25°C PD 225 mW 1.8 mW/°C 556 °C/W PD 300 mW R θJA T J , Tstg 2.4 417 –55to+150 mW/°C °C/W °C Thermal Resistance, Junction to Ambient Total Device Dissipation Alumina Substrate, (2) T A = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient Junction and Storage Temperature R θJA 1 BASE 2 EMITTER DEVICE MARKING LMBT5401LT1G=2L ELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted) Characteristic Symbol Min Ma x Unit – 150 — – 160 — -5.0 — — – 50 nAdc — – 50 µAdc OFF CHARACTERISTICS Collector–Emitter Breakdown Voltage (I C = –1.0 mAdc, I B = 0) Collector–Base Breakdown Voltage (I C = –100 µAdc, I E = 0) Emitter-BAse Breakdown Voltage (I E= –10µAdc,I C=0) Collector Cutoff Current (V CB = –120 Vdc, IE= 0) (V CB = –120 Vdc, IE= 0, T A=100 °C) V (BR)CEO Vdc V (BR)CBO Vdc V(BR)EBO Vdc I CBO 1. FR–5 = 1.0 x 0.75 x 0.062 in. 2. Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina. Rev.O 1/5 LESHAN RADIO COMPANY, LTD. LMBT5401LT1G , S-LMBT5401LT1G ELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted) (Continued) Characteristic Symbol Min Max 50 60 50 –– 240 –– –– –– – 0.2 – 0.5 (IC = –10 mAdc, I B = –1.0 mAdc) –– – 1.0 (IC = –50 mAdc, I B = –5.0 mAdc) –– – 1.0 100 300 –– 6.0 40 200 –– 8.0 Unit ON CHARACTERISTICS (2) DC Current Gain (IC = –1.0mAdc, V CE = –5.0 Vdc) (IC = –10 mAdc, V CE = –5.0 Vdc) (IC = –50 mAdc, V CE = –5.0 Vdc) Collector–Emitter Saturation Voltage (IC = –10 mAdc, IB = –1.0 mAdc) (IC = –50 mAdc, I B = –5.0 mAdc) Base–Emitter Saturation Voltage hFE –– VCE(sat) Vdc VBE(sat) Vdc SMALL–SIGNAL CHARACTERISTICS Current–Gain — Bandwidth Product (IC = –10 mAdc, V CE= –10 Vdc, f = 100 MHz) Output Capacitance (VCB= –10 Vdc, I E = 0, f = 1.0 MHz) Small–Signal Current Gain (IC= –1.0mAdc, VCE = –10Vdc, f = 1.0 kHz) Noise Figure (IC = –200 µAdc, VCE= –5.0 Vdc,Rs=10Ω, f = 1.0 kHz) f MHz T C obo pF h fe — NF dB Rev.O 2/5 LESHAN RADIO COMPANY, LTD. LMBT5401LT1G , S-LMBT5401LT1G 200 150 h FE, CURRENT GAIN T J=125°C 100 25°C 70 50 –55°C V V 30 20 0.1 0.2 0.3 0.5 1.0 2.0 3.0 5.0 10 CE CE = –1.0 V = –5.0 V 20 30 50 100 I C , COLLECTOR CURRENT (mA) 1.0 0.9 0.8 0.7 0.6 I 0.5 C =1.0mA 100 mA 30 mA 10mA 0.4 0.3 0.2 0.1 0 0.005 0.01 0.02 0.05 0.1 0.2 0.5 1.0 2.0 5.0 10 20 50 I B , BASE CURRENT (mA) Figure 2. Collector Saturation Region 10 3 I C , COLLECTOR CURRENT (µA) V CE , COLLECTOR– EMITTER VOLTAGE (VOLTS) Figure 1. DC Current Gain V CE = 30 V 10 2 I C= I CES 10 1 T J = 125°C 10 0 75°C 10 -1 10 -2 REVERSE 25°C 10 -3 - 0.3 - 0.2 - 0.1 FORWARD 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 V BE , BASE–EMITTER VOLTAGE (VOLTS) Figure 3. Collector Cut–Off Region Rev.O 3/5 LESHAN RADIO COMPANY, LTD. θ V , TEMPERATURE COEFFICIENT (mV/° C) LMBT5401LT1G , S-LMBT5401LT1G 1.0 T J =25°C 0.8 0.7 V 0.6 BE(sat) @ I C /I B =10 0.5 0.4 0.3 0.2 V CE(sat) @ I C /I B =10 0.1 0 0.1 0.2 0.3 0.5 1.0 2.0 3.0 5.0 20 30 50 100 T J = –55°C to 135°C 2.0 1.5 1.0 0.5 θ VC for V CE(sat) 0 - 0.5 - 1.0 - 1.5 θ VB for V - 2.0 BE(sat) - 2.5 0.1 0.2 0.3 0.5 1.0 2.0 3.0 5.0 10 20 30 50 100 I C , COLLECTOR CURRENT (mA) I C , COLLECTOR CURRENT (mA) Figure 4. “On” Voltages Figure 5. Temperature Coefficients V V BB 100 CC –30 V +8.8 V 10.2V V 10 3.0 k 100 R C in 0.25µF 10µs INPUT PULSE t r , t f < 10 ns DUTY CYCLE = 1.0% V R V B 5.1 k 100 in 1N914 Values Shown are for I C @ 10 mA out T J =25°C 70 50 C, CAPACITANCE (pF) V, VOLTAGE (VOLTS) 0.9 2.5 30 C 20 ibo 10 7.0 C 5.0 obo 3.0 2.0 1.0 0.2 0.3 Figure 6. Switching Time Test Circuit 0.5 1.0 2.0 3.0 5.0 10 20 V R , REVERSE VOLTAGE (VOLTS) Figure 7. Capacitances 1000 700 500 100 I C /I B =10 T J= 25°C t r @V t r @V CC 30 = 30V 20 200 t, TIME (ns) t, TIME (ns) 300 70 50 CC = 120V 100 70 50 I C /I B= 10 t f @VCC = 120V T J= 25°C t f@ V 10 CC = 30V t s @V 7.0 = 120V CC 5.0 3.0 30 t d @ V BE(off)= 1.0V V CC = 120V 20 2.0 1.0 10 0.2 0.3 0.5 1.0 2.0 3.0 5.0 10 20 30 50 I C , COLLECTOR CURRENT (mA) Figure 8. Turn–On Time 100 200 0.2 0.3 0.5 1.0 2.0 3.0 5.0 10 20 30 50 100 200 I C , COLLECTOR CURRENT (mA) Figure 9. Turn–Off Time Rev.O 4/5 LESHAN RADIO COMPANY, LTD. LMBT5401LT1G , S-LMBT5401LT1G SOT-23 NOTES: A 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. L 3 1 V 2 B S DIM G A B C D G H J K L S V C D H K J INCHES MIN MAX 0.1102 0.1197 0.0472 0.0551 0.0350 0.0440 0.0150 0.0200 0.0701 0.0807 0.0005 0.0040 0.0034 0.0070 0.0140 0.0285 0.0350 0.0401 0.0830 0.1039 0.0177 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 PIN 1. BASE 2. EMITTER 3. COLLECTOR 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 inches mm Rev.O 5/5
