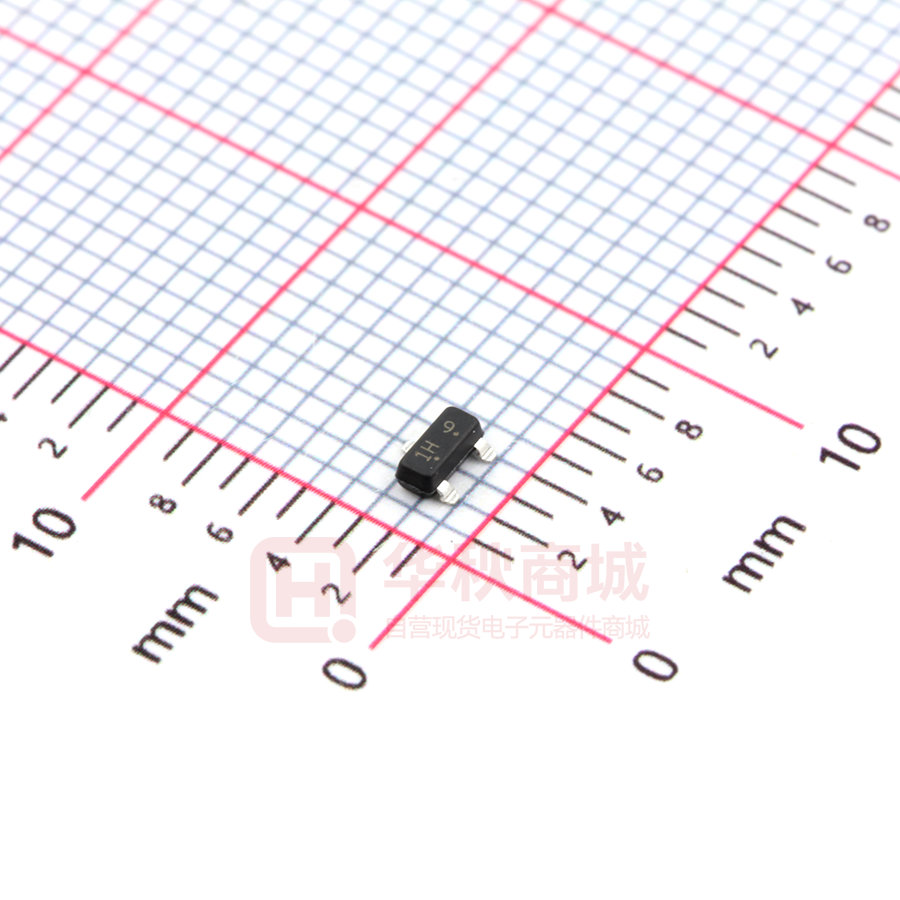

LMBTA05LT1G

LESHAN RADIO COMPANY, LTD. Driver Transistors LMBTA05LT1G LMBTA06LT1G S-LMBTA05LT1G S-LMBTA06LT1G FEATURES • We declare that the material of product compliance with RoHS requirements. • S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. MAXIMUM RATINGS Rating Symbol Value LMBTA05 LMBTA06 Collector–Emitter Voltage V CEO 60 80 Vdc Collector–Base Voltage V CBO 60 80 Vdc Emitter–Base Voltage V Collector Current — Continuous EBO IC 3 Unit 4.0 Vdc 500 mAdc 1 2 SOT–23 THERMAL CHARACTERISTICS Characteristic Symbol Max Unit PD 225 mW 1.8 mW/°C R θJA 556 °C/W PD 300 mW 2.4 mW/°C 417 –55 to +150 °C/W °C Total Device Dissipation FR– 5 Board, (1) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient Total Device Dissipation Alumina Substrate, (2) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient Junction and Storage Temperature R θJA T J , T stg 3 COLLECTOR 1 BASE 2 EMITTER DEVICE MARKING (S-)LMBTA05LT1G = 1H, (S-)LMBTA06LT1G = 1GM; ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted.) Characteristic Symbol Min Max Unit 60 — 80 — 4.0 — Vdc — 0.1 µAdc — 0.1 — 0.1 OFF CHARACTERISTICS Collector–Emitter Breakdown Voltage(3) (I C = 1.0 mAdc, I B = 0) V (BR)CEO LMBTA05 LMBTA06 Emitter–Base Breakdown Voltage (I E = 100 µAdc, I C = 0) V Collector Cutoff Current (BR)EBO I CES Vdc ( V CE = 60Vdc, I B = 0) Emitter Cutoff Current ( V CB = 60Vdc, I E = 0) µAdc I CBO LMBTA05 ( V CB = 80Vdc, I E = 0) LMBTA06 1. FR–5 = 1.0 x 0.75 x 0.062 in. 2. Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina. 3. Pulse Test: Pulse Width < 300 µs, Duty Cycle < 2.0%. Rev.O 1/3 LESHAN RADIO COMPANY, LTD. LMBTA05LT1G LMBTA06LT1G S-LMBTA05LT1G S-LMBTA06LT1G ELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted) (Continued) Characteristic Symbol Min Max 100 100 — — — 0.25 — 1.2 Unit ON CHARACTERISTICS DC Current Gain (I C = 10 mAdc, V CE = 1.0 Vdc) (I C = 100 mAdc, V CE = 1.0 Vdc) Collector–Emitter Saturation Voltage (I C = 100 mAdc, I B = 10 mAdc) Base–Emitter On Voltage (I C = 100 mAdc, V CE= 1.0 Vdc) hFE –– VCE(sat) V Vdc Vdc BE(sat) SMALL–SIGNAL CHARACTERISTICS 4. f T Current –Gain – Bandwidth Product(4) (V CE = 2.0 V, I C = 10mA, f = 100 MHz) is defined as the frequency at which |h f e | extrapolates to unity. fT 100 — MHz ORDERING INFORMATION Device (S-)LMBTA05LT1G (S-)LMBTA06LT1G (S-)LMBTA05LT3G (S-)LMBTA06LT3G Marking 1H 1GM 1H 1GM Shipping 3000/Tape & Reel 3000/Tape & Reel 10000/Tape & Reel 10000/Tape & Reel Rev.O 2/3 LESHAN RADIO COMPANY, LTD. LMBTA05LT1G LMBTA06LT1G S-LMBTA05LT1G S-LMBTA06LT1G SOT-23 NOTES: A 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. L 3 1 V 2 B S DIM G A B C D G H J K L S V C D H K J INCHES MIN MAX 0.1102 0.1197 0.0472 0.0551 0.0350 0.0440 0.0150 0.0200 0.0701 0.0807 0.0005 0.0040 0.0034 0.0070 0.0140 0.0285 0.0350 0.0401 0.0830 0.1039 0.0177 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 PIN 1. BASE 2. EMITTER 3. COLLECTOR 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 inches mm Rev.O 3/3
