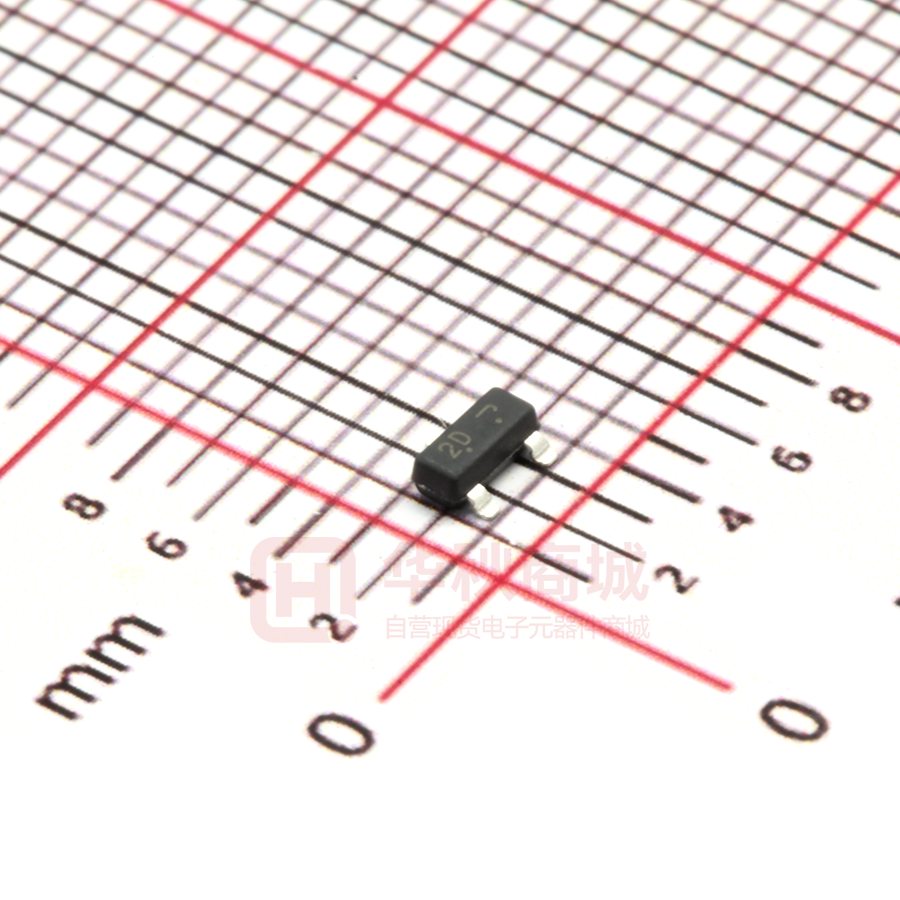

LMBTA92LT1G

LESHAN RADIO COMPANY, LTD. High Voltage Transistor PNP Silicon FEATURE ƽHigh voltage. ƽFor Telephony or Professional communication equipment applications. ƽ We declare that the material of product compliance with RoHS requirements. ƽS- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. LMBTA92LT1G LMBTA93LT1G S-LMBTA92LT1G S-LMBTA93LT1G DEVICE MARKING AND ORDERING INFORMATION Device 3 Marking Shipping (S-)LMBTA92LT1G 2D 3000/Tape&Reel (S-)LMBTA92LT3G 2D 10000/Tape&Reel (S-)LMBTA93LT1G 2E 3000/Tape&Reel (S-)LMBTA93LT3G 2E 10000/Tape&Reel 1 2 SOT–23 MAXIMUM RATINGS Rating Symbol Value LMBTA92 LMBTA93 Unit Collector–Emitter Voltage V CEO –300 –200 Vdc Collector–Base Voltage V CBO –300 –200 Vdc Emitter–Base Voltage V EBO Collector Current — Continuous IC –5.0 Vdc –500 mAdc 3 COLLECTOR 1 BASE 2 EMITTER THERMAL CHARACTERISTICS Symbol Max Unit Total Device Dissipation FR– 5 Board, (1) TA = 25°C Derate above 25°C Characteristic PD 225 mW 1.8 mW/°C Thermal Resistance, Junction to Ambient Total Device Dissipation Alumina Substrate, (2) TA = 25°C Derate above 25°C RθJA PD 556 300 °C/W mW 2.4 mW/°C Thermal Resistance, Junction to Ambient RθJA 417 °C/W TJ , Tstg –55 to +150 °C Junction and Storage Temperature 1. FR–5 = 1.0 x 0.75 x 0.062 in. 2. Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina. 3. Pulse Test: Pulse Width < 300 µs, Duty Cycle < 2.0%. Rev.A 1/4 LESHAN RADIO COMPANY, LTD. LMBTA92LT1G LMBTA93LT1G S-LMBTA92LT1G S-LMBTA93LT1G ELECTRICAL CHARACTERISTICS(TA = 25°C unless otherwise noted.) Characteristic Symbol Min Max –300 — –200 — –300 — –200 — –5.0 — Unit OFF CHARACTERISTICS Collector–Emitter Breakdown Voltage(3) (IC = –1.0 mAdc, IB = 0) V(BR)CEO LMBTA92 LMBTA93 Collector–Emitter Breakdown Voltage (IC = –100 µAdc, IE = 0) Vdc V(BR)CBO LMBTA92 LMBTA93 Emitter–Base Breakdown Voltage Vdc V(BR)EBO (IE = –100 µAdc, IC = 0) Collector Cutoff Current Vdc ICBO µAdc ( VCB = –200Vdc, IE = 0) — –0.1 ( VCB = –300Vdc, IE = 0) — –100 Collector Cutoff Current ( VEB = –6.0Vdc, IC = 0) ( VEB = –5.0Vdc, IC = 0) IEBO — — µAdc µAdc –0.05 –100 ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Characteristic Symbol Min Max Unit 25 40 25 25 –– –– –– –– –– –– –0.5 –0.5 BE(sat) — –0.9 Vdc fT 50 –– MHz –– –– 6.0 8.0 ON CHARACTERISTICS (3) DC Current Gain (I C =–1.0mAdc, V CE = –10 Vdc) (I C = –10 mAdc, V CE = –10Vdc) (I C = –30mAdc, V CE =–10 Vdc) Collector–Emitter Saturation Voltage (I C = –20mAdc, I B = –2.0 mAdc) hFE Both Types Both Types LMBTA92 LMBTA93 — VCE(sat) LMBTA92 LMBTA93 Base–Emitter Saturation Voltage (I C = –20mAdc, I B = –2.0 mAdc) V Vdc SMALL–SIGNAL CHARACTERISTICS Current–Gain — Bandwidth Product(3),(4) (I C = –10mAdc, V CE= –20Vdc, f = 100MHz) Collector – Base Capacitance (V CB = –20 Vdc, I E = 0, f = 1.0 MHz) C cb LMBTA92 LMBTA93 pF 3. Pulse Test: Pulse Width < 300 µs, Duty Cycle < 2.0%. Rev.A 2/4 LESHAN RADIO COMPANY, LTD. LMBTA92LT1G LMBTA93LT1G S-LMBTA92LT1G S-LMBTA93LT1G h FE , DC CURRENT GAIN 150 T J = +125°C V CE = –10 Vdc 100 +25°C 70 –55°C 50 30 20 15 –1.0 –2.0 –3.0 –5.0 –7.0 –10 –20 –30 –50 –80 –100 I C , COLLECTOR CURRENT (mA) 100 50 20 10 5.0 2.0 C cb 1.0 –0.1 –0.2 –0.5 –1.0 –2.0 –5.0 –10 –20 –50 –100 –200 –500 –1000 V R , REVERSE VOLTAGE (VOLTS) 100 T J = 25°C 80 V CE = –20 Vdc 60 40 30 20 0 –1.0 –2.0 –5.0 –10 –20 –50 –100 I C , COLLECTOR CURRENT (mA) Figure 3. Current–Gain — Bandwidth Product Figure 2. Capacitances –1.0 –0.8 V, VOLTAGE (VOLTS) C, CAPACITANCE (pF) C ib f T, CURRENT– GAIN — BANDWIDTH PRODUCT (MHz) Figure 1. DC Current Gain V BE @ V CE = –10 V –0.6 –0.4 –0.2 0 –1.0 V CE(sat) @ I C /I B = 10 mA –2.0 –5.0 –10 –20 –50 –100 I C , COLLECTOR CURRENT (mA) Figure 4. “On” Voltages Rev.A 3/4 LESHAN RADIO COMPANY, LTD. LMBTA92LT1G LMBTA93LT1G S-LMBTA92LT1G S-LMBTA93LT1G SOT-23 NOTES: A 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. L 3 1 V 2 B S DIM G A B C D G H J K L S V C D H K J INCHES MIN MAX 0.1102 0.1197 0.0472 0.0551 0.0350 0.0440 0.0150 0.0200 0.0701 0.0807 0.0005 0.0040 0.0034 0.0070 0.0140 0.0285 0.0350 0.0401 0.0830 0.1039 0.0177 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 inches mm Rev.A 4/4
