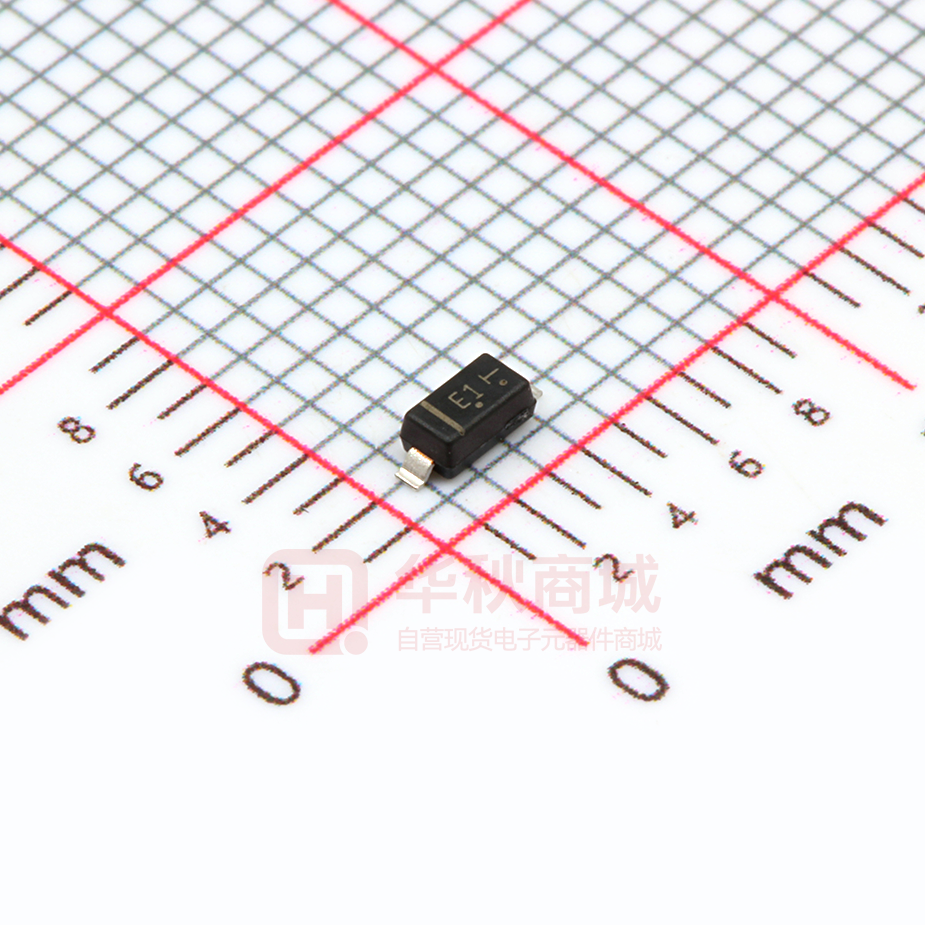

LMSZ5231BT1G

LESHAN RADIO COMPANY, LTD. Zener Voltage Regulators 500 mW SOD−123 Surface Mount ●FEATURES 1)500 mW Rating on FR−4 or FR−5 Board 2)Package Designed for Optimal Automated Board Assembly 3)Small Package Size for High Density Applications 4)General Purpose, Medium Current 5)ESD Rating of Class 3 (>16 kV) per Human Body Model 6)We declare that the material of product compliant with RoHS requirements and Halogen Free. 7)S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. LMSZ5231BT1G S-LMSZ5231BT1G SOD-123 ●MECHANICAL CHARACTERISTICS: CASE: Void-free, transfer-molded, thermosetting plastic case FINISH: Corrosion resistant finish, easily solderable FLAMMABILITY RATING:UL 94 V−0 1 Cathode 2 Anode ●DEVICE MARKING AND RESISTOR VALUES Device Marking Shipping LMSZ5231BT1G E1 3000/Tape&Reel LMSZ5231BT3G E1 10000/Tape&Reel ●MAXIMUM RATINGS(Ta = 25℃) Parameter Symbol PD Total Power Dissipation on FR−5 Board, (Note 1) @ TL = 75°C Derated above 75°C RΘJA Thermal Resistance, Junction−to−Ambient(Note 2) RΘJL Thermal Resistance, Junction−to−Lead(Note 2) Junction and Storage Temperature Range TJ,Tstg Limits Unit 500 6.7 mW mW/℃ 340 ℃/W 150 −55∼+150 ℃/W ℃ 1. FR−5 = 3.5 X 1.5 inches, using the minimum recommended footprint. 2. Thermal Resistance measurement obtained via infrared Scan Method. May,2015 Rev.B 1/4 LESHAN RADIO COMPANY, LTD. LMSZ5231BT1G,S-LMSZ5231BT1G ELECTRICAL CHARACTERISTICS (TA = 25°C unless I otherwise noted, VF = 0.9 V Max. @ I F = 10 mA) Symbol IF Parameter VZ Reverse Zener Voltage @ IZT IZT Reverse Current ZZT Maximum Zener Impedance @ IZT IZK Reverse Current ZZK Maximum Zener Impedance @ IZK IR Reverse Leakage Current @ VR VR Reverse Voltage IF Forward Current VF Forward Voltage @ IF VZ V R V I R VF IZT Zener Voltage Regulator ●ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted, VF = 0.9 V Max. @ IF = 10 mA) Device LMSZ5231BT1G Zener Voltage (Notes 3 and 4) VZ (Volts) @ IZT Min Nom Max mA 4.85 5.1 5.36 20 Zener Impedance (Note 5) ZZT @ IZT ZZK @ IZK Ω Ω mA 17 1600 0.25 Leakage Current IR @ VR μA Volts 5 2 3. The type numbers shown have a standard tolerance of ±5% on the nominal Zener voltage. 4. Nominal Zener voltage is measured with the device junction in thermal equilibrium at T L = 30°C ± 1°C. 5. ZZT and ZZK are measured by dividing the AC voltage drop across the device by the ac current applied. The specified limits are for IZ(AC) = 0.1 IZ(dc) with the AC frequency = 1 KHz. May,2015 Rev.B 2/4 LESHAN RADIO COMPANY, LTD. LMSZ5231BT1G,S-LMSZ5231BT1G ELECTRICAL CHARACTERISTICS CURVES 1.0E-01 1.0E-04 1.0E-02 1.0E-03 IR(A) IZ(A) 1.0E-05 1.0E-06 1.0E-04 1.0E-05 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 VZ (V) 1.0E-07 1.0 1.5 2.0 SN1 -55℃ FIG.1 Zener Voltage vs Zener Current May,2015 2.5 3.0 VZ(V) SN1 25℃ 3.5 4.0 4.5 SN1 125℃ FIG.2 Typical Leakage Current Rev.B 3/4 LESHAN RADIO COMPANY, LTD. LMSZ5231BT1G,S-LMSZ5231BT1G SOD-123 D ÂÂÂÂ ÂÂÂÂ ÂÂÂÂ NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. A A1 1 HE DIM A A1 b c D E HE L E b MIN 0.037 0.000 0.020 −−− 0.055 0.100 0.140 0.010 INCHES NOM 0.046 0.002 0.024 −−− 0.063 0.106 0.145 −−− MAX 0.053 0.004 0.028 0.006 0.071 0.112 0.152 −−− STYLE 1: PIN 1. CATHODE 2. ANODE L 2 MILLIMETERS MIN NOM MAX 0.94 1.17 1.35 0.00 0.05 0.10 0.51 0.61 0.71 −−− −−− 0.15 1.40 1.60 1.80 2.54 2.69 2.84 3.56 3.68 3.86 −−− −−− 0.25 C SOLDERING FOOTPRINT* ÉÉÉ ÉÉÉ ÉÉÉ 0.91 0.036 2.36 0.093 4.19 0.165 ÉÉÉ ÉÉÉ ÉÉÉ SCALE 10:1 May,2015 1.22 0.048 mm Ǔ ǒinches Rev.B 4/4
