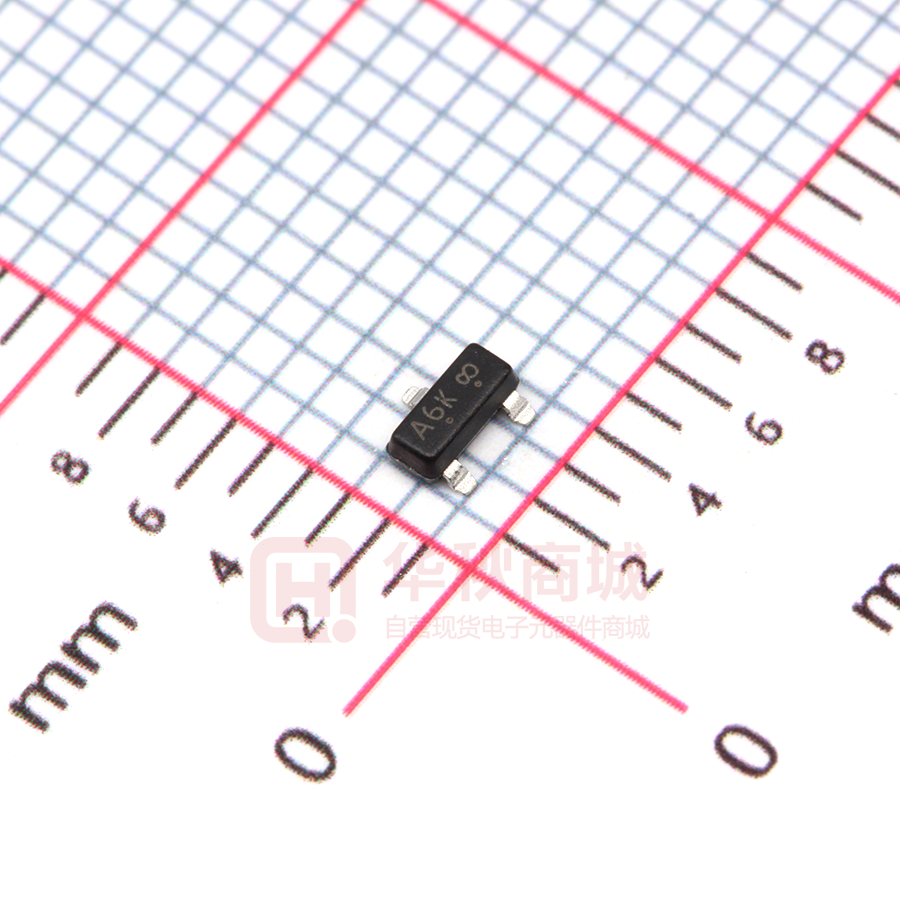

LMUN2133LT1G

LESHAN RADIO COMPANY, LTD. Bias Resistor Transistors PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network LMUN2110LT1G Series 3 This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space. The device is housed in the SOT-23 package which is designed for low power surface mount applications. • • • • • • Simplifies Circuit Design Reduces Board Space Reduces Component Count The SOT-23 package can be soldered using wave or reflow. The modified gull-winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die. Available in 8 mm embossed tape and reel. Use the Device Number to order the 7 inch/3000 unit reel. Replace “T1” with “T3” in the Device Number to order the 13 inch/10,000 unit reel. 1 2 SOT-23 PIN 1 R1 BASE (INPUT) R2 PIN 3 COLLECTOR (OUTPUT) PIN 2 EMITTER (GROUND) We declare that the material of product compliance with RoHS requirements. MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Symbol Value Unit Collector-Base Voltage VCBO 50 Vdc Collector-Emitter Voltage VCEO 50 Vdc IC 100 mAdc Symbol Max Unit PD 246 (Note 1.) 400 (Note 2.) 1.5 (Note 1.) 2.0 (Note 2.) mW Rating Collector Current THERMAL CHARACTERISTICS Characteristic Total Device Dissipation TA = 25°C Derate above 25°C °C/W Thermal Resistance – Junction-to-Ambient RθJA 508 (Note 1.) 311 (Note 2.) °C/W Thermal Resistance – Junction-to-Lead RθJL 174 (Note 1.) 208 (Note 2.) °C/W Junction and Storage Temperature Range TJ, Tstg –55 to +150 °C 1. FR–4 @ Minimum Pad 2. FR–4 @ 1.0 x 1.0 inch Pad Rev.O 1/16 LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series DEVICE MARKING AND RESISTOR VALUES R2 (K) Shipping 47 8 3000/Tape & Reel 10,000/Tape & Reel A6A 10 10 3000/Tape & Reel 10,000/Tape & Reel SOT-23 A6B 22 22 3000/Tape & Reel 10,000/Tape & Reel LMUN2113LT1G LMUN2113LT3G SOT-23 A6C 47 47 3000/Tape & Reel 10,000/Tape & Reel LMUN2114LT1G LMUN2114LT3G SOT-23 A6D 10 47 3000/Tape & Reel 10,000/Tape & Reel LMUN2115LT1G LMUN2115LT3G SOT-23 A6E 10 8 3000/Tape & Reel 10,000/Tape & Reel LMUN2116LT1G LMUN2116LT3G SOT-23 A6F 4.7 8 3000/Tape & Reel 10,000/Tape & Reel LMUN2130LT1G (Note 3.) LMUN2130LT3G SOT-23 A6G 1.0 1.0 3000/Tape & Reel 10,000/Tape & Reel LMUN2131LT1G LMUN2131LT3G SOT-23 A6H 2.2 2.2 3000/Tape & Reel 10,000/Tape & Reel LMUN2132LT1G LMUN2132LT3G SOT-23 A6J 4.7 4.7 3000/Tape & Reel 10,000/Tape & Reel LMUN2133LT1G LMUN2133LT3G SOT-23 A6K 4.7 47 3000/Tape & Reel 10,000/Tape & Reel LMUN2134LT1G (Note 3.) LMUN2134LT3G SOT-23 A6L 22 47 3000/Tape & Reel 10,000/Tape & Reel LMUN2136LT1G LMUN2136LT3G SOT-23 A6N 100 100 3000/Tape & Reel 10,000/Tape & Reel LMUN2137LT1G LMUN2137LT3G SOT-23 A6P 47 22 3000/Tape & Reel 10,000/Tape & Reel LMUN2138LT1G (Note 3.) LMUN2138LT3G SOT-23 A6R 2.2 8 3000/Tape & Reel 10,000/Tape & Reel LMUN2140LT1G (Note 3.) LMUN2140LT3G SOT-23 A6T 47 8 Package Marking R1 (K) SOT-23 A6O LMUN2111LT1G LMUN2111LT3G SOT-23 LMUN2112LT1G LMUN2112LT3G 3000/Tape & Reel 10,000/Tape & Reel Device LMUN2110LT1G (Note 3.) LMUN2110LT3G 3. New devices. Updated curves to follow in subsequent data sheets. Rev.O 2/16 LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Characteristic Symbol Min Typ Max Unit OFF CHARACTERISTICS Collector-Base Cutoff Current (VCB = 50 V, IE = 0) ICBO - - 100 nAdc Collector-Emitter Cutoff Current (VCE = 50 V, IB = 0) ICEO - - 500 nAdc IEBO – – – – – – – – – – – – – – – – – – – – – – – – – – – – mAdc – – – – 0.1 0.5 0.2 0.1 0.2 0.9 1.9 4.3 2.3 1.5 0.18 0.13 0.05 0.13 4.0 0.2 Emitter-Base Cutoff Current (V EB = 6.0 V, IC = 0) LMUN2110LT1G LMUN2111LT1G LMUN2112LT1G LMUN2113LT1G LMUN2114LT1G LMUN2115LT1G LMUN2116LT1G LMUN2130LT1G LMUN2131LT1G LMUN2132LT1G LMUN2133LT1G LMUN2134LT1G LMUN2136LT1G LMUN2137LT1G LMUN2138LT1G LMUN2140LT1G Collector-Base Breakdown Voltage (IC = 10 µA, IE = 0) V(BR)CBO 50 - - Vdc Collector-Emitter Breakdown Voltage (Note 4.) (IC = 2.0 mA, IB = 0) V(BR)CEO 50 - - Vdc Unit 4. Pulse Test: Pulse Width < 300 µs, Duty Cycle < 2.0% ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) (Continued) Characteristic Symbol Min Typ Max hFE 80 35 60 80 80 160 160 3.0 8.0 15 80 80 80 80 160 120 140 60 100 140 140 250 250 5.0 15 27 140 130 150 140 350 250 – – – – – – – – – – – – – – – – VCE(sat) - - 0.25 ON CHARACTERISTICS (Note 5.) DC Current Gain (V CE = 10 V, IC = 5.0 mA ) LMUN2110LT1G LMUN2111LT1G LMUN2112LT1G LMUN2113LT1G LMUN2114LT1G LMUN2115LT1G LMUN2116LT1G LMUN2130LT1G LMUN2131LT1G LMUN2132LT1G LMUN2133LT1G LMUN2134LT1G LMUN2136LT1G LMUN2137LT1G LMUN2138LT1G LMUN2140LT1G Collector-Emitter Saturation Voltage (IC = 10 mA, IB = 0.3 mA) (IC = 10 mA, IB = 5 mA) LMUN2130LT1G/LMUN2131LT1G (IC = 10 mA, IB = 1 mA) LMUN2115LT1G/LMUN2116LT1G/ LMUN2132LT1G/LMUN2133LT1G/ LMUN2134LT1G/LMUN2138LTG/LMUN2140LT1G Rev.O 3/16 Vdc LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) (Continued) Symbol Characteristic Min Typ Max Unit – – – – – – – – – – – – – - – – – – – – – – – – – – – - 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 4.9 - - Vdc R1 32.9 7.0 15.4 32.9 7.0 7.0 3.3 0.7 1.5 3.3 3.3 15.4 70 32.9 1.54 32.9 47 10 22 47 10 10 4.7 1.0 2.2 4.7 4.7 22 100 47 2.2 47 61.1 13 28.6 61.1 13 13 6.1 1.3 2.9 6.1 6.1 28.6 130 61.1 2.86 61.1 kΩ R1/R2 0.8 1.0 1.2 0.17 - 0.21 - 0.25 - ON CHARACTERISTICS (Note 5.) Output Voltage (on) (V CC = 5.0 V, VB = 2.5 V, RL = 1.0 kΩ) (V CC = 5.0 V, VB = 3.5 V, RL = 1.0 kΩ ) (V (V CC = 5.0 V, VB = 5.5 V, RL = 1.0 kΩ ) 5.0 V, VB = 4.0 V, RL = 1.0 kΩ ) CC = VOL LMUN2110LT1G LMUN2114LT1G LMUN2111LT1G LMUN2112LT1G LMUN2114LT1G LMUN2115LT1G LMUN2116LT1G LMUN2130LT1G LMUN2131LT1G LMUN2132LT1G LMUN2133LT1G LMUN2134LT1G LMUN2138LT1G LMUN2113LT1G LMUN2140LT1G LMUN2136LT1G LMUN2137LT1G Output Voltage (off) (VCC = 5.0 V, VB = 0.5 V, RL = 1.0 kΩ) (VCC = 5.0 V, VB = 0.25 V, RL = 1.0 kΩ ) (VCC VOH Vdc LMUN2115LT1G LMUN2116LT1G LMUN2131LT1G LMUN2132LT1G LMUN2138LT1G LMUN2140LT1G = 5.0 V, VB = 0.050 V, RL = 1.0 kΩ ) LMUN2130LT1G Input Resistor Resistor Ratio LMUN2110LT1G LMUN2111LT1G LMUN2112LT1G LMUN2113LT1G LMUN2114LT1G LMUN2115LT1G LMUN2116LT1G LMUN2130LT1G LMUN2131LT1G LMUN2132LT1G LMUN2133LT1G LMUN2134LT1G LMUN2136LT1G LMUN2137LT1G LMUN2138LT1G LMUN2140LT1G LMUN2111LT1G/LMUN2112LT1G/ LMUN2113LT1G/LMUN2136LT1G/ LMUN2130LT1G/LMUN2131LT1G/ LMUN2132LT1G LMUN2114LT1G LMUN2115LT1G/LMUN2116LT1G/ LMUN2110LT1G/LMUM2138LT1G/LMUN2140LT1G LMUN2133LT1G LMUN2137LT1G 0.055 1.7 0.1 2.1 0.185 2.6 5. Pulse Test: Pulse Width < 300 µs, Duty Cycle < 2.0% Rev.O 4/16 LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series PD , POWER DISSIPATION (MILLIWATTS) 250 200 150 100 RθJA = 625°C/W 50 0 -50 0 50 100 150 VCE(sat) , MAXIMUM COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2111LT1G 1 IC/IBĂ=Ă10 TAĂ=Ă-25°C 75°C ā0.1 ā0.01 20 0 Figure 1. Derating Curve Cob , CAPACITANCE (pF) h FE, DC CURRENT GAIN (NORMALIZED) TAĂ=Ă75°C 25°C -25°C 100 10 IC, COLLECTOR CURRENT (mA) 3 2 1 0 100 f = 1 MHz lE = 0 V TA = 25°C 0 10 20 30 40 VR, REVERSE BIAS VOLTAGE (VOLTS) Figure 3. DC Current Gain 100 25°C VO = 0.2 V TAĂ=Ă-25°C 10 1 ā0.1 ā0.01 ā0.001 VO = 5 V 0 1 ā2 50 Figure 4. Output Capacitance Vin, INPUT VOLTAGE (VOLTS) IC , COLLECTOR CURRENT (mA) 75°C ā80 4 VCE = 10 V 100 ā60 Figure 2. VCE(sat) versus IC 1000 1 ā40 IC, COLLECTOR CURRENT (mA) TA, AMBIENT TEMPERATURE (°C) 10 25°C ā6 ā7 ā3 ā4 ā5 Vin, INPUT VOLTAGE (VOLTS) ā8 ā9 Figure 5. Output Current versus Input Voltage 10 TAĂ=Ă-25°C 10 25°C 75°C 1 ā0.1 0 10 ā20 ā30 IC, COLLECTOR CURRENT (mA) ā40 Figure 6. Input Voltage versus Output Current Rev.O 5/16 ā50 LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series 1000 10 IC/IBĂ=Ă10 h FE , DC CURRENT GAIN (NORMALIZED) VCE(sat) , MAXIMUM COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2112LT1G TAĂ=Ă-25°C 25°C 1 75°C ā0.1 ā0.01 0 ā20 ā40 ā60 IC, COLLECTOR CURRENT (mA) VCE = 10 V TAĂ=Ă75°C 100 10 ā80 1 10 Figure 8. DC Current Gain 100 IC , COLLECTOR CURRENT (mA) f = 1 MHz lE = 0 V TA = 25°C 2 1 0 75°C 25°C TAĂ=Ă-25°C 10 1 ā0.1 VO = 5 V ā0.01 ā0.001 50 10 20 30 40 VR, REVERSE BIAS VOLTAGE (VOLTS) 0 1 ā2 ā3 ā4 ā5 ā6 ā7 ā8 ā9 Vin, INPUT VOLTAGE (VOLTS) Figure 9. Output Capacitance Figure 10. Output Current versus Input Voltage 100 VO = 0.2 V Vin, INPUT VOLTAGE (VOLTS) Cob , CAPACITANCE (pF) 4 0 100 IC, COLLECTOR CURRENT (mA) Figure 7. VCE(sat) versus IC 3 25°C -25°C TAĂ=Ă-25°C 25°C 10 75°C 1 ā0.1 0 10 ā20 ā30 ā40 ā50 IC, COLLECTOR CURRENT (mA) Figure 11. Input Voltage versus Output Current Rev.O 6/16 10 LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series 1 1000 IC/IBĂ=Ă10 TAĂ=Ă-25°C 25°C 75°C ā0.1 ā0.01 h FE , CURRENT GAIN (NORMALIZED) VCE(sat) , MAXIMUM COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2113LT1G 0 10 20 30 IC, COLLECTOR CURRENT (mA) TAĂ=Ă75°C 25°C -25°C 100 10 40 1 10 IC, COLLECTOR CURRENT (mA) Figure 12. VCE(sat) versus IC Figure 13. DC Current Gain 1 100 0.6 0.4 0.2 0 0 10 20 30 40 VR, REVERSE BIAS VOLTAGE (VOLTS) 50 TAĂ=Ă75°C 25°C -25°C 10 1 ā0.1 ā0.01 ā0.001 VO = 5 V 1 0 ā2 ā3 ā4 ā5 ā6 ā7 ā8 Ă9 Figure 15. Output Current versus Input Voltage 100 VO = 2 V TAĂ=Ă-25°C 25°C 75°C 10 1 Ă0.1 0 10 10 Vin, INPUT VOLTAGE (VOLTS) Figure 14. Output Capacitance Vin , INPUT VOLTAGE (VOLTS) Cob , CAPACITANCE (pF) I C , COLLECTOR CURRENT (mA) f = 1 MHz lE = 0 V TA = 25°C 0.8 100 ā20 30 IC, COLLECTOR CURRENT (mA) ā40 ā50 Figure 16. Input Voltage versus Output Current Rev.O 7/16 LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series TYPICAL ELECTRICAL CHARACTERISTICS LMUN2114LT1G Rev.O 8/16 LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series 1000 1 75°C 0.1 −25°C 25°C 0.01 0.001 30 20 40 10 IC, COLLECTOR CURRENT (mA) 0 TA = −25°C 100 10 1 50 25°C 1 10 IC, COLLECTOR CURRENT (mA) Figure 22. VCE(sat) versus IC 100 10 IC, COLLECTOR CURRENT (mA) f = 1 MHz lE = 0 V TA = 25°C 8 6 4 2 0 5 35 40 45 10 15 20 25 30 VR, REVERSE BIAS VOLTAGE (VOLTS) Figure 24. Output Capacitance 50 75°C 10 25°C 1 TA = −25°C 0.1 0.01 0.001 VO = 5 V 0 1 2 3 4 5 6 7 8 Vin, INPUT VOLTAGE (VOLTS) 9 VO = 0.2 V TA = −25°C 1 75°C 0.1 0 10 Figure 25. Output Current versus Input Voltage 10 Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) 100 Figure 23. DC Current Gain 12 0 VCE = 10 V 75°C IC/IB = 10 hFE, DC CURRENT GAIN VCE(sat), COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2115LT1G 25°C 40 10 20 30 IC, COLLECTOR CURRENT (mA) 50 Figure 26. Input Voltage versus Output Current Rev.O 9/16 LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series 1000 1 IC/IB = 10 75°C 0.1 −25°C 25°C 0.01 0.001 0 20 40 30 10 IC, COLLECTOR CURRENT (mA) 25°C 10 1 50 TA = −25°C 100 1 10 IC, COLLECTOR CURRENT (mA) Figure 27. VCE(sat) versus IC 100 10 IC, COLLECTOR CURRENT (mA) f = 1 MHz lE = 0 V TA = 25°C 8 6 4 2 0 5 35 40 45 10 15 20 25 30 VR, REVERSE BIAS VOLTAGE (VOLTS) Figure 29. Output Capacitance 50 75°C 10 25°C 1 TA = −25°C 0.1 0.01 0.001 VO = 5 V 0 1 2 3 4 5 6 7 8 Vin, INPUT VOLTAGE (VOLTS) 9 TA = −25°C 1 75°C 25°C VO = 0.2 V 0.1 0 10 Figure 30. Output Current versus Input Voltage 10 Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) 100 Figure 28. DC Current Gain 12 0 VCE = 10 V 75°C hFE, DC CURRENT GAIN VCE(sat), COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2116LT1G 40 10 20 30 IC, COLLECTOR CURRENT (mA) 50 Figure 31. Input Voltage versus Output Current Rev.O 10/16 LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series 1 1000 IC/IB =10 25°C 75°C 0.1 hFE, DC CURRENT GAIN VCE(sat), MAXIMUM COLLECTOR VOLTAGE (V) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2131LT1G −25°C 0.01 0 5 15 10 20 25 30 100 25°C 75°C 10 1 35 IC/IB = 10 −25°C 1 IC, COLLECTOR CURRENT (mA) Figure 32. VCE(sat) vs. IC Figure 33. DC Current Gain 10 IC, COLLECTOR CURRENT (mA) 100 f = 1 MHz IE = 0 A TA = 25°C 8 6 4 2 0 5 10 15 20 25 30 35 40 45 50 55 75°C −25°C 10 1 TA = 25°C 0.01 0.01 0 1 3 2 VO = 5 V 4 5 6 7 VR, REVERSE BIAS VOLTAGE (V) Vin, INPUT VOLTAGE (V) Figure 34. Output Capacitance Figure 35. Output Current vs. Input Voltage 10 Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) 12 0 100 10 IC, COLLECTOR CURRENT (mA) TA = −25°C 75°C 1 25°C VO = 0.2 V 0.1 0 5 15 10 20 IC, COLLECTOR CURRENT (mA) 25 Figure 36. Input Voltage vs. Output Current Rev.O 11/16 8 LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series 1000 1 VCE = 10 V IC/IB = 10 hFE, DC CURRENT GAIN VCE(sat), COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2132LT1G 75°C 0.1 −25°C 25°C 0.01 0.001 30 20 40 10 IC, COLLECTOR CURRENT (mA) 0 25°C 10 TA = −25°C 1 50 75°C 100 1 10 IC, COLLECTOR CURRENT (mA) Figure 37. VCE(sat) versus IC Figure 38. DC Current Gain IC, COLLECTOR CURRENT (mA) 100 f = 1 MHz lE = 0 V TA = 25°C 8 6 4 2 0 0 5 10 15 20 25 30 35 40 45 VR, REVERSE BIAS VOLTAGE (VOLTS) Figure 39. Output Capacitance 50 75°C 10 25°C 1 TA = −25°C 0.1 0.01 0.001 VO = 5 V 0 1 2 7 8 3 4 5 6 Vin, INPUT VOLTAGE (VOLTS) 9 TA = −25°C 1 75°C 25°C VO = 0.2 V 0.1 0 10 Figure 40. Output Current versus Input Voltage 10 Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) 12 10 100 40 10 20 30 IC, COLLECTOR CURRENT (mA) 50 Figure 41. Input Voltage versus Output Current Rev.O 12/16 LESHAN RADIO COMPANY, LTD. VCE = 10 V IC/IB = 10 75°C 0.1 −25°C 25°C 0.01 0.001 30 20 40 10 IC, COLLECTOR CURRENT (mA) 0 75°C 100 1 10 IC, COLLECTOR CURRENT (mA) 100 Figure 43. DC Current Gain 8 IC, COLLECTOR CURRENT (mA) 100 f = 1 MHz lE = 0 V TA = 25°C 7 Cob, CAPACITANCE (pF) 25°C 10 1 50 TA = −25°C Figure 42. VCE(sat) versus IC 6 5 4 3 2 1 0 LMUN2110LT1G Series 1000 1 hFE, DC CURRENT GAIN VCE(sat), COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2133LT1G 0 5 10 15 20 25 30 35 40 45 VR, REVERSE BIAS VOLTAGE (VOLTS) 50 Figure 44. Output Capacitance 75°C 10 25°C 1 0.1 TA = −25°C 0.01 VO = 5 V 0.001 0 1 2 7 8 3 4 5 6 Vin, INPUT VOLTAGE (VOLTS) 9 10 Figure 45. Output Current versus Input Voltage Vin, INPUT VOLTAGE (VOLTS) 10 TA = −25°C 1 75°C 25°C VO = 0.2 V 0.1 0 40 10 20 30 IC, COLLECTOR CURRENT (mA) Figure 46. Input Voltage versus Output Current 50 Figure 47. Inexpensive, Unregulated Current Source Rev.O 13/16 LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series TYPICAL ELECTRICAL CHARACTERISTICS LMUN2136LT1G 1000 75°C hFE, DC CURRENT GAIN VCE(sat), MAXIMUM COLLECTOR VOLTAGE (VOLTS) 1 0.1 0.01 75°C 25°C −25°C 1 2 3 4 5 IC, COLLECTOR CURRENT (mA) 6 10 1 7 1 10 IC, COLLECTOR CURRENT (mA) Figure 48. Maximum Collector Voltage vs. Collector Current 100 IC, COLLECTOR CURRENT (mA) 1.0 f = 1 MHz IE = 0 V TA = 25°C 0.8 0.6 0.4 0.2 0 10 20 30 40 50 VR, REVERSE BIAS VOLTAGE (VOLTS) 60 25°C 75°C 10 TA = −25°C 1 VO = 5 V 0.1 0 1 2 3 4 5 6 7 8 9 Vin, INPUT VOLTAGE (VOLTS) Figure 50. Output Capacitance Figure 51. Output Current vs. Input Voltage 100 Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) 100 Figure 49. DC Current Gain 1.2 0 25°C VCE = 10 V IC/IB = 10 0 TA = −25°C 100 25°C TA = −25°C 10 1 75°C 0 2 VO = 0.2 V 14 16 4 6 8 10 12 IC, COLLECTOR CURRENT (mA) 18 20 Figure 52. Input Voltage vs. Output Current Rev.O 14/16 10 LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series TYPICAL ELECTRICAL CHARACTERISTICS LMUN2137LT1G 1000 hFE, DC CURRENT GAIN VCE(sat), MAXIMUM COLLECTOR VOLTAGE (VOLTS) 1 TA = −25°C 75°C 0.1 25°C 0.01 IC/IB = 10 0 5 10 15 20 25 30 35 40 IC, COLLECTOR CURRENT (mA) 45 75°C 25°C VCE = 10 V 10 50 TA = −25°C 100 1 10 IC, COLLECTOR CURRENT (mA) Figure 53. Maximum Collector Voltage vs. Collector Current Figure 54. DC Current Gain 100 1.0 IC, COLLECTOR CURRENT (mA) f = 1 MHz IE = 0 V TA = 25°C 0.8 0.6 0.4 0.2 0 0 10 20 30 40 50 VR, REVERSE BIAS VOLTAGE (VOLTS) 60 75°C TA = −25°C 10 25°C 1 0.1 0.01 0.001 VO = 5 V 0 1 2 3 4 5 6 7 8 9 10 11 Vin, INPUT VOLTAGE (VOLTS) Figure 55. Output Capacitance Figure 56. Output Current vs. Input Voltage 100 Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) 1.4 1.2 100 VO = 0.2 V TA = −25°C 10 1 75°C 25°C 0 20 5 10 15 IC, COLLECTOR CURRENT (mA) 25 Figure 57. Input Voltage vs. Output Current Rev.O 15/16 LESHAN RADIO COMPANY, LTD. LMUN2110LT1G Series SOT-23 NOTES: A 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. L 3 1 V 2 B S DIM G A B C D G H J K L S V C D H K J INCHES MIN MAX 0.1102 0.1197 0.0472 0.0551 0.0350 0.0440 0.0150 0.0200 0.0701 0.0807 0.0005 0.0040 0.0034 0.0070 0.0140 0.0285 0.0350 0.0401 0.0830 0.1039 0.0177 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 PIN 1. BASE 2. EMITTER 3. COLLECTOR 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 inches mm Rev.O 16/16
