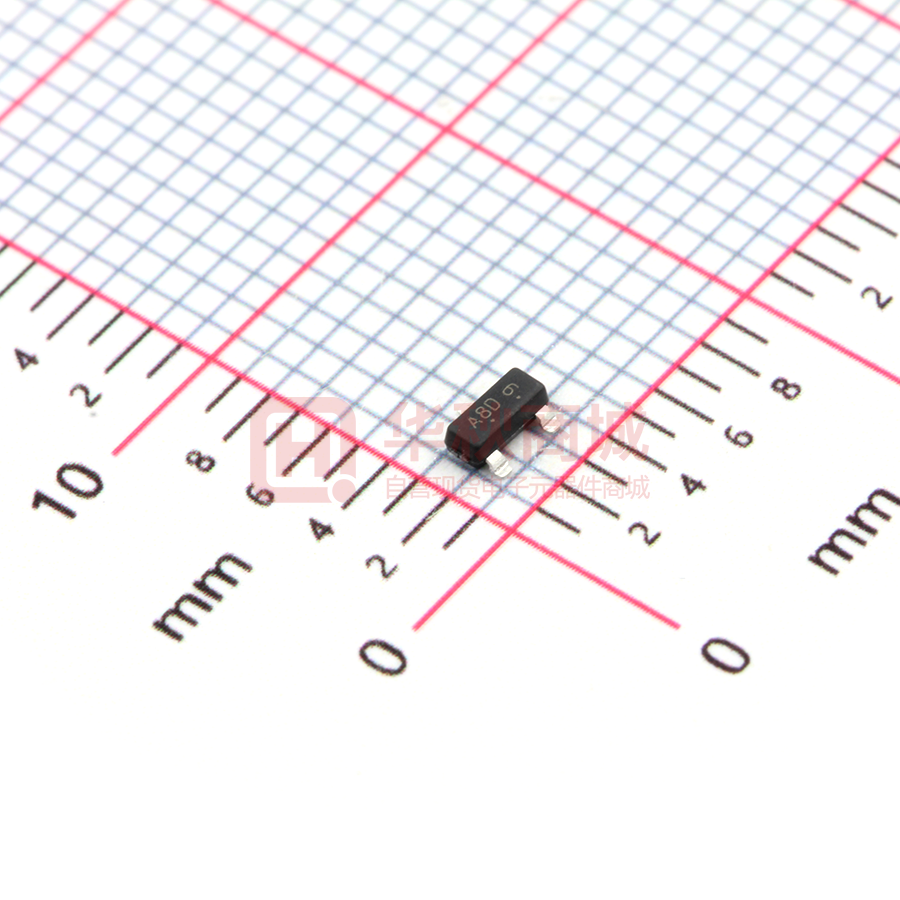

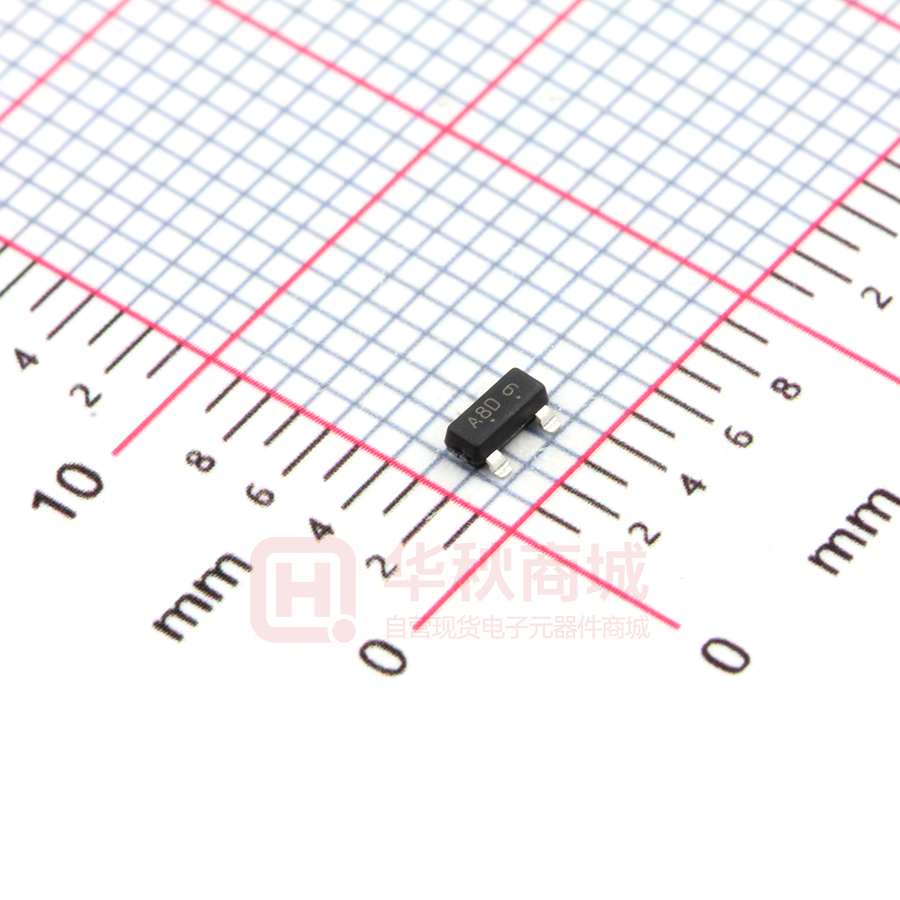

LMUN2214LT1G

LESHAN RADIO COMPANY, LTD. Bias Resistor Transistor NPN Silicon Surface Mount Transistor with Monolithic Bias Resistor Network sLMUN2211LT1G Series This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network 3 1 resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space. The device is housed in the SOT-23 package which is designed for low power surface mount applications. • Simplifies Circuit Design • Reduces Board Space and Component Count • The SOT-23 package can be soldered using wave or reflow. The • modified gull-winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die. Available in 8 mm embossed tape and reel. Use the Device Number to order the 7 inch/3000 unit reel. Replace “T1” with “T3” in the Device Number to order the13 inch/10,000 unit reel. SOT–23 (TO–236AB) PIN 3 PIN 1 BASE (INPUT) COLLECTOR (OUTPUT) R1 R2 PIN 2 EMITTER (GROUND) We declare that the material of product compliance with RoHS requirements. Ordering Information MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Rating 2 Symbol Value Unit Collector-Base Voltage VCBO 50 Vdc Collector-Emitter Voltage VCEO 50 Vdc Collector Current IC 100 mAdc Total Power Dissipation @ TA = 25°C (Note 1.) Derate above 25°C PD *246 1.5 mW °C/W Marking R1(K) R2(K) LMUN2211LT1G LMUN2212LT1G A8A A8B 10 22 10 22 LMUN2213LT1G A8C 47 47 LMUN2214LT1G A8D 10 47 LMUN2215LT1G A8E 10 ∞ LMUN2216LT1G A8F 4.7 LMUN2230LT1G A8G LMUN2231LT1G DEVICE MARKING AND RESISTOR VALUES Device Package Shipping LMUN2211LT1G SOT23 3000/Tape&Reel LMUN2211LT3G SOT23 10000/Tape&Reel ORDERING INFORMATION Device Package Shipping LMUN2211LT1G SOT–23 LMUN2212LT1G SOT–23 3000/Tape & Reel LMUN2213LT1G SOT–23 3000/Tape & Reel LMUN2214LT1G SOT–23 3000/Tape & Reel LMUN2215LT1G SOT–23 3000/Tape & Reel ∞ LMUN2216LT1G SOT–23 3000/Tape & Reel 1.0 1.0 LMUN2230LT1G SOT–23 3000/Tape & Reel A8H 2.2 2.2 LMUN2231LT1G SOT–23 3000/Tape & Reel LMUN2232LT1G A8J 4.7 4.7 LMUN2232LT1G SOT–23 3000/Tape & Reel LMUN2233LT1G A8K 4.7 47 LMUN2233LT1G SOT–23 3000/Tape & Reel LMUN2234LT1G A8L 22 47 LMUN2234LT1G SOT–23 3000/Tape & Reel LMUN2235LT1G A8M 2.2 47 LMUN2235LT1G SOT–23 3000/Tape & Reel LMUN2236LT1G A8N 100 100 LMUN2237LT1G A8P 47 22 LMUN2236LT1G SOT–23 LMUN2238LT1G A8R 2.2 ∞ LMUN2237LT1G SOT–23 3000/Tape & Reel LMUN2240LT1G A8T 47 ∞ LMUN2238LT1G SOT–23 3000/Tape & Reel LMUN2241LT1G A8U 100 ∞ LMUN2240LT1G SOT–23 3000/Tape & Reel LMUN2241LT1G SOT–23 3000/Tape & Reel Device 1. Device mounted on a FR-4 glass epoxy printed circuit board using the minimum recommended footprint. 3000/Tape & Reel 3000/Tape & Reel Rev.O 1/16 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series THERMAL CHARACTERISTICS Rating Thermal Resistance – Junction-to-Ambient (Note 1.) Operating and Storage Temperature Range Symbol Value Unit RθJA 508 °C/W TJ, Tstg –55 to +150 °C TL 260 10 °C Sec Maximum Temperature for Soldering Purposes, Time in Solder Bath ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Characteristic Symbol Min Typ Max Unit Collector-Base Cutoff Current (VCB = 50 V, IE = 0) ICBO – – 100 nAdc Collector-Emitter Cutoff Current (VCE = 50 V, IB = 0) ICEO – – 500 nAdc IEBO – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 0.5 0.2 0.1 0.2 0.9 1.9 4.3 2.3 1.5 0.18 0.13 0.2 0.05 0.13 4.0 0.2 0.1 mAdc Collector-Base Breakdown Voltage (IC = 10 µA, IE = 0) V(BR)CBO 50 – – Vdc Collector-Emitter Breakdown Voltage (Note 2.), (IC = 2.0 mA, IB = 0) V(BR)CEO 50 – – Vdc 35 60 80 80 160 160 3.0 8.0 15 80 80 80 80 80 160 160 160 – 60 100 140 140 350 350 5.0 15 30 200 150 140 150 140 350 350 350 – – – – – – – – – – – – – – – – – – 0.25 Vdc OFF CHARACTERISTICS Emitter-Base Cutoff Current (VEB = 6.0 V, IC = 0) LMUN2211LT1G LMUN2212LT1G LMUN2213LT1G LMUN2214LT1G LMUN2215LT1G LMUN2216LT1G LMUN2230LT1G LMUN2231LT1G LMUN2232LT1G LMUN2233LT1G LMUN2234LT1G LMUN2235LT1G LMUN2236LT1G LMUN2237LT1G LMUN2238LT1G LMUN2240LT1G LMUN2241LT1G ON CHARACTERISTICS (Note 2.) DC Current Gain (VCE = 10 V, IC = 5.0 mA) LMUN2211LT1G LMUN2212LT1G LMUN2213LT1G LMUN2214LT1G LMUN2215LT1G LMUN2216LT1G LMUN2230LT1G LMUN2231LT1G LMUN2232LT1G LMUN2233LT1G LMUN2234LT1G LMUN2235LT1G LMUN2236LT1G LMUN2237LT1G LMUN2238LT1G LMUN2240LT1G LMUN2241LT1G Collector-Emitter Saturation Voltage (IC = 10 mA, IB = 0.3 mA) (IC = 10 mA, IB = 5 mA) LMUN2230LT1G/LMUN2231LT1G LMUN2237LT1G (IC = 10 mA, IB = 1 mA) LMUN2215LT1G/LMUN2216LT1G LMUN2232LT1G/LMUN2233LT1G/LMUN2234LT1G/ LMUN2235LT1G/LMUN2238LT1G/LMUN2240LT1G hFE VCE(sat) 2. Pulse Test: Pulse Width < 300 µs, Duty Cycle < 2.0%. Rev.O 2/16 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) (Continued) Characteristic Symbol Min Typ Max Unit – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 VOH 4.9 – – Vdc R1 7.0 15.4 32.9 7.0 7.0 3.3 0.7 1.5 3.3 3.3 15.4 1.54 1.54 70 70 32.9 32.9 10 22 47 10 10 4.7 1.0 2.2 4.7 4.7 22 2.2 2.2 100 100 47 47 13 28.6 61.1 13 13 6.1 1.3 2.9 6.1 6.1 28.6 2.86 2.88 130 130 61.1 61.1 kΩ R1/R2 0.8 0.17 – – 0.8 0.8 1.7 0.055 0.38 0.038 1.0 0.21 – – 1.0 1.0 2.15 0.1 0.47 0.047 1.2 0.25 – – 1.2 1.2 2.6 0.185 0.56 0.056 ON CHARACTERISTICS (Note 3.) Output Voltage (on) (VCC = 5.0 V, VB = 2.5 V, RL = 1.0 k Ω ) (VCC = 5.0 V, VB = 5.5 V, RL = 1.0 k Ω) (VCC = 5.0 V, VB = 4.0 V, RL = 1.0 k Ω) (VCC = 5.0 V, VB = 3.5 V, RL = 1.0 k Ω) (VCC = 5.0 V, VB = 5.0 V, RL = 1.0 k Ω) VOL LMUN2211LT1G LMUN2212LT1G LMUN2214LT1G LMUN2215LT1G LMUN2216LT1G LMUN2230LT1G LMUN2231LT1G LMUN2232LT1G LMUN2233LT1G LMUN2234LT1G LMUN2235LT1G LMUN2238LT1G LMUN2236LT1G LMUN2237LT1G LMUN2213LT1G LMUN2240LT1G LMUN2241LT1G Output Voltage (off) (VCC = 5.0 V, VB = 0.5 V, RL = 1.0 k Ω) (VCC = 5.0 V, VB = 0.050 V, RL = 1.0 k Ω ) LMUN2230LT1G LMUN2215LT1G (VCC = 5.0 V, VB = 0.25 V, RL = 1.0 k Ω ) LMUN2216LT1G LMUN2233LT1G LMUN2238LT1G LMUN2236LT1G LMUN2237LT1G LMUN2240LT1G Input Resistor Resistor Ratio LMUN2211LT1G LMUN2212LT1G LMUN2213LT1G LMUN2214LT1G LMUN2215LT1G LMUN2216LT1G LMUN2230LT1G LMUN2231LT1G LMUN2232LT1G LMUN2233LT1G LMUN2234LT1G LMUN2235LT1G LMUN2238LT1G LMUN2241LT1G LMUN2236LT1G LMUN2237LT1G LMUN2240LT1G LMUN2211LT1/LMUN2212LT1/LMUN2213LT1G LMUN2214LT1G LMUN2215LT1/LMUN2216LT1/LMUN2238LT1G LMUN2241LT1G/LMUN2240LT1G LMUN2230LT1/LMUN2231LT1/LMUN2232LT1G LMUN2236LT1G LMUN2237LT1G LMUN2233LT1G LMUN2234LT1G LMUN2235LT1G Vdc 3. Pulse Test: Pulse Width < 300 µs, Duty Cycle < 2.0%. Rev.O 3/16 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series 200 VCE(sat), MAXIMUM COLLECTOR VOLTAGE (VOLTS) 250 1 IC/IB = 10 TA = –25°C 25°C 75°C 0.1 150 100 0.01 RθJA= 625°C/W 50 0 –50 0 50 100 150 0.001 0 40 60 IC, COLLECTOR CURRENT (mA) Figure 1. Derating Curve Figure 2. VCE(sat) vs. IC VCE = 10 V TA = 75°C 25°C –25°C 100 10 1 10 IC, COLLECTOR CURRENT (mA) 100 3 2 1 0 100 f = 1 MHz lE = 0 A TA = 25°C 0 VO = 0.2 V Vin, INPUT VOLTAGE (VOLTS) 1 0.1 0.01 VO = 5 V 1 2 3 30 50 40 10 TA = –25°C 0 20 Figure 4. Output Capcitance 25°C 10 10 VR, REVERSE BIAS VOLTAGE (VOLTS) 75°C 0.001 80 4 1000 Figure 3. DC Current Gain IC, COLLECTOR CURRENT (mA) 20 TA, AMBIENT TEMPERATURE (5°C) Cob, CAPACITANCE (pF) hFE, DC CURRENT GAIN (NORMALIZED) PD, POWER DISSIPATION (MILLIWATTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2211LT1G 4 5 6 7 8 9 Vin, INPUT VOLTAGE (VOLTS) Figure 5. Output Current vs. Input Voltage 10 TA = –25°C 25°C 75°C 1 0.1 0 40 10 20 30 IC, COLLECTOR CURRENT (mA) Figure 6. Input Voltage vs. Output Current Rev.O 4/16 50 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series – hFE, DC CURRENT GAIN (NORMALIZED) VCE(sat), MAXIMUM COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2212LT1G 1000 1 TA = –25°C IC/IB = 10 25°C 75°C 0.1 0.01 0.001 0 20 60 40 IC, COLLECTOR CURRENT (mA) 80 VCE = 10 V TA = 75°C 10 1 10 IC, COLLECTOR CURRENT (mA) Figure 7. VCE(sat) vs. IC IC, COLLECTOR CURRENT (mA) f = 1 MHz lE = 0 A TA = 25°C 1 0 10 20 30 40 50 75°C 25°C TA = –25°C 10 1 0.1 0.01 VO = 5 V 0.001 0 2 4 6 8 VR, REVERSE BIAS VOLTAGE (VOLTS) Vin, INPUT VOLTAGE (VOLTS) Figure 9. Output Capacitance Figure 10. Output Current vs. Input Voltage 100 Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) 100 2 0 VO = 0.2 V TA = –25°C 10 75°C 25°C 1 0.1 0 100 Figure 8. DC Current Gain 4 3 –25°C 25°C 100 10 20 30 40 50 IC, COLLECTOR CURRENT (mA) Figure 11. Input Voltage vs. Output Current Rev.O 5/16 10 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series 10 IC/IB = 10 1000 TA = –25°C 25°C 75°C 1 0.1 0.01 0 20 40 60 80 hFE, DC CURRENT GAIN (NORMALIZED) VCE(sat), MAXIMUM COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2213LT1G 25°C –25°C 100 10 1 10 100 IC, COLLECTOR CURRENT (mA) Figure 12. VCE(sat) vs. IC Figure 13. DC Current Gain 100 0.8 IC, COLLECTOR CURRENT (mA) f = 1 MHz lE = 0 A TA = 25°C 0.6 0.4 0.2 10 20 30 40 50 75°C Figure 14. Output Capacitance 25°C 10 TA = –25°C 1 0.1 0.01 VO = 5 V 0.001 0 2 VR, REVERSE BIAS VOLTAGE (VOLTS) 4 6 8 Vin, INPUT VOLTAGE (VOLTS) Figure 15. Output Current vs. Input Voltage 100 Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) TA = 75°C IC, COLLECTOR CURRENT (mA) 1 0 0 VCE = 10 V VO = 0.2 V TA = –25°C 25°C 25°C 10 1 0.1 0 10 20 30 40 IC, COLLECTOR CURRENT (mA) 50 Figure 16. Input Voltage vs. Output Current Rev.O 6/16 10 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series 1 IC/IB = 10 TA = –25°C 25°C 0.1 75°C 0.01 0.001 0 20 40 60 IC, COLLECTOR CURRENT (mA) 80 hFE, DC CURRENT GAIN (NORMALIZED) VCE(sat), MAXIMUM COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2214LT1G 300 VCE = 10 TA = 75°C 250 25°C 200 –25°C 150 100 50 0 1 2 4 6 8 10 15 20 40 50 60 70 80 90 100 IC, COLLECTOR CURRENT (mA) Figure 17. VCE(sat) vs. IC Figure 18. DC Current Gain 100 f = 1 MHz lE = 0 A TA = 25°C 3 2.5 2 1.5 1 0.5 0 0 2 4 6 8 10 15 20 25 30 35 40 45 50 VR, REVERSE BIAS VOLTAGE (VOLTS) Figure 19. Output Capacitance 75°C 25°C TA = –25°C 10 VO = 5 V 1 0 2 4 6 8 Vin, INPUT VOLTAGE (VOLTS) Figure 20. Output Current vs. Input Voltage 10 VO = 0.2 V Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) 3.5 IC, COLLECTOR CURRENT (mA) 4 TA = –25°C 25°C 75°C 1 0.1 0 10 20 30 40 IC, COLLECTOR CURRENT (mA) 50 Figure 21. Input Voltage vs. Output Current Rev.O 7/16 10 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series 1000 1 IC/IB = 10 75°C 0.1 -25°C 25°C 0.01 0.001 0 20 30 40 10 IC, COLLECTOR CURRENT (mA) TA = -25°C 100 25°C 10 1 50 1 10 IC, COLLECTOR CURRENT (mA) Figure 22. VCE(sat) versus IC 100 Figure 23. DC Current Gain 100 4 IC, COLLECTOR CURRENT (mA) 4.5 f = 1 MHz IE = 0 V TA = 25°C 3.5 3 2.5 2 1.5 1 0.5 75°C 10 25°C 1 TA = -25°C 0.1 0.01 VO = 5 V 0.001 0 0 5 15 20 25 30 35 40 45 10 VR, REVERSE BIAS VOLTAGE (VOLTS) Figure 24. Output Capacitance 50 0 1 2 3 4 5 6 7 8 Vin, INPUT VOLTAGE (VOLTS) 9 10 Figure 25. Output Current versus Input Voltage 10 Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) VCE = 10 V 75°C hFE, DC CURRENT GAIN VCE(sat), COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2215LT1G TA = -25°C 1 25°C 75°C VO = 0.2 V 0.1 0 10 20 30 40 IC, COLLECTOR CURRENT (mA) 50 Figure 26. Input Voltage versus Output Current Rev.O 8/16 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series 1000 1 75°C 0.1 -25°C 25°C 0.01 0.001 0 20 40 30 10 IC, COLLECTOR CURRENT (mA) TA = -25°C 10 1 50 25°C 100 1 10 IC, COLLECTOR CURRENT (mA) Figure 27. VCE(sat) versus IC 100 IC, COLLECTOR CURRENT (mA) f = 1 MHz IE = 0 V TA = 25°C 4 3.5 100 Figure 28. DC Current Gain 4.5 3 2.5 2 1.5 1 0.5 75°C 10 25°C TA = -25°C 1 0.1 0.01 VO = 5 V 0.001 0 0 5 10 15 20 25 30 35 40 45 VR, REVERSE BIAS VOLTAGE (VOLTS) Figure 29. Output Capacitance 50 0 1 2 3 4 5 6 7 8 Vin, INPUT VOLTAGE (VOLTS) 9 10 Figure 30. Output Current versus Input Voltage 10 Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) VCE = 10 V 75°C IC/IB = 10 hFE, DC CURRENT GAIN VCE(sat), COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2216LT1G TA = -25°C 1 25°C 75°C VO = 0.2 V 0.1 0 10 20 30 40 IC, COLLECTOR CURRENT (mA) 50 Figure 31. Input Voltage versus Output Current Rev.O 9/16 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series 100 1 IC/IB = 10 hFE, DC CURRENT GAIN VCE(sat), COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2230LT1G 75°C 0.1 -25°C 25°C 0.01 0.001 0 10 20 40 30 IC, COLLECTOR CURRENT (mA) 75°C 10 25°C TA = -25°C VCE = 10 V 1 50 1 10 IC, COLLECTOR CURRENT (mA) Figure 32. VCE(sat) versus IC Figure 33. DC Current Gain 4.5 IC, COLLECTOR CURRENT (mA) 100 4 f = 1 MHz IE = 0 V TA = 25°C 3.5 3 2.5 2 1.5 1 0.5 0 75°C 10 25°C 1 TA = -25°C 0.1 0.01 VO = 5 V 0.001 0 5 35 40 45 10 15 20 25 30 VR, REVERSE BIAS VOLTAGE (VOLTS) 50 Figure 34. Output Capacitance 0 1 2 3 4 5 6 7 8 Vin, INPUT VOLTAGE (VOLTS) 9 10 Figure 35. Output Current versus Input Voltage 10 Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) 100 TA = -25°C 75°C 1 25°C VO = 0.2 V 0.1 0 10 20 30 40 IC, COLLECTOR CURRENT (mA) 50 Figure 36. Input Voltage versus Output Current Rev.O 10/16 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series 100 1 IC/IB = 10 hFE, DC CURRENT GAIN VCE(sat), COLLECTOR VOLTAGE (VOLTS) TYPICAL ELECTRICAL CHARACTERISTICS LMUN2231LT1G 75°C 0.1 -25°C 25°C 0.01 0.001 0 10 20 40 30 IC, COLLECTOR CURRENT (mA) TA = -25°C VCE = 10 V 1 50 1 10 IC, COLLECTOR CURRENT (mA) Figure 37. VCE(sat) versus IC 100 Figure 38. DC Current Gain 4.5 IC, COLLECTOR CURRENT (mA) 100 4 f = 1 MHz IE = 0 V TA = 25°C 3.5 3 2.5 2 1.5 1 0.5 0 75°C 10 25°C 1 TA = -25°C 0.1 0.01 VO = 5 V 0.001 0 5 35 40 45 10 15 20 25 30 VR, REVERSE BIAS VOLTAGE (VOLTS) 50 Figure 39. Output Capacitance 0 1 2 3 4 5 6 7 8 Vin, INPUT VOLTAGE (VOLTS) 9 10 Figure 40. Output Current versus Input Voltage 10 Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) 25°C 75°C 10 TA = -25°C 75°C 1 25°C VO = 0.2 V 0.1 0 10 20 30 40 IC, COLLECTOR CURRENT (mA) 50 Figure 41. Input Voltage versus Output Current Rev.O 11/16 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series TYPICAL ELECTRICAL CHARACTERISTICS LMUN2232LT1G 1000 VCE = 10 V IC/IB =10 hFE, DC CURRENT GAIN VCE(sat), MAXIMUM COLLECTOR VOLTAGE (VOLTS) 1 TA = 75°C 0.1 25°C –25°C 0.01 TA = 75°C 100 10 1 0.001 4 12 8 16 24 20 28 0 25 IC, COLLECTOR CURRENT (mA) 75 50 100 125 IC, COLLECTOR CURRENT (mA) Figure 22. VCE(sat) vs. IC Figure 23. DC Current Gain 6 IC, COLLECTOR CURRENT (mA) 100 f = 1 MHz IE = 0 A TA = 25°C 5 4 3 2 1 VO = 5 V 75°C 25°C 10 1 TA = –25°C 0.1 0.01 0 0 10 20 30 40 50 60 0 2 4 6 VR, REVERSE BIAS VOLTAGE (VOLTS) Vin, INPUT VOLTAGE (VOLTS) Figure 24. Output Capacitance Figure 25. Output Current vs. Input Voltage 10 Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) 25°C –25°C VO = 0.2 V TA = –25°C 75°C 1 0.1 0 25°C 10 20 IC, COLLECTOR CURRENT (mA) 30 Figure 26. Output Voltage vs. Input Current Rev.O 12/16 8 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series TYPICAL ELECTRICAL CHARACTERISTICS LMUN2233LT1G 1000 IC/IB = 10 0.1 hFE, DC CURRENT GAIN VCE(sat), MAXIMUM COLLECTOR VOLTAGE (VOLTS) 1 25°C 100 75°C 25°C TA = –25°C 0.01 TA = –25°C 10 VCE = 10 V 1 0.001 2 7 12 17 22 27 1 32 10 100 IC, COLLECTOR CURRENT (mA) IC, COLLECTOR CURRENT (mA) Figure 27. VCE(sat) vs. IC Figure 28. DC Current Gain 4 IC, COLLECTOR CURRENT (mA) 100 f = 1 MHz IE = 0 A TA = 25°C 3.5 3 2.5 2 1.5 1 0.5 0 75°C TA = –25°C 10 1 0.1 25°C VO = 5 V 0.01 0 10 20 30 40 50 60 0 2 4 6 VR, REVERSE BIAS VOLTAGE (VOLTS) Vin, INPUT VOLTAGE (VOLTS) Figure 29. Output Capacitance Figure 30. Output Current vs. Input Voltage 10 VO = 0.2 V Vin, INPUT VOLTAGE (VOLTS) Cob, CAPACITANCE (pF) 75°C TA = –25°C 25°C 75°C 1 0.1 0 6 12 18 24 IC, COLLECTOR CURRENT (mA) 30 Figure 31. Input Voltage vs. Output Current Rev.O 13/16 8 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series TYPICAL ELECTRICAL CHARACTERISTICS LMUN2234LT1G 100 10m 5m VO=0.3V OUTPUT CURRENT : Io (A) INPUT VOLTAGE : VI(on) (V) 50 20 10 Ta=−40°C 25°C 100°C 5 2 1 500m 2m 1m 500µ 500µ 1m 2m 5m 10m 20m Ta=100°C 25°C −40°C 200µ 100µ 50µ 20µ 10µ 5µ 200m 100m 100µ 200µ VCC=5V 2µ 1µ 0 50m 100m 0.5 OUTPUT CURRENT : IO (A) 1 OUTPUT VOLTAGE : VO(on) (V) DC CURRENT GAIN : GI 2.5 3.0 lO/lI=20 500m Ta=100°C 25°C −40°C 200 2.0 Fig.2 Output current vs. input voltage (OFF characteristics) VO=5V 500 1.5 INPUT VOLTAGE : VI(off) (V) Fig.1 Input voltage vs. output current (ON characteristics) 1k 1.0 100 50 20 10 5 2 Ta=100°C 25°C −40°C 200m 100m 50m 20m 10m 5m 2m 1 100µ 200µ 500µ 1m 2m 5m 10m 20m 50m 100m OUTPUT CURRENT : IO (A) Fig.3 DC current gain vs. output current 1m 100µ 200µ 500µ 1m 2m 5m 10m 20m 50m 100m OUTPUT CURRENT : IO (A) Fig.4 Output voltage vs. output current Rev.O 14/16 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series TYPICAL APPLICATIONS FOR NPN BRTs +12 V ISOLATED LOAD FROM µP OR OTHER LOGIC Figure 32. Level Shifter: Connects 12 or 24 Volt Circuits to Logic +12 V VCC OUT IN LOAD Figure 33. Open Collector Inverter: Inverts the Input Signal Figure 34. Inexpensive, Unregulated Current Source Rev.O 15/16 LESHAN RADIO COMPANY, LTD. LMUN2211LT1G Series SOT-23 A NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. L 3 1 V 2 B S DIM G A B C D G H J K L S V C D H K J INCHES MIN MAX 0.1102 0.1197 0.0472 0.0551 0.0350 0.0440 0.0150 0.0200 0.0701 0.0807 0.0005 0.0040 0.0034 0.0070 0.0140 0.0285 0.0350 0.0401 0.0830 0.1039 0.0177 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 inches mm Rev.O 16/16
