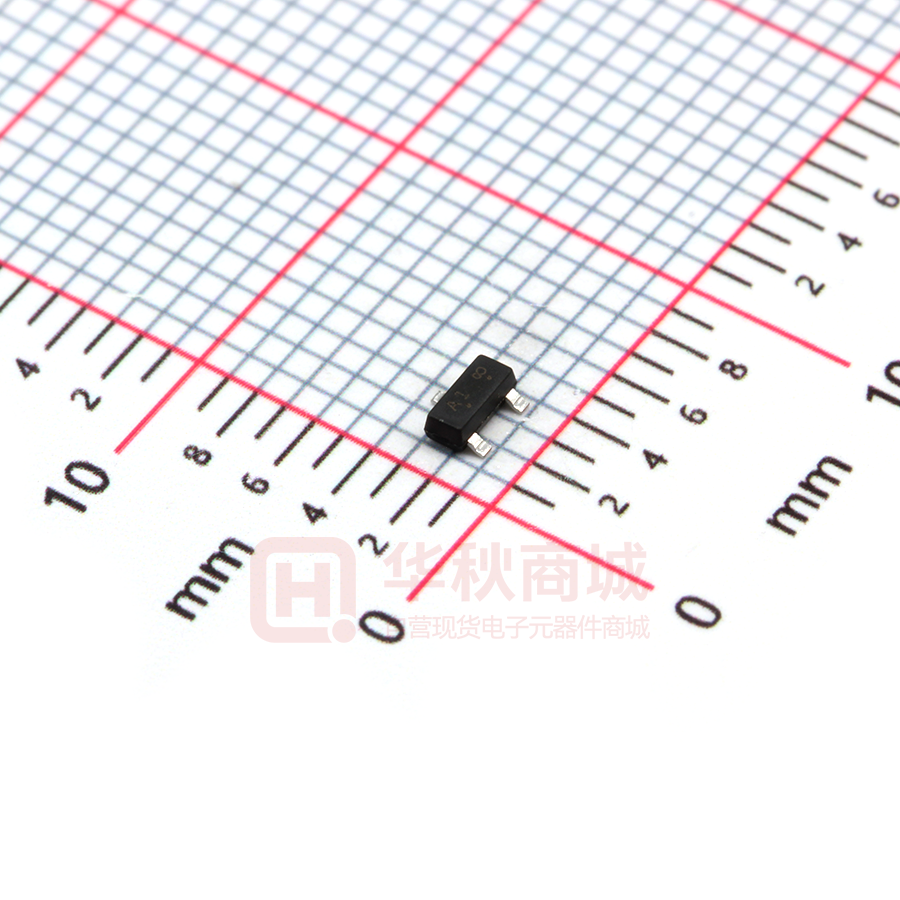

LP3401LT1G

LESHAN RADIO COMPANY, LTD. 30V P-Channel Enhancement-Mode MOSFET LP3401LT1G ●APPLICATIONS 1)Advanced trench process technology 2)High Density Cell Design For Ultra Low On-Resistance. 3)We declare that the material of product compliant with RoHS requirements and Halogen Free. 3 1 ●FEATURES 2)RDS(ON) < 70mΩ (VGS = -10V) 1)VDS =-30V 2)RDS(ON) < 70m Ω (VGS = - 10V) 3)RDS(ON) < 80m Ω (VGS = -4.5V) 4)RDS(ON) < 120m Ω (VGS = - 2.5V) 2 SOT– 23 (TO–236AB) 3 ●DEVICE MARKING AND ORDERING INFORMATION Device LP3401LT1G LP3401LT1G Marking A1 A1 G 1 Shipping 3000/Tape&Reel 10000/Tape&Reel 2 D S ●MAXIMUM RATINGS(Ta = 25℃) Parameter Symbol Limits Unit VDSS Drain−to−Source Voltage -30 V Gate−to−Source Voltage VGS ±12 V TA = 25°C -4.2 Continuous Drain Current ID TA = 75°C A -3.5 Pulsed Drain Current IDM -30 A TA = 25°C 1.4 Maximum Power Dissipation PD W TA = 75°C 1.00 Junction and Storage Temperature Range TJ , Tstg –55 to +150 °C ●THERMAL CHARACTERISTICS (Ta = 25℃) Parameter t ≤ 10s Maximum Junction-to-Ambient Maximum Junction-to-Ambient Steady-State Steady-State Maximum Junction-to-Lead July,2015 Symbol RθJA RθJL Typ. 65 85 43 Max. 90 125 60 Unit °C/W °C/W °C/W Rev.A 1/5 LESHAN RADIO COMPANY, LTD. LP3401LT1G ●ELECTRICAL CHARACTERISTICS (Ta= 25℃) STATIC Parameter Symbol Min. Drain−to−Source Breakdown Voltage BVDSS -30 Typ. – Max. – Unit V Conditions ID=-250μA, VGS=0V -5 V VDS=-24V, VGS=0V Zero Gate Voltage Drain Current IDSS – Gate-Body leakage current IGSS – – ±100 nA VDS=0V, VGS=±12V Gate Threshold Voltage VGS(th) -0.7 -1 -1.3 V VDS=VGS, ID=-250μA On state drain current ID(ON) -25 – A VGS=-4.5V, VDS=-5V – – 70 m Ω VGS=-10V, ID=-4.2A – – 80 RDS(ON) – – 120 m Ω VGS=-4.5V, ID=-4A VGS=-2.5V, ID=-1A Forward Transconductance gFS 7 11 Diode Forward Voltage Maximum Body-Diode Continuous Current DYNAMIC PARAMETERS Input Capacitance Output Capacitance Reverse Transfer Capacitance VSD Static Drain-Source OnResistance Gate resistance -0.75 IS S VDS=-5V, ID=-5A IS=-1A,VGS=0V -1 -2.2 Ciss Coss Crss pF pF pF 954 115 77 Rg Ω 6 VGS=0V, VDS=-15V, f=1MHz VGS=0V, VDS=0V, f=1MHz SWITCHING PARAMETERS Total Gate Charge QG – 9.4 – Gate−to−Source Gate Charge QGS – 2 – Gate−to−Drain Charge Turn−On Delay Time Rise Time Turn−Off Delay Time Fall Time Body Diode Reverse Recovery Time QGD td(on) tr td(off) tf – – – – – 3 6.3 3.2 38.2 12 – – – – – trr – 20.2 – Body Diode Reverse Recovery Charge July,2015 Qrr 11.2 nc VGS=-4.5V, VDS=15V, ID=-4A，ID=4.5A ns VGS=-10V, VDS=-15V, RL=3.6 Ω , R GEN=6 Ω ns IF=-4A, dI/dt=100A/μs nc IF=-4A, dI/dt=100A/μs Rev.A 2/5 LESHAN RADIO COMPANY, LTD. LP3401LT1G ELECTRICAL CHARACTERISTIC CURVES 25 10 20 8 15 6 ID (A) ID (A) VDS=- 5V 10 5 4 2 0 0 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 VDS (V) VGS=2.0V VGS=2.5V VGS=3.0V VGS=3.5V VGS=4.0V VGS=4.5V 0.0 0.5 1.0 1.5 2.0 2.5 3.0 VGS (V) 25℃ 125℃ VGS=10V FIG.1 On-Region Characteristics FIG.2 Transfer Characteristics 4.0E-01 1.80 3.5E-01 On-Resistance (Ω) RDSon (Ω) 3.0E-01 2.5E-01 2.0E-01 1.5E-01 1.60 1.40 1.20 1.0E-01 1.00 5.0E-02 0 1 2 3 4 5 6 7 8 9 10 VGS=4.5V VGS=10V FIG.3 On-Resistance vs. Drain Current and Gate Voltage July,2015 50 75 100 125 150 Ta (℃) ID (A) VGS=2.5V 25 VGS=2.5V&ID=1A VGS=4.5V&ID=3.5A VGS=10V&ID=3.5A FIG.4 On-Resistance vs. Junction Temperature Rev.A 3/5 LESHAN RADIO COMPANY, LTD. LP3401LT1G ELECTRICAL CHARACTERISTIC CURVES 1.0E+01 0.25 0.23 1.0E+00 0.21 1.0E-01 0.17 IS (A) RDSon (Ω) 0.19 0.15 1.0E-02 0.13 1.0E-03 0.11 1.0E-04 0.09 1.0E-05 0.07 0.05 1.0E-06 0 1 2 3 4 5 6 7 8 9 10 0.0 0.2 0.4 VGS (V) 25℃ 125℃ FIG.5 On-Resistance vs. Gate-Source Voltage July,2015 0.6 0.8 1.0 1.2 VSD(V) 25℃ 125℃ FIG.6 Body-Diode Characteristics Rev.A 4/5 LESHAN RADIO COMPANY, LTD. LP3401LT1G SOT-23 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M,1982 2. CONTROLLING DIMENSION: INCH. A L 3 1 V 2 DIM B S G C D H K J MIN 0.1102 0.0472 0.0350 0.0150 0.0701 0.0005 0.0034 0.0140 0.0350 0.0830 0.0177 A B C D G H J K L S V INCHES MAX 0.1197 0.0551 0.0440 0.0200 0.0807 0.0040 0.0070 0.0285 0.0401 0.1039 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 0.45 0.60 0.037 0.95 0.037 0.95 0.079 2.0 0.035 0.9 0.031 0.8 July,2015 inches mm Rev.A 5/5
