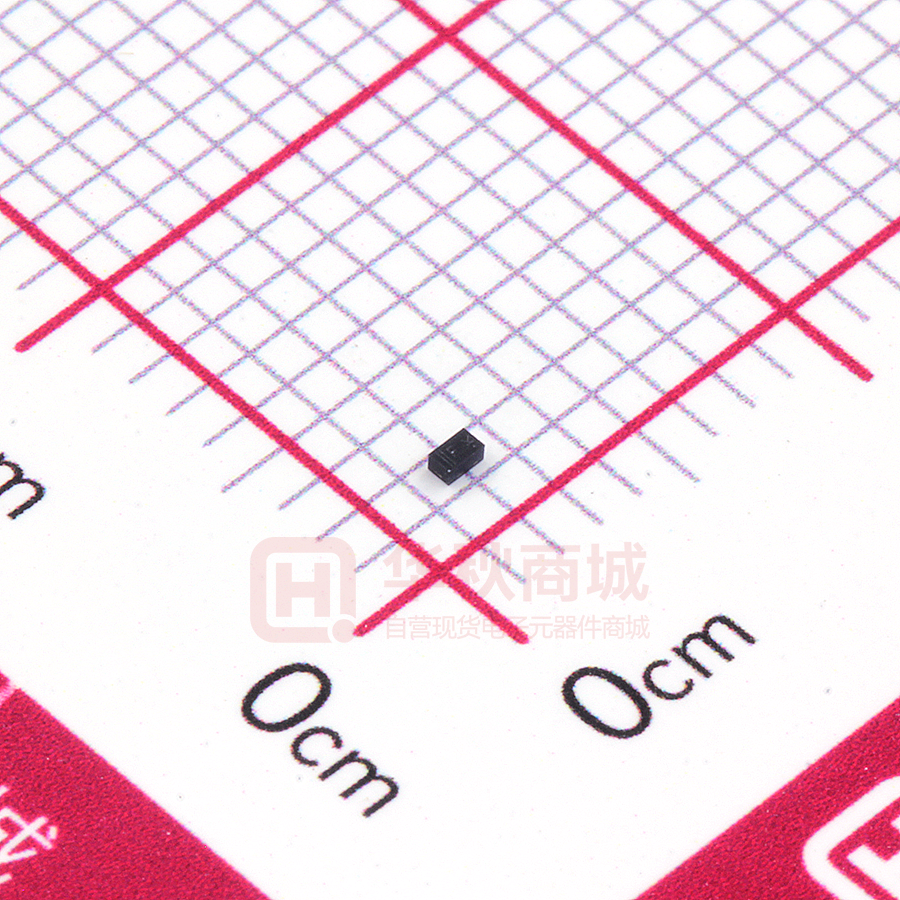

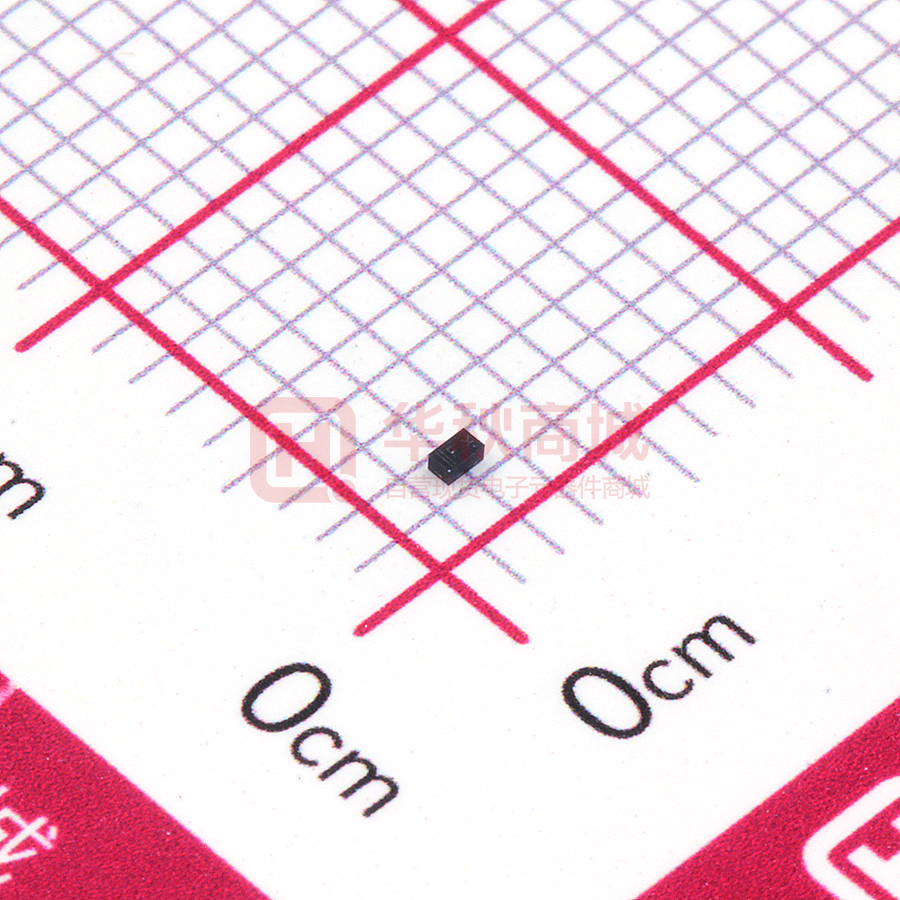

LRB521BS-30T5G

LRB521BS-30T5G S-LRB521BS-30T5G SCHOTTKY BARRIER DIODE 1. FEATURES ● Extremelysmall surface mounting type. (SOD882). ● Low VF. ● High reliability. ● We declare that the material of product compliance with RoHS requirements and Halogen Free. ● S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. 2. Applications ● Low current rectification. 3. DEVICE MARKING AND ORDERING INFORMATION Device LRB521BS-30T1G/S-LRB521BS-30T1G Marking Shipping F 5000/Tape&Reel LRB521BS-30T3G/S-LRB521BS-30T3G F 8000/Tape&Reel LRB521BS-30T5G/S-LRB521BS-30T5G F 10000/Tape&Reel 4. MAXIMUM RATINGS(Ta = 25ºC) Parameter Reverse voltage (DC) Symbol Limits Unit VR 30 V IO 200 Forward current surge peak　（60Hz・1cyc） Junction temperature IFSM 500 Tj 125 Storage temperature Tstg -40~+125 Average rectifierd forward current mA ℃ 5. ELECTRICAL CHARACTERISTICS (Ta= 25ºC) Characteristic Forward voltage (IF =200mA) (IF =100mA) (IF =20mA) (IF =10mA) Reverse current (VR =10V) Leshan Radio Company, LTD. Symbol VF IR Min. Typ. Max. - - 0.5 0.4 0.38 0.35 - - 30 Rev.B Sep 2017 Unit V µA 1/3 LRB521BS-30T5G, S-LRB521BS-30T5G SCHOTTKY BARRIER DIODE . 6.ELECTRICAL CHARACTERISTICS CURVES 1000 100000 10000 125℃ 1000 85℃ 100 IR,Reverse Current(uA) IF,Forward Current(mA) 125℃ 85℃ 25℃ 10 100 25℃ 10 1 0.1 -55℃ -55℃ 0.01 1 0.001 0 0.1 0.2 0.3 0.4 VF,Forward Voltage(V) 0.5 0.6 Forward Characteristics 0 5 10 15 20 VR,Reverse Voltage(V) 25 30 Reverse Characteristics 100 C,Capacitor(pF) f=1MHz 10 1 0 10 20 30 VR, Reverse Voltage(V) 40 Capacitor Characteristics Leshan Radio Company, LTD. Rev.B Sep 2017 2/3 LRB521BS-30T5G, S-LRB521BS-30T5G SCHOTTKY BARRIER DIODE 7.OUTLINE AND DIMENSIONS SOD882 Dim Min Typ. Max D 0.95 1.00 1.05 E 0.55 0.60 0.65 e - 0.64 - L 0.44 0.49 0.54 b 0.20 0.25 0.30 A A1 0.43 0 0.48 - 0.53 0.05 A3 0.127REF. All Dimensions in mm 8.SOLDERING FOOTPRINT Dimensions c G X X1 Y Leshan Radio Company, LTD. Rev.B Sep 2017 (mm) 0.70 0.30 0.40 1.10 0.70 3/3
