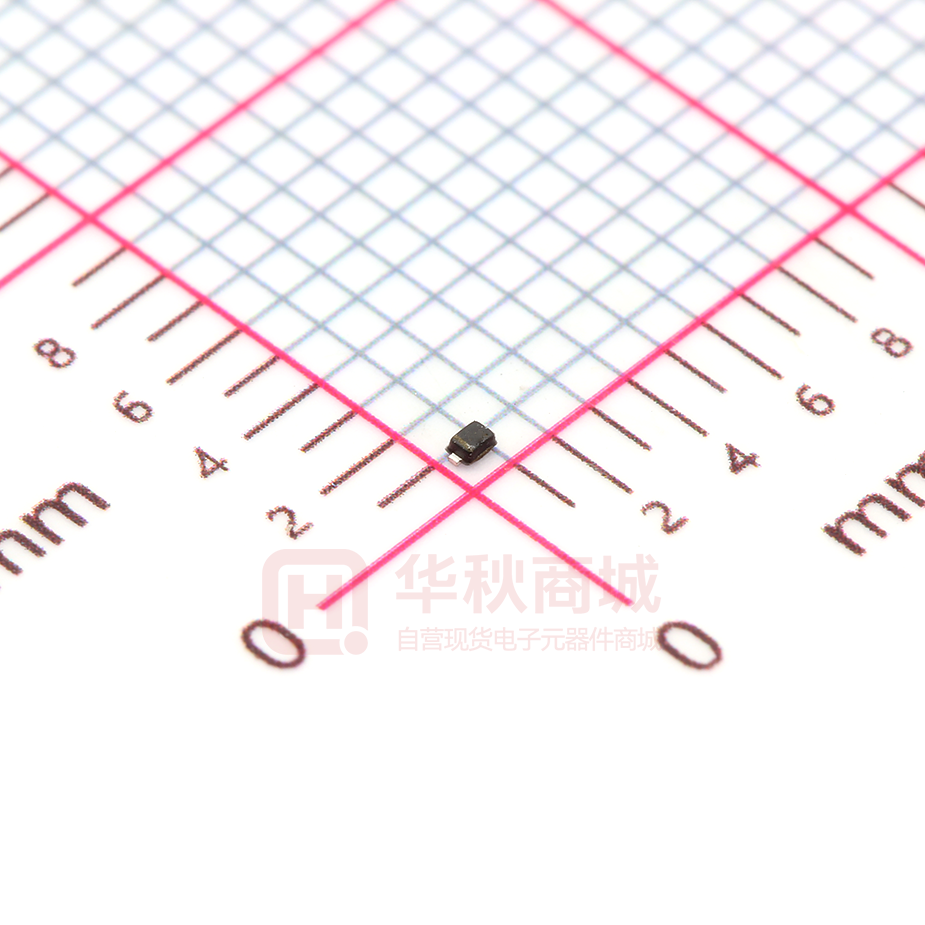

LRB521CS-30T5G

LRB521CS-30T5G S-LRB521CS-30T5G SCHOTTKY BARRIER DIODE 1. FEATURES ● We declare that the material of product compliance with RoHS requirements and Halogen Free. ● S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. ● Low current rectification ● Low VF ● High reliability. ● Silicon epitaxial planar 2. DEVICE MARKING AND ORDERING INFORMATION Device Marking LRB521CS-30T5G F Shipping 8000/Tape&Reel 3. MAXIMUM RATINGS(Ta = 25ºC) Parameter Symbol Limits 30 Unit VR IO IFSM 100 500 mA mA Junction temperature Tj 125 °C Storage temperature Tstg -40~+125 °C DC reverse voltage Average rectifierd forward current Forward current surge peak(60Hz・1cyc) V 4. ELECTRICAL CHARACTERISTICS Characteristic Symbol Min. Typ. Max. VF - - 0.35 - - 0.4 Forward voltage (IF =10mA) (IF =20mA) Reverse current (VR =10V) Leshan Radio Company, LTD. IR Rev.A Oct. 2017 Unit V μA - - 10 1/3 LRB521CS-30T5G, S-LRB521CS-30T5G SCHOTTKY BARRIER DIODE 5.ELECTRICAL CHARACTERISTICS CURVES 1.0E-03 1.0E+00 125℃ 1.0E-04 75℃ 125 ℃ IR, Reverse Current (A) Forward Current (A) 1.0E-01 1.0E-02 1.0E-03 25℃ 1.0E-04 -25℃ 75℃ 1.0E-05 25℃ 1.0E-06 1.0E-07 -25℃ 1.0E-08 1.0E-05 1.0E-09 1.0E-06 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 Forward Voltage (V) 0 10 20 VR, Reverse Voltage (V) 30 VR-IR Characteristics Forward Characteristics 10 f=1MHz Ta=25℃ 9 8 Capacitance (pF) 7 6 5 4 3 2 1 0 0 2 4 6 8 10 12 VR (V) 14 16 18 20 Capacitance Leshan Radio Company, LTD. Rev.A Oct. 2017 2/3 LRB521CS-30T5G, S-LRB521CS-30T5G SCHOTTKY BARRIER DIODE 6.OUTLINE AND DIMENSIONS Notes: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS. MILLIMETERS INCHES DIM MIN A 0.34 NOM MAX MIN NOM MAX 0.37 0.40 0.013 0.015 0.016 b 0.15 0.20 0.25 0.006 0.008 0.010 c 0.07 0.12 0.17 0.003 0.005 0.007 D 0.75 0.80 0.85 0.030 0.031 0.033 E 0.55 0.60 0.65 0.022 0.024 0.026 0.95 1.00 1.05 0.037 0.039 0.041 HE L L2 0.19REF 0.05 0.10 0.007REF 0.15 0.002 0.004 0.006 7.SOLDERING FOOTPRINT Leshan Radio Company, LTD. Rev.A Oct. 2017 3/3
