LRB550V-30T1G
S-LRB550V-30T1G
Schottky Barrier Diode
1. FEATURES
●
We declare that the material of product compliance with
RoHS requirements and Halogen Free.
●
S- prefix for automotive and other applications requiring
unique site and control change requirements; AEC-Q101

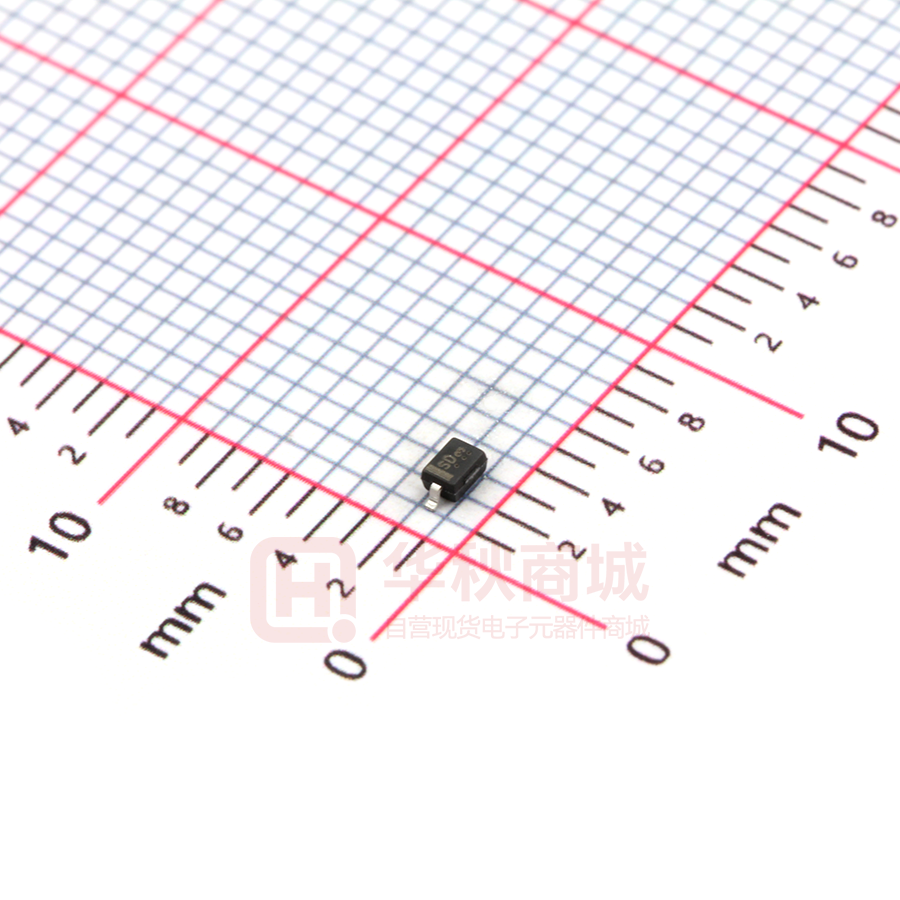

SOD323(SC-76)
qualified and PPAP capable.
●
Low VF,Low IR.
●
Small surface mounting type.
●
High reliability.
1
2
CATHODE
ANODE
2. APPLICATIONS
●
General rectification
●
Silicone pitaxial planar
3. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
LRB550V-30T1G
SD
3000/Tape&Reel
LRB550V-30T3G
SD
10000/Tape&Reel
4. MAXIMUM RATINGS(Ta = 25ºC)
Parameter
Peak Reverse Voltage
Symbol
Limits
Unit
VRM
30
V
DC Reverse Voltage
VR
30
V
Average Rectified Forward Current
IO
0.5
A
IFSM
2
A
Peak Forward Surge Current
Junction Temperture
Tj
150
℃
Storage Temperture
Tstg
-40~+150
℃
5. ELECTRICAL CHARACTERISTICS (Ta= 25ºC)
Characteristic
Forward voltage
Symbol
VF
(IF=100mA)
(IF=700mA)
Reverse Current(VR=10V)
Leshan Radio Company, LTD.
IR
Rev.A Jun 2018
Min.
Typ.
Max.
-
-
0.39
-
-
0.6
-
-
30
Unit
V
μA
1/3
LRB550V-30T1G, S-LRB550V-30T1G
Schottky Barrier Diode
6.ELECTRICAL CHARACTERISTICS CURVES
1.00E-02
1
125℃
1.00E-03
125℃
25℃
0.01
IR,Reverse Current(A)
IF,Forward Current(A)
85℃
85℃
0.1
-55℃
1.00E-04
1.00E-05
25℃
1.00E-06
1.00E-07
0.001
-55℃
1.00E-08
1.00E-09
0.0001
0
0.2
0.4
VF,Forward Voltage(V)
0.6
0
10
20
30
VR,Reverse Voltage(V)
40
IR vs. VR
IF vs. VF
140
f=1MHz
Ta=25℃
120
CT,Capacitor(pF)
100
80
60
40
20
0
0
5
10
15
20
25
30
VR,Reverse Voltage(V)
CT vs. VR
Leshan Radio Company, LTD.
Rev.A Jun 2018
2/3
LRB550V-30T1G, S-LRB550V-30T1G
Schottky Barrier Diode
7.OUTLINE AND DIMENSIONS
Notes:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD
FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM
THICKNESS OF BASE MATERIAL.
4. DIMENSIONS D AND E DO NOT INCLUDE MOLD
FLASH, PROTRUSIONS OR GATE BURRS.
MILLIMETERS
INCHES
DIM
A
MIN
0.8
0.9
1
A1
0
0.05
0.1
A3
NOM
MAX
MIN
NOM
MAX
0.031 0.035
0.04
0
0.15REF
0.002 0.004
0.006REF
b
0.25
0.32
C
0.089
0.12
D
1.6
1.7
1.8
0.062 0.066
E
1.15
1.25
1.35
0.045 0.049 0.053
L
HE
0.08
2.3
0.4
0.01
0.012 0.016
0.177 0.003 0.005 0.007
0.07
0.003
2.5
2.7
0.09
0.098 0.105
8.SOLDERING FOOTPRINT
Leshan Radio Company, LTD.
Rev.A Jun 2018
3/3
