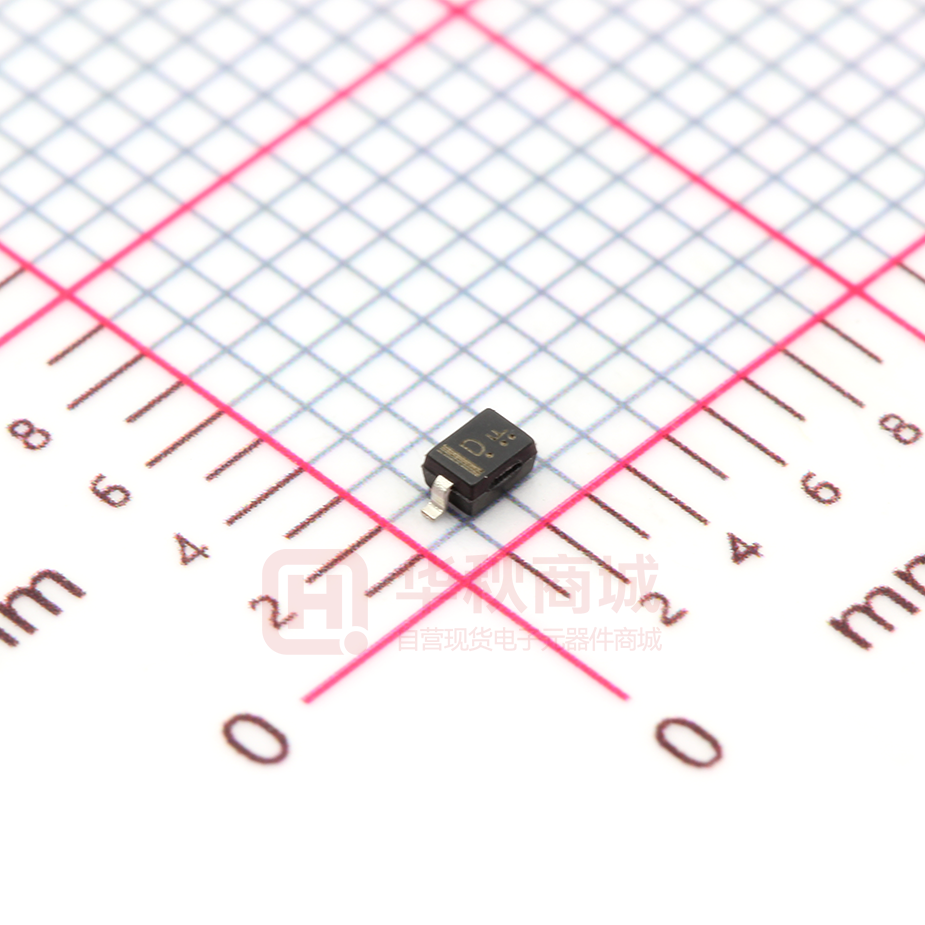

LRB551V-30T1G S-LRB551V-30T1G Schottky Barrier Diode 1. FEATURES ● We declare that the material of product compliance with RoHS requirements and Halogen Free. ● S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 SOD323(SC-76) qualified and PPAP capable. ● Ultra low VF(VF=0.45V Typ. at 0.5A) ● High reliability 2. APPLICATIONS ● High-frequency rectification and Switching regulators 3. DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping LRB551V-30T1G D 3000/Tape&Reel LRB551V-30T3G D 10000/Tape&Reel 4. MAXIMUM RATINGS(Ta = 25ºC) Parameter Peak Reverse Voltage DC Reverse Voltage Mean Rectifying Current Peak Forward Surge Current Symbol Limits Unit VRM 30 V VR 20 V IO 0.5 A IFMS 2 A 5. THERMAL CHARACTERISTICS Parameter Limits Unit FR−5 Board (Note 1) @ TA = 25ºC 200 mW Derate above 25ºC 1.57 mW/ºC RΘJA 635 ºC/W TJ,Tstg −40∼+125 °C Total Device Dissipation, Thermal Resistance, Symbol PD Junction–to–Ambient(Note 1) Junction and Storage temperature 1. FR–5 = 1.0×0.75×0.062 in. 6. ELECTRICAL CHARACTERISTICS (Ta= 25ºC) Characteristic Min. Typ. Max. (IF=100mA) - - 0.36 (IF=500mA) - - 0.54 - - 100 Forward voltage Reverse Current(VR=20V) Leshan Radio Company, LTD. Symbol VF IR Rev.B Mar 2016 Unit V μA 1/3 LRB551V-30T1G, S-LRB551V-30T1G Schottky Barrier Diode 7.ELECTRICAL CHARACTERISTICS CURVES 100000 1000 125℃ 10000 100 IR,Reverse Current(uA) IF,Forward Current(A) 125℃ 85℃ 10 85℃ 1000 100 25℃ 10 1 0.1 1 -55℃ 25℃ -55℃ 0.01 0.001 0.1 0 0.1 0.2 0.3 0.4 VF,Forward Voltage(V) 0.5 Forward Characteristics 0 5 10 15 VR,Reverse Voltage(V) 20 Reverse Characteristics 100 Ct,Capacitance（pF） f=1MHz 10 1 0 10 20 30 VR，Reverse Voltage（V） 40 Capacitor Characteristics Leshan Radio Company, LTD. Rev.B Mar 2016 2/3 LRB551V-30T1G, S-LRB551V-30T1G Schottky Barrier Diode 8.OUTLINE AND DIMENSIONS Notes: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. MILLIMETERS INCHES DIM A MIN 0.8 0.9 1 A1 0 0.05 0.1 A3 NOM MAX MIN NOM MAX 0.031 0.035 0.04 0 0.15REF 0.002 0.004 0.006REF b 0.25 0.32 C 0.089 0.12 D 1.6 1.7 1.8 0.062 0.066 E 1.15 1.25 1.35 0.045 0.049 0.053 L HE 0.08 2.3 0.4 0.01 0.012 0.016 0.177 0.003 0.005 0.007 0.07 0.003 2.5 2.7 0.09 0.098 0.105 9.SOLDERING FOOTPRINT Leshan Radio Company, LTD. Rev.B Mar 2016 3/3
