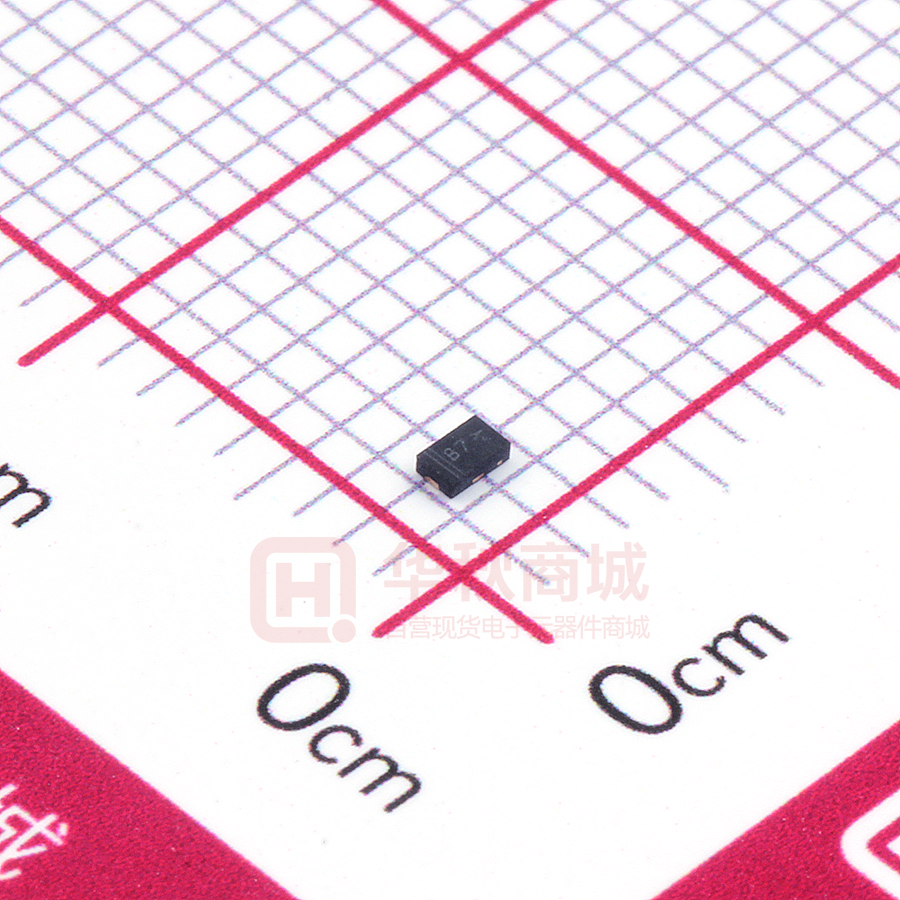

LTVS16H5.0T5G

LESHAN RADIO COMPANY, LTD. LTVS16H5.0T5G LTVS16H5.0T5G Features  5V uni-directional ESD diode  Low clamping voltage  Complies with IEC 61000-4-2 standards: CATHODE ANODE Air discharge: ±30kV Contact discharge: ±30kV RoHS Compliant XX DFN1610-2 M  MARKING DIAGRAM cathode Ordering information XX M Device Package Shipping LTVS16H5.0T5G DFN1610 8000/Tape&Reel = Specific Device Code = Month Code Absolute Maximum Ratings (T A=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 1250 W Peak Pulse Current (8/20µs) IPP 100 A Operating Temperature Range TJ −55 to +125 °C Tstg −55 to +150 °C Storage Temperature Range Electrical Characteristics (T A=25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min VRWM VBR 6 Typ Max Unit Test Condition 5 V 7.8 V IT = 1mA Reverse Leakage Current IR 2 µA VR = 5V Clamping Voltage VC 8.5 V IPP = 10A (8 x 20µs pulse) Clamping Voltage VC 15 V IPP = 80A (8 x 20µs pulse) Junction Capacitance CJ 800 pF VR = 0V, f = 1MHz Note: Electrical parameters are only for die, performance may alter after assembly. May,2015 Rev.O 1/3 LESHAN RADIO COMPANY, LTD. LTVS16H5.0T5G Typical Performance Characteristics (T A=25°C unless otherwise Specified) 25 Clamping Voltage_Vc (V) Junction Capacitance_Cj (pF) 800 750 600 450 300 150 20 15 10 5 0 0 0 3 6 9 Reverse Voltage_VR (V) 12 Fig1.Junction Capacitance vs. Reverse Voltage 0 30 60 90 Peak Pulse Current_Ipp (A) 120 Fig 2 .Clamping Voltage vs. Peak Pulse Current 100 120 100 80 % of Rated Power % of Peak Pulse Current 90 70 60 50 40 30 20 80 60 40 20 10 0 0 0 20 40 Time_t(uS) 60 80 0 25 50 75 100 125 Ambient Temperature_Ta(℃) 150 Fig 3 . 8 X 20uS Pulse Waveform Fig4.Power Derating Curve Fig 5. ESD Clamping Voltage Fig 6. ESD Clamping Voltage Negative 8 kV Contact per IEC61000−4−2 Positive 8 kV Contact per IEC61000−4−2 May,2015 Rev.O 2/3 LESHAN RADIO COMPANY, LTD. LTVS16H5.0T5G DFN1610 DFN1610-2 Package Outline Drawing A DIMENSIONS MILLIMETERS INCHES MIN NOM MAX MIN NOM MAX 0.45 0.50 0.55 0.018 0.020 0.022 A1 0.00 0.02 0.05 0.000 0.001 0.002 b 0.75 0.80 0.85 0.030 0.032 0.034 c 0.10 0.15 0.20 0.004 0.006 0.008 D 1.55 1.60 1.65 0.062 0.064 0.066 e D h SYM h - b E - L c A Bottom View A1 e 1.10 BSC 0.044 BSC E 0.95 1.00 1.05 0.038 0.040 0.042 L 0.35 0.40 0.45 0.014 0.016 0.018 h 0.15 0.20 0.25 0.006 0.008 0.010 Suggested Land Pattern SYM ╋ Y3 Y2 ╋ MILLIMETERS INCHES X 1.00 0.040 Y1 0.62 0.025 Y2 0.60 0.024 Y3 1.22 0.049 Z 1.85 0.074 Y1 Z DIMENSIONS X May,2015 Rev.O 3/3
