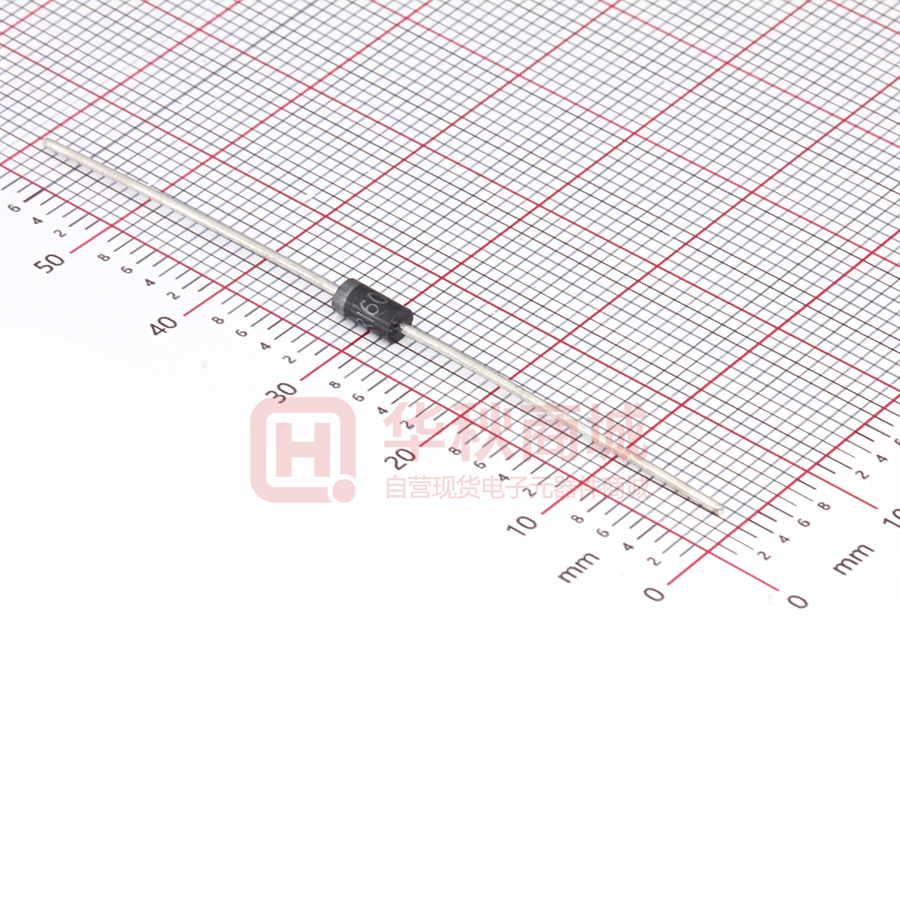

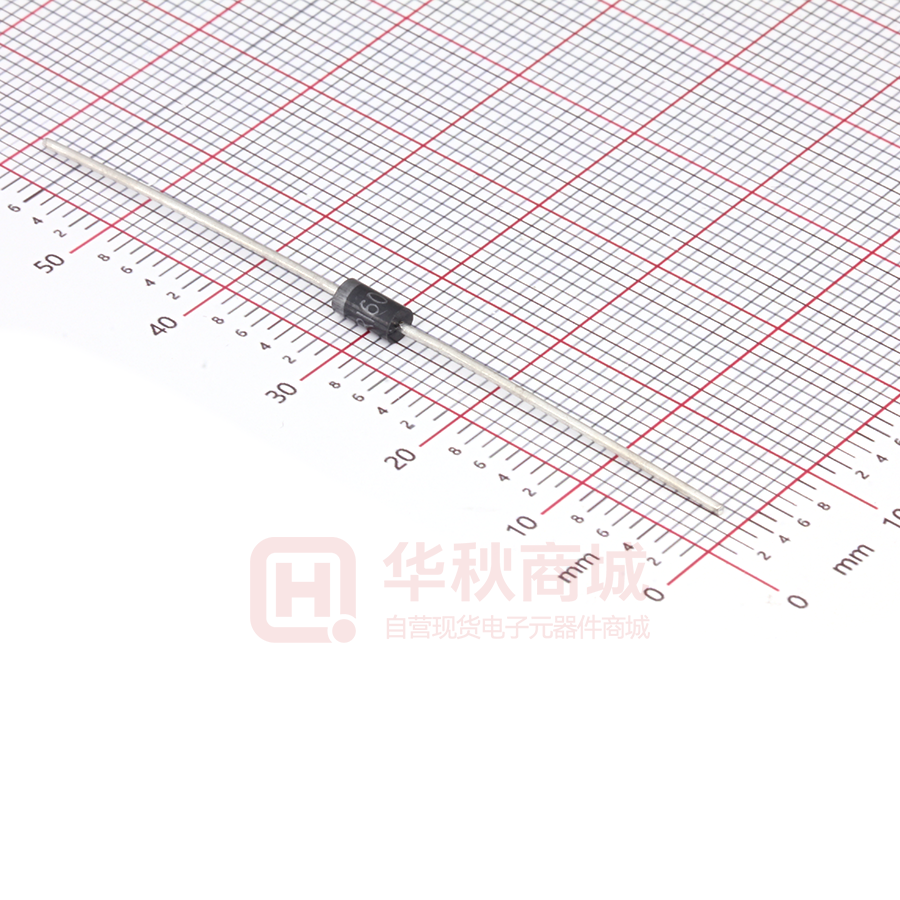

LUR160

LUR105 thru LUR160 Glass Passivated Junction Ultra Fast Rectifiers Reverse Voltage 50 to 600V Forward Current 1.0A FEATURES * Plastic package has Underwriters Laboratory Flammability Classification 94V-0 * High temperature metallurgically bonded construction * Glass passivated chip * Capable of meeting environmental standards of MIL-S-19500 * For use in high frequency rectifier circuits * Fast switching for high efficiency * High temperature soldering guaranteed: 260°C/10 seconds * 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data Case: JEDEC DO-41, molded plastic body Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.011oz., 0.284 g Handling precautin:None We declare that the material of product compliance with ROHS requirements 1.Electrical Characteristic Maximum& Thermal Characteristics Ratings at 25°C ambient0.5 temperature unless otherwise specified. Maximum repetitive peak reverse voltage VRRM 50 100 150 200 400 LUR 150 500 Maximum RSM voltage VRSM 35 70 105 140 280 350 420 V Maximum DC blocking voltage VDC 50 100 150 200 400 500 600 V Parameter Symbol Maximum average forward rectified current 0.375" (9.5mm) lead length at TA = 55°C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum full load reverse current, full cycle average,0.375"(9.5mm) lead lengths at TA = 75°C Typical thermal resistance (Note 2) Operating junction and storage temperature range symbol LUR 105 LUR 110 LUR 115 LUR 120 LUR 140 LUR 160 600 Unit V IF(AV) 1.0 A IFSM 30 A IR(AV) 100 µA RθJA TJ, TSTG 60 –50 to +150 °C/W °C Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Parameter Symbol symbol Maximum Instantaneous Forward Voltage (IF = 1.0 Amps, TJ = 25°C) VF Maximum full load reverse current, full cycle average,0.375"(9.5mm) lead lengths (Rated dc Voltage, TJ = 125°C) (Rated dc Voltage, TJ = 25°C) IR LUR 105 LUR 110 Typical reverse recovery time (Note 1) trr Typical junction capacitance at 4.0V, 1MHz CJ NOTES: 1. IF = 0.5A, IR = 1.0A, IRR = 0.25A 2. Thermal resistance from junction to ambient at 0.375" (9.5mm) lead length, P.C.B. mounted LUR 115 LUR 120 LUR 140 LUR 150 1.25 0.93 45 Unit 1.5 V µA 150 5.0 35 LUR 160 50 ns PF LUR105 thru LUR160 2.Ratings and Characteristic Curves ( TA = 25°C unless otherwise noted ) 2.0 1.0 0.375" (9.5mm) Lead Length 0 0 Instantaneous Forward Current (A) 100 1.0 TJ = 25°C Pulse width = 300µs 1% Duty Cycle 0.1 Fig. 2 – Maximum Non-repetitive Peak Forward Surge Current TJ = TJ max 8.3ms Single Half Sine-wave (JEDEC Method) 100 10 0 Fig 3. – Typical Instantaneous Forward Characteristics 10 10 Number of Cycles at 60Hz 100 Fig 4. – Typical Reverse Characteristics 1000 100 Tj=125℃ Tj=75 ℃ 10 Tj=25℃ 1.0 0.1 0.8 1.0 1.2 1.4 1.6 Instantaneous Forward Voltage (V) Fig 5. –typical transient thermal impedance 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Fig 6. – Typical Junction Capacitance Junction Capacitance (pF) 100 200 25 50 75 100 125 150 175 Ambient Temperature, °C 0.01 0.6 Transient thermal impedance(°C/W) Average Forward Rectified Current (A) 60 Hz Resistive or Inductive Load Instantaneous Reverse Current (µA) Average Forward Rectified Current (A) Fig. 1 – Forward Current Derating Curve 10 1.0 0.1 TJ = 25°C f = 1.0 MHz Vsig = 50mVp-p 200 100 10 0.01 0.1 1.0 10 t,Pulse duration,sec 100 0 10 20 30 Reverse Voltage (V) 40 50 LUR105 thru LUR160 3. dimension: LUR105 thru LUR160 4. Update Record 版次 更新记录 更新作者 更新日期 1 第一版 周杰 2010-11-8 2 更新版面 周杰 2012-8-1
