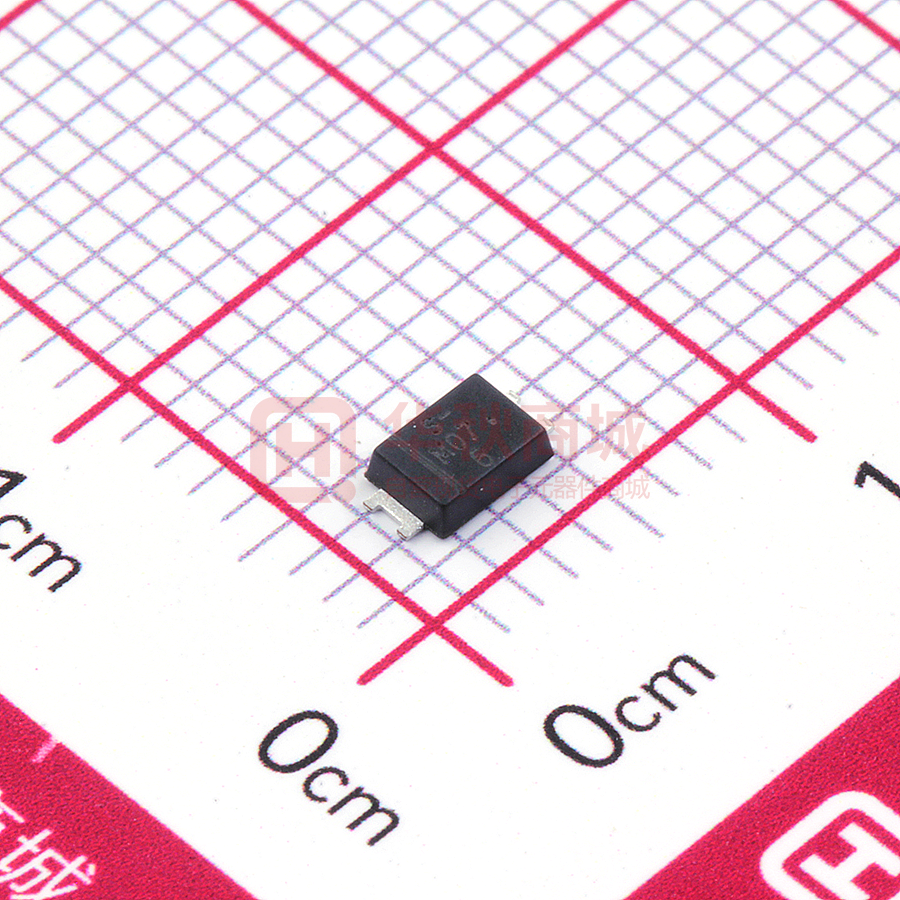

S-FMAF407

S-FMAF407 Surface Mount Glass Passivated Junction Rectifiers Reverse Voltage 1000V Forward Current 1.0A 1. FEATURES ● We declare that the material of product complies with RoHS requirements and Halogen Free. ● S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. ● Plastic package has Underwriters Laboratory Flammability Classification 94V-0. ● High temperature metallurgically bonded construction. ● Cavity-free glass passivated junction. ● Typical IR less than 1.0µA ● High temperature soldering guaranteed:260°C/10 seconds. ● 1.0 A operation at TL=100°C with no thermal runaway. ● Capable of meeting environmental standards of MIL-S-19500. 2. DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping S-FMAF407 M07 3000/Tape&Reel 3. MAXIMUM RATINGS(Ta = 25ºC) Parameter Symbol Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current lead length (See fig. 1) at TC = 75°C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Typical thermal resistance (Note 1) Operating junction and storage temperature range VRRM VRMS Limits 1000 700 VDC 1000 V V V IF(AV) 1 A IFSM 30 A RθJA 150 –50 ~+150 ℃/W TJ, TSTG Unit ℃ 4. ELECTRICAL CHARACTERISTICS (Ta= 25 ºC) Characteristic Maximum instantaneous forward voltage at 1.0A Symbol VF Maximum DC reverse current TA = 25°C at rated DC blocking voltage TA = 125°C IR CJ Typical junction capacitance at 4.0V, 1MHz 1. IF = 0.5A, IR = 1.0A, IRR = 0.25A Min. - Typ. 8 Max. 1.1 Unit V 5 50 µA - PF 2. 8.0mm²(.013mm thick) land areas Leshan Radio Company, LTD. Rev.A Apr. 2021 1/3 S-FMAF407 Surface Mount Glass Passivated Junction Rectifiers 5.ELECTRICAL CHARACTERISTICS CURVES 1.0 0.5 0.375" (9.5mm) Lead Length 0 Instantaneous Forward Current (A) 0 100 TJ = 25°C Pulse width = 300µs 1% Duty Cycle 0.1 40 30 20 10 0 10 1.0 Tj=25℃ 0.1 Junction Capacitance (pF) 10 1 Leshan Radio Company, LTD. 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Fig 6. – Typical Junction Capacitance 100 10 100 Tj=125℃ Fig 5. –typical transient thermal impedance 0.1 1.0 t,Pulse duration,sec 10 Number of Cycles at 60Hz 100 0.01 0.8 1.0 1.2 1.4 1.6 Instantaneous Forward Voltage (V) 0.01 TJ = TJ max 8.3ms Single Half Sine-wave (JEDEC Method) Fig 4. – Typical Reverse Characteristics 1.0 1000 Fig. 2 – Maximum Non-repetitive Peak Forward Surge Current 1 Fig 3. – Typical Instantaneous Forward Characteristics 10 50 25 50 75 100 125 150 175 Lead TEMPERATURE:Tc(°C) 0.01 0.6 Transient thermal impedance(°C/W) Average Forward Rectified Current (A) 60 Hz Resistive or Inductive Load Instantaneous Reverse Current (µA) Average Forward Rectified Current (A) Fig. 1 – Forward Current Derating Curve 100 20 TJ = 25°C f = 1.0 MHz Vsig = 50mVp-p 10 1.0 0.1 Rev.A Apr. 2021 1 10 Reverse Voltage (V) 2/3 S-FMAF407 Surface Mount Glass Passivated Junction Rectifiers 6.OUTLINE AND DIMENSIONS SMA-FL MIN MAX 4.40 4.80 2.30 2.70 3.30 3.70 DIM Typ. A 4.60 B 2.60 C 3.50 D 0.55 E 0.90 1.20 1.05 F 0.11 0.21 0.17 G 1.30 1.50 1.40 I 0.90 K 0.80 L 0.20 All Dimensions in mm GENERAL NOTES 1.Top package surface finish Ra0.4±0.2um 2.Bottom package surface finish Ra0.7±0.2um 7.SOLDERING FOOTPRINT SMA-FL DIM (mm) X 1.60 Y 1.80 B 3.70 Leshan Radio Company, LTD. Rev.A Apr. 2021 3/3 DISCLAIMER ● Before you use our Products, you are requested to carefully read this document and fully understand its contents. LRC shall not be in any way responsible or liable for failure, malfunction or accident arising from the use of any LRC’s Products against warning, caution or note contained in this document. ● All information contained in this document is current as of the issuing date and subject to change without any prior notice. Before purchasing or using LRC's Products, please confirm the latest information with a LRC sales representative.
