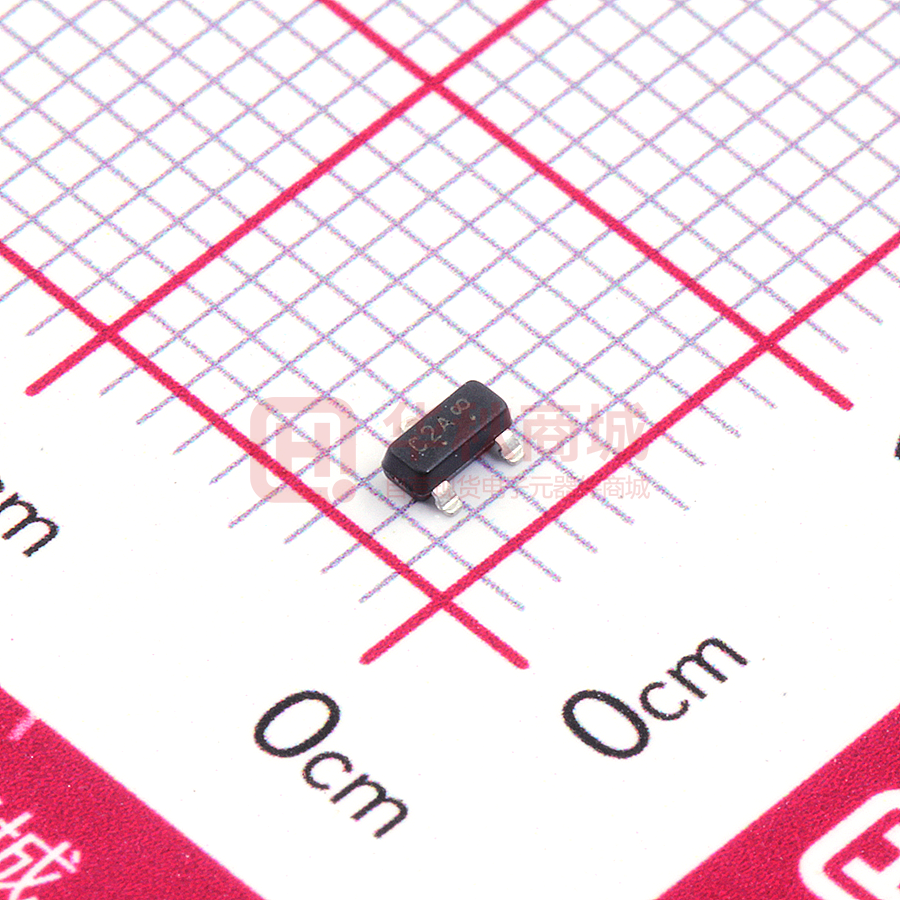

LR2CANLT1G S-LR2CANLT1G ESD Protection Diode 1. FEATURES ● Ultra low leakage: nA level. ● Low clamping voltage. ● Complies with IEC 61000-4-2 standards:Air discharge: ±30kV SOT23(TO-236) Contact discharge: ±30kV ● We declare that the material of product compliance with RoHS requirements and Halogen Free. ● S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. 2. APPLICATIONS ● CAN bus protection ● Automotive applications 3. DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping LR2CANLT1G C2A 3000/Tape&Reel 4. MAXIMUM RATINGS(Ta = 25ºC) Parameter IEC 61000−4−2 (ESD) Symbol Limits Unit ±30 kV Contact Air ±30 PPP 300 peak pulse current @8/20 µs IPP 5 W A Storage Temperature Range Tstg −55∼+150 −55∼+125 ºC ºC peak pulse power@8/20 µs Operating Temperature Range TJ 5. ELECTRICAL CHARACTERISTICS (Ta= 25ºC) Symbol IPP Parameter Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Breakdown Voltage @ IT IT Test Current IF Forward Current VF Forward Voltage @ IF Ppk Peak Power Dissipation C Leshan Radio Company, LTD. Capacitance @ VR = 0 and f = 1.0 MHz Rev.A Nov. 2018 1/3 LR2CANLT1G,S-LR2CANLT1G ESD Protection Diode 6. ELECTRICAL CHARACTERISTICS (Ta= 25ºC) Characteristic reverse stand-off voltage Symbol VRWM Min. - Typ. - Max. 24 Unit V IRM - - 200 nA - - 200 25.4 - 32.5 25.4 - 32.5 - - 40 - 60 - 20 - reverse leakage current (VRWM = 24 V,Pin 1、2to Pin 3) (VRWM = 24 V,Pin 3 to Pin 1、2) breakdown voltage (IT = 5 mA,Pin 1、2to Pin 3 ) VBR (IT = 5 mA,Pin 3 to Pin 1、2 ) V Clamping Voltage (IPP = 1A (8 x 20µs pulse)) VC (IPP = 5A (8 x 20µs pulse)) Junction Capacitance (VR = 0V, f = 1MHz) Leshan Radio Company, LTD. CJ Rev.A Nov. 2018 V pF 2/3 LR2CANLT1G,S-LR2CANLT1G ESD Protection Diode 7.OUTLINE AND DIMENSIONS Notes: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. MILLIMETERS INCHES DIM MIN A 0.89 NOM MAX MIN NOM MAX 0.04 0.044 1 1.11 0.035 A1 0.01 0.06 0.1 0.001 0.002 0.004 b 0.37 0.44 0.5 0.015 0.018 c 0.09 0.13 0.18 0.003 0.005 0.007 D 2.80 2.9 3.04 0.11 E 1.20 1.3 1.4 0.047 0.051 0.055 e 1.78 1.9 2.04 0.07 L 0.10 0.2 0.3 0.004 0.008 0.012 L1 HE 0.35 0.54 0.69 0.014 0.021 0.029 2.10 2.4 2.64 0.083 0.094 0.104 0° --- 10° θ 0° 0.114 0.02 0.12 0.075 0.081 --- 10° 8.SOLDERING FOOTPRINT Leshan Radio Company, LTD. Rev.A Nov. 2018 3/3 DISCLAIMER ● Curve guarantee in the specification. The curve of test items with electric parameter is used as quality guarantee. The curve of test items without electric parameter is used as reference only. ● Before you use our Products for new Project, you are requested to carefully read this document and fully under-stand its contents. LRC shall not be in any way responsible or liable for failure, malfunction or accident arising from the use of any LRC’s Products against warning, caution or note contained in this document. ● All information contained in this document is current as of the issuing date and subject to change without any prior notice. Before purchasing or using LRC's Products,please confirm the latest information with a LRC sales represe-ntative.
