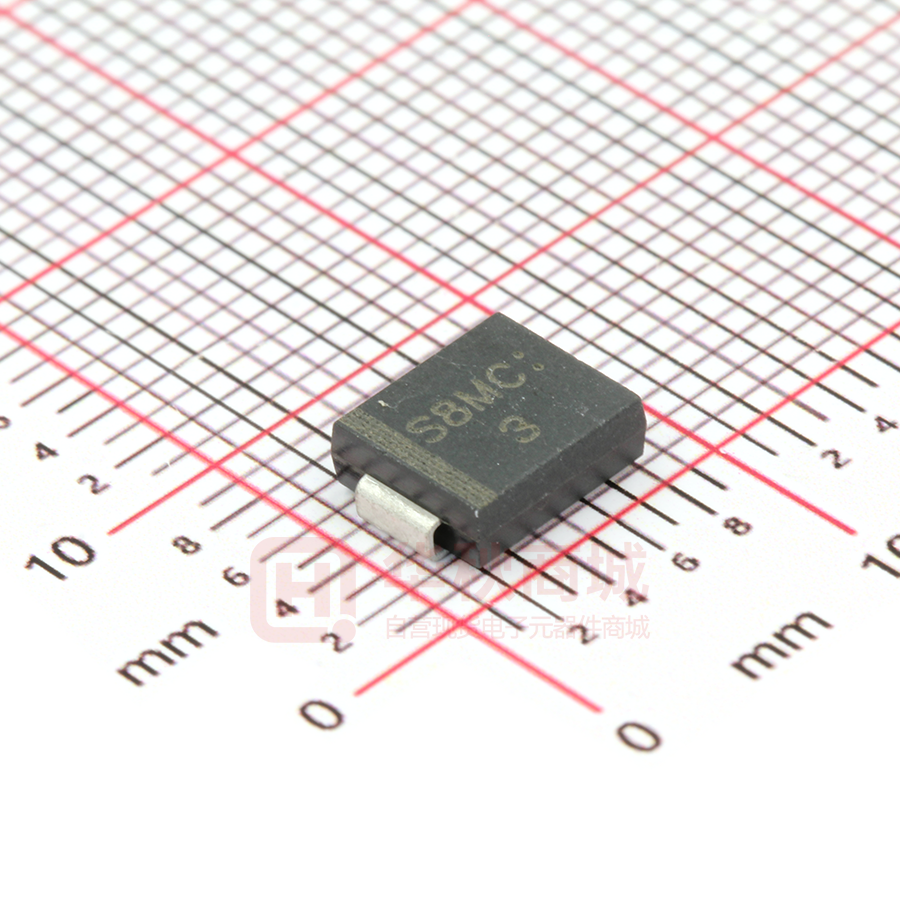

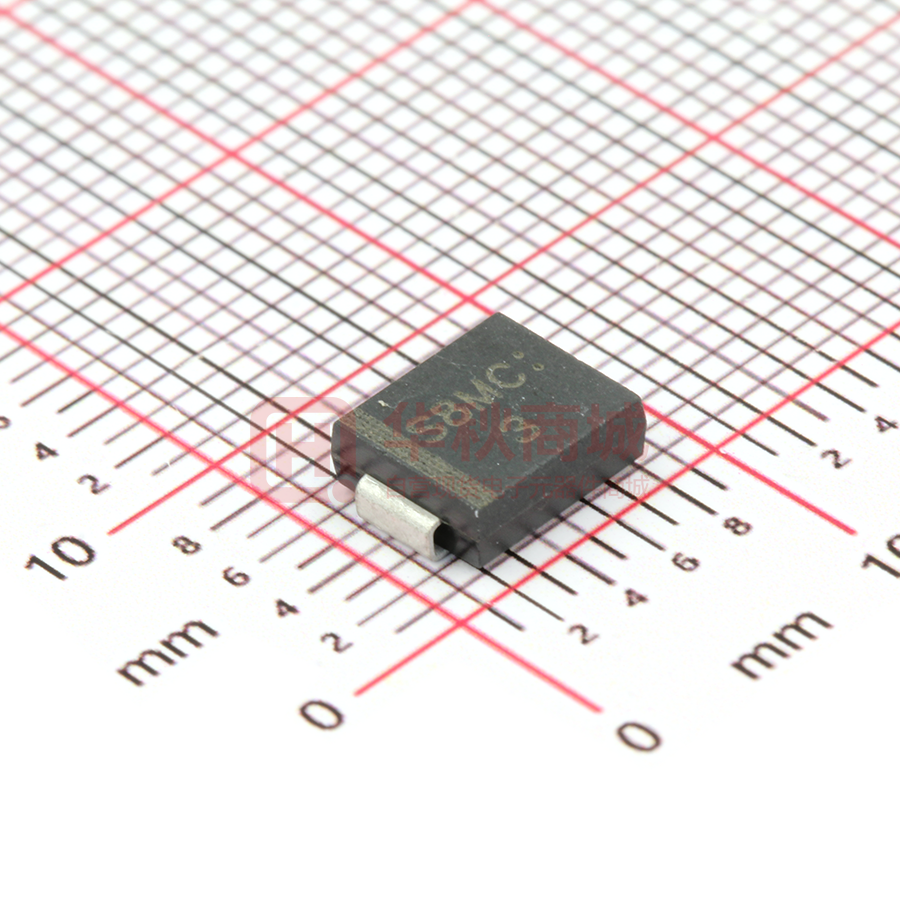

S8MC

S8MC Surface Mount Glass Passivated Rectifiers S8MC Surface Mount Glass Passivated Rectifiers Reverse Voltage 1000V Forward Current 8.0A 1. FEATURES We declare that the material of product compliance with RoHS requirements and Halogen Free. ● Plastic package has Underwriters Laboratory Flammability Classification 94V-0. ● High temperature metallurgically bonded construction. ● Cavity-free glass passivated junction. ● Capable of meeting environmental standards of MIL-S-19500. ● For use in high frequency rectifier circuits. ● Fast Switching for high efficiency ● Typical IR less than 1.0µA. ● High temperature soldering guaranteed:260°C/10 seconds. ● Weight: 0.26g ● 2. DEVICE MARKING AND ORDERING INFORMATION Device S8MC Marking S8MC Shipping 3000/Tape&Reel 3. MAXIMUM RATINGS(Ta = 25ºC) Parameter Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TC = 75°C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Typical thermal resistance (Note 1) Operating junction and storage temperature range Symbol VRRM VRMS VDC Limits 1000 700 1000 Unit V V V IF(AV) 8 A IFSM 200 A RθJA RθJC TJ, TSTG 80 20 –50 ~+150 ℃/W ℃ 4. ELECTRICAL CHARACTERISTICS (Ta= 25ºC) Characteristic Symbol Min. Maximum instantaneous forward voltage at 8.0A VF Maximum DC reverse current TA = 25°C IR at rated DC blocking voltage TJ = 125°C Typical junction capacitance at 4.0V, 1MHz CJ 1. Mounted on 0.31 x 0.31” (8.0 x 8.0mm) copper pads to each terminal Leshan Radio Company, LTD. Rev.O Sep. 2017 Typ. 35 Max. 1.1 5 100 - Unit V µA PF 1/3 S8MC Surface Mount Glass Passivated Rectifiers 5.ELECTRICAL CHARACTERISTICS CURVES Fig. 2 – Maximum Non-repetitive Peak Forward Surge Current Average Forward Rectified Current (A) 60 Hz Resistive or Inductive Load 8.0 4.0 0 0 100 25 50 75 100 125 150 175 Case Temperature, °C Fig 3. – Typical Instantaneous Forward Characteristics 10 Instantaneous Reverse Current (µA) Instantaneous Forward Current (A) Average Forward Rectified Current (A) Fig. 1 – Forward Current Derating Curve TJ = 25°C Pulse width = 300µs 1% Duty Cycle 1.0 0.1 Junction Capacitance (pF) 0.01 0.6 0.7 0.8 0.9 1.0 1.2 Instantaneous Forward Voltage (V) Fig 5. – Typical Junction Capacitance 200 TJ = TJ max 8.3ms Single Half Sine-wave (JEDEC Method) 200 100 0 1 10 Number of Cycles at 60Hz 100 Fig 4. – Typical Reverse Characteristics 100 Tj=125℃ 10 1.0 Tj=25℃ 0.1 0.01 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) TJ = 25°C f = 1.0 MHz Vsig = 50mVp-p 100 10 0.1 1 10 Reverse Voltage (V) Leshan Radio Company, LTD. 100 Rev.O Sep. 2017 2/3 S8MC Surface Mount Glass Passivated Rectifiers 6.OUTLINE AND DIMENSIONS SMC DIM Min Max Typ. 8.00 A 7.70 8.30 5.85 6.25 6.05 B C 6.65 7.05 6.85 D 2.80 3.20 3.00 2.45 2.85 2.65 E G 2.10 2.50 2.30 H 1.00 1.40 1.20 I 0.05 0.15 0.10 K 4.30 4.70 4.50 L 1.00 1.50 1.25 N 0.10 0.30 0.20 All Dimensions in mm 7.SOLDERING FOOTPRINT SMC DIM (mm) X 1.60 Y 3.30 B 6.60 Leshan Radio Company, LTD. Rev.O Sep. 2017 3/3
