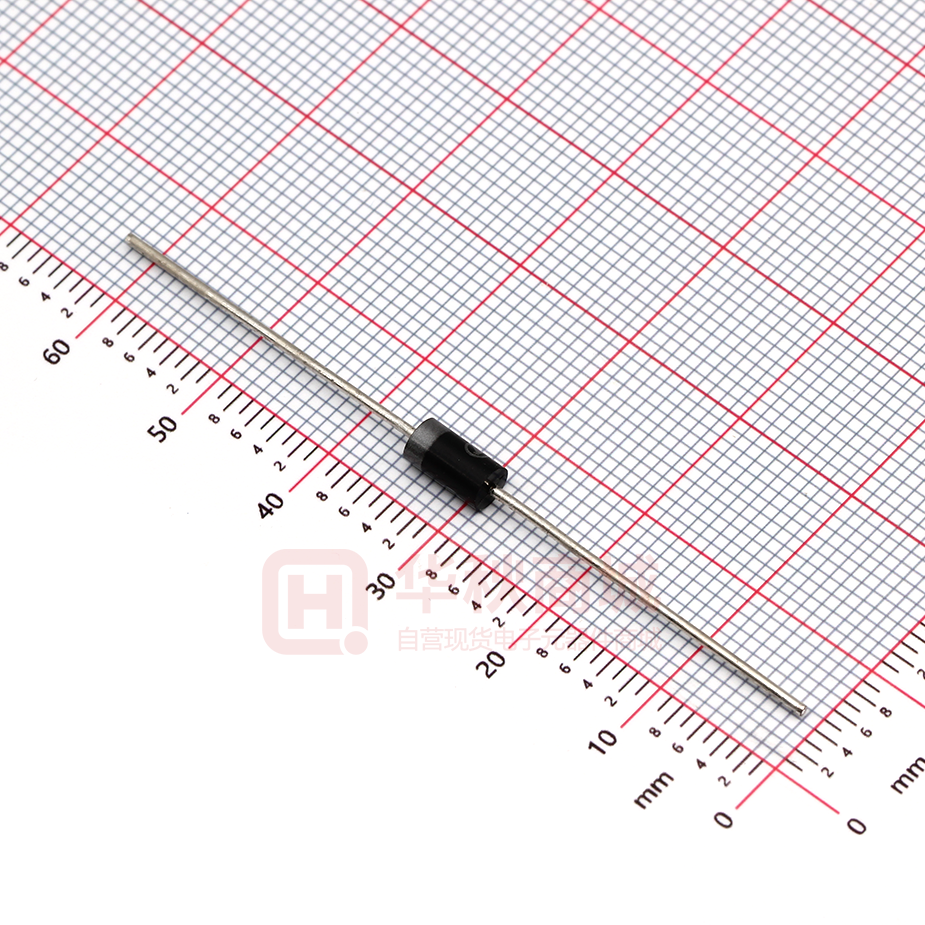

SB240

SB240

  • 厂商:

    LRC(乐山无线电)

  • 封装:

    DO-15(DO-204AC)

  • 描述:

    肖特基势垒整流器正向电流2.0A DO15

  • 数据手册
  • 价格&库存
SB240 数据手册
LESHAN RADIO COMPANY, LTD. SB220 thru SB2100 1.Feature & Dimensions Schottky Barrier Rectifiers * Plastic package has Underwriters Laboratory * * * * Reverse Voltage 20 to 100V Forward Current 2.0A Flammability Classification 94V-0 Low power loss,high efficiency For use in low voltage high frequency inverters, free wheeling,and polarity protection applications Guarding for over voltage protection High temperature soldering guaranteed: 260°C/10 seconds at terminals 2.Mechanical Data Case: JEDEC DO-15, molded plastic over glass body Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.015 oz., 0.40 g Handling precautin:None We declare that the material of product compliance with RoHS requirements. 3.Electrical Characteristic Maximum Ratings & Thermal Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Parameter Symbol symbol SB220 SB230 SB240 SB250 SB260 SB280 SB2100 Unit Maximum repetitive peak reverse voltage VRRM 20 30 40 50 60 80 100 V Maximum RMS voltage VRMS 14 21 28 35 42 56 70 V Maximum DC blocking voltage VDC 20 30 40 50 60 80 100 V Maximum average forward rectified current IF(AV) 0.375" (9.5mm) lead length (See fig. 1) Peak forward surge current 8.3ms single half IFSM sine-wave superimposed on rated load (JEDEC Method) Typical thermal resistance (Note 1) RθJA Operating junction and storage temperature range TJ, TSTG 2.0 A 60 A 50 –40 to +125 °C/W °C Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Parameter Symbol Maximum instantaneous forward voltage at 2.0A Maximum DC reverse current TA = 25°C at rated DC blocking voltage TA = 100°C Typical junction capacitance at 4.0V, 1MHz symbol VF IR CJ SB220 SB230 SB240 SB250 SB260 SB280 SB2100 0.50 0.70 0.84 Unit V 0.5 20 170 mA PF NOTES: 1. Thermal resistance from junction to ambient at 0.375” (9.5mm) lead length, P.C.B. mounted 1/3 LESHAN RADIO COMPANY, LTD. 4. Characteristic Curves ( TA = 25°C unless otherwise noted ) Fig. 2 – Maximum Non-repetitive Peak Forward Surge Current 2.0 1.0 0 100 10 1.0 0.1 0.01 0.2 100 30 0 1 Fig 3. – Typical Instantaneous Forward Characteristics TJ = 25°C Pulse width = 300µs 1% Duty Cycle 100 10 Tj=125℃ 1.0 Tj=75℃ 0.1 0.01 Tj=25℃ 0.001 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Fig 5. –typical transient thermal impedance Fig 6. – Typical Junction Capacitance 10 1.0 0.1 0.1 1.0 10 t,Pulse duration,sec 10 Number of Cycles at 60Hz Fig 4. – Typical Reverse Characteristics 0.4 0.6 0.8 1.0 1.2 Instantaneous Forward Voltage (V) 0.01 TJ = TJ max 8.3ms Single Half Sine-wave (JEDEC Method) 60 25 50 75 100 125 150 175 Ambient Temperature, °C Instantaneous Reverse Current (mA) Instantaneous Forward Current (A) 0 Transient thermal impedance(°C/W) Average Forward Rectified Current (A) Single phase half wave 60HZ Resistive or Inductive Load 0.375" (9.5mm) lead length Junction Capacitance (pF) Average Forward Rectified Current (A) Fig. 1 – Forward Current Derating Curve 100 1000 TJ = 25°C f = 1.0 MHz Vsig = 50mVp-p 100 10 0.1 1 10 Reverse Voltage (V) 100 2/3 LESHAN RADIO COMPANY, LTD. 5.Package Dimensions in inches and (millmeters) Package outline L Φd ΦD Dimensions L L1 ΦD Φd inches Min. Max. 0.230 0.300 1.0 0.104 0.140 0.028 0.034 mm Min. 5.8 25.4 2.6 0.7 Max. 7.6 3.6 0.9 Note: DO-15 molded plastic case The marking band indicates the cathode 3/3 LESHAN RADIO COMPANY, LTD. Packing Of Plastic-Sealed Axial Lead Diodes 1.卷盘/Reel Packing(52mm) Unit:mm A:卷盘规格/Reel spec. A W1 W Item Label stike this position B C W1 Symbol Dimension A 76.4±0.1 Dimeter B C 82.5±0.2 330±0.5 Width W 72±0.2 Thickness W1 3±0.2 Item Symbol Dimension Size L W H 350±2 350±2 340±4 B:外箱规格/Outer Box Specification H W L 按以上包装方式:(As per the above spec) Q'ty/Taping Q'ty/Packing Case DO-41 & A-405 5K 20K 外型/Outside DO-15 4K 16K DO-201AD 1.4K 5.6K LESHAN RADIO COMPANY, LTD. 2. 弹带盒装/Ammo Packing Unit:mm A: 弹带盒规格/Ammo Box Spec. Item Box's Size Symbol L W H L W H Dimension 260±2 76±2 100±4 250±3 45±3 95±5 Symbol Dimension L 430±2 W H 280±2 225±4 Notes 52mm TYPE 26mm TYPE B:外箱规格/Outer Box Specification Item H Case's Size W L 435±3 W H 280±3 295±5 Notes 52mm TYPE 26mm TYPE L 按以上包装方式:(As per the above spec) 外型/Outside A-405 & DO-41 & R-1 3K DO-15 2K DO-201AD 0.8K Q'ty/Packing Case 26mm/TYPE 30K 20K 7.2K Q'ty/Packing Case 52mm/TYPE 60K 40K 14.4K Q'ty/Taping LESHAN RADIO COMPANY, LTD. 3. 散装/Bulk Packing A.包装盒尺寸/Box Dimension ( DO-41&DO-15 ) Item H L Symbol Dimension L 200±2 W H 84±2 21±2 Symbol Dimension L 200±2 W 84±2 H 29±2 Symbol Dimension Box's Size W ( DO-201AD ) H Item Box's Size W L B:外箱规格/Outer Box Specification Item Case's Size C L 465±2 W H 225±2 260±4 B A 按以上包装方式:(As per the above spec) 外型/Outside Q'ty/Taping DO-41&A-405&R-1 1K DO-15 0.5K DO-201AD 0.3K Q'ty/Packing Case 50K 25K 12K LESHAN RADIO COMPANY, LTD. 4. 编带图形及规格/Taping Specification 尺寸代号 Dimension Code W P L1-L2 H Z R T 26/tape 26 0.0/+1.6  5±0.5 <1.0  6±1.0 <1.2 <1.0 >3.2 注: 52编带# 为DO-201AD编带规格 Remark: 52 tape# is DO-201AD taping spec. Unit:mm 编带尺寸/Tape Dimension 52/tape 52/tape# 52 -1.0/+2.0 52 -1.0/+2.0  5±0.5  10±0.5 <1.2 <1.2  6±1.0  6±1.0 <1.2 <1.2 <1.0 <1.0 >3.2 >3.2
