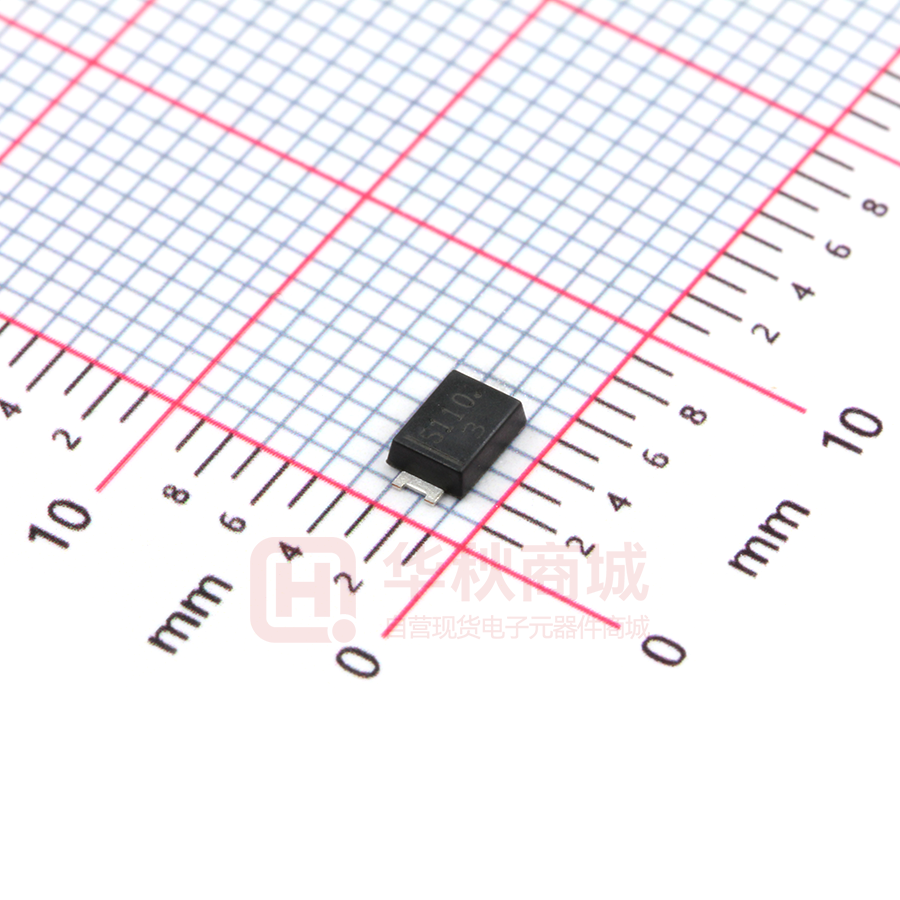

SM1100AF

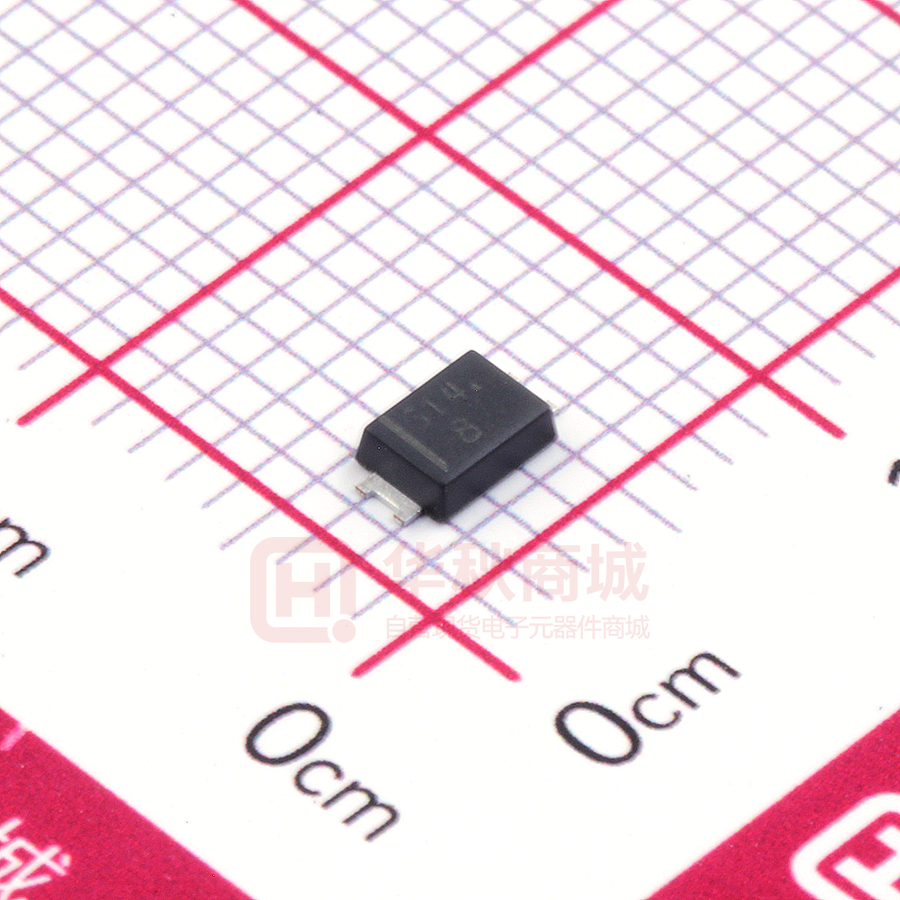

SM120AF thru SM1100AF Schottky Barrier Rectifiers Reverse Voltage 20 to100V Forward Current 1.0A FEATURES * Plastic package has Underwriters Laboratory Flammability Classification 94V-0 * Low power loss,high efficiency * For use in low voltage high frequency inverters, free wheeling,and polarity protection applications * Guardring for over voltage protection * High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case: JEDEC SMA-FL molded plastic over sky die Terminals: Plated leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 28mg Handling precautin:None We declare that the material of product is Haloggen free (green epoxy compound) 1.Electrical Characteristic Maximum & Thermal Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Parameter Symbol symbol device marking code SM120AF SM130AF SM140AF SM150AF SM160AF SM180AF SM1100AF S12 S13 S14 S15 S16 S18 S110 Unit Maximum repetitive peak reverse voltage VRRM 20 30 40 50 60 80 100 V Maximum RMS voltage VRMS 14 21 28 35 42 56 70 V VDC 20 30 40 50 60 80 100 V Maximum DC blocking voltage Maximum average forward rectified current at TC = 75°C (See fig. 1) IF(AV) 1.0 A Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 30 A Typical thermal resistance (Note 1) RθJA RθJL 150 35 °C/W TJ, TSTG –40 to +150 °C Operating junction and storage temperature range Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Parameter Symbol symbol SM120AF SM130AF SM140AF SM150AF SM160AF SM180AF SM1100AF Unit Maximum instantaneous forward voltage at 1.0A VF Maximum DC reverse current TA = 25°C at rated DC blocking voltage Tj = 125°C IR 0.5 5.0 mA Typical junction capacitance at 4.0V, 1MHz CJ 110 PF 0.50 0.70 0.85 V NOTES: 1. 8.0mm2 (.013mm thick) land areas Leshan Radio Company, LTD. Rev.B Jun. 2017 1/3 SM120AF thru SM1100AF 2.Ratings and Characteristic Curves ( TA = 25°C unless otherwise noted ) Fig. 2 – Maximum Non-repetitive Peak Forward Surge Current Average Forward Rectified Current (A) Fig. 1 – Forward Current Derating Curve Peak forward surge current (A) 60 Hz Resistive or Inductive Load 1.0 0.5 0 15 1 25 50 75 100 125 150 175 Case Temperature, °C Fig 3. – Typical Instantaneous Forward Characteristics 10 TJ = 25°C Pulse width = 300µs 1% Duty Cycle 10 1.0 0.1 0.01 0.2 Tj=125 1.0 Tj=75 0.1 Tj=25 0.01 0.001 0.4 0.6 0.8 1.0 1.2 Instantaneous Forward Voltage (V) Fig 5. –typical transient thermal impedance 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Fig 6. – Typical Junction Capacitance 1000 Junction Capacitance (pF) 1000 10 100 Number of Cycles at 60Hz Fig 4. – Typical Reverse Characteristics Instantaneous Reverse Current (mA) 100 Instantaneous Forward Current (A) 30 0 0 Transient thermal impedance(°C/W) TJ = TJ max 8.3ms Single Half Sine-wave 100 10 TJ = 25°C f = 1.0 MHz Vsig = 50mVp-p 100 10 1 0.01 0.1 1.0 10 t,Pulse duration,sec Leshan Radio Company, LTD. 0.1 100 Rev.B Jun. 2017 1 10 Reverse Voltage (V) 100 2/3 3.OUTLINE AND DIMENSIONS SMA-FL MIN MAX 4.40 4.80 2.30 2.70 3.30 3.70 DIM Typ. A 4.60 B 2.60 C 3.50 D 0.55 1.05 E 0.90 1.20 F 0.11 0.21 0.17 G 1.30 1.50 1.40 I 0.90 K 0.80 L 0.20 All Dimensions in mm 4.SOLDERING FOOTPRINT SMA-FL DIM (mm) X 1.60 Y 1.80 B 3.70 Leshan Radio Company, LTD. Rev.B Jun. 2017 3/3 Title: Power Packages Product Packing Specification 功率产品包装规范 Document Number: APS-QA-QS-009 Proprietary Information Revision C Page 3 of 6 8.1.2 Label position and QA stamp position.(Empty area) 标签张贴位置及QA印章位置。（印章盖在标 签空白区 静电敏感器件标识 7英寸卷盘标签张贴及QA印章位置 13英寸卷盘标签张贴及QA印章位置 8.1.3 Ensure direction In the same reel. The same steel coil plate direction，With antistatic bubble to package reel。Refer to the below picture. 同一箱内的卷盘方向一致,用防静电泡沫对卷盘进行包裹。 7英寸卷盘防静电泡沫包裹 13英寸卷盘防静电泡沫包裹 Do not copy without written permission from Advanced Power Semiconductor Title: Power Packages Product Packing Specification 功率产品包装规范 Document Number: APS-QA-QS-009 Proprietary Information Revision C Page 4 of 6 8.1.4 Put in the antistatic packing box after packaged reels. And QA stamp on the box label . 将包装好的卷盘放入防静电纸箱中，并在盒标签上盖章。 7 英寸卷盘内盒及标签 8.1.5 Product use printing inner box. 13 英寸卷盘内盒及标签 产品使用LRC印字内箱。 印字内盒 印字内盒 7英寸卷盘内箱印字（侧面） 13英寸卷盘内箱印字（正面） 8.1.6 Inner box packing quantity requirement.内盒包装数量要求。 Product Description QTY SOD123-FL 1-10Reels SOD323-HE 1-10Reels SMA-FL 1-7Reels SMB-FL 1-4Reels 8.1.7 With transparent tape sealing. 透明胶带封箱。 Do not copy without written permission from Advanced Power Semiconductor Title: Power Packages Product Packing Specification 功率产品包装规范 Document Number: APS-QA-QS-009 Proprietary Information Revision C Page 5 of 6 7英寸内箱封盒 13英寸内箱封盒 8.1.8 Outer box size and packing quantity requirement,外箱尺寸及包装数量要求。 Product Description 卷盘尺寸 Height（H） Width（W） Length（L） Max. Qty Power Device 7 英寸 410mm 400mm 445mm 12 Power Device 13 英寸 410mm 400mm 445mm 5 统一方向 7 英寸卷盘产品装箱 13 英寸卷盘产品装箱 Do not copy without written permission from Advanced Power Semiconductor Title: Power Packages Marking & Taping Specification 功率封装字模和编带规范 Proprietary Information Document Number:APS-QA-QS-010 Revision C Page 6 of 9 8.2 Standard Products Taping Specification 标准产品编带规范 8.2.1 Tape length of no component 空带长度说明 Taping leader length 引导部分：440mm±40mm ，Tape trailer 尾部：200mm±40mmt 160mm-240mm 400mm-480mm TAPE LEADER 8.2.2 Component packaging orientation: The cathode lead is close to the carrier tape’s index hole. 产品放置方向：印阴极带引脚邻近载带索引孔 Do not copy without written permission from Advanced Power Semiconductor Title: Power Packages Marking & Taping Specification 功率封装字模和编带规范 Proprietary Information Document Number:APS-QA-QS-010 Revision C Page 7 of 9 8.2.3 Tape enwind orientation 编带缠绕方向要求 Do not copy without written permission from Advanced Power Semiconductor
