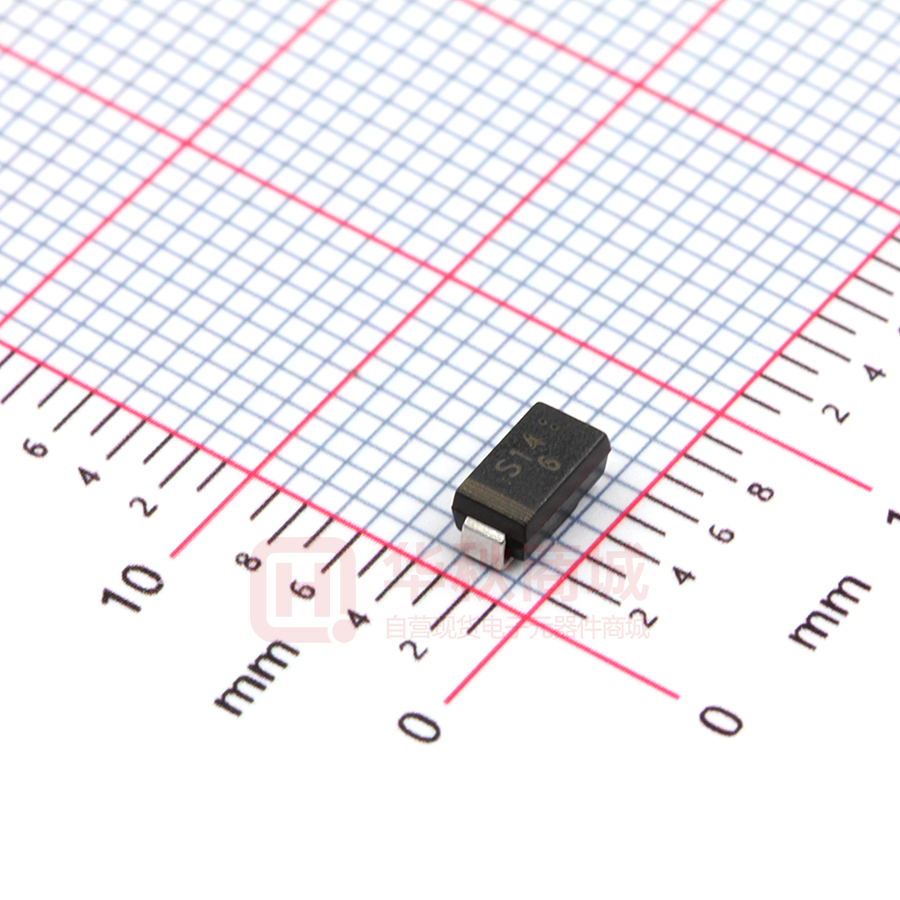

SM140A

LESHAN RADIO COMPANY, LTD. SM120A thru SM1100A FEATURES Schottky Barrier Rectifiers * Plastic package has Underwriters Laboratory * * * * Reverse Voltage 20 to100V Forward Current 1.0A Flammability Classification 94V-0 Low power loss,high efficiency For use in low voltage high frequency inverters, free wheeling,and polarity protection applications Guardring for over voltage protection High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case: JEDEC DO-214AC, molded plastic over sky die Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.0026 oz., 0.075 g Handling precautin:None We declare that the material of product compliance with RoHS requirements. Electrical Characteristic Maximum Ratings & Thermal Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Maximum repetitive peak reverse voltage VRRM SM 120A 20 Maximum RMS voltage VRMS 14 Maximum DC blocking voltage VDC 20 Parameter Symbol Maximum average forward rectified current 0.375" (9.5mm) lead length (See fig. 1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) symbol SM 130A 30 SM SM SM 140A 150A 160A SM 180A SM 1100A Unit 40 50 60 80 100 V 21 28 35 42 56 70 V 30 40 50 60 80 100 V IF(AV) 1.0 A IFSM 30 A 50 –40 to +125 °C/W °C RθJA Typical thermal resistance (Note 1) Operating junction and storage temperature range TJ, TSTG Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Parameter Symbol Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current TA = 25°C at rated DC blocking voltage TA = 125°C Typical junction capacitance at 4.0V, 1MHz symbol VF IR CJ SM 120A SM 130A 0.50 SM SM SM 140A 150A 160A SM 180A 0.70 SM 1100A 0.85 Unit V 0.5 5.0 110 mA PF NOTES: 1. Thermal resistance from junction to ambient at 0.375” (9.5mm) lead length, P.C.B. mounted 1/3 LESHAN RADIO COMPANY, LTD. Ratings and Characteristic Curves ( TA = 25°C unless otherwise noted ) Fig. 2 – Maximum Non-repetitive Peak Forward Surge Current 1.0 0.5 0 100 10 1.0 0.1 0.01 0.2 100 15 0 1 Fig 3. – Typical Instantaneous Forward Characteristics TJ = 25°C Pulse width = 300µs 1% Duty Cycle 100 10 Tj=125℃ 1.0 Tj=75℃ 0.1 0.01 Tj=25℃ 0.001 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Fig 5. –typical transient thermal impedance Fig 6. – Typical Junction Capacitance 10 1.0 0.1 0.1 1.0 10 t,Pulse duration,sec 10 Number of Cycles at 60Hz Fig 4. – Typical Reverse Characteristics 0.4 0.6 0.8 1.0 1.2 Instantaneous Forward Voltage (V) 0.01 TJ = TJ max 8.3ms Single Half Sine-wave (JEDEC Method) 30 25 50 75 100 125 150 175 Ambient Temperature, °C Instantaneous Reverse Current (mA) Instantaneous Forward Current (A) 0 Transient thermal impedance(°C/W) Average Forward Rectified Current (A) 60 Hz Resistive or Inductive Load Junction Capacitance (pF) Average Forward Rectified Current (A) Fig. 1 – Forward Current Derating Curve 100 1000 TJ = 25°C f = 1.0 MHz Vsig = 50mVp-p 100 10 0.1 1 10 Reverse Voltage (V) 100 2/3 LESHAN RADIO COMPANY, LTD. Package Dimensions in inches and (millmeters) Package outline Dimensions A B C D inches Min. Max. 0.086 0.118 0.051 0.067 0.185 0.209 0.067 0.100 mm Min. 2.2 1.3 4.7 1.7 Max. 2.9 1.7 5.3 2.55 E F 0.035 0.035 0.059 0.059 0.9 0.9 1.5 1.5 Note: DO-214AC molded plastic case The marking band indicates the cathode 3/3 LESHAN RADIO COMPANY, LTD. SMA Packing Specification 1.卷盘规格/Reel Packing Unit:mm A B C W Item Label stike this position 13“ Size Q'ty/Taping 2K 5K Item 7“ 13“ 7“ Size Symbol A B C W A B C W Dimension 13.0±0.2 75.0±0.5 330±1.0 13.2±1.0 13.0±0.2 54±0.5 177±1.0 13.2±1.0 Symbol A B C Dimension 335±2 335±2 40±1 Symbol A B C Dimension 350±2 350±2 345±2 2.内箱规格/ Inside Box Specification C Item Size B A 3.外箱规格/Outer Box Specification Item C B A Size
