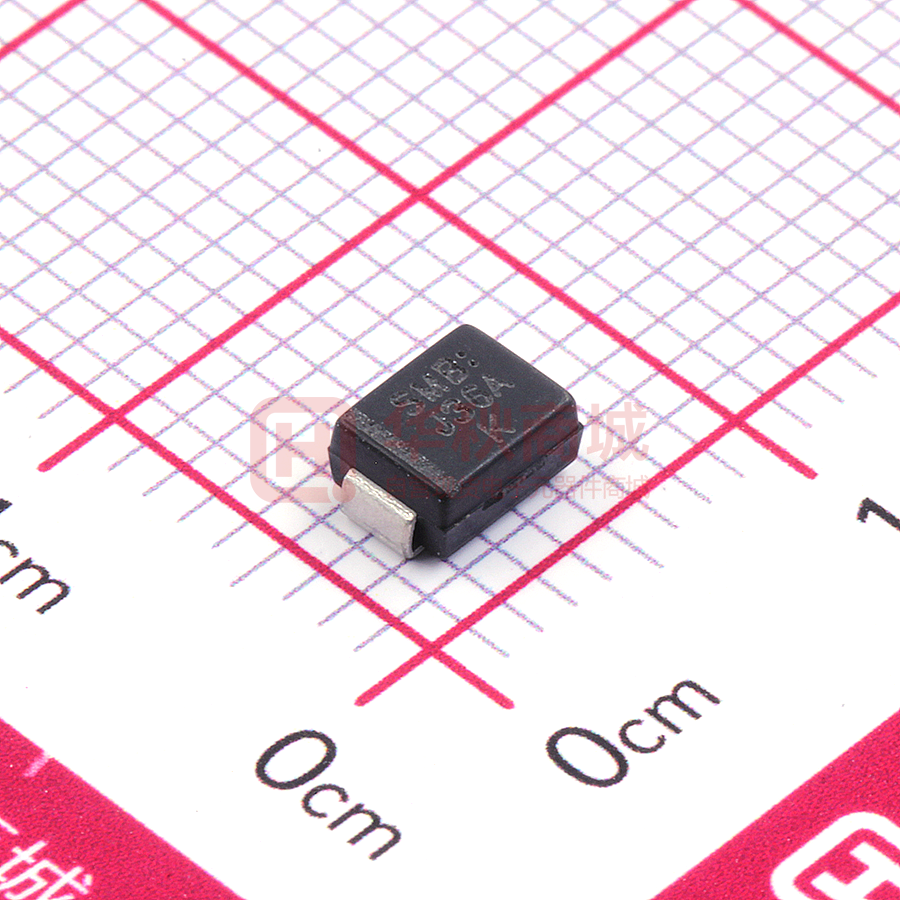

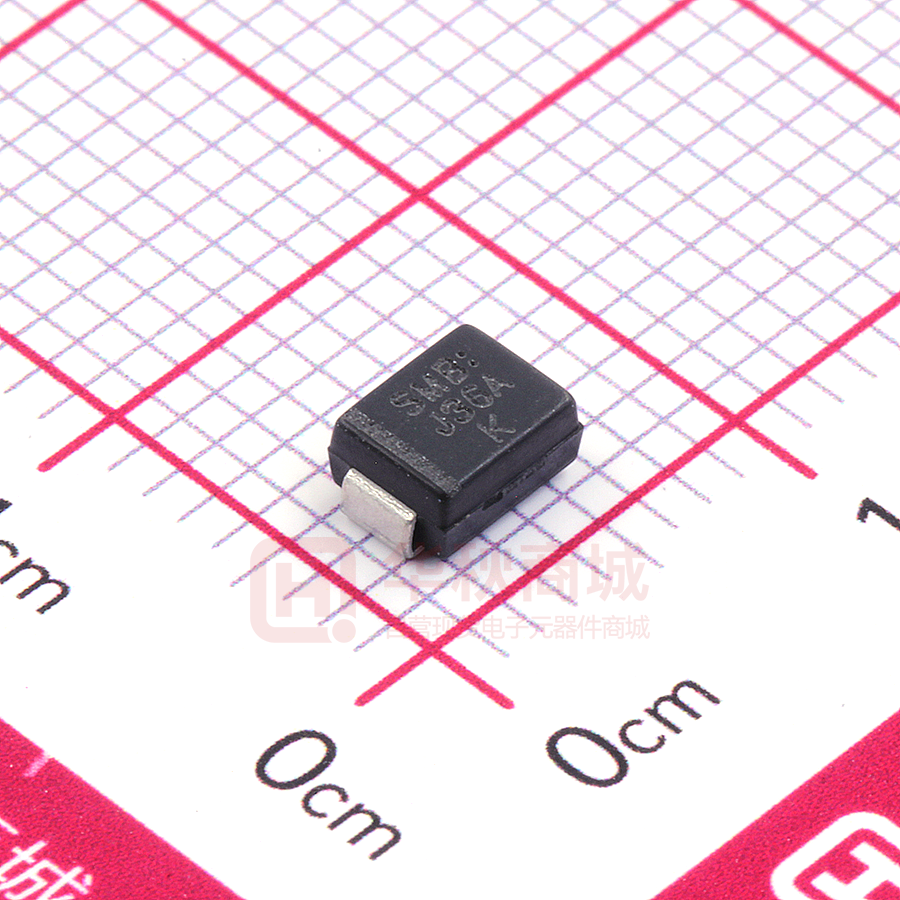

SMBJ36A

SMBJ*** ASeries SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SMBJ*** ASeries SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR VOLTAGE 5.0 TO 440 Volts,600 Watt Peak Pulse Power 1. FEATURES ● We declare that the material of product compliance with RoHS requirements and Halogen Free. ● Plastic package has Underwriters Laboratory Flammability Classification 94V-O ● For surface mounted applications in order to optimize ● Low profile package ● Built-in strain relief ● Glass passivated junction ● Low inductance ● Excellent clamping capability ● Repetition Rate (duty cycle):0.01% board space Fast response time: typically less than 1.0ps ● Typical IR less than 1mA above 10V ● ● High temperature soldering guaranteed: 260°C/10 seconds, ● Weight: 0.088g 2.MECHANICAL DATA Case: Epoxy, Molded Terminals: Plated leads, solderable per MIL-STD-202, Method 208 Polarity: With Color band denoted cathode Mounting Position: Any 3. MAXIMUM RATINGS(Ta = 25ºC) Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. RATING VALUE UNITS Minimum600 Watts 3.0 Watts Operating Temperature Range -55 to +150 °C Storage Temperature Range -55 to +150 °C Peak Power Dissipation at TA=25°C, TP=1ms(Note 1) Steady State Power Dissipation at TL=75°C(Note 2) NOTES: 1. Non-repetitive current pulse, per Fig. 3 and derated above TA=25°C per Fig. 2. 2. Mounted on Copper Leaf area of 1.57in2(40mm2). 3. 8.3ms single half sine-wave, duty cycle= 4 pulses per minutes maximum. Leshan Radio Company, LTD. Rev.B Jun. 2019 1/4 SMBJ*** ASeries SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SMBJ*** ASeries UniDirectional Part Number SMBJ5.0A SMBJ6.0A SMBJ6.5A SMBJ7.0A SMBJ7.5A SMBJ8.0A SMBJ8.5A SMBJ9.0A SMBJ10A SMBJ11A SMBJ12A SMBJ13A SMBJ14A SMBJ15A SMBJ16A SMBJ17A SMBJ18A SMBJ20A SMBJ22A SMBJ24A SMBJ26A SMBJ28A SMBJ30A SMBJ33A SMBJ36A SMBJ40A SMBJ43A SMBJ45A SMBJ48A SMBJ51A SMBJ54A SMBJ58A SMBJ60A SMBJ64A SMBJ70A SMBJ75A SMBJ78A SMBJ85A SMBJ90A SMBJ100A SMBJ110A SMBJ120A SMBJ130A SMBJ150A SMBJ160A SMBJ170A SMBJ180A SMBJ190A SMBJ200A SMBJ220A SMBJ250A SMBJ300A SMBJ350A SMBJ400A SMBJ440A Reverse Breakdown Breakdown Device Stand-off Voltage Voltage marking code Voltage VBR (V) VBR (V) VRWM (V) Min. @IT Max. @IT SMBJ5.0A 5.00 6.40 7.00 SMBJ6.0A 6.00 6.67 7.37 SMBJ6.5A 6.50 7.22 7.98 SMBJ7.0A 7.00 7.78 8.60 SMBJ7.5A 7.50 8.33 9.21 SMBJ8.0A 8.00 8.89 9.83 SMBJ8.5A 8.50 9.44 10.40 SMBJ9.0A 9.00 10.00 11.10 SMBJ10A 10.00 11.10 12.30 SMBJ11A 11.00 12.20 13.50 SMBJ12A 12.00 13.30 14.70 SMBJ13A 13.00 14.40 15.90 SMBJ14A 14.00 15.60 17.20 SMBJ15A 15.00 16.70 18.50 SMBJ16A 16.00 17.80 19.70 SMBJ17A 17.00 18.90 20.90 SMBJ18A 18.00 20.00 22.10 SMBJ20A 20.00 22.20 24.50 SMBJ22A 22.00 24.40 26.90 SMBJ24A 24.00 26.70 29.50 SMBJ26A 26.00 28.90 31.90 SMBJ28A 28.00 31.10 34.40 SMBJ30A 30.00 33.30 36.80 SMBJ33A 33.00 36.70 40.60 SMBJ36A 36.00 40.00 44.20 SMBJ40A 40.00 44.40 49.10 SMBJ43A 43.00 47.80 52.80 SMBJ45A 45.00 50.00 55.30 SMBJ48A 48.00 53.30 58.90 SMBJ51A 51.00 56.70 62.70 SMBJ54A 54.00 60.00 66.30 SMBJ58A 58.00 64.40 71.20 SMBJ60A 60.00 66.70 73.70 SMBJ64A 64.00 71.10 78.60 SMBJ70A 70.00 77.80 86.00 SMBJ75A 75.00 83.30 92.10 SMBJ78A 78.00 86.70 95.80 SMBJ85A 85.00 94.40 104.00 SMBJ90A 90.00 100.00 111.00 SMBJ100A 100.00 111.00 123.00 SMBJ110A 110.00 122.00 135.00 SMBJ120A 120.00 133.00 147.00 SMBJ130A 130.00 144.00 159.00 SMBJ150A 150.00 167.00 185.00 SMBJ160A 160.00 178.00 197.00 SMBJ170A 170.00 189.00 209.00 SMBJ180A 180.00 198.00 221.00 SMBJ190A 190.00 209.00 233.00 SMBJ200A 200.00 220.00 246.00 SMBJ220A 220.00 246.00 272.00 SMBJ250A 250.00 279.00 309.00 SMBJ300A 300.00 335.00 371.00 SMBJ350A 350.00 391.00 432.00 SMBJ400A 400.00 447.00 494.00 SMBJ440A 440.00 492.00 543.00 Leshan Radio Company, LTD. Rev.B Jun. 2019 Test Current IT (mA) 10.00 10.00 10.00 10.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 Maximum Clamping Voltage @IPP VC (V) 9.20 10.30 11.20 12.00 12.90 13.60 14.40 15.40 17.00 18.20 19.90 21.50 23.20 24.40 26.00 27.60 29.20 32.40 35.50 38.90 42.10 45.40 48.40 53.30 58.10 64.50 69.40 72.70 77.40 82.40 87.10 93.60 96.80 103.00 113.00 121.00 126.00 137.00 146.00 162.00 177.00 193.00 209.00 243.00 259.00 275.00 291.00 307.00 324.00 356.00 405.00 486.00 567.00 648.00 713.00 Peak Pulse Current Ipp (A) 65.30 58.30 53.60 50.00 46.60 44.20 41.70 39.00 35.30 33.00 30.20 28.00 25.90 24.60 23.10 21.80 20.60 18.60 16.90 15.50 14.30 13.30 12.40 11.30 10.40 9.30 8.70 8.30 7.80 7.30 6.90 6.50 6.20 5.90 5.30 5.00 4.80 4.40 4.10 3.70 3.40 3.10 2.90 2.50 2.30 2.20 2.10 2.00 1.90 1.70 1.50 1.30 1.10 0.90 0.90 Reverse Leakage @VRWM IR (uA) 800 800 500 200 100 50 20 10 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2/4 SMBJ*** ASeries SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Fig. 1-Peak Pulse Power Rating Curve PPPM, Peak Pulse Power,KW 100 Non-Repetive Pulse Waveform Shown in Fig.3 TA=25°C 10 1.0 Peak Pulse Power(PPP) or current(IPP) Derating in percentage % 5.ELECTRICAL CHARACTERISTICS CURVES 0.1 IPPM, Peak Pulse Current % 150 tf=10μs 100 TA=25℃ Test Waveform tf=10μs td=1000μs Peak Value Ippm 10/1000μs Waveform as deffused by R.E.A 50 0 1.0 2.0 t,Time,ms Leshan Radio Company, LTD. 50 25 50 100 125 150 175 200 TA,Ambient Temperature,°C Fig. 4-Typical Junction Capacitance 10000 Half Value Ipp/2=td 0 Fig. 2-Pulse Derating Curve 100 0 1.0 10 100 1000 10000 td,Pulse Width,μsec Fig. 3-Pulse Waveform Cj, Capacitance,pF 0.1 125 0 meansured at Zero Bias 1000 meansured at stand-off voltage VWM 100 TJ = 25°C f = 1.0 MHz Vsig = 50mVp-p 10 1.0 10 100 1000 V(WM),Reverse Stand-off Voltage,Voltage 3.0 Rev.B Jun. 2019 3/4 SMBJ*** ASeries SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR 6.OUTLINE AND DIMENSIONS SMB DIM Min Max Typ. A 5.00 5.45 5.25 B 3.20 4.00 3.60 C 4.30 4.70 4.50 D 1.80 2.20 2.00 E 2.20 2.50 2.35 G 1.90 2.30 2.10 H 0.95 1.25 1.10 I 0.05 0.15 0.10 K 1.70 2.10 1.90 0.90 1.50 1.20 L N 0.10 0.30 0.20 All Dimensions in mm 7.SOLDERING FOOTPRINT SMB DIM X Y B Leshan Radio Company, LTD. Rev.B Jun. 2019 (mm) 1.60 2.20 4.60 4/4
