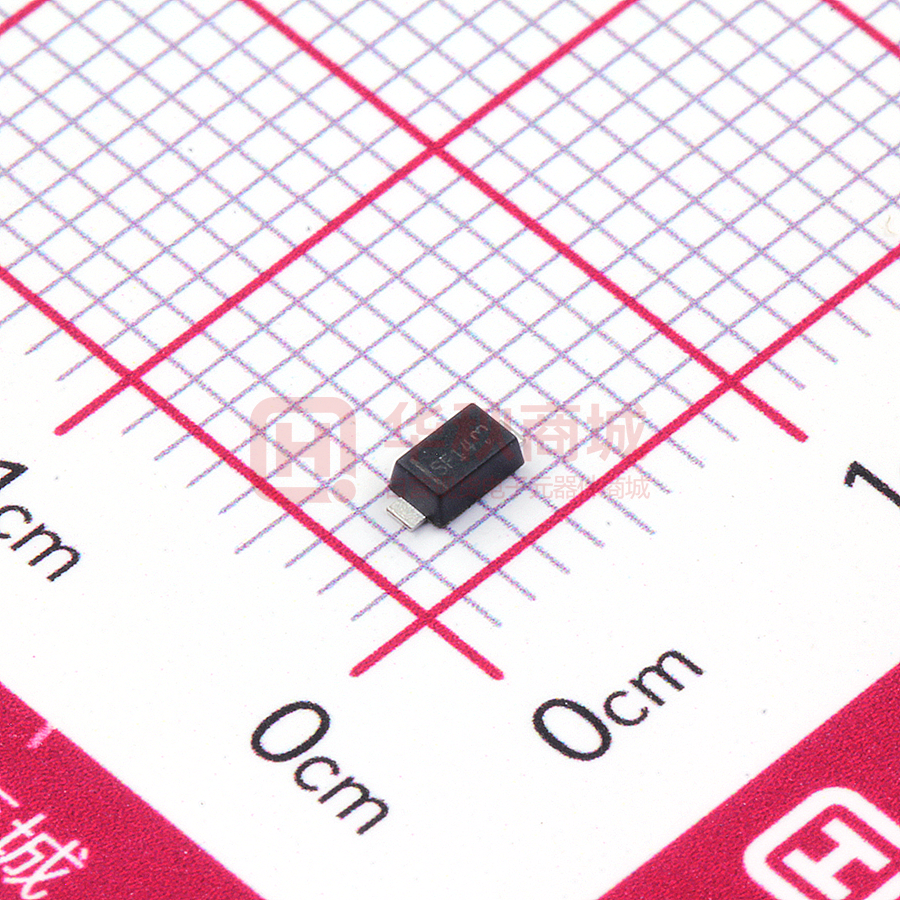

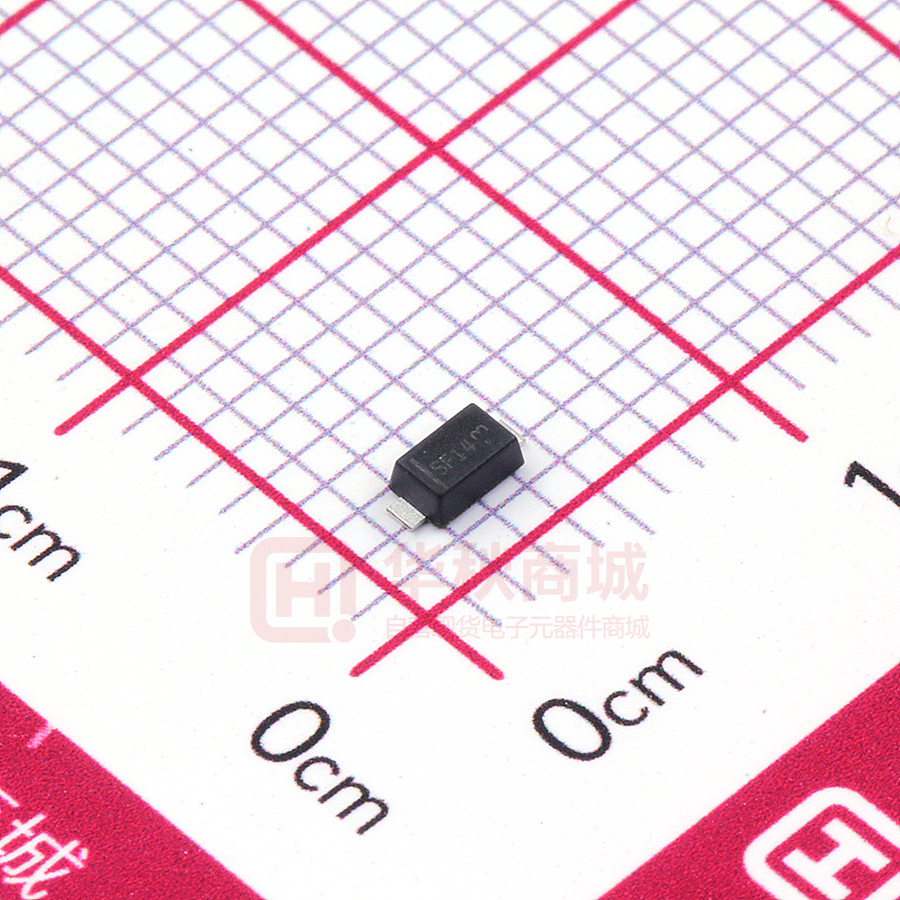

SODSF14-SH

SODSF11-SH thru SODSF18-SH Surface Mount Glass Passivated Junction Fast Recovery Rectifiers Reverse Voltage 50 to 600V Forward Current 1.0A FEATURES * Plastic package has Underwriters Laboratory Flammability Classification 94V-0 * High temperature metallurgically bonded construction * Cavity-free glass passivated junction * Capable of meeting environmental standards of MIL-S-19500 SOD123FL * Typical IR less than 1.0µA * High temperature soldering guaranteed: 260°C/10 seconds Mechanical Data Case: JEDEC SOD123-FL/MINI SMA, molded plastic over glass DIE We declare that the material of product is Terminals: Tin Plated, solderable per Halogen free (green epoxy compound) MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.0155 g Handling precautin:None Electrical Characteristic 1.Maximum & Thermal Characteristics Ratings Parameter Symbol symbol Device marking code at 25°C ambient temperature unless otherwise specified. SOD SOD SOD SOD SOD SOD SOD SOD SF11-SH SF12-SH SF13-SH SF14-SH SF15-SH SF16-SH SF17-SH SF18-SH Unit SF11 SF12 SF13 SF14 SF15 SF16 SF17 SF18 Maximum repetitive peak reverse voltage VRRM 50 100 150 200 300 400 500 600 V Maximum RMS voltage VRMS 35 70 105 140 210 280 350 420 V Maximum DC blocking voltage VDC 50 100 150 200 300 400 500 600 V Maximum average forward rectified current lead length at TC = 75°C(Note 2) IF(AV) 1.0 A Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 30 A trr 35 ns Operating junction temperature range RθJA RθJL TJ 170 40 –55 to +150 storage temperature range TSTG –55 to +150 Typical reverse recovery time (Note 1) Typical thermal resistance (Note 2) °C/W °C °C Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Parameter Symbol symbol SOD SOD SOD SOD SOD SOD SOD SOD SF11-SH SF12-SH SF13-SH SF14-SH SF15-SH SF16-SH SF17-SH SF18-SH 0.95 1.25 1.7 Unit Maximum instantaneous forward voltage at 1.0A VF Maximum DC reverse current at rated DC blocking voltage TA = 25℃ Tj = 100℃ IR 5.0 100 µA Typical junction capacitance at 4.0V, 1MHz (Note 2) CJ 15.0 PF V NOTES: 1. IF = 0.5A, IR = 1.0A, IRR = 0.25A 2. 8.0mm2 (.013mm thick) land areas Leshan Radio Company, LTD. Rev.D Sep. 2019 1/5 SODSF11-SH thru SODSF18-SH 2. Characteristic Curves ( TA = 25°C unless otherwise noted ) Fig. 2 – Maximum Non-repetitive Peak Forward Surge Current 60 Hz Resistive or Inductive Load 1.0 0.5 0.375" (9.5mm) Lead Length 0 25 50 75 100 125 150 175 15 0 1 Fig 4. – Typical Reverse Characteristics Instantaneous Reverse Current (µA) SODSF15~SODSF16 1.0 SODSF17~SODSF18 0.1 TJ = 25°C Pulse width = 300µs 1% Duty Cycle 0.001 0.7 1000 0.9 1.1 1.3 1.5 Instantaneous Forward Voltage (V) 1.7 1.0 Tj=75℃ 0.1 Tj=25℃ 0.01 0 20 40 60 80 100 Fig 6. – Typical Junction Capacitance 10 1 Leshan Radio Company, LTD. Tj=125℃ 100 100 0.1 1.0 10 t,Pulse duration,sec 10 Percent of Rated Peak Reverse Voltage (%) Fig 5. –typical transient thermal impedance 0.01 100 100 SODSF11~SODSF14 0.01 10 Number of Cycles at 60Hz Fig 3. – Typical Instantaneous Forward Characteristics 10 Transient thermal impedance(°C/W) TJ = TJ max 8.3ms Single Half Sine-wave (JEDEC Method) 30 CASE TEMPERATURE:Tc(°C) Junction Capacitance (pF) Instantaneous Forward Current (A) 0 Average Forward Rectified Current (A) Average Forward Rectified Current (A) Fig. 1 – Forward Current Derating Curve 100 10 1.0 0.1 Rev.D Sep. 2019 TJ = 25°C f = 1.0 MHz Vsig = 50mVp-p 1 10 Reverse Voltage (V) 100 2/5 3.OUTLINE AND DIMENSIONS SOD123FL DIM MIN NOR MAX A 0.90 1.05 1.15 b 0.75 0.80 0.95 L 0.80REF. E 2.60 2.75 2.90 D 1.60 1.75 1.90 HE 3.50 3.65 3.80 c 0.12 0.17 0.22 0.45REF. L1 All Dimensions in mm 4.SOLDERING FOOTPRINT DIM X Y X1 Leshan Radio Company, LTD. Rev.D Sep. 2019 (mm) 1.20 1.10 2.00 3/5 SODSF11-SH thru SODSF18-SH 5.Suggested thermal profile for soldering process 1. Storage environment：Temperature=5~40℃ Humidity=55±25% 2. Reflow soldering of surface-mount device 3. Reflow soldering Profile Feature Soldering Condition Average ramp-up rate(TL to TP)
