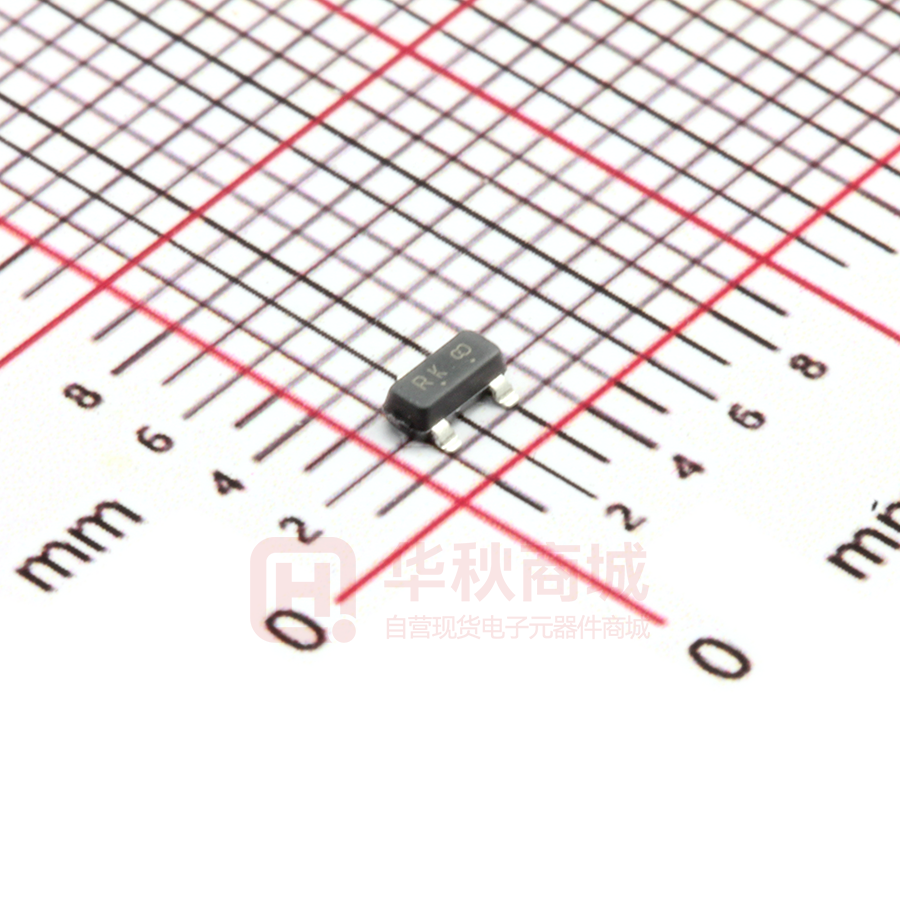

SRK7002LT1G

SRK7002LT1G

  • 厂商:

    LRC(乐山无线电)

  • 封装:

    SOT-23

  • 描述:

    MOS管 N-Channel VDS=60V VGS=±20V ID=115mA RDS(ON)=7.5Ω SOT23

  • 数据手册
  • 价格&库存
SRK7002LT1G 数据手册
SRK7002LT1G S-SRK7002LT1G N-Channel Small Signal MOSFET 1. FEATURES ● Low on-Resistance. ● Fast switching speed. ● Low-voltage drive. ● Easily designed drive circuits. ● Easy to parallel. ● ESD Protected:2000V ● We declare that the material of product compliance with SOT23(TO-236) 3 d RoHS requirements and Halogen Free. ● S- prefix for automotive and other applications requiring 1 unique site and control change requirements; AEC-Q101 g qualified and PPAP capable. s 2. DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping SRK7002LT1G RK 3000/Tape&Reel SRK7002LT3G RK 10000/Tape&Reel 2 3. MAXIMUM RATINGS(Ta = 25ºC) Symbol Limits Unit VDSS VGS 60 V ±20 Continuous ID 115 V mA Pulsed IDP(Note 1) 0.8 A Continuous IDR 115 mA Pulsed IDRP(Note 1) 0.8 A PD(Note 2) 225 mW Channel temperature Tch 150 ℃ Storage temperature Tstg -55~+150 ℃ Parameter Drain-Source Voltage Gate-Source Voltage Drain current Drain reverse current Total power dissipation 1. Pw≤10µs, Duty cycle≤1% 2. When mounted on a 1×0.75×0.062 inch glass epoxy board. Leshan Radio Company, LTD. Rev.A Aug. 2018 1/5 SRK7002LT1G, S-SRK7002LT1G N-Channel Small Signal MOSFET 4. ELECTRICAL CHARACTERISTICS (Ta= 25ºC) Characteristic Symbol Gate-source leakage current Typ. Max. - - ±10 60 - - - - 1 1 1.85 2.5 - - 7.5 - - 7.5 80 - - mS Ciss - 25 Coss Crss - 10 50 25 pF - 3 5 - 3.5 - - 40 - IGSS (VGS =±20V, VDS =0V) Drain-source breakdown voltage V(BR)DSS (ID =10µA, VGS =0V) Zero gate voltage drain current IDSS (VDS =60V, VGS =0V) Gate threshold voltage VGS(th) (VDS =VGS, ID =250µA) Unit Min. µA V μA V Drain-source on-state resistance RDS(on) (ID =0.5A, VGS =10V) (ID =0.05A, VGS =5V) Forward transfer admittance l Y fs l (VDS =10V, ID =0.2A) Input capacitance Output Capacitance Reverse Transfer Capacitance Turn-On Delay Time Turn-Off Delay Time (VDS =25V,VGS =0V,f=1MHz) (ID =200mA, VDD =30V,VGS =10V,RL =150 Ω,RGS =10Ω) td(on) td(off) Ω ns 3. PW ≤300µs, Duty cycle≤1% Leshan Radio Company, LTD. Rev.A Aug. 2018 2/5 SRK7002LT1G, S-SRK7002LT1G N-Channel Small Signal MOSFET 5.ELECTRICAL CHARACTERISTICS CURVES 0.8 0.8 VGS=6V,8V,10V VGS=4V 0.7 VDS=10V 0.7 -55℃ 150℃ 0.6 ID,Drain Current(A) VGS=3.5V 0.5 0.4 VGS=3V 0.3 0.2 0.5 25℃ 0.4 0.3 0.2 VGS=2.5V 0.1 0.1 VGS=2V Ta=25℃ 0 0 0 1 2 3 4 VDS,Drain to Source Voltage(V) 0 5 1 2 3 4 VGS,Gate To Sourcce Voltage(V) 5 ID vs. VGS ID vs. VDS 2.6 1 Ta=25℃ 0.1 150℃ 25℃ -55℃ 0.01 RDSon On Resistance(Ω) 2.4 IS,Diode Forward Current(A) ID,Drain Current(A) 0.6 2.2 VGS=5V 2 1.8 VGS=10V 1.6 0.001 1.4 0.3 0.5 0.7 0.9 VSD,Diode Forward Voltage(V) 0 0.4 0.6 ID,Drain Current(A) 0.8 RDS(on) vs. ID IS vs. VSD Leshan Radio Company, LTD. 0.2 Rev.A Aug. 2018 3/5 SRK7002LT1G, S-SRK7002LT1G N-Channel Small Signal MOSFET 5.ELECTRICAL CHARACTERISTICS CURVES(Con.) 3.5 1.8 1.7 VGSTH Threshold Voltage(V) RDSon On Resistance(Ω) 3 VGS=5.0V,ID=0.05A 2.5 2 VGS=10V,ID=0.5 A ID=250uA 1.6 1.5 1.4 1.3 1.2 1.5 1.1 1 1 -50 -25 0 25 50 75 100 Tj,Temperature(℃) 125 150 -50 RDS(on) vs. Tj -25 0 25 50 75 100 Tj,Temperature(℃) 125 150 VGSTH vs. Tj 50 45 f=1.0MHz Ta=25℃ Capacitor(pF) 40 35 30 25 Ciss 20 15 Coss 10 Crss 5 0 0 20 40 60 VDS(V) Capacitance Leshan Radio Company, LTD. Rev.A Aug. 2018 4/5 SRK7002LT1G, S-SRK7002LT1G N-Channel Small Signal MOSFET 6.OUTLINE AND DIMENSIONS Notes: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. MILLIMETERS INCHES DIM MIN A 0.89 NOM MAX MIN NOM MAX 0.04 0.044 1 1.11 0.035 A1 0.01 0.06 0.1 0.001 0.002 0.004 b 0.37 0.44 0.5 0.015 0.018 c 0.09 0.13 0.18 0.003 0.005 0.007 D 2.80 2.9 3.04 0.11 E 1.20 1.3 1.4 0.047 0.051 0.055 e 1.78 1.9 2.04 0.07 L 0.10 0.2 0.3 0.004 0.008 0.012 L1 HE 0.35 0.54 0.69 0.014 0.021 0.029 2.10 2.4 2.64 0.083 0.094 0.104 0° --- 10° θ 0° 0.114 0.02 0.12 0.075 0.081 --- 10° 7.SOLDERING FOOTPRINT Leshan Radio Company, LTD. Rev.A Aug. 2018 5/5
