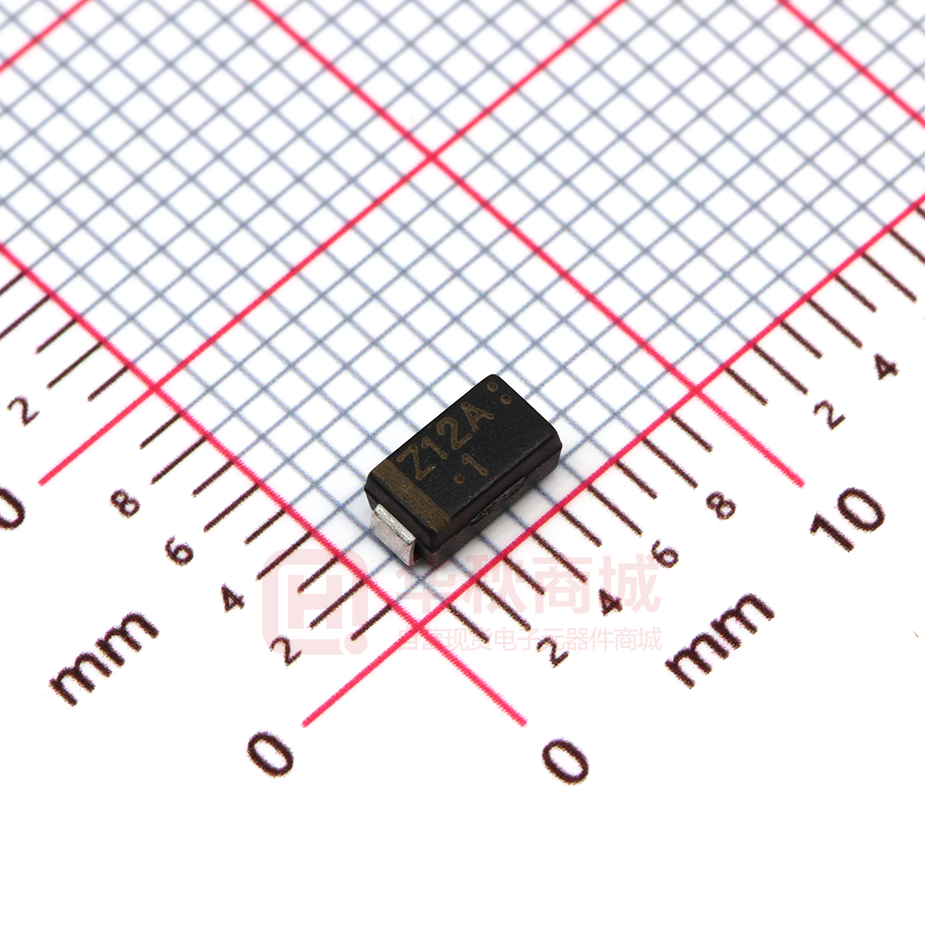

SZA12A

SZA***A Series GLASS PASSIVATED JUNCTION Zener voltage regulator diodes 1.0 Watt Steady State Feature * 1W SMA * Zener voltage regulator diodes * Plastic package has Underwriters Laboratory Flammability Classification 94V-0 * We declare that the material of product compliance with RoHS requirements. * Guarding for over voltage protection * High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data We declare that the material of product Case: JEDEC DO-214AC molded plastic Terminals: Axial leads, solderable per MIL-STD-202, Method 208 Polarity: Color band denoted cathode except Bipolar Mounting Position: Any Weight: 0.0023 ounce, 0.065 gram compliance with ROHS requirements 1.Electrical Characteristic Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. RATING SYMBOL Steady State Power Dissipation at TL=75°C(Note1) Z-current Operating and Storage Temperature Range NOTES: 1. Mounted on Copper Leaf area of 1.57in (40mm ). 2 2 VALUE UNITS PM(AV) 1.0 Watts IZ PV/VZ mA TJ,TSTG -50 to +150 °C SZA***A Series 2.Product Characteristic Vz tolerance : ±5%; Type Device marking code Ta=25℃ Vfmax =1.2V @ IF = 200mA P=1 W Zener Current Voltage Vz@Lzt Volts I zt A and B Sufflx only Z zt @ I zt Z zk@ Izk mA Ohms Ohms SZA5.1A Z5.1A 5.1 49 7 550 SZA5.6A Z5.6A 5.6 45 5 600 SZA6.2A SZA6.8A Z6.2A Z6.8A 6.2 6.8 41 37 2 4 700 1300 SZA7.5A SZA8.2A SZA9.1A SZA10A SZA11A SZA12A SZA13A SZA15A SZA16A SZA18A SZA20A SZA22A SZA24A SZA27A SZA30A SZA33A SZA36A SZA39A SZA43A SZA47A SZA51A SZA56A SZA62A SZA68A SZA75A SZA82A SZA91A SZA100A SZA110A SZA120A SZA130A SZA150A SZA160A SZA180A SZA200A Z7.5A Z8.2A Z9.1A Z10A Z11A Z12A Z13A Z15A Z16A Z18A Z20A Z22A Z24A Z27A Z30A Z33A Z36A Z39A Z43A Z47A Z51A Z56A Z62A Z68A Z75A Z82A Z91A Z100A Z110A Z120A Z130A Z150A Z160A Z180A Z200A 7.5 8.2 9.1 10 11 12 13 15 16 18 20 22 24 27 30 33 36 39 43 47 51 56 62 68 75 82 91 100 110 120 130 150 160 180 200 34 31 28 25 23 21 19 17 15.5 14 12.5 11.5 10.5 9.5 8.5 7.5 7 6.5 6 5.5 5 4.5 4 3.7 3.3 3 2.8 2.5 2 1.5 1 1 1 1 1 4.5 5.5 6 7 8 9 10 14 16 20 22 23 25 35 40 45 50 60 70 80 95 110 125 150 175 200 250 350 550 750 900 1200 1350 1650 1950 1300 1300 1300 1300 1300 1300 1300 1300 1300 1300 1300 1300 1300 1300 1500 1500 1500 1500 2500 2500 2500 2500 2500 2500 2500 3000 3000 3000 5000 5500 6000 6500 7000 8500 10000 Leakage Current Maximum Regulator Current2) IZM @ Tamb =50 °C Izk IR VR mA uA Max Volts mA 1.0 178 2.0 164 3.0 4 146 133 121 110 100 91 83 76 69 61 57 50 45 41 38 34 30 27 25 23 22 19 18 16 14 13 12 11 10 9 8 7 6 6 6 5 4 1 100 0.5 0.5 0.5 70 2 0.25 0.5 5 6 7 7.6 8.4 9.1 9.9 11.4 12.2 13.7 15.2 16.7 18.2 20.6 22.8 25.1 27.4 29.7 32.7 35.8 38.8 42.6 47.1 51.7 56 62.2 69.2 76 83 90 98 113 120 135 150 SZA***A Series 3.Characteristic Curves Vz--Iz ZENER CURRENT Iz(mA) ZENER CURRENT Iz(mA) Vz--Iz 50 40 30 20 10 0 5 10 15 20 25 30 35 20 16 12 8 4 50 70 90 110 130 ZENER VOLTAGE P--Ta 1000 750 500 250 0 50 100 150 200 250 300 350 AMBIENT TEMPERATURE Ta（℃） 150 170 Vz（V） 190 SZA***A Series 4.Package Dimensions in inches and (millmeters) A B C DD E F Dimensions inches Max. Min. 0.086 0.11 0.051 0.067 0.185 0.209 0.075 1.9 0.0740.090 0.090 0.035 0.059 0.035 0.059 mm Min. 2.2 1.3 4.7 1.92.3 0.9 0.9 Max. 2.8 1.7 5.3 2.3 1.5 1.5 Note： DO-214AC molded plastic case The marking band indicates the cathode SZA***A Series 5. Update Record 版次 更新记录 更新作者 更新日期 1 第一版 周杰 2010.12.28 2 增加产品型号 周杰 2011.03.28 3 增加产品型号 周杰 2012.02.09 4 调整各型号的漏电流 周杰 2013.07.10 5 增加低压系列 谭志伟 2017.12.28 6 修订D尺寸 谭志伟 2018.6.22 7 更新IZK标注 谭志伟 2020.8.17
