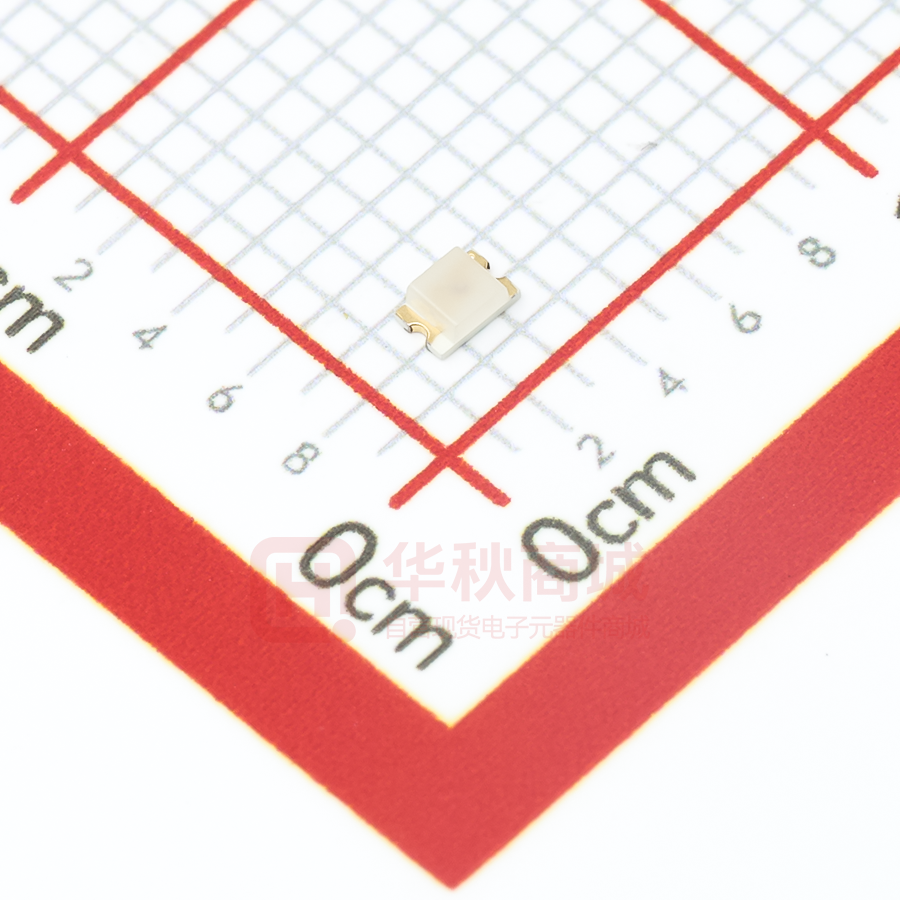

SML-LXT0805YW-TR

PART NUMBER 1.30 0.051 CATHODE MARK 2 REV A B C D E F G G POLARITY 1 2 REV H DATE 12.08.99 01.08.01 02.25.02 03.22.04 08.12.05 09.30.09 03.06.18 12.17.19 1 2.00 0.079 ELECTRO-OPTICAL CHARACTERISTIC TA=25℃ 1.40 0.055 0.280 0.011 0.800 0.031 SML-LXT0805YW-TR E.C.N. NUMBER AND REVISION COMMENTS E.C.N #10567. E.C.N #10695. E.C.N #10814. E.C.N #10967. E.C.N #11248. E.C.N #11508. ECN-Lumex201800039 ECN-Lumex201900133 PARAMETER MIN TYP MAX UNITS TEST COND PEAK WAVELENGHT - 585 - nm If=20mA FORWARD VOLTAGE - 2.1 2.6 Vf If=20mA REVERSE CURRENT - - 10 uA Vr=5V LUMINOUS INTENSITY - 7 - mcd If=20mA VIEWING ANGLE - 130 - 2x theta1/2 - EMITTED COLOR RECOMMENDED SOLDER PAD LAYOUT YELLOW EPOXY LENS FINISH MILKY WHITE DIFFUSED ABSOLUTE MAXIMUM RATINGS TA=25℃ 2- 0.900 0.035 2 2- 1.10 0.043 1.10 0.043 COTHODE SIDE 1 0.500 0.020 1.00 0.039 PARAMETER MAX UNITS PEAK FORWARD CURRENT* 40 mA FORWARD CURRENT 20 mA REVERSE VOLTAGE 5 V POWER DISSIPATION 52 mW STORAGE TEMPERATURE -40 TO +100 ℃ OPERATING TEMPERATURE -40 TO +85 ℃ *t
