Illumination
LUXEON CZ
Color Line
Maximum punch in any application
LUXEON CZ Color Line is an optically advanced portfolio of Color and
White LEDs. Designed to maximize punch, the LUXEON CZ Color Line is
the optimal LED solution for architecture, entertainment and emergency
vehicle lighting applications.
Features and Benefits
Primary Applications
Small and symmetrical 2x2mm² package
Spotlights
Industry leading Hot/Cold Factors and the lowest thermal resistance
Wall Wash
Maximized punch (cd/lm)
Floodlights
Landscape Lighting
More…
DS198 LUXEON CZ Color Line Product Datasheet ©2022 Lumileds Holding B.V. All rights reserved.
No. E352519
Table of Contents
General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Part Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Lumen Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electrical and Thermal Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Spectral Power Distribution Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Light Output Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Forward Current Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Radiation Pattern Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Product Bin and Labeling Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Decoding Product Bin Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Luminous Flux Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Radiometric Power Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Color Bin Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Color Bin Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Color Bin Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Peak Wavelength Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Dominant Wavelength Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Forward Voltage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Reflow Soldering Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
JEDEC Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Solder Pad Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Pocket Tape Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Reel Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
i
General Product Information
Product Test Conditions
LUXEON CZ Color Line are tested and binned with a DC drive current of 350mA at a junction temperature, Tj, of 85ºC.
Part Number Nomenclature
Part numbers for LUXEON CZ Colors follow the convention below:
L 1 C U – A A A 1 0 0 0 0 0 0 0 0 0
Where:
A A A
– designates color (FRD=Far Red, DRD=Deep Red, RED=Red, RNG=Red-Orange, AMB=Amber, PCA=PC Amber,
MNT=Mint, LME=Lime, GRN=Green, CYN=Cyan, BLU=Blue, PCB=PC Blue, RYL=Royal Blue,
VLT=Violet)
Therefore, the following part number is used for a LUXEON CZ Red LED:
L 1 C U – R E D 1 0 0 0 0 0 0 0 0 0
Part numbers for LUXEON CZ White follow the convention below:
L 1 C U – A A B B 0 0 0 0 0 0 0 0 0
Where:
A A
– designates nominal CCT (27=2700K, 30=3000K, 35=3500K, 40=4000K, 50=5000K, 57=5700K, 65=6500K)
B B
– designates minimum CRI (70=70CRI, 80=80CRI, 90=90CRI)
Therefore, the following part number is used for a LUXEON CZ White 4000K 70CRI LED:
L 1 C U – 5 7 7 0 0 0 0 0 0 0 0 0 0
Lumen Maintenance
Please contact your local Sales Representative or Lumileds Technical Solutions Manager for more information about the longterm performance of this product.
Environmental Compliance
Lumileds LLC is committed to providing environmentally friendly products to the solid-state lighting market. LUXEON CZ is
compliant to the European Union directives on the restriction of hazardous substances in electronic equipment, namely the
RoHS Directive 2011/65/EU and REACH Regulation (EC) 1907/2006. Lumileds LLC will not intentionally add the following restricted
materials to its products: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated
diphenyl ethers (PBDE).
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
2
Performance Characteristics
Product Selection Guide
Table 1a. Product performance of LUXEON CZ Colors at 350mA, Tj=85ºC.
Color
DOMINANT or
PEAK WAVELENGTH RANGE [1] (nm)
Luminous Flux (lm) or
Radiometric Power [2] (mW)
Part
Number
MINIMUM
MAXIMUM
MINIMUM
TYPICAL
Far Red
720
750
150
240
L1CU-FRD1000000000
Deep Red
655
675
190
260
L1CU-DRD1000000000
Red
624
634
20
31
L1CU-RED1000000000
Red-Orange
614
624
25
37
L1CU-RNG1000000000
Amber
585
600
10
16
L1CU-AMB1000000000

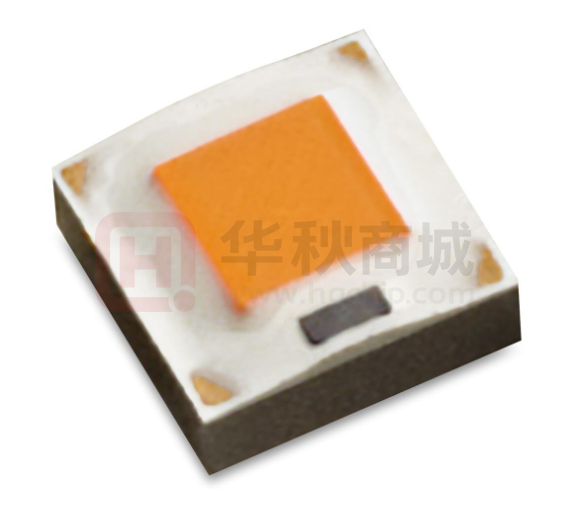

PC Amber
–
–
65
88
L1CU-PCA1000000000
Mint
–
–
120
132
L1CU-MNT1000000000
Lime
–
–
120
138
L1CU-LME1000000000
Green
520
540
80
117
L1CU-GRN1000000000
Cyan
490
510
60
82
L1CU-CYN1000000000
Blue
465
485
25
34
L1CU-BLU1000000000
PC Blue
–
–
35
44
L1CU-PCB1000000000
Royal Blue
440
460
360
432
L1CU-RYL1000000000
Violet
420
430
400
458
L1CU-VLT1000000000
Notes for Table 1a:
1. Lumileds maintains a tolerance of ±6.5% on luminous flux measurements. PC Amber, Mint, Lime and PC Blue are binned by chromaticity coordinates. Far Red, Deep Red, Royal Blue and Violet
are binned by peak wavelength. All other colors are binned by dominant wavelength.
2. Far Red, Deep Red, Royal Blue and Violet are binned by radiometric power. All other colors are binned by luminous flux.
Table 1b. Product performance of LUXEON CZ White at 350mA, Tj=85°C.
COLOR
White
NOMINAL
CCT
MINIMUM
CRI [1]
Luminous Flux [1] (lm)
MINIMUM
TYPICAL
TYPICAL
LUMINOUS EFFICACY
(lm/W)
Part
Number
4000K
70
100
109
113
L1CU-4070000000000
5000K
70
100
109
113
L1CU-5070000000000
5700K
70
100
109
113
L1CU-5770000000000
6500K
70
100
109
113
L1CU-6570000000000
2200K
80
75
89
92
L1CU-2280000000000
2700K
80
80
89
92
L1CU-2780000000000
3000K
80
90
95
99
L1CU-3080000000000
3500K
80
90
106
110
L1CU-3580000000000
4000K
80
90
99
103
L1CU-4080000000000
2700K
90
65
74
77
L1CU-2790000000000
3000K
90
65
79
82
L1CU-3090000000000
3500K
90
75
86
89
L1CU-3590000000000
4000K
90
75
89
92
L1CU-4090000000000
5700K
90
70
89
92
L1CU-5790000000000
Notes for Table 1b:
1. Lumileds maintains a tolerance of ±6.5% on luminous flux and ±2 on CRI measurements for these products.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
3
Optical Characteristics
Table 2a. Optical characteristics for LUXEON CZ Colors at 350mA, Tj=85°C.
COLOR
Part
Number
Typical Spectral
Half-width [1]
(nm)
Typical Temperature
Coefficient of Dominant
or Peak Wavelength
(nm/°C)
Typical Total
Included
Angle [2]
Typical
Viewing
Angle [3]
Far Red
L1CU-FRD1000000000
20
0.06
140°
120°
Deep Red
L1CU-DRD1000000000
20
0.06
140°
120°
Red
L1CU-RED1000000000
20
0.06
140°
120°
Red-Orange
L1CU-RNG1000000000
20
0.06
140°
120°
Amber
L1CU-AMB1000000000
20
0.06
140°
120°
PC Amber
L1CU-PCA1000000000
80
-0.01
140°
120°
Mint
L1CU-MNT1000000000
80
0.03
140°
120°
Lime
L1CU-LME1000000000
80
-0.01
140°
120°
Green
L1CU-GRN1000000000
35
0.04
140°
120°
Cyan
L1CU-CYN1000000000
20
0.03
140°
120°
Blue
L1CU-BLU1000000000
25
0.03
140°
120°
PC Blue
L1CU-PCB1000000000
26
0.02
140°
123°
Royal Blue
L1CU-RYL1000000000
20
0.03
140°
120°
Violet
L1CU-VLT1000000000
20
0.03
140°
120°
Notes for Table 2a:
1. Spectral half-width is the spectral bandwidth at 50% of the peak intensity.
2. Total angle at which 90% of total luminous flux is captured.
3. Viewing angle is the off axis angle from the LED centerline where the luminous intensity is ½ of the peak value.
Table 2b. Optical characteristics for LUXEON CZ White at 350mA, Tj=85°C.
COLOR
Part Number
Typical Total
Included Angle [1]
Typical Viewing Angle [2]
White
L1CU-xxx0000000000
140°
120°
Notes for Table 2b:
1. Total angle at which 90% of total luminous flux is captured.
2. Viewing angle is the off axis angle from the LED centerline where the luminous intensity is ½ of the peak value.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
4
Electrical and Thermal Characteristics
Table 3. Electrical and thermal characteristics for LUXEON CZ Color Line at 350mA, Tj=85ºC.
Forward Voltage [1] (Vf)
Typical Thermal
RESISTANCE—JUNCTION
to Solder Pad (°C/W)
Minimum
Typical
MAXIMUM
Typical Temperature
Coefficient of Forward
Voltage [2] (mV/°C)
L1CU-FRD1000000000
1.50
1.90
2.30
-1.7
3.5
Deep Red
L1CU-DRD1000000000
1.50
2.05
2.30
-1.7
3.5
Red
L1CU-RED1000000000
1.75
2.00
2.50
-1.6
3.5
Red-Orange
L1CU-RNG1000000000
1.75
2.05
2.50
-1.6
3.5
Amber
L1CU-AMB1000000000
1.75
2.05
2.50
-2.0
3.5
PC Amber
L1CU-PCA1000000000
2.50
2.75
3.50
-1.7
3.5
COLOR
Part Number
Far Red
Mint
L1CU-MNT1000000000
2.50
2.75
3.50
-2.7
3.2
Lime
L1CU-LME1000000000
2.50
2.75
3.50
-2.7
3.2
Green
L1CU-GRN1000000000
2.50
3.05
3.50
-2.4
4.0
Cyan
L1CU-CYN1000000000
2.50
3.05
3.50
-2.4
4.0
Blue
L1CU-BLU1000000000
2.50
3.08
3.50
-2.6
4.0
PC Blue
L1C1-PCB1000000000
2.50
3.08
3.50
-4.0
3.4
Royal Blue
L1CU-RYL0000000000
2.50
2.75
3.50
-1.7
3.2
Violet
L1CU-VLT1000000000
2.50
2.83
3.50
-1.7
3.2
White
L1CU-xxx0000000000
2.50
2.75
3.50
-1.7
3.2
Notes for Table 3:
1. Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.
2. Measured between 25°C and 85°C.
Absolute Maximum Ratings
Table 4. Absolute maximum ratings for LUXEON CZ Color Line.
Parameter
DC Forward Current [1, 2]
Peak Pulsed Forward Current
[1, 3]
LED Junction Temperature [1] (DC & Pulse)
ESD Sensitivity
(ANSI/ESDA/JEDEC JS-001-2012)
DEEP RED
FAR RED,
RED, RED-ORANGE,
Amber AND PC AMBER
GREEN
AND Cyan
Blue,
PC BLUE and
Royal Blue
MINT,
LIME, VIOLET
AND WHITE
700mA
1050mA
1050mA
1050mA
1225mA
875mA
1300mA
1300mA
1300mA
1500mA
135°C
120°C
135°C
135°C
135°C
Class 3B
LED Storage Temperature
-40°C to 135°C
Soldering Temperature
JEDEC 020c 260°C
Allowable Reflow Cycles
3
Reverse Voltage (Vreverse)
LUXEON C LEDs are not designed to be driven in reverse bias
Notes for Table 4:
1. Proper current derating must be observed to maintain the junction temperature below the maximum allowable junction temperature.
2. Residual periodic variations due to power conversion from alternating current (AC) to direct current (DC), also called “ripple,” are acceptable if the following conditions are met:
– The frequency of the ripple current is 100Hz or higher
– The average current for each cycle does not exceed the maximum allowable DC forward current
– The maximum amplitude of the ripple does not exceed the maximum peak pulsed forward current
3. At 10% duty cycle with pulse width of 10ms.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
5
Characteristic Curves
Spectral Power Distribution Characteristics
Figure 1a. Typical normalized power vs. wavelength for LUXEON CZ Direct Colors at 350mA, Tj=85ºC.
Figure 1b. Typical normalized power vs. wavelength for LUXEON CZ Phosphor Converted Colors at 350mA, Tj=85ºC.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
6
Figure 1c. Typical normalized power vs. wavelength for LUXEON CZ White 70CRI at 350mA, Tj=85ºC.
Figure 1d. Typical normalized power vs. wavelength for LUXEON CZ White 80CRI at 350mA, Tj=85ºC.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
7
Figure 1e. Typical normalized power vs. wavelength for LUXEON CZ White 90CRI at 350mA, Tj=85ºC.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
8
Light Output Characteristics
Figure 2a. Typical normalized radiant power vs. junction temperature for LUXEON CZ Far Red and Deep Red at 350mA.
Figure 2b. Typical normalized light output vs. junction temperature for LUXEON CZ Red, Red-Orange and Amber at 350mA.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
9
Figure 2c. Typical normalized light output vs. junction temperature for LUXEON CZ PC Amber at 350mA.
Figure 2d. Typical normalized light output vs. junction temperature for LUXEON CZ Mint and Lime at 350mA.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
10
Figure 2e. Typical normalized light output vs. junction temperature for LUXEON CZ Green, Cyan, Blue and PC Blue at 350mA.
Figure 2f. Typical normalized radiant power vs. junction temperature for LUXEON CZ Royal Blue at 350mA.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
11
Figure 2g. Typical normalized light output vs. junction temperature for LUXEON CZ Violet at 350mA.
Figure 2h. Typical normalized light output vs. junction temperature for LUXEON CZ White at 350mA.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
12
Figure 3a. Typical normalized radiant power vs. forward current for LUXEON CZ Far Red and Deep Red at Tj=85°C.
Figure 3b. Typical normalized light output vs. forward current for LUXEON CZ Red, Red-Orange and Amber at Tj=85°C.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
13
Figure 3c. Typical normalized light output vs. forward current for LUXEON CZ PC Amber at Tj=85°C.
Figure 3d. Typical normalized light output vs. forward current for LUXEON CZ Mint and Lime at Tj=85°C.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
14
Figure 3e. Typical normalized light output vs. forward current for LUXEON CZ Green, Cyan, Blue and PC Blue at Tj=85°C.
Figure 3f. Typical normalized radiant power vs. forward current for LUXEON CZ Royal Blue at Tj=85°C.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
15
Figure 3g. Typical normalized light output vs. forward current for LUXEON CZ Violet at Tj=85°C.
Figure 3h. Typical normalized light output vs. forward current for LUXEON CZ White at Tj=85°C.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
16
Forward Current Characteristics
Figure 4a. Typical forward current vs. forward voltage for LUXEON CZ Far Red and Deep Red at Tj=85°C.
Figure 4b. Typical forward current vs. forward voltage for LUXEON CZ Red, Red-Orange and Amber at Tj=85°C.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
17
Figure 4c. Typical forward current vs. forward voltage for LUXEON CZ PC Amber at Tj=85°C.
Figure 4d. Typical forward current vs. forward voltage for LUXEON CZ Mint and Lime at Tj=85°C.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
18
Figure 4e. Typical forward current vs. forward voltage for LUXEON CZ Green, Cyan and Blue at Tj=85°C.
Figure 4f. Typical forward current vs. forward voltage for LUXEON CZ Royal Blue at Tj=85°C.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
19
Figure 4g. Typical forward current vs. forward voltage for LUXEON CZ Violet at Tj=85°C.
Figure 4h. Typical forward current vs. forward voltage for LUXEON CZ White at Tj=85°C.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
20
Radiation Pattern Characteristics
White
Blue
Green and Cyan
PC Amber
Royal Blue
Red and Red-Orange
Figure 5a. Typical radiation pattern for LUXEON CZ Red, Red-Orange, PC Amber, Green,
Cyan, Blue, Royal Blue and White at 350mA, Tj=85°C.
Figure 5b. Typical radiation pattern for LUXEON CZ PC Blue at 350mA, Tj=85°C.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
21
White
Blue
Green and Cyan
PC Amber
Royal Blue
Red and Red-Orange
Figure 6a. Typical polar radiation pattern for LUXEON CZ Red, Red-Orange, PC Amber, Green,
Cyan, Blue, Royal Blue and White at 350mA, Tj=85°C.
Figure 6b. Typical polar radiation pattern for LUXEON CZ PC Blue at 350mA, Tj=85°C.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
22
Product Bin and Labeling Definitions
Decoding Product Bin Labeling
In the manufacturing of semiconductor products, there are variations in performance around the average values given in the
technical datasheet. For this reason, Lumileds bins LED components for luminous flux, radiometric power, color point, peak
wavelength, dominant wavelength and forward voltage.
LUXEON CZ Color Line LEDs are labeled using a 4-digit alphanumeric CAT code following the format below:
A B C D
Where:
A
–
designates luminous flux bin or radiometric power bin (luminous flux bin example: A=20 to 25 lumens, B= 25 to
30 lumens; radiometric power bin example: Royal Blue H=480 to 520mW, Violet G=440 to 480mW)
B C –
designates color bin, peak wavelength bin or dominant wavelength bin (peak wavelength bin example: Deep
Red 10=655 to 665nm; dominant wavelength bin example: Red 40=624 to 634nm)
D
–
designates forward voltage bin (example: A=1.70 to 1.90V, B=1.90 to 2.10V)
Therefore, a LUXEON CZ Red LED with a lumen range of 20 to 25 lm, a dominant wavelength of 624 to 634nm and a forward
voltage range of 1.70 to 1.90V has the following CAT code:
A 4 0 A
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
23
Luminous Flux Bins
Table 5 lists the standard photometric luminous flux bins for LUXEON CZ Color Line emitters. Although several bins are outlined,
product availability in a particular bin varies by production run and by product performance. Not all bins are available in all CCTs.
Table 5. Luminous flux bin definitions for LUXEON CZ Color Line.
LUMINOUS FLUX [1] (lm)
Bin
Minimum
Maximum
Y
10
15
Z
15
20
A
20
25
B
25
30
C
30
35
D
35
40
E
40
45
F
45
50
G
50
55
H
55
60
J
60
65
K
65
70
75
L
70
M
75
80
N
80
90
P
90
100
Q
100
110
R
110
120
S
120
130
T
130
140
U
140
150
V
150
170
W
170
190
Notes for Table 5:
1. Lumileds maintains a tolerance of ±6.5% on luminous flux measurements.
Radiometric Power Bins
Table 6. Radiometric power bin definitions for LUXEON CZ Far Red, Deep Red, Royal Blue and Violet.
COLOR
Far Red
Deep Red
Royal Blue
Violet
PART NUMBER
L1CU-FRD1000000000
L1CU-DRD1000000000
L1CU-RYL1000000000
L1CU-VTL1000000000
Bin
RADIOMETRIC POWER [1] (mW)
Minimum
Maximum
Z
150
190
A
190
240
B
240
280
A
190
240
B
240
280
C
280
320
E
360
400
F
400
440
G
440
480
H
480
520
F
400
440
G
440
480
H
480
520
Notes for Table 6:
1. Lumileds maintains a tolerance of ±6.5% on radiometric power measurements.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
24
Color Bin Structure
Figure 7. Color bin structure for LUXEON CZ PC Amber for Table 7.
0.16
0.15
PC Blue
0.14
Bin 30
0.13
0.12
Bin 20
y 0.11
0.10
Bin 10
0.09
0.08
0.07
0.06
0.11
0.12
0.13
0.14
0.15
0.16
0.17
x
Figure 8. Color bin structure for LUXEON CZ
Mint and Lime for Table 7.
Figure 9. Color bin structure for LUXEON C PC Blue for Table 7.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
25
Color Bin Structure
Table 7. Color bin definitions for LUXEON CZ PC Amber, Mint, Lime and PC Blue.
COLOR
PC Amber
PART NUMBER
L1CU-PCA1000000000
Bin
20
22
Mint
L1CU-MNT1000000000
24
27
Lime
L1CU-LME1000000000
10
10
PC Blue
L1C1-PCB1000000000
20
30
x
y
0.5622
0.4372
0.5576
0.4326
0.5775
0.4132
0.5843
0.4151
0.4041
0.4941
0.3901
0.5030
0.3775
0.4787
0.3916
0.4711
0.3916
0.4711
0.3775
0.4787
0.3681
0.4606
0.3823
0.4540
0.3823
0.4540
0.3681
0.4606
0.3587
0.4425
0.3730
0.4369
0.3901
0.5030
0.4232
0.5749
0.4366
0.5616
0.4041
0.4941
0.1379
0.0915
0.1562
0.1142
0.1598
0.0922
0.1447
0.0712
0.1312
0.1106
0.1527
0.1343
0.1562
0.1142
0.1379
0.0915
0.1248
0.1270
0.1494
0.1517
0.1527
0.1343
0.1312
0.1106
Notes for Table 7:
1. Lumileds maintains a tolerance of ±0.005 on x and y color coordinates measurements.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
26
Color Bin Definitions
Note: Color bin space
illustration for 2700K,
3000K, and 3500K. For CCTs
4000K and above the ellipse
centers are all above the
blackbody line.
0.430
0.420
5B
3U
5C
0.410
3L
5A
0.400
5D
485
Color Space Definition for above and below blackbody
480
475
470
460
455
450
445
440
435
0.380
465
3-step MacAdam ellipse
5-step MacAdam ellipse
BBL
"Quadrant" lines
0.390
Figure 11. 3- and 5-step MacAdam ellipse illustration for Table 8.
Figure 10. Color bin structure for LUXEON CZ Color Line.
Table 8a. 3- and 5-step MacAdam ellipse color bin definitions for LUXEON CZ White at 350mA, TJ=85°C
Nominal CCT
Color Space
CENTER POINT [1]
(cx, cy)
Major Axis,
a
Minor Axis,
b
Ellipse Rotation
Angle, θ
2200K
Single 3-step MacAdam ellipse
(0.5020, 0.4156)
0.00863
0.00398
49.3°
2700K
Single 3-step MacAdam ellipse
(0.4578, 0.4101)
0.00810
0.00420
53.7°
3000K
Single 3-step MacAdam ellipse
(0.4338, 0.4030)
0.00834
0.00408
53.2°
3500K
Single 3-step MacAdam ellipse
(0.4073, 0.3917)
0.00927
0.00414
54.0°
4000K
Single 3-step MacAdam ellipse
(0.3818, 0.3797)
0.00939
0.00402
53.7°
5700K
Single 3-step MacAdam ellipse
(0.3287, 0.3417)
0.00746
0.00320
59.1°
2200K
Single 5-step MacAdam ellipse
(0.5020, 0.4156)
0.01438
0.00663
49.3°
2700K
Single 5-step MacAdam ellipse
(0.4578, 0.4101)
0.01350
0.00700
53.7°
3000K
Single 5-step MacAdam ellipse
(0.4338, 0.4030)
0.01390
0.00680
53.2°
3500K
Single 5-step MacAdam ellipse
(0.4073, 0.3917)
0.01545
0.00690
54.0°
4000K
Single 5-step MacAdam ellipse
(0.3818, 0.3797)
0.01565
0.00670
53.7°
5000K
Single 5-step MacAdam ellipse
(0.3447, 0.3553)
0.01370
0.00590
59.6°
5700K
Single 5-step MacAdam ellipse
(0.3287, 0.3417)
0.01243
0.00533
59.1°
6500K
Single 5-step MacAdam ellipse
(0.3123, 0.3282)
0.00115
0.00475
58.6°
Notes for Table 8a:
1. Lumileds maintains a tolerance of ±0.005 on x and y coordinates in the CIE 1931 color space.
Table 8b. MacAdam ellipse color bin definitions for LUXEON CZ Colors.
Bin
SDCM
3U
Single 3-step MacAdam ellipse (80CRI for all CCTs and 90CRI only for CCTs below 4000K)
3L
Single 3-step MacAdam ellipse (80CRI for all CCTs and 90CRI only for CCTs below 4000K)
30
Single 3-step MacAdam ellipse (90CRI for CCTs 4000K and above)
50
5-step MacAdam ellipse (70CRI)
5A
5-step MacAdam ellipse (80CRI and 90CRI)
5B
5-step MacAdam ellipse (80CRI and 90CRI)
5C
5-step MacAdam ellipse (80CRI and 90CRI)
5D
5-step MacAdam ellipse (80CRI and 90CRI)
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
27
Peak Wavelength Bins
Table 9. Peak wavelength bin definitions for LUXEON CZ Far Red, Deep Red, Royal Blue and Violet.
COLOR
PART NUMBER
Far Red
L1CU-FRD1000000000
Deep Red
Royal Blue
Violet
Bin
L1CU-DRD1000000000
L1CU-RYL1000000000
L1CU-VLT1000000000
Peak Wavelength [1] (nm)
Minimum
Maximum
10
720
730
20
730
740
30
740
750
10
655
665
20
665
675
30
440
445
40
445
450
50
450
455
60
455
460
10
420
430
Notes for Table 9:
1. Lumileds maintains a tolerance of ±2.0nm on peak wavelength measurements.
Dominant Wavelength Bins
Table 10. Dominant wavelength bin definitions for LUXEON CZ Red, Red-Orange, Amber, Green, Cyan and Blue at 350mA, Tj=85ºC.
COLOR
PART NUMBER
Bin
DOMINANT WAVELENGTH [1] (nm)
Minimum
Maximum
Red
L1CU-RED1000000000
40
624.0
634.0
Red-Orange
L1CU-RNG1000000000
20
614.0
624.0
10
585.0
590.0
Amber
L1CU-AMB1000000000
20
590.0
594.5
30
594.5
600.0
10
520.0
525.0
20
525.0
530.0
30
530.0
535.0
40
535.0
540.0
10
490.0
496.0
20
496.0
500.0
30
500.0
505.0
40
505.0
510.0
10
460.0
465.0
20
465.0
470.0
30
470.0
475.0
40
475.0
480.0
50
480.0
485.0
Green
Cyan
Blue
L1CU-GRN1000000000
L1CU-CYN1000000000
L1CU-BLU1000000000
Notes for Table 10:
1. Lumileds maintains a tolerance of ±0.5nm on dominant wavelength measurements.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
28
Forward Voltage Bins
Table 11. Forward voltage bin definitions for LUXEON CZ Color Line.
Forward Voltage [1] (Vf)
Bin
Minimum
Maximum
Z
1.50
1.70
A
1.70
1.90
B
1.90
2.10
C
2.10
2.30
D
2.30
2.50
E
2.50
2.70
F
2.70
2.90
G
2.90
3.10
H
3.10
3.30
J
3.30
3.50
Notes for Table 11:
1. Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.
Mechanical Dimensions
Figure 12. Mechanical dimensions for LUXEON CZ Color Line.
Notes for Figure 12:
1. Drawings are not to scale.
2. All dimensions are in millimeters.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
29
Reflow Soldering Guidelines
tp
Tp
Critical Zone
TL to Tp
Ramp-up
TL
Temperature
tL
Tsmax
Tsmin
Ramp-down
ts
Preheat Area
25
Time 25ºC to Peak
JEDEC J-STD-020D
Time
Figure 13. Visualization of the acceptable reflow temperature profile as specified in Table 12.
Table 12. Reflow profile characteristics for LUXEON CZ Color Line.
PROFILE FEATURE
Lead-Free Assembly
Preheat Minimum Temperature (Tsmin)
150°C
Preheat Maximum Temperature (Tsmax)
200°C
Preheat Time (tsmin to tsmax)
60 to 120 seconds
Ramp-Up Rate (TL to Tp)
3°C / second maximum
Liquidus Temperature (TL)
217°C
Time Maintained Above Temperature TL (tL)
60 to 150 seconds
Peak / Classification Temperature (Tp)
260°C
Time Within 5°C of Actual Temperature (tp)
20 to 40 seconds
Ramp-Down Rate (Tp to TL)
6°C / second maximum
Time 25°C to Peak Temperature
8 minutes maximum
JEDEC Moisture Sensitivity
Table 13. Moisture sensitivity levels for LUXEON CZ Color Line.
level
1
Floor Life
Soak Requirements Standard
TIme
Conditions
Time
Conditions
Unlimited
≤30°C / 85% RH
168 Hours +5 / -0
85°C / 85% RH
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
30
Solder Pad Design
Figure 14. Recommended PCB solder pad layout for LUXEON CZ Color Line.
Notes for Figure 14:
1. Drawings are not to scale.
2. All dimensions are in millimeters.
Packaging Information
Pocket Tape Dimensions
Figure 15. Pocket Tape dimensions for LUXEON CZ Color Line.
Notes for Figure 15:
1. Drawings are not to scale.
2. All dimensions are in millimeters.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
31
Reel Dimensions
Figure 16. Reel dimensions for LUXEON CZ Color Line.
Notes for Figure 16:
1. Drawings are not to scale.
2. All dimensions are in millimeters.
3. Maximum 1000 pieces per reel.
DS198 LUXEON CZ Color Line Product Datasheet 20220916 ©2022 Lumileds Holding B.V. All rights reserved.
32
About Lumileds
Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with
them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions
company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the
inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation,
quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is
making the world better, safer, more beautiful—with light.
To learn more about our lighting solutions, visit lumileds.com.
©2022 Lumileds Holding B.V. All rights reserved.
LUXEON is a registered trademark of the Lumileds
Holding B.V. in the United States and other countries.
lumileds.com
DS198 LUXEON CZ Color Line
Product Datasheet 20220916
Neither Lumileds Holding B.V. nor its affiliates shall be liable for any kind of loss of data or any other damages,
direct, indirect or consequential, resulting from the use of the provided information and data. Although Lumileds
Holding B.V. and/or its affiliates have attempted to provide the most accurate information and data, the materials
and services information and data are provided “as is,” and neither Lumileds Holding B.V. nor its affiliates
warrants or guarantees the contents and correctness of the provided information and data. Lumileds Holding
B.V. and its affiliates reserve the right to make changes without notice. You as user agree to this disclaimer and
user agreement with the download or use of the provided materials, information and data. A listing of Lumileds
product/patent coverage may be accessed at lumileds.com/patents.
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Lumileds:
L1CU-MNT1000000000 L1CU-3080000000000 L1CU-RED1000000000 L1CU-5770000000000 L1CUCYN1000000000 L1CU-GRN1000000000 L1CU-BLU1000000000 L1CU-RYL1000000000 L1CU-5070000000000
L1CU-PCA1000000000 L1CU-6570000000000 L1CU-RNG1000000000 L1CU-5790000000000 L1CU4080000000000 L1CU-2780000000000 L1CU-LME1000000000 L1CU-4070000000000 L1CU-AMB1000000000
L1CU-2790000000000 L1CU-2280000000000 L1CU-DRD1000000000 L1CU-3090000000000 L1CUFRD1000000000 L1CU-3580000000000 L1CU-VLT1000000000 L1CU-4090000000000 L1CU-3590000000000
L1CU-PCB1000000000 L1CU-MGO1000000000
工商网监
湘ICP备2023018690号
