Illumination

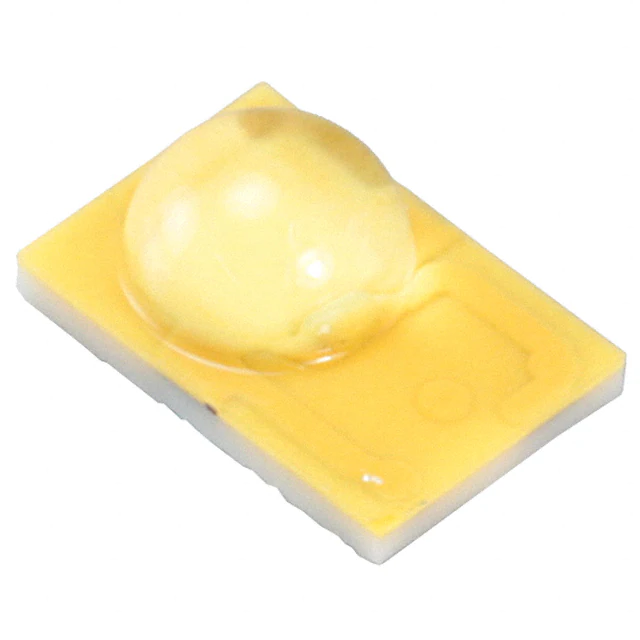

LUXEON Rebel PLUS
The original high power LED
LUXEON Rebel PLUS is designed with the highest possible efficacy and
light output from an industry standard 4530 package with a 2.5mm2
dome. With hot testing and color binning, every LUXEON Rebel PLUS
is tested and specified at real world operating conditions—85°C.
Our exceptional color control enables design simplicity for luminaire
manufacturers and ensures that they can be confident in color
consistency from LED to LED. The superior quality of light, light output,
and real world efficacy enable leading performance and efficient solution
development in a wide variety of outdoor and industry lighting segments.
Features and Benefits
Primary Applications
3- and 5-step MacAdam ellipse: Freedom from Binning for superior
quality of light
High Bay & Low Bay
Ability to deliver high lm/$ for Indoor applications
Outdoor
Low typical Vf ~2.8V
Small optical source size
Full range of CCTs in 80CRI minimum
LM-80 test report available
DS107 LUXEON Rebel PLUS Product Datasheet ©2017 Lumileds Holding B.V. All rights reserved.
No. E352519
Table of Contents
General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Part Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Lumen Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical and Thermal Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Spectral Power Distribution Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Light Output Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Forward Current Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Radiation Pattern Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Product Bin and Labeling Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Decoding Product Bin Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Luminous Flux Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Color Bin Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Forward Voltage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Reflow Soldering Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
JEDEC Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Pad Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Solder Pad Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pocket Tape Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Reel Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
DS107 LUXEON Rebel PLUS Product Datasheet 20170712 ©2017 Lumileds Holding B.V. All rights reserved.
i
General Product Information
Product Test Conditions
LUXEON Rebel PLUS LEDs are tested and binned with a DC drive current of 350mA at a junction temperature, Tj, of 85°C.
Part Number Nomenclature
Part numbers for LUXEON Rebel PLUS follow the convention below:
L X 1 8 – P 1 A A – B
Where:
A A –
designates nominal ANSI CCT (27=2700K, 30=3000K, 35=3500K, 40=4000K, 50=5000K)
B
designates color defintion (3=3 SDCM and 5=5 SDCM)
–
Therefore, the following part number is used for a LUXEON Rebel PLUS 3000K with 3 SDCM:
L X 1 8 – P 1 3 0 – 3
Lumen Maintenance
Please contact your local Sales Representative or Lumileds Technical Solutions Manager for more information about the longterm performance of this product.
Environmental Compliance
Lumileds LLC is committed to providing environmentally friendly products to the solid-state lighting market. LUXEON Rebel PLUS
is compliant to the European Union directives on the restriction of hazardous substances in electronic equipment, namely the
RoHS Directive 2011/65/EU and REACH Regulation (EC) 1907/2006. Lumileds LLC will not intentionally add the following restricted
materials to its products: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated
diphenyl ethers (PBDE).
DS107 LUXEON Rebel PLUS Product Datasheet 20170712 ©2017 Lumileds Holding B.V. All rights reserved.
2
Performance Characteristics
Product Selection Guide
Table 1. Product performance of LUXEON Rebel PLUS at 350mA and 700mA, Tj=85°C.
Minimum
CRI [1, 2]
Minimum
2700K
80
80
3000K
80
85
Typical
Luminous
Efficacy (lm/W)
Typical
Luminous
Efficacy (lm/W)
Typical
Luminous
Flux (lm)
85
88
156
78
LX18-P127-x
95
98
166
83
LX18-P130-x
Luminous Flux [1] (lm)
Nominal
CCT
Typical
350mA
Part Number
700mA
3500K
80
90
98
101
172
86
LX18-P135-x
4000K
80
90
103
107
180
90
LX18-P140-x
5000K
80
95
106
110
186
93
LX18-P150-x
Notes for Table 1:
1. Lumileds maintains a tolerance of ±2 on CRI and ±6.5% on luminous flux measurements.
2. Typical CRI is approximately 2 points higher than the minimum CRI specified, but this is not guaranteed.
Optical Characteristics
Table 2. Optical characteristics for LUXEON Rebel PLUS at 350mA, Tj=85°C.
Part Number
Typical Total Included Angle [1]
Typical Viewing Angle [2]
LX18-P127-x
160°
120°
LX18-P130-x
160°
120°
LX18-P135-x
160°
120°
LX18-P140-x
160°
120°
LX18-P150-x
160°
120°
Notes for Table 2:
1. Total angle at which 90% of total luminous flux is captured.
2. Viewing angle is the off axis angle from the LED centerline where the luminous intensity is ½ of the peak value.
DS107 LUXEON Rebel PLUS Product Datasheet 20170712 ©2017 Lumileds Holding B.V. All rights reserved.
3
Electrical and Thermal Characteristics
Table 3. Electrical and thermal characteristics for LUXEON Rebel PLUS at 350mA, Tj=85°C.
Forward Voltage [1] (Vf)
Typical Thermal
Resistance—Junction
to Solder Pad (°C/W)
Minimum
Typical
MAXIMUM
Typical Temperature
Coefficient of Forward
Voltage [2] (mV/°C)
LX18-P127-x
2.5
2.8
3.0
-1.0 to -3.0
9.0°
LX18-P130-x
2.5
2.8
3.0
-1.0 to -3.0
9.0°
LX18-P135-x
2.5
2.8
3.0
-1.0 to -3.0
9.0°
LX18-P140-x
2.5
2.8
3.0
-1.0 to -3.0
9.0°
LX18-P150-x
2.5
2.8
3.0
-1.0 to -3.0
9.0°
Part Number
Notes for Table 3:
1. Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.
2. Measured between 25°C and 110°C.
Absolute Maximum Ratings
Table 4. Absolute maximum ratings for LUXEON Rebel PLUS.
Parameter
Maximum Performance
1000mA
DC Forward Current [1, 2]
Peak Pulsed Forward Current
LED Junction Temperature
[1]
1000mA
[1, 3]
(DC & Pulse)
150°C
ESD Sensitivity (ANSI/ESDA/JEDEC JS-001-2012)
< 8000V Human Body Model (HBM) Class 3A JESD22-A114-E
Operating Case Temperature [1]
-40°C to 135°C
LED Storage Temperature
-40°C to 135°C
Soldering Temperature
JEDEC 020c 260°C
Allowable Reflow Cycles
3
Reverse Voltage (Vreverse)
LUXEON LEDs are not designed to be driven in reverse bias
Notes for Table 4:
1. Proper current derating must be observed to maintain the junction temperature below the maximum allowable junction temperature.
2. Residual periodic variations due to power conversion from alternating current (AC) to direct current (DC), also called “ripple,” are acceptable if the following conditions are met:
– The frequency of the ripple current is 100Hz or higher
– The average current for each cycle does not exceed the maximum allowable DC forward current
– The maximum amplitude of the ripple does not exceed the maximum peak pulsed forward current
3. Pulsed operation with the maximum peak pulsed forward current is acceptable if the pulse on-time is ≤5ms per cycle and the duty cycle is ≤50%.
DS107 LUXEON Rebel PLUS Product Datasheet 20170712 ©2017 Lumileds Holding B.V. All rights reserved.
4
Characteristic Curves
Spectral Power Distribution Characteristics
1
2700K
3000K
3500K
4000K
5000K
0.9
0.8
Relative Power, [-]
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
350
400
450
500
550
600
650
700
750
800
850
Wavelength, [nm]
Figure 1. Typical normalized power vs. wavelength for LUXEON Rebel PLUS at test current, Tj=85°C.
Light Output Characteristics
1.15
1.1
Normalized Flux, [-]
1.05
1
0.95
0.9
0.85
0.8
-40
-20
0
20
40
60
80
100
120
140
160
Junction Temperature, [ o C]
Figure 2. Typical normalized light output vs. junction temperature for LUXEON Rebel PLUS at 350mA.
DS107 LUXEON Rebel PLUS Product Datasheet 20170712 ©2017 Lumileds Holding B.V. All rights reserved.
5
1.8
1.6
Normalized Flux, [-]
1.4
1.2
1
0.8
0.6
0.4
0.2
100
200
300
400
500
600
700
Forward Current, [mA]
Figure 3. Typical normalized light output vs. forward current for LUXEON Rebel PLUS at Tj=85°C.
Forward Current Characteristics
700
600
Forward Current, [mA]
500
400
300
200
100
2.66
2.68
2.7
2.72
2.74
2.76
2.78
2.8
2.82
2.84
2.86
Forward Voltage, [V]
Figure 4. Typical forward current vs. forward voltage for LUXEON Rebel PLUS at Tj=85°C.
DS107 LUXEON Rebel PLUS Product Datasheet 20170712 ©2017 Lumileds Holding B.V. All rights reserved.
6
Radiation Pattern Characteristics
100
90
80
70
60
50
40
30
20
10
100 90 80 70 60 50 40 30 20 10
0
0 10 20 30 40 50 60 70 80 90 100
Normalized Flux [%]
Figure 5. Typical polar radiation pattern for LUXEON Rebel PLUS at 350mA, Tj=85°C.
Product Bin and Labeling Definitions
Decoding Product Bin Labeling
In the manufacturing of semiconductor products, there are variations in performance around the average values given in the
technical datasheet. For this reason, Lumileds bins LED components for luminous flux or radiometric power, color point, peak or
dominant wavelength and forward voltage.
LUXEON Rebel PLUS LEDs are labeled using a 4-digit alphanumeric CAT code following the format below:
A B C D
Where:
A
–
designates luminous flux bin (example: B=85 to 95 lumens, D=105 to 115 lumens)
B C –
designates color bin (13, 1A, 1B, 1C, 1D)
D
designates forward voltage bin (1=2.50 to 2.75V, 2=2.75 to 3.00V)
–
Therefore, a LUXEON Rebel PLUS with a lumen range of 85 to 95, color bin of 1D and a forward voltage range of 2.50 to 2.75V has
the following CAT code:
B1D1
DS107 LUXEON Rebel PLUS Product Datasheet 20170712 ©2017 Lumileds Holding B.V. All rights reserved.
7
Luminous Flux Bins
Table 5 lists the standard luminous flux bins for LUXEON Rebel PLUS emitters. Although several bins are outlined, product
availability in a particular bin varies by production run and by product performance. Not all bins are available in all CCTs.
Table 5. Luminous flux bin definitions for LUXEON Rebel PLUS.
Luminous Flux [1] (lm)
Bin
Minimum
Maximum
A
75
85
B
85
95
C
95
105
D
105
115
E
115
125
F
125
135
Notes for Table 5:
1. Lumileds maintains a tolerance of ±6.5% on luminous flux measurements.
Color Bin Definitions
Figure 6. Color space definition for LUXEON Rebel PLUS.
Figure 7. 3- and 5-step MacAdam ellipse illustration for Table 6.
Table 6. 3- and 5-step MacAdam ellipse color bin definitions for LUXEON Rebel PLUS, Tj=85°C.
Nominal CCT
Color Space
Center Point [1]
(cx, cy)
Major Axis,
a
Minor Axis,
b
Ellipse Rotation
Angle, θ
2700K
Single 3-step MacAdam ellipse
(0.4578, 0.4101)
0.00810
0.00420
53.70°
3000K
Single 3-step MacAdam ellipse
(0.4338, 0.4030)
0.00834
0.00408
53.20°
3500K
Single 3-step MacAdam ellipse
(0.4073, 0.3917)
0.00927
0.00414
54.00°
4000K
Single 3-step MacAdam ellipse
(0.3818, 0.3797)
0.00939
0.00402
53.70°
5000K
Single 3-step MacAdam ellipse
(0.3447, 0.3553)
0.00822
0.00354
59.60°
2700K
Single 5-step MacAdam ellipse
(0.4578, 0.4101)
0.01350
0.00700
53.70°
3000K
Single 5-step MacAdam ellipse
(0.4338, 0.4030)
0.01390
0.00680
53.20°
3500K
Single 5-step MacAdam ellipse
(0.4073, 0.3917)
0.01545
0.00690
54.00°
4000K
Single 5-step MacAdam ellipse
(0.3818, 0.3797)
0.01565
0.00670
53.70°
5000K
Single 5-step MacAdam ellipse
(0.3447, 0.3553)
0.01370
0.00590
59.60°
Notes for Table 6:
1. Lumileds maintains a tolerance of ±0.005 on x and y coordinates in the CIE 1931 color space.
DS107 LUXEON Rebel PLUS Product Datasheet 20170712 ©2017 Lumileds Holding B.V. All rights reserved.
8
Forward Voltage Bins
Table 7. Forward voltage bin definitions for LUXEON Rebel PLUS, Tj=85°C.
Forward Voltage [1] (Vf)
Bin
Minimum
Maximum
1
2.50
2.75
2
2.75
3.00
Notes for Table 7:
1. Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.
Mechanical Dimensions
Figure 8. Mechanical dimensions for LUXEON Rebel PLUS.
Notes for Figure 8:
1. Drawings are not to scale.
2. All dimensions are in millimeters.
DS107 LUXEON Rebel PLUS Product Datasheet 20170712 ©2017 Lumileds Holding B.V. All rights reserved.
9
Reflow Soldering Guidelines
tp
Tp
Critical Zone
TL to Tp
Ramp-up
TL
Temperature
tL
Tsmax
Tsmin
Ramp-down
ts
Preheat Area
25
Time 25ºC to Peak
JEDEC J-STD-020D
Time
Figure 9. Visualization of the acceptable reflow temperature profile as specified in Table 8.
Table 8. Reflow profile characteristics for LUXEON Rebel PLUS.
PROFILE FEATURE
Lead-Free Assembly
Preheat Minimum Temperature (Tsmin)
150°C
Preheat Maximum Temperature (Tsmax)
200°C
Preheat Time (tsmin to tsmax)
60 to 180 seconds
Ramp-Up Rate (TL to Tp)
3°C / second maximum
Liquidus Temperature (TL)
217°C
Time Maintained Above Temperature TL (tL)
60 to 150 seconds
Peak / Classification Temperature (Tp)
260°C
Time Within 5°C of Actual Temperature (tp)
20 to 40 seconds
Ramp-Down Rate (Tp to TL)
6°C / second maximum
Time 25°C to Peak Temperature
8 minutes maximum
JEDEC Moisture Sensitivity
Table 9. Moisture sensitivity levels for LUXEON Rebel PLUS.
level
1
Floor Life
Soak Requirements Standard
TIme
Conditions
Time
Conditions
Unlimited
≤30°C / 85% RH
168 Hours +5 / -0
85°C / 85% RH
DS107 LUXEON Rebel PLUS Product Datasheet 20170712 ©2017 Lumileds Holding B.V. All rights reserved.
10
Pad Configuration
3
1
3
2
TOP
2
1
BOTTOM
PAD
FUNCTION
1
CATHODE
2
ANODE
3
THERMAL
Figure 10. Pad configuration for LUXEON Rebel PLUS.
Notes for Figure 10:
1. The Thermal Pad is electrically isolated from the Anode and Cathode contact pads.
Solder Pad Design
Figure 11. Solder pad layout for LUXEON Rebel PLUS.
Notes for Figure 11:
1. The photograph shows the recommended LUXEON Rebel PLUS layout on Printed Circuit Board (PCB). This design easily achieves a thermal resistance of 7K/W.
2. Application Brief AB32 provides extensive details for this layout. Printed Circuit Board layout files (.dwg) are available at lumileds.com.
DS107 LUXEON Rebel PLUS Product Datasheet 20170712 ©2017 Lumileds Holding B.V. All rights reserved.
11
Packaging Information
Pocket Tape Dimensions
20
1000
50
Figure 12. Pocket tape dimensions for LUXEON Rebel PLUS.
Notes for Figure 12:
1. Drawings are not to scale.
2. All dimensions are in millimeters.
DS107 LUXEON Rebel PLUS Product Datasheet 20170712 ©2017 Lumileds Holding B.V. All rights reserved.
12
Reel Dimensions
Figure 13. Reel dimensions for LUXEON Rebel PLUS.
Notes for Figure 13:
1. Drawings are not to scale.
2. All dimensions are in millimeters.
DS107 LUXEON Rebel PLUS Product Datasheet 20170712 ©2017 Lumileds Holding B.V. All rights reserved.
13
About Lumileds
Lumileds is the global leader in light engine technology. The company develops, manufactures and distributes groundbreaking
LEDs and automotive lighting products that shatter the status quo and help customers gain and maintain a competitive edge.
With a rich history of industry “firsts,” Lumileds is uniquely positioned to deliver lighting advancements well into the future by
maintaining an unwavering focus on quality, innovation and reliability.
To learn more about our portfolio of light engines, visit lumileds.com.
©2017 Lumileds Holding B.V. All rights reserved.
LUXEON is a registered trademark of the Lumileds
Holding B.V. in the United States and other countries.
lumileds.com
DS107 LUXEON Rebel PLUS
Product Datasheet 20170712
Neither Lumileds Holding B.V. nor its affiliates shall be liable for any kind of loss of data or any other damages,
direct, indirect or consequential, resulting from the use of the provided information and data. Although Lumileds
Holding B.V. and/or its affiliates have attempted to provide the most accurate information and data, the materials
and services information and data are provided “as is,” and neither Lumileds Holding B.V. nor its affiliates
warrants or guarantees the contents and correctness of the provided information and data. Lumileds Holding
B.V. and its affiliates reserve the right to make changes without notice. You as user agree to this disclaimer and
user agreement with the download or use of the provided materials, information and data. A listing of Lumileds
product/patent coverage may be accessed at lumileds.com/patents.
