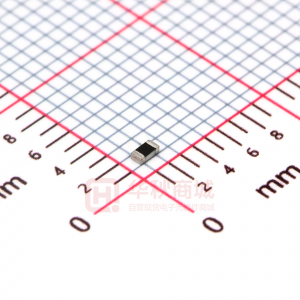

PESD0603-140

PRODUCT: PESD0603-140 ESD Protector 308 Constitution Drive Menlo Park, CA 94025-1164 Phone: 800-227-4856 www.circuitprotection.com Overvoltage Protection Device Raychem Circuit Protection Products DOCUMENT: SCD 26107 REV LETTER: K REV DATE: DECEMBER 7, 2007 PAGE NO.: 1 OF 7 Specification Status: Released Not to be used for new designs. For new designs please use PESD0603-240. BENEFITS • • • • Suitable for high speed data transmission applications Board space savings Help to protect sensitive electronic circuits against damage from electrostatic discharge (ESD) events Assist equipment to pass IEC 61000-4-2, level 4 testing FEATURES • • • • • • Thick film technology Low capacitance (0.25 pF typical) Low clamping voltage Capable of withstanding numerous ESD strikes Compatible with standard reflow installation procedures Bi-directional protection APPLICATIONS • Cellular phones Caution: This part is not intended to be used under bias, nor for application with a power bus. MATERIALS INFORMATION ROHS Compliant ELV Compliant PART NUMBERING PESD 0603 - 140 Series EIA Size The operating voltage is used to measure leakage current @ 1s Operating Voltage Designator 0 14 x 10 = 14VDC PRODUCT: PESD0603-140 ESD Protector 308 Constitution Drive Menlo Park, CA 94025-1164 Phone: 800-227-4856 www.circuitprotection.com Overvoltage Protection Device Raychem Circuit Protection Products DOCUMENT: SCD 26107 REV LETTER: K REV DATE: DECEMBER 7, 2007 PAGE NO.: 2 OF 7 TYPICAL DEVICE RATINGS AND CHARACTERISTICS Typical Typical Typical IEC IEC TLP Clamping Trigger Voltage1 Trigger Voltage1 Voltage2 after 30ns VT(IEC) VC(IEC) VT(TLP) V V V 350 30 320 Typical Typical TLP TLP Clamping Clamping Voltage2 2 Voltage after 60ns after 30ns VC(TLP 30) V 75 VC(TLP 60) V 65 Typical Capacitance @ 1 MHz, 1Vrms Cp pF 0.25 Symbol Unit Value Note 1: IEC61000-4-2, level 4, 8kV contact test method Note 2: TLP test method at 1000V (refer to graph on next page) Note 3: PESD0603-140 can be used only in application without DC bias GENERAL CHARACTERISTICS Operating temperature: -55°C … + 110°C Storage temperature: -40°C … + 85°C ESD voltage capability (tested per IEC 61000-4-2) o o Contact discharge mode: typical 8kV, max 15kV Air discharge mode: typical 15kV, max 25kV ESD pulse withstand: Typically 1,000 pulses (tested per IEC 61000-4-2, level 4, contact method) Environmental Specifications Thermal Shock -55 C to 125ºC 30min dwell 1000 cycles IL≤10µA o Heat Storage Test Solderability Solder Heat Vibration 10 to 50Hz,60s cycle, 2hrs each in X-Y-Z axis IL≤10µA Mechanical Shock 1500G, 0.5ms, X-YZ axis, 3 times IL≤10µA Solvent Resistance Test Conditions 110 C, 1000hours o 230 C±5 C 3±1s, 95% coverage IL≤10µA o o 260 C, 10s o IPA ultrasonic 300s Pass/Fail Criteria IL≤10µA IL≤10µA IL≤10µA PRODUCT: PESD0603-140 ESD Protector 308 Constitution Drive Menlo Park, CA 94025-1164 Phone: 800-227-4856 www.circuitprotection.com Overvoltage Protection Device Raychem Circuit Protection Products DOCUMENT: SCD 26107 REV LETTER: K REV DATE: DECEMBER 7, 2007 PAGE NO.: 3 OF 7 TYPICAL TRANSMISSION LINE PULSE RESPONSE GRAPH 500.00 450.00 400.00 350.00 300.00 Voltage (V) 250.00 200.00 150.00 100.00 50.00 0.00 0.00 10.00 20.00 30.00 40.00 50.00 Time (ns) 60.00 70.00 80.00 90.00 100.00 PRODUCT: PESD0603-140 ESD Protector 308 Constitution Drive Menlo Park, CA 94025-1164 Phone: 800-227-4856 www.circuitprotection.com Overvoltage Protection Device Raychem Circuit Protection Products DOCUMENT: SCD 26107 REV LETTER: K REV DATE: DECEMBER 7, 2007 PAGE NO.: 4 OF 7 DIMENSIONS D A B C Drawing Not To Scale Length A MIN MAX mm: in*: 1.4 (0.055) 1.8 (0.071) Height B MIN MAX 0.4 (0.016) 0.6 (0.024) Terminal Width C MIN MAX 0.1 (0.004) 0.5 (0.02) Width D MIN MAX 0.6 (0.024) 0.9 (0.035) *Rounded off approximation RECOMMENDED LAND PATTERN: Solder thickness 0.15 to 0.2mm X W Y Z W mm: in: * Min 0.9 (0.035) Max 1.0 (0.039) Min 0.5 (0.020) X Max 0.6 (0.024) Y (Ref) Min Max 1.0 1.1 (0.039) (0.043) Z Min 2.7 (0.106) Max 2.8 (0.110) *Rounded off approximation. PRODUCT: PESD0603-140 ESD Protector 308 Constitution Drive Menlo Park, CA 94025-1164 Phone: 800-227-4856 www.circuitprotection.com Overvoltage Protection Device Raychem Circuit Protection Products DOCUMENT: SCD 26107 REV LETTER: K REV DATE: DECEMBER 7, 2007 PAGE NO.: 5 OF 7 SOLDER REFLOW RECOMMENDATIONS: From ambient to Preheating temperature 140°C - 160°C From Preheating to Main heating temperature at 200°C at 220°C at 240°C at 260°C From main heating temperature to 100°C A B C Temperature ramp up 1 Preheating Temperature ramp up 2 Main heating Cooling 30s to 60s 60s to 120s 20s to 40s 60s ~ 70s 50s ~ 60s 30s ~ 40s 5s ~ 10s max 4°C/s D E PRODUCT: PESD0603-140 ESD Protector 308 Constitution Drive Menlo Park, CA 94025-1164 Phone: 800-227-4856 www.circuitprotection.com Overvoltage Protection Device Raychem Circuit Protection Products DOCUMENT: SCD 26107 REV LETTER: K REV DATE: DECEMBER 7, 2007 PAGE NO.: 6 OF 7 PACKAGING Packaging PESD0603-140 Tape & Reel 5,000 Standard Box 25,000 EIA referenced Reel Dimensions for PESD Devices Reel Dimensions (mm): 0603 Devices A 178.0 ±2.0 B 2.0 ±0.5 C 13.0±0.5 D 21.0±0.8 E 62.0±1.5 F 9.0±0.5 G 13.0±1.0 Carrier Dimensions (mm): 0603 Devices A 8.0±0.3 B 3.5±0.05 C 1.75±0.1 D 2.0±0.05 E 4.0±0.1 F 1.5±0.1 L 1.9±0.2 W 1.1±0.20 T1 0.60±0.05 Product Orientation – always face up (meaning the substrate is at the bottom), but parts do not have polarity mark. Leader & Trailer: The leader is 180mm in length & consists of empty cavities with sealed cover tape. The trailer is 350mm in length & consists of empty cavities with sealed cover tape. PRODUCT: PESD0603-140 ESD Protector 308 Constitution Drive Menlo Park, CA 94025-1164 Phone: 800-227-4856 www.circuitprotection.com Overvoltage Protection Device Raychem Circuit Protection Products DOCUMENT: SCD 26107 REV LETTER: K REV DATE: DECEMBER 7, 2007 PAGE NO.: 7 OF 7 POST REFLOW, CLEANING CONDITIONS A 5% saponofier combined with water during wash. For Ultrasonic process water temperature should be at 50°C and board should be submerged for a minimum of one minute in the solutions, then rinse and dry. For in-line washing, the temperature of the water sprayed should be at 110°C, rinse and drying is done in-line. Warning: Application Limitations for PESD0603-140. This part is not intended to be used under bias, nor for power bus applications. Users should independently evaluate the suitability of and test each product selected for their own applications Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Tyco Electronics reserves the right to change or update, without notice, any information contained in this publication; to change, without notice, the design, construction, processing, or specification of any product; and to discontinue or limit production or distribution of any product. This publication supersedes and replaces all information previously supplied. Without expressed or written consent by an officer of Tyco Electronics, Tyco Electronics does not authorize the use of any of its products as components in nuclear facility applications, aerospace, or in critical life support devices or systems. Tyco Electronics expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. Tyco Electronics’ only obligations are those in the Tyco Electronics Standard Terms and Conditions of Sale and in no case will Tyco Electronics be liable for any incidental, indirect, or consequential damages arising from the sale, resale, use, or misuse of its products. © 2004, 2007 Tyco Electronics Corporation. All rights reserved.
