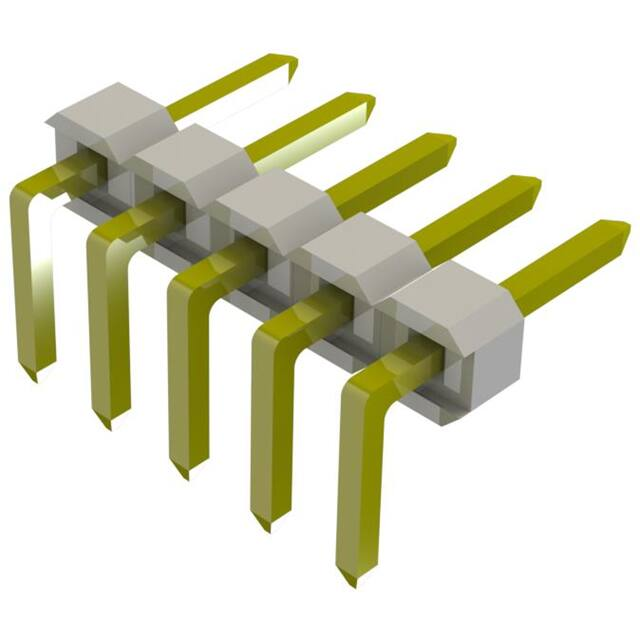

BLTSR-202-S-F-LF

8 7 6 4 5 2 3 1 F F A .015[0.38] B .010[0.25] E E 06 01 .079 [2.00] Recommended P.C. Board Layout SCALE 8:1 General Tolerance .002[0.05] Pin 1 D D .035[0.89] .019[0.50] Sq. .079 [2.00] .079[2.00] BLTSR-2 XX - S - F - XX - LF (A) (B) (C) (D) (E) A. Pins Per Row - 2 through 6 B. Row Specification - S= Single Row C. Plating Options - See Plating Options below D. Packaging Information - TB= Tube E. Lead Free .039 [0.99] C .155 [3.93] B C Plating options F -Gold Flash over Entire Pin Specifications: Current Rating: 2.0 Ampere Insulation Resistance: 1000M Ohms Min. Dielectric Withstanding: 500V AC Contact Resistance: 20M Ohms Max. Operation Temperature: -40°C to +105°C Max. Process Temperature Peak: 260°C up to 20 secs. Process: 230°C up to 60 secs. Wave: 260°C up to 6 secs. Manual Solder: 350°C up to 5 secs. .118 [3.00] .059 [1.50] Makes With: BLSSR -2 BLSSM-2 .050[1.27] Contacts 02 03 04 05 06 Dimensions A B 0.157[4.00] 0.079[2.00] 0.236[6.00] 0.157[4.00] 0.315[8.00] 0.236[6.00] 0.394[9.99] 0.315[8.00] 0.472[11.99] 0.394[9.99] B Materials: Contact Material: Brass Insulator Material: Thermoplastic, UL94V-0, PBT Plating: Gold Flas over entire pin Color: White Tails may be clipped to acheive specific dimensions Products cut to specific sizes are uncancellable/ nonreturnable. Parts are subject to change without notice. UNLESS OTHERWISE SPECIFIED: A PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF Major League Electronics. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF Major League Electronics IS PROHIBITED. 8 7 6 5 4 DIMENSIONS ARE IN INCHES TOLERENCES: ONE DECIMALS ±.100 TWO DECIMAL ±.100 THREE DECIMAL ±.005 FOUR DECIMAL ±.002 3 03/28/14 CHECKED GWE 03/28/14 A MFG APPR. INTERPRET GEOMETRIC TOLERANCING PER: MATERIAL USED ON APPLICATION DATE EOW ENG APPR. FINISH NEXT ASSY NAME DRAWN ADDRESS: 2533 Centennial Blvd. Jeffersonville, In 47130 Phone: 812-670-4174 Fax: 812-670-4175 E-Mail: mle@mlelectronics.com DO NOT SCALE DRAWING 2 TITLE: BLTSR-2 Series SIZE DWG. NO. REV B C SCALE 12:1 SHEET 1 OF 1 1
