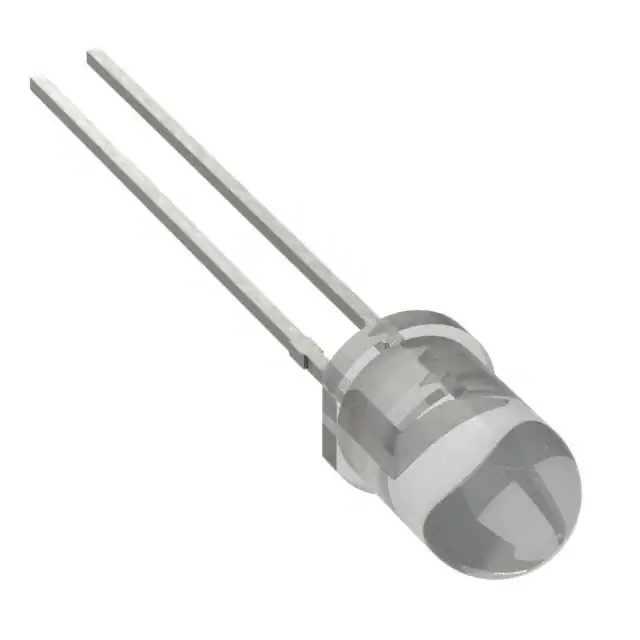

MT5505-BG-30

Visible LED Product No: MT5505-BG-30 Peak Emission Wavelength: 507nm The MT5505-BG-30 is a blue green T 1 3/4, 5mm water clear LED designed for applications requiring high Brightness and high reliability in a narrow angle package. FEATURES > Super Bright LED Lamp > High Luminous Intensity > Narrow Beam Angle > Emitted Color: Blue Green Absolute Maximum Ratings (Ta=25ºC) ITEMS SYMBOL RATINGS UNIT Forward Current (DC) IF 30 mA Forward Current (Peak)*1 IFP 100 mA Reverse Voltage VR 5 V Power Dissipation PD 120 mW Operating Temperature Range Topr -20 ~ +85 ºC Storage Temperature Range Tstg -40 ~ +100 ºC Lead Soldering Temperature*2 Tls 260 ºC *1: 1/10 Duty cycle @ 1KHz. *2: Time 3 Sec, 1.6mm from case. Electrical & Optical Characteristics (Ta = 25ºC) ITEMS SYMBOL CONDITIONS MIN TYP MAX UNIT Forward Voltage VF IF=20mA -- 3.2 3.8 V Reverse Current IR VR=5V -- -- 10 µA Peak Emission Wavelength λp IF=20mA -- 507 -- nm Dominant Wavelength λd IF=20mA -- 505 -- nm Spectral Line Half Width ∆λ IF=20mA -- 30 -- nm Half Intensity Beam Angle Ө IF=20mA -- 30 -- deg Luminous Intensity Iv IF=20mA 10000 15000 -- mcd 2017-04-27 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 1 Visible LED Product No: MT5505-BG-30 Spectral Response 2017-04-27 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 2
