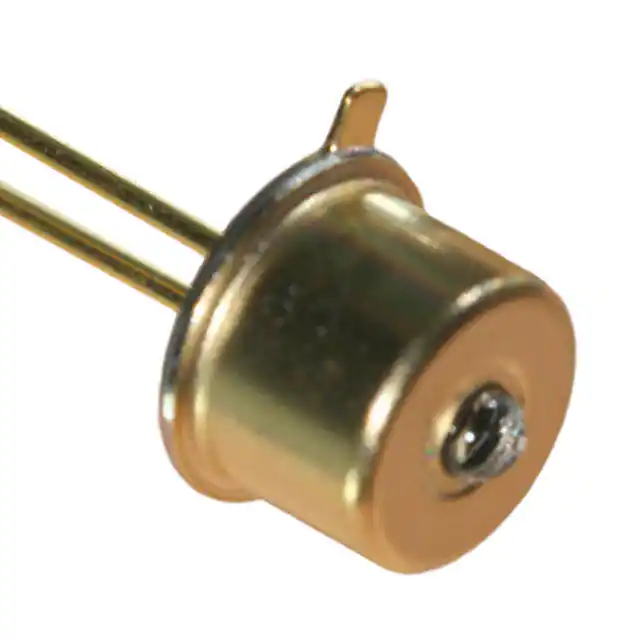

MTE3061SL-WRC

Visible Emitter Product No: M T E 3 0 61SL-WRC Peak Emission Wavelength: 620nm The 620nm visible emitter series is designed for applications requiring high output and precise optical / mechanical axis alignment. Custom package solutions and sorting are available. FEATURES APPLICATIONS > Metal Can Package > Color Sensor / Money Bill > High Reliability > Paper Sensor / Money Bill > Narrow Beam Angle > Bar-code Reader Absolute Maximum Ratings (Ta=25ºC) ITEMS SYMBOL RATINGS UNIT Forward Current (DC) IF 50 mA Forward Current (Pulse)*1 IFP 0.5 A Reverse Voltage VR 5 V Power Dissipation PD 120 mW Operating Temperature Range Topr -20 ~ +85 ºC Storage Temperature Range Tstg -30 ~ +100 ºC Junction Temperature Tj 100 ºC Lead Soldering Temperature*2 Tls 260 ºC *1: Tw=10µsec, T=10msec. *2: Time 5 Sec max, Position: Up to 3mm from the body. Electrical & Optical Characteristics (Ta = 25ºC) ITEMS SYMBOL CONDITIONS MIN TYP MAX UNIT Power Output PO IF=20mA -- 0.85 -- mW Forward Voltage VF IF=20mA -- 2.2 2.6 V Reverse Current IR VR=5V -- -- 100 µA Peak Emission Wavelength λp IF=20mA -- 620 -- nm Spectral Line Half Width ∆λ IF=20mA -- 20 -- nm Half Intensity Beam Angle Ө IF=20mA -- ±10 -- deg 2013-4-22 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 1 Visible Emitter Product No: M T E 3 0 61SL-WRC Unit: mm, Tolerance: ±0.2 2013-4-22 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 2 Visible Emitter Product No: M T E 3 0 61SL-WRC RADIATION PATTERN The information contained herein is subject to change without notice. 2013-4-22 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 3
