MTE4047N2-UB

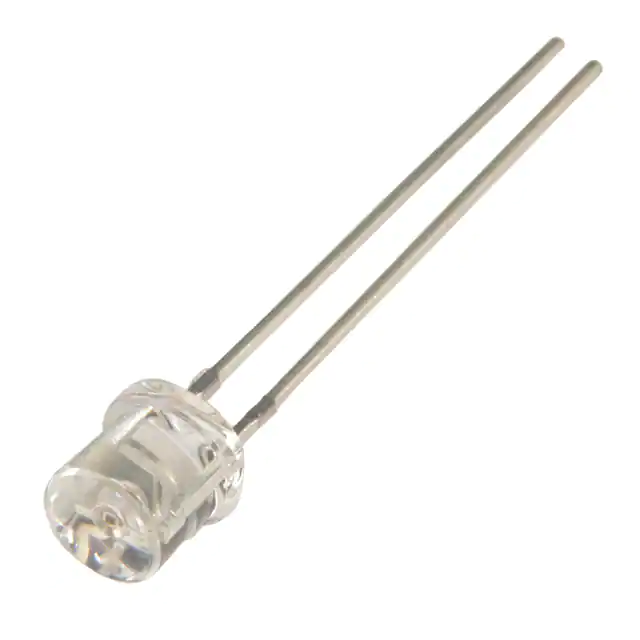

Visible Blue Emitter Product No: M T E 4 047N2-UB Peak Emission Wavelength: 470nm The MTE4047N2-UB consists of a 470nm high output blue die in a water-clear 5mm plastic molded package. Custom package solutions and sorting are available. FEATURES APPLICATIONS > High Output Power > Optical Sensors > High Reliability > Color Sensor (Money-bill) > Paper Sensor (Money-bill) Absolute Maximum Ratings (Ta=25ºC) ITEMS SYMBOL RATINGS UNIT Forward Current (DC) IF 50 mA Forward Current (Pulse)*1 IFP 0.5 A Reverse Voltage VR 5 V Power Dissipation PD 140 mW Operating Temperature Range Topr -20 ~ +80 ºC Storage Temperature Range Tstg -30 ~ +100 ºC Junction Temperature Tj 100 ºC Lead Soldering Temperature*2 Tls 260 ºC *1: Tw=10µsec, T=10msec; *2: Time 5 Sec max, Position: Up to 3mm from the body. Electrical & Optical Characteristics (Ta = 25ºC) ITEMS SYMBOL CONDITIONS MIN TYP MAX UNIT Power Output PO IF=20mA -- 15.0 -- mW Forward Voltage VF IF=20mA -- 3.0 3.5 V Reverse Current IR VR=5V -- -- 100 µA Peak Emission Wavelength λp IF=20mA -- 470 -- nm Spectral Line Half Width ∆λ IF=20mA -- 35 -- nm Half Intensity Beam Angle Ө IF=20mA -- ±40 -- deg 2013-04-01 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 1 Visible Blue Emitter Product No: M T E 4 047N2-UB Unit: mm, Tolerance: ±0.2 2013-04-01 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 2 Visible Blue Emitter Product No: M T E 4 047N2-UB The information contained herein is subject to change without notice. 2013-04-01 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 3
