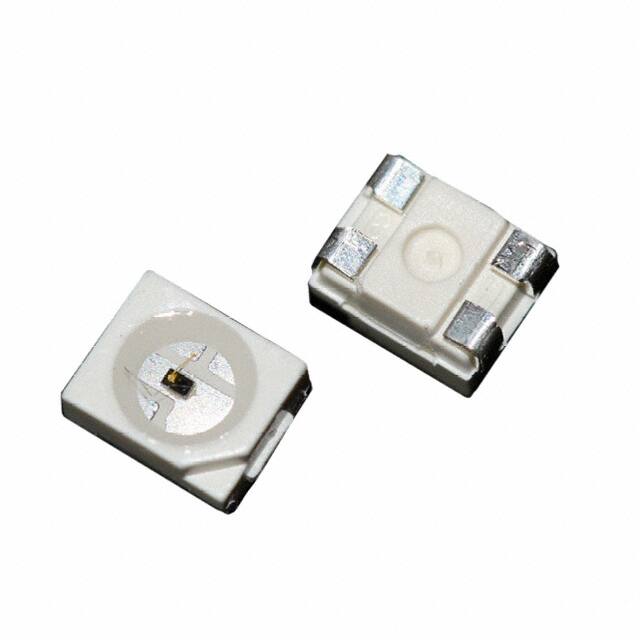

MTPS3085MT

Infrared Point Source Emitter Product No: M T PS3085MT Peak Emission Wavelength: 850nm The 850nm Point Source Series is designed for applications requiring high accuracy and precision as well as uniform spectral emission. Custom package solutions and sorting are available. FEATURES APPLICATIONS > PLCC-4 Package > Optical Scanning > Emitting Window Diameter Ф 50μm > Linear & Rotary Encoder > High Reliability / High Output Power > Edge Sensing > Optical Sensors Absolute Maximum Ratings (Ta=25ºC) ITEMS SYMBOL RATINGS UNIT Forward Current IF 50 mA Forward Current (Pulse)*1 IFP 200 mA Reverse Voltage VR 5 V Power Dissipation PD 100 mW Operating Temperature Range Topr -20 ~ +85 ºC Storage Temperature Range Tstg -30 ~ +100 ºC *1: Tw≤100µsec [4% duty]. Electrical & Optical Characteristics (Ta = 25ºC) ITEMS SYMBOL CONDITIONS MIN TYP MAX UNIT Power Output PO IF=20mA 2.0 2.5 -- mW Power Output*1 PO IFP=200mA 8.0 -- -- mW Forward Voltage VF IF=20mA -- 1.65 2.2 V Reverse Current IR VR=5V -- -- 100 µA Peak Emission Wavelength λp IF=20mA -- 850 -- nm Spectral Line Half Width ∆λ IF=20mA -- 34 -- nm Half Intensity Beam Angle Ө IF=20mA -- ±50 -- deg *1: Tw=100µsec [4% duty]. 2012-02-21 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 1 Infrared Point Source Emitter Product No: M T PS3085MT Unit: mm, Tolerance: ±0.2 2012-02-21 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 2 Infrared Point Source Emitter Product No: M T PS3085MT Unite: mm, Tolerance: ±0.2 2012-02-21 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 3 Infrared Point Source Emitter Product No: M T PS3085MT The information contained herein is subject to change without notice. 2012-02-21 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 4
