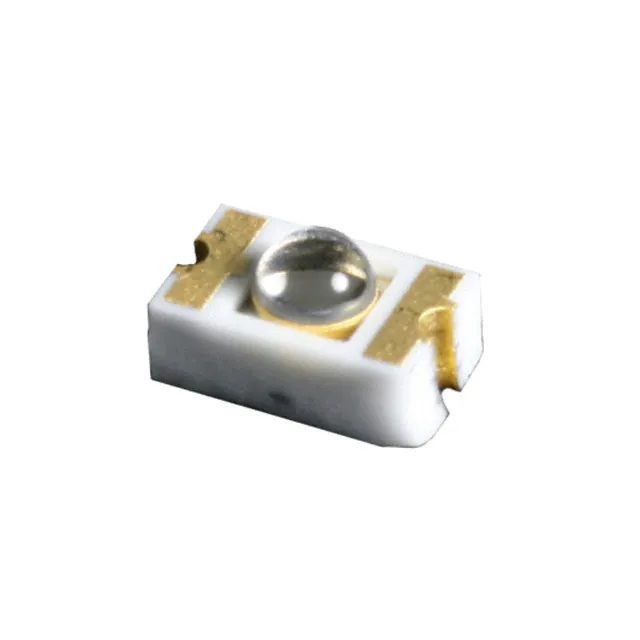

MTPS8085CP

Infrared Point Source LED Product No: M T PS8085CP Peak Emission Wavelength: 855nm The 850nm Point Source Series is designed for applications requiring high accuracy and precision as well as uniform spectral emission. Custom package solutions and sorting are available. FEATURES APPLICATIONS > Ceramic Dome Surface Mount 3.5×2.2×1.91 > Emitting Window Diameter Ф 150μm > Extremely Narrow Radiation Pattern > High Reliability / High Output Power > Optical Scanning > Linear & Rotary Encoder > Edge Sensing > Optical Sensors A bsolute Maximum Ratings (Ta=25ºC) ITEMS SYMBOL RATINGS UNIT Forward Current (DC) Forward Current (Pulse)*1 Reverse Voltage Power Dissipation Operating Temperature Range Storage Temperature Range IF IFP VR PD Topr Tstg 100 0.4 5 110 -20 ~ +85 -30 ~ +100 mA A V mW ºC ºC *1: Tw=10µsec, T=10msec. Electrical & Optical Characteristics (Ta = 25ºC) ITEMS SYMBOL CONDITIONS MIN TYP MAX UNIT Power Output Forward Voltage Reverse Current Peak Emission Wavelength Spectral Line Half Width Half Intensity Beam Angle PO VF IR λp ∆λ Ө IF=20mA IF=20mA VR=5V IF=20mA IF=20mA IF=20mA ------- 2.5 1.7 -855 40 ±6 -2.2 100 ---- mW V µA nm nm deg 2011-02-10 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: w ww.marktechopto.com E MAIL: 1 1 -800-984-5337 • P HONE: 5 18-956-2980 • F AX: 5 18-785-4725 • i nfo@marktechopto.com Infrared Point Source LED Product No: M T PS8085CP Unit: mm, Tolerance: ±0.2 2011-02-10 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: w ww.marktechopto.com E MAIL: 2 1 -800-984-5337 • P HONE: 5 18-956-2980 • F AX: 5 18-785-4725 • i nfo@marktechopto.com Infrared Point Source LED Product No: M T PS8085CP 2011-02-10 G lobal Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: w ww.marktechopto.com E MAIL: 3 1 -800-984-5337 • P HONE: 5 18-956-2980 • F AX: 5 18-785-4725 • i nfo@marktechopto.com Infrared Point Source LED Product No: M T PS8085CP The information contained herein is subject to change without notice. 2011-02-10 G lobal Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: w ww.marktechopto.com E MAIL: 4 1 -800-984-5337 • P HONE: 5 18-956-2980 • F AX: 5 18-785-4725 • i nfo@marktechopto.com
