Ultraviolet Emitter
Product No:
MTSM385UV-D5120
Peak Emission Wavelength: 385 nm
The MTSM385UV-D5120 is a ultraviolet light emitting diode with peak emission wavelength
of 385nm. The High power UV LED is designed for high current operation and high power output
operations. It incorporates state of the art SMD design and low thermal resistant material.
FEATURES
APPLICATIONS
> Super high power output
> Low thermal resistance
> SMT solderable
> Designed for high current operation
> UV Curing
> Printing
> Coating
> Counterfeit Detection / Security
Absolute Maximum Ratings (Ta=25ºC)
ITEMS
SYMBOL
RATINGS
UNIT
Forward Current
If
700
mA
Junction Temperature
Tj
90
ºC
Operating Temperature
Topr
-10 to +85
ºC
Storage Temperature
Tstg
-40 to +100
ºC

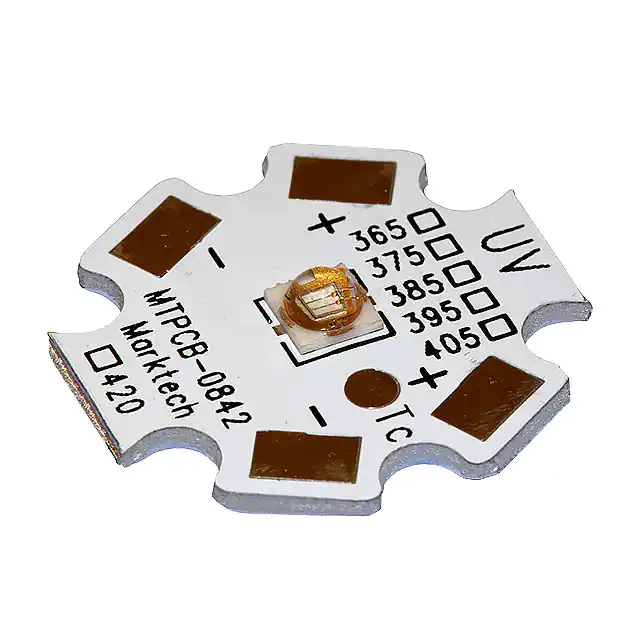

Note: Also available on PCB - Star Board
MTSM385UV-D5120S
Electrical & Optical Characteristics (Ta = 25ºC, RH=30%)
I TE MS
S YM BOL
CONDITION
UNIT
Peak Wavelength [1]
λp
IF=500mA
385
nm
Radiant Flux [2]
Φe [3]
IF=500mA
1100
mW
Forward Voltage [4]
Vf
IF=500mA
3.6
V
FWHM
∆λ
IF=500mA
12
nm
Viewing Angle
2Ө1/2
IF=500mA
120
deg
Thermal Resistance
RӨj-b [5]
--
8.9
ºC/W
TYPICAL
_
Notes:
[1] Peak wavelength Measurement tolerance is ± 3nm
[2] Radiant Flux Measurement tolerance is ± 10%
[3] Φe is the Total Radiant Flux as measured with a radiometer with an integrated sphere
[4] Forward voltage measurement tolerance is ± 3%
[5] RӨj-b is the thermal resistance between chip junction to PCB board bottom.
