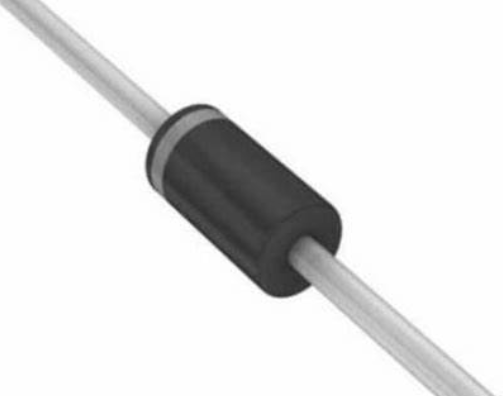

1N4004-TP

MCC 1N4001 THRU 1N4007 R Micro Commercial Components Micro Commercial Components 130 W Cochran St, Unit B Simi Valley, CA 93065 Tel:818-701-4933 Features Halogen free available upon request by adding suffix "-HF" Low Current Leakage and Low Cost Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 • • • • • 1 Amp Rectifier 50 - 1000 Volts Maximum Ratings Operating Temperature: -55°C to +150°C Storage Temperature: -55°C to +150°C Typical Thermal Resistance: 35 °C/W Junction to Case 25°C/W Junction to Lead at 0.375" Lead Length P.C.B. Mounted MCC Device Maximum Maximum Maximum Catalog Marking Recurrent RMS DC Number Peak Voltage Blocking Reverse Voltage Voltage 1N4001 50V 35V 50V 1N4001 1N4002 1N4002 100V 70V 100V 1N4003 1N4003 200V 140V 200V 1N4004 1N4004 400V 280V 400V 1N4005 1N4005 600V 420V 600V 1N4006 1N4006 800V 560V 800V 1N4007 1N4007 1000V 700V 1000V • • • DO-41 D A Cathode Mark B D Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current Peak Forward Surge Current Maximum Instantaneous Forward Voltage Maximum DC Reverse Current At Rated DC Blocking Voltage Typical Junction Capacitance Typical Reverse Recovery Time Rating for fusing IF(AV) 1.0A TA = 75°C IFSM 30A 8.3ms, half sine VF 1.0V IFM = 1.0A; TJ = 25°C* IR 5.0µA 50µA TJ = 25°C TJ = 125°C CJ 15pF Trr 2.0µs Measured at 1.0MHz, VR=4.0V IF=0.5A, IR=1.0A, Irr=0.25A I2t 3.7A2s C DIMENSIONS DIM A B C D INCHES MIN .166 .080 .028 1.000 MAX .205 .107 .034 --- MM MIN 4.10 2.00 .70 25.40 MAX 5.20 2.70 .90 --- NOTE t
