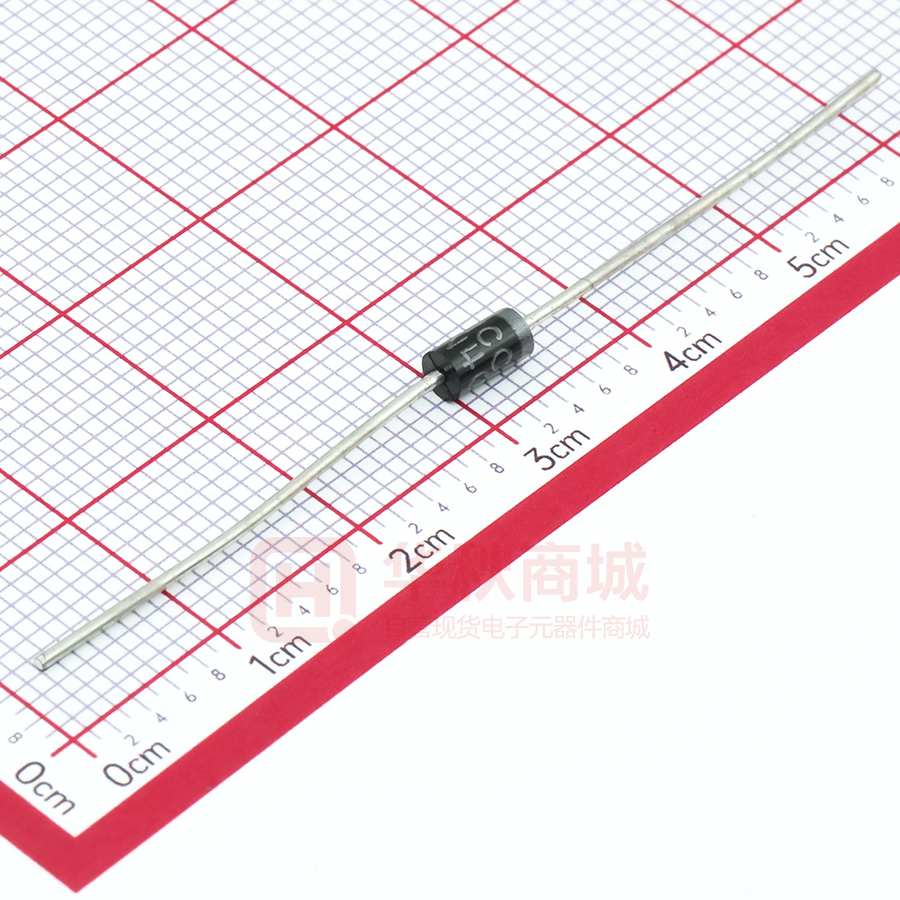

1N4007-TP

1N4001 THRU 1N4007 Features • • • • • Low Current Leakage Epoxy Meets UL 94 V-0 Flammability Rating Moisture Sensitivity Level 1 Halogen Free Available Upon Request By Adding Suffix "-HF" Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix Designates Compliant. See Ordering Information) 1.0 Amp Rectifier 50 to 1000 Volts Maximum Ratings • • • • Operating Junction Temperature Range: -55⁰C to +150⁰C Storage Temperature Range: -55⁰C to +150⁰C Typical Thermal Resistance: 35⁰C/W Junction to Case Typical Thermal Resistance: 25⁰C/W Junction to Lead MCC Part Number Device Marking 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 DO-41 Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage 50V 100V 200V 400V 600V 800V 1000V 35V 70V 140V 280V 420V 560V 700V 50V 100V 200V 400V 600V 800V 1000V D A Cathode Mark Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 1.0A TA=75⁰C Peak Forward Surge Current IFSM 30A 8.3ms,Half Sine Maximum Instantaneous Forward Voltage VF 1.0V IFM=1.0A; TJ=25⁰C(Note 2) Maximum DC Reverse Current At Rated DC Blocking Voltage IR 5.0μA 50μA TJ=25⁰C; TJ=125⁰C 15pF Measured at 1.0MHz VR=4.0V Typical Junction Capacitance CJ B D C Typical Reverse Recovery Time trr 2.0μA IF=0.5A; IR=1.0A; Irr=0.25A Rating for fusing I2t 3.7A2S t
