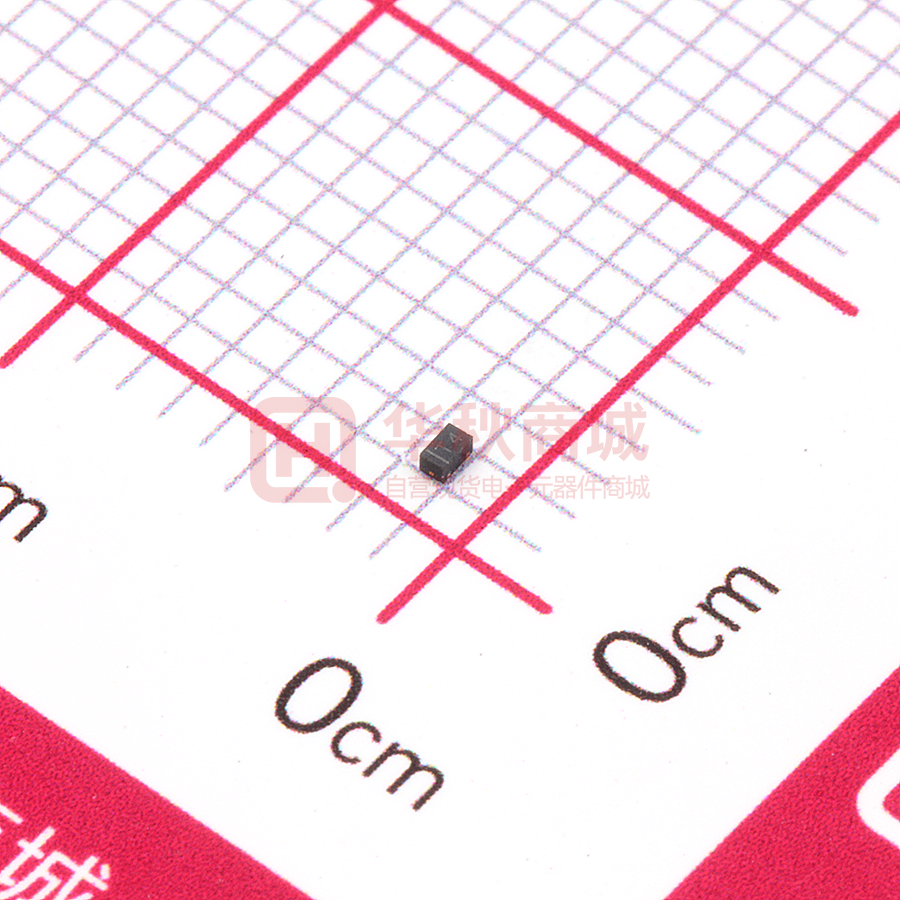

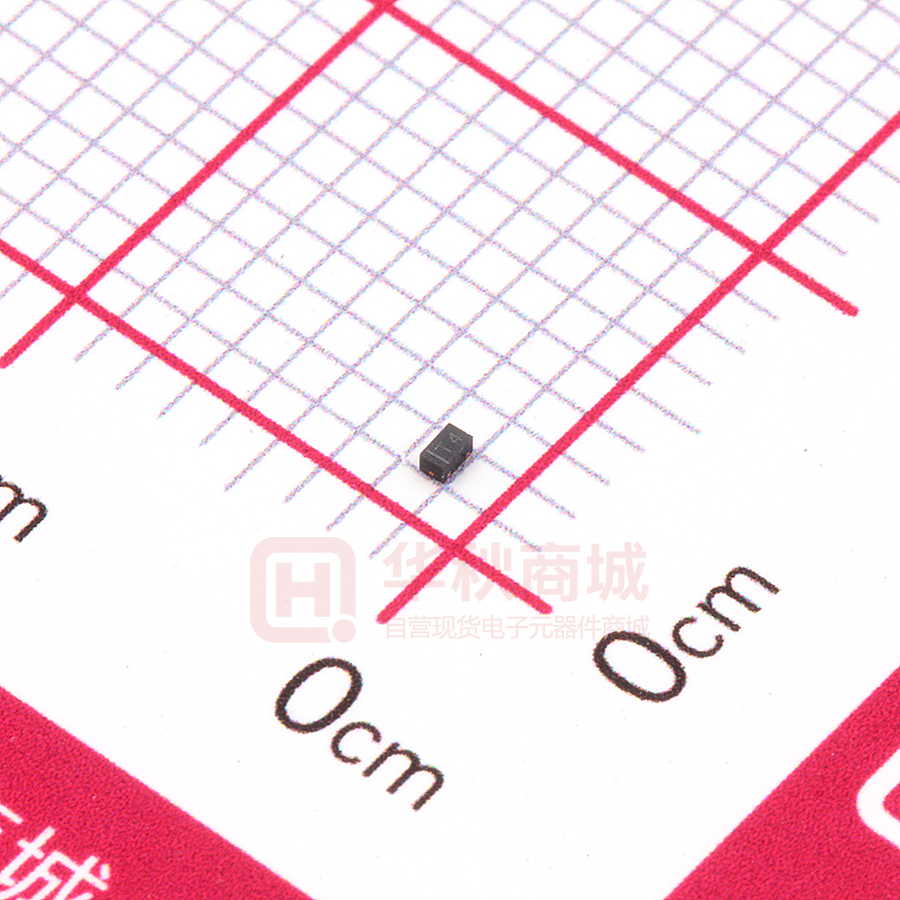

1N4148WL2-TP

1N4148WL2 Features • Low Leakage Current Applications • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Halogen Free Available Upon Request By Adding Suffix "-HF" • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) 150mA,100V Switching Diode Maximum Ratings • • • Operating Junction Temperature Range: -65°C to +150°C Storage Temperature Range: -65°C to +150°C Thermal Resistance: 1250°C/W Junction to Ambient MCC Part Number Device Marking 1N4148WL2 T4 DFN1006-2L Cathode Band C1 Parameter Symbol Value Peak Repetitive Reverse Voltage VRRM 100V Working Peak Reverse Voltage VRWM 100V VR(RMS) 71V IO 150mA Peak Forward Surge Current(t=1μs) IFSM 4A Power Dissipation PD 100mW A B C RMS Reverse Voltage Average Rectified Output Current D F Anode G E DIM A B C C1 D E F G DIMENSIONS INCHES MM MIN MAX MIN MAX 0.037 0.041 0.95 1.05 0.022 0.026 0.55 0.65 0.016 0.020 0.40 0.50 ----- 0.002 ----- 0.05 0.001 0.003 0.02 0.08 0.026 0.65 0.008 0.012 0.20 0.30 0.018 0.022 0.45 0.55 NOTE TYP. Suggested Solder Pad Layout (mm) ╋ 0.8 0.5 1.3 0.3 ╋ 0.6 Rev.3-1-01012019 1/4 MCCSEMI.COM 1N4148WL2 Electrical Characteristics @ 25°C (Unless Otherwise Specified) Parameter Forward Voltage Reverse Current Conditions Symbol Max. Units IF=1mA 0.715 V IF=10mA 0.855 V IF=50mA 1 V IF=150mA 1.25 V VR=25V, TJ=25°C 25 nA VR=25V, TJ=150°C 30 μA VR=75V, TJ=25°C 5 μA VF IR Min. Typ. Junction Capacitance CJ VR = 0V, f = 1MHz 1.5 pF Reverse Recovery Time trr IF=IR=10mA, Irr=0.1*IR,RL=100Ω 4 ns * Pulse Test: Pulse Width 300 μsec, Duty Cycle 2% Rev.3-1-01012019 2/4 MCCSEMI.COM 1N4148WL2 Curve Characteristics Fig. 2 - Typical Reverse Leakage Characteristics Fig. 1 - Typical Instantaneous Forward Characteristics 1000 Instantaneous Reverse Leakage Current (nA) 10000 Forward Current (mA) 100 10 TA=100°C 1 TA=25°C 0.1 0.0 0.4 0.8 TA=100°C 1000 100 10 TA=25°C 1 20 1.2 40 60 80 100 Reverse Voltage (V) Instantaneous Forward Voltage (V) Fig. 3 - Power Derating Curve 140 Power Dissipation (mW) 120 100 80 60 40 20 0 0 25 50 75 100 125 150 Ambient Temperature (°C) Rev.3-1-01012019 3/4 MCCSEMI.COM 1N4148WL2 Ordering Information Device Packing Tape&Reel: 10Kpcs/Reel Part Number-TP Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-1-01012019 4/4 MCCSEMI.COM
